No.1000 Coaxial MTG Multifunction Timegrapher Watch Timing Machine Tester Tool with LCD Screen for Mechanical Watches Coaxial MTG multifunction timegrapher is precise for watch multi-testing by watch manufacturers and watch technician and can work on coaxial watch
Features:

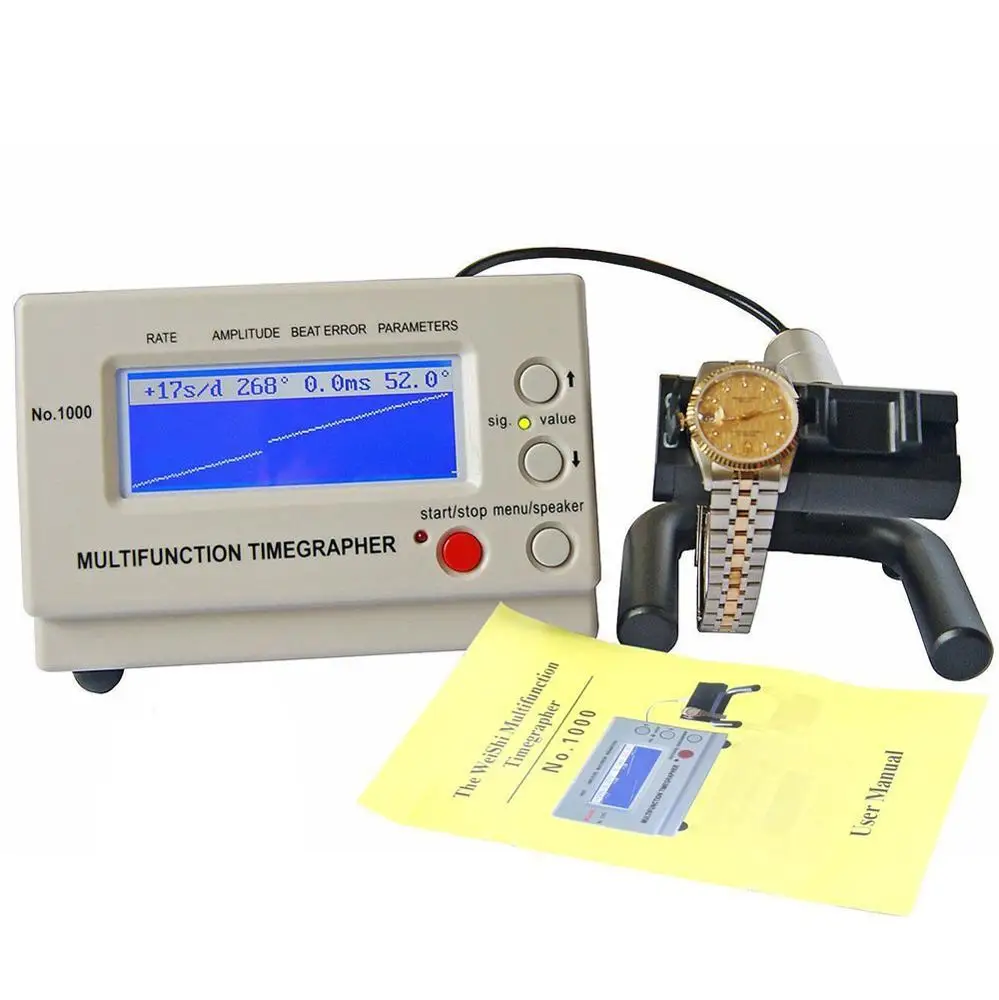

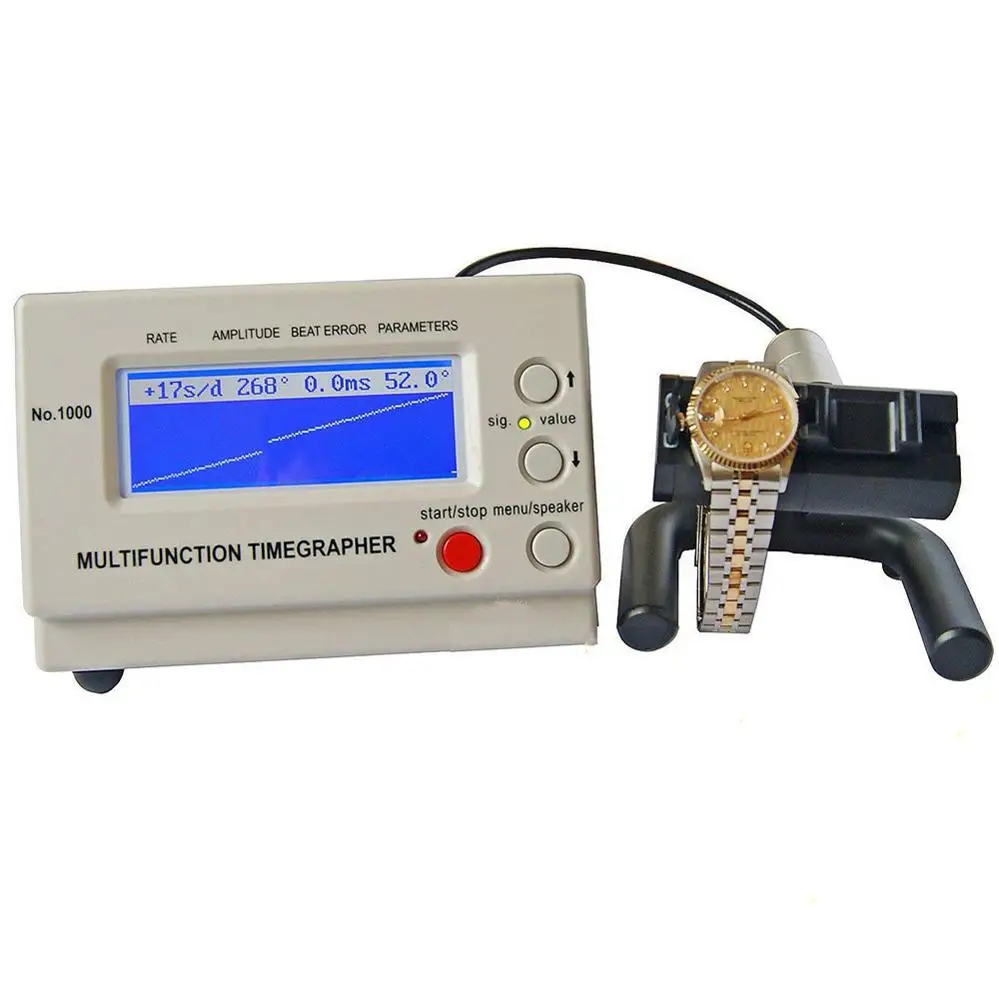

6 kinds of testing position can be adjusted, and the simulation sound can be played in the speaker or mute Can automatically adjust optimal signal level during testing according to different watches Can automatically calculate in real time for the following: beat rate; amplitude; beat error; beat number Can automatically respond to conventional beat and manually select for the special beat With LCD screen to show you information about your watch and its performance, such as beat rate, amplitude, and beat error Precise for watch multi-testing by watch manufacturers and watch technician and can work on coaxial watch
Specifications:
Measuring possibilities: Rate deviation, amplitude, beat error Rate deviation measurement: The range of deviation is±999 sec /day, precision 1.0 sec/day Amplitude measurement: Numerical display in degrees, resolution is 1°, measuring range: 100°to360° Measuring times period for the average numerical results: 2s, 4s, 8s, 12s, 20s, 30s, 30s, 60s Measuring for the beat error(frequency error): Numerical display in milliseconds; Resolution is 0.1 milliseconds; The measuring range is 0-9.9 ms Measuring position: 1 to 6 positions Line length: 480 points Language: Chinese, English, Japanese Supply voltage: Single-phase AC 100 V～240V±10% two-line
Package Included:

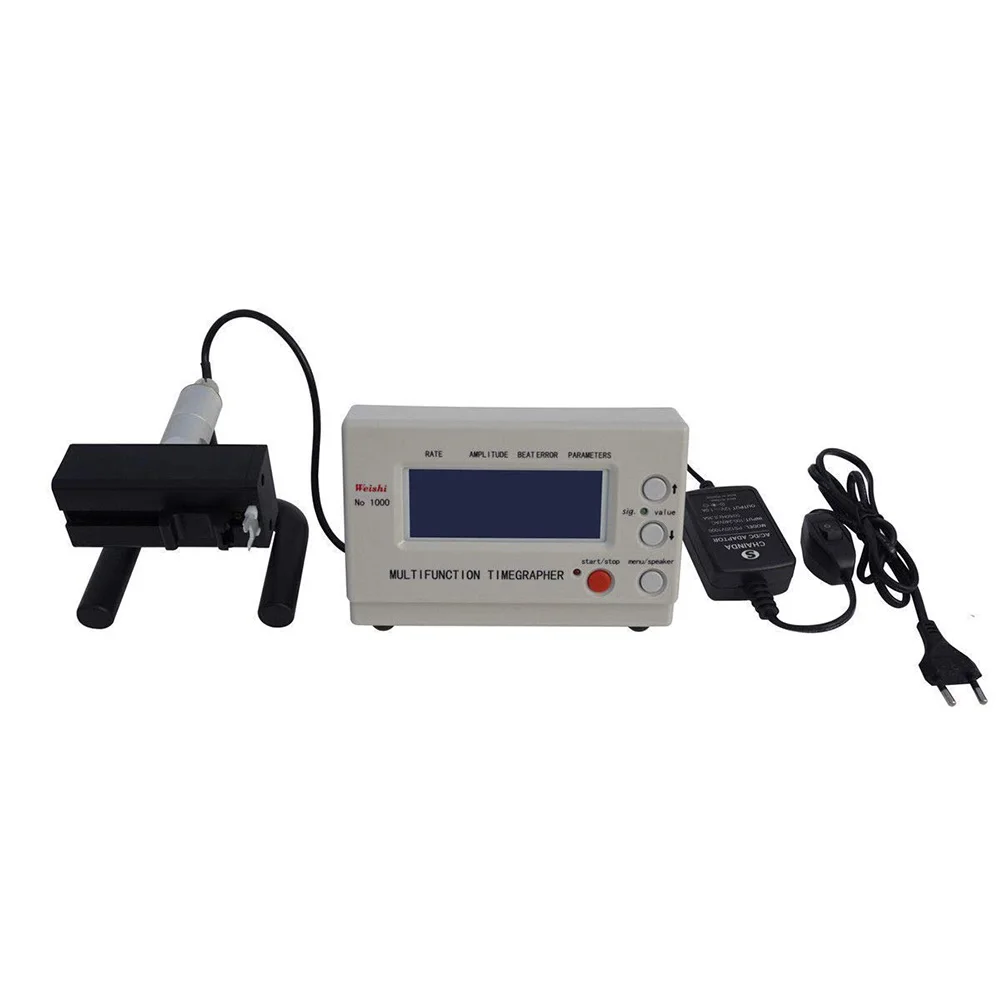

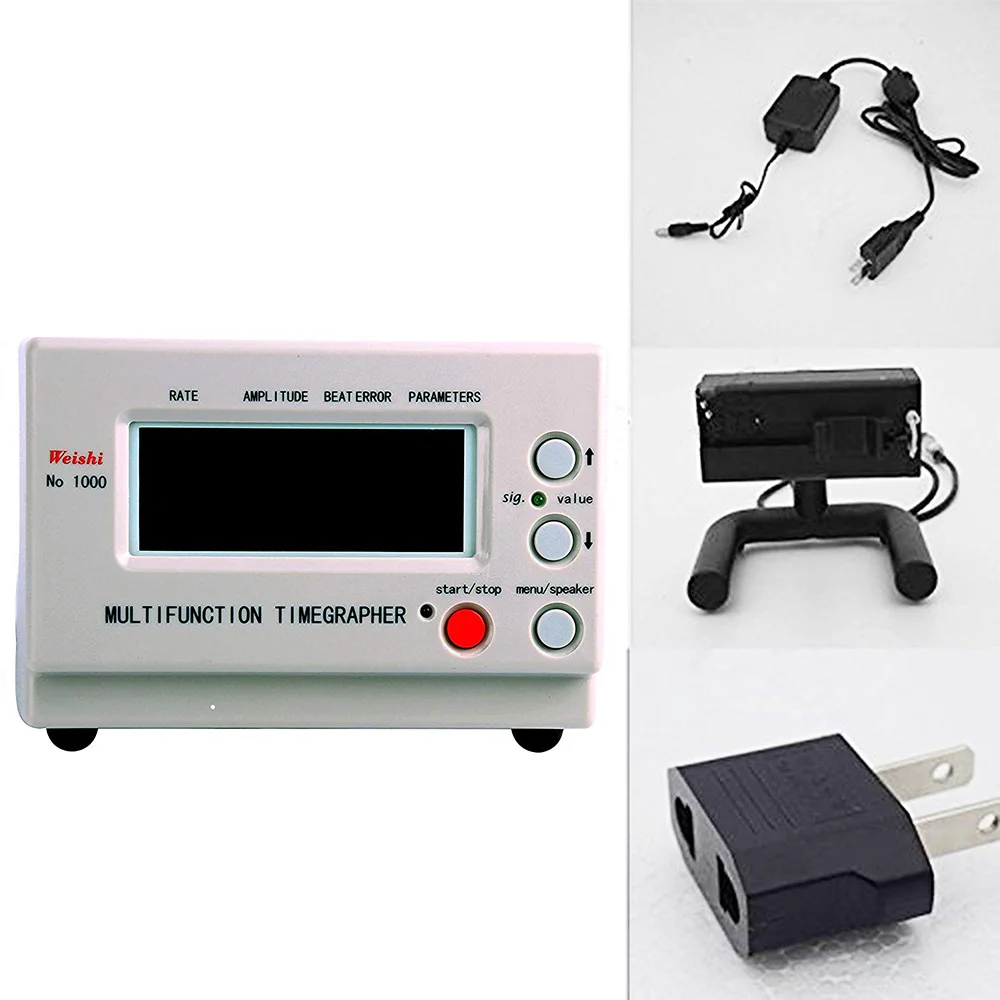

1 X Multifunction Timegrapher 1 X Power Adapter 1 X Microphone 1 X User Manual in English
