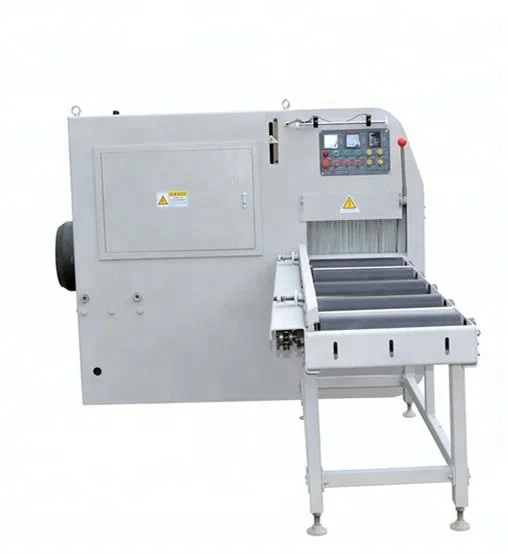

DEALE Square timber /block /plank multi blade saw machine woodworking machine MJ F4 400 100 5D
- Category: >>>
- Supplier: Fujian Deli Electrical And Mechanical Co. Ltd.
Share on (62163358175):
Product Overview
Description
Product Description
Product Application

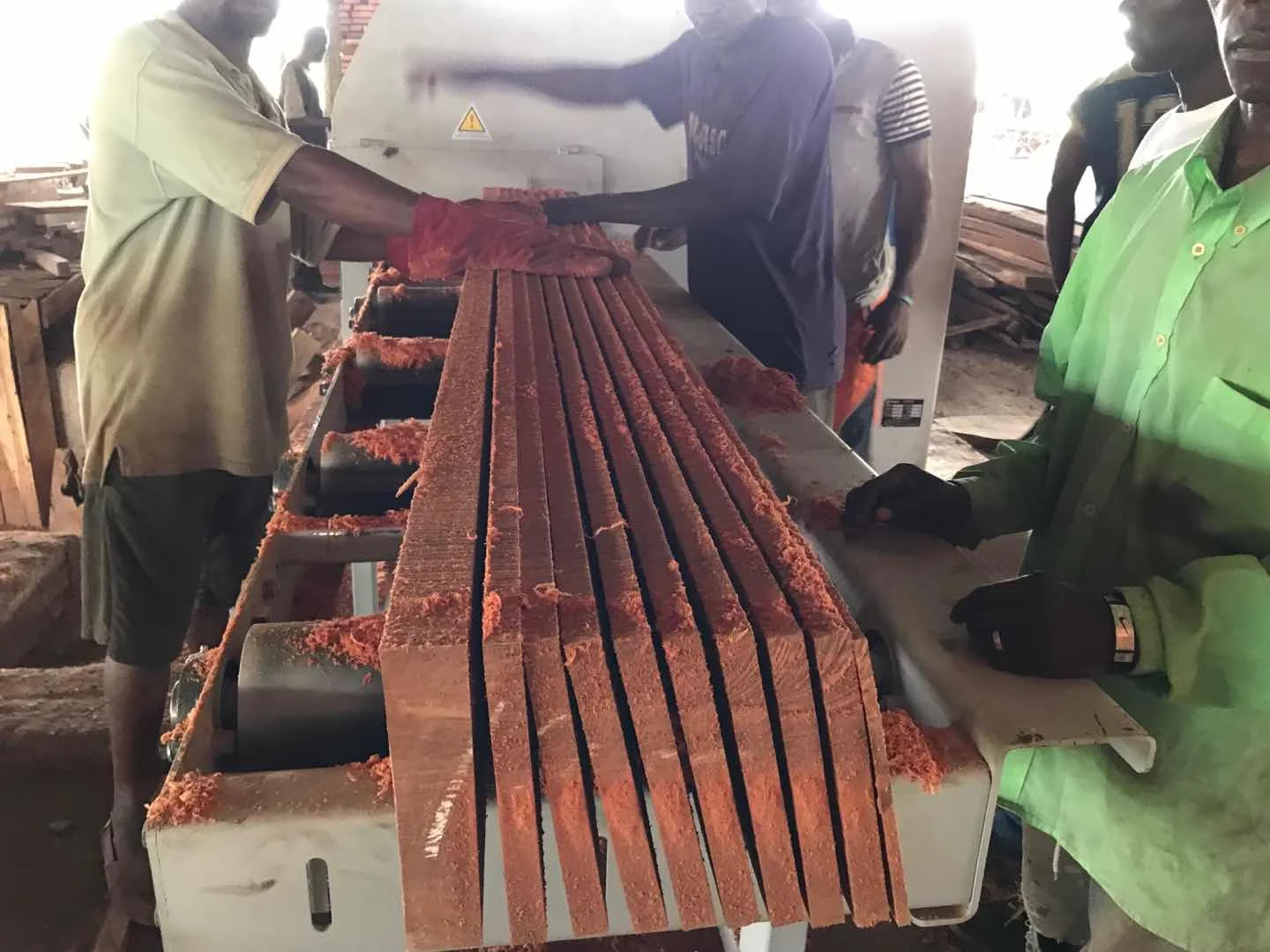

MJ-F4 square wood multi-blade saw is a type of large square wood processing machine. This machine has high production efficiency, high stability, simple operation and maintenance, and high finish of the material. And so on.This equipment is specially designed for wooden house and anticorrosive wood processing. It is suitable for cutting thick timber and large-scale production. The feeding table of the machine is custom-made according to the customer's needs.
SPECIFICATIONS FOR MJ-F4-350-100-5D | ||||||
WORKING SCOPE | working width | min. 110mm | max.400mm | |||
working thickness | min. 50mm | max.100mm | ||||
working length | 1200mm | no limited | ||||

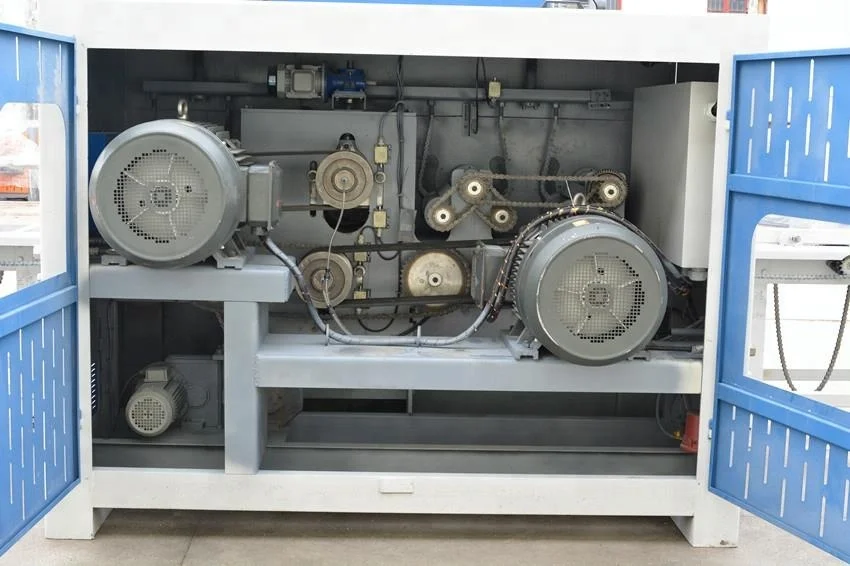

main motor | 30+30KW | |||||
feeding motor | 1.5kw | |||||

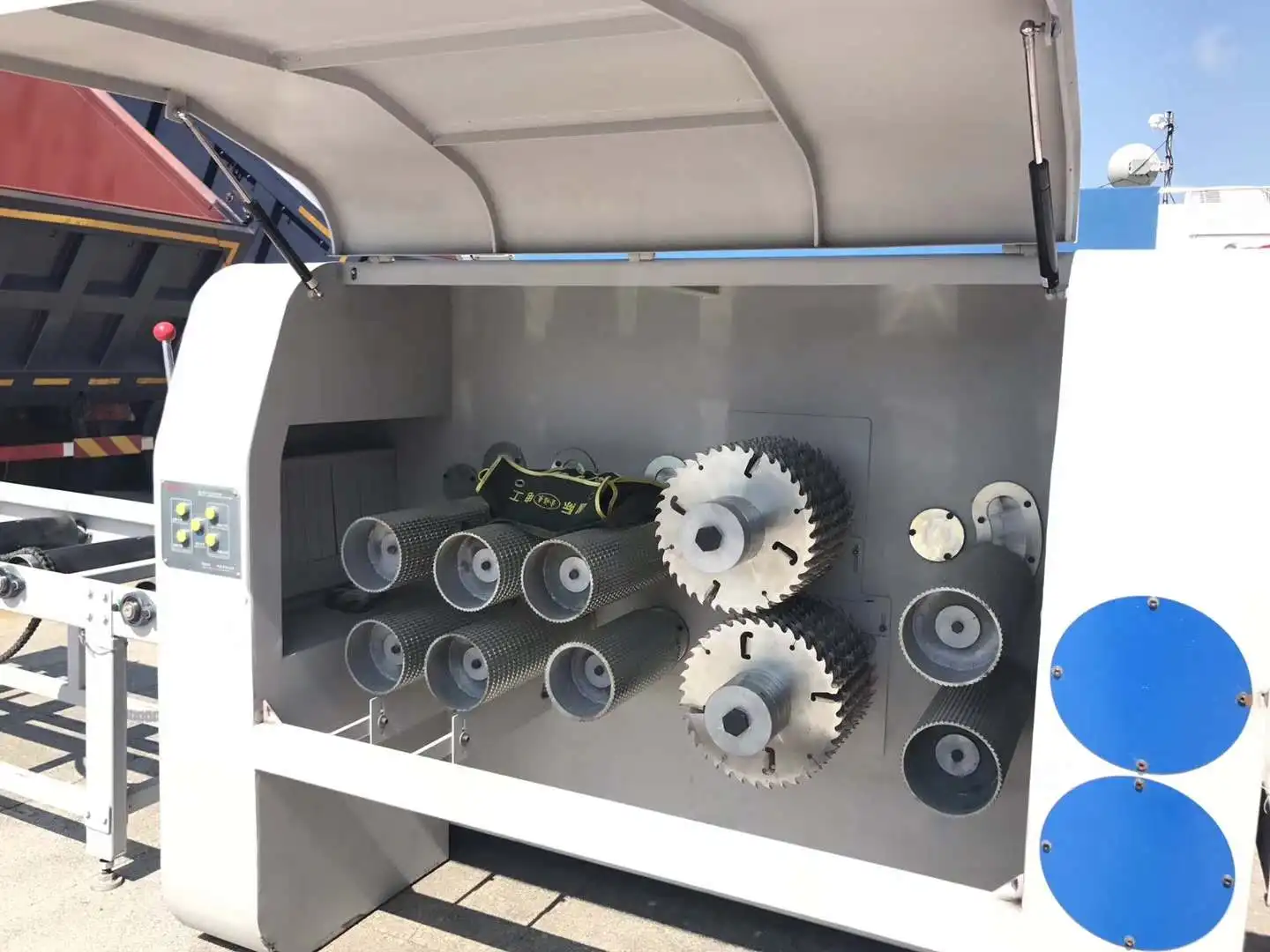

outter diameter | 230mm | |||||
inner diameter | 70mm | |||||
Main Features
1. Heavy design, firm and stable.
2. Infrared alignment device to reduce wood waste
3. The patent of axial water spraying of our company improves the service life of saw blade
4. Multi-power continuous feeding throughout the process to reduce the labor intensity of workers
5. Safety science of dual bulletproof device design
6. The pressure wheel device adopts the point-type dynamic pressure wheel, with smooth and strong feeding, which is difficult to get stuck
Certifications
Detailed Images
Machine Parts

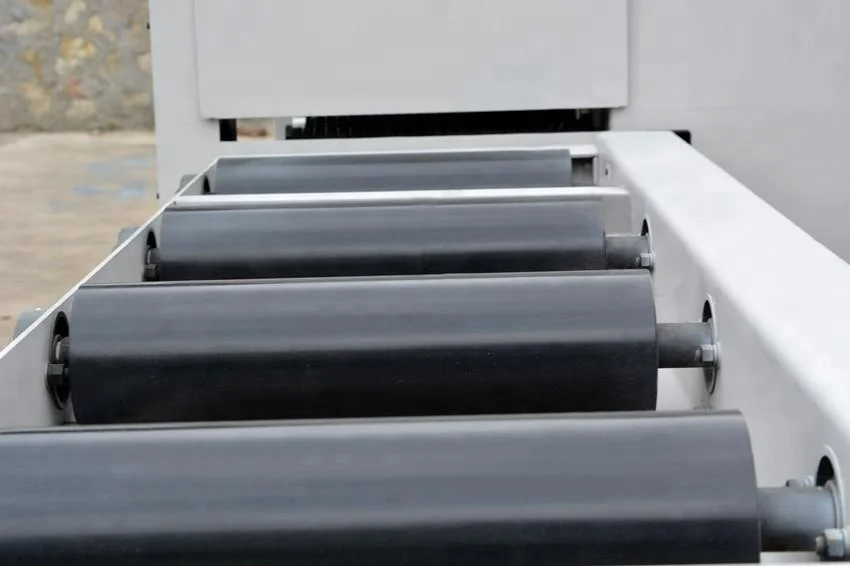

Name: Roller
Brand: FJDELI
Original: China
The quenching roller increases the pressure area so that he pressure uniform,strong and does not clamp material which makes the cutting not easy sway and burning saw blades.
Main Features
Name: Infrared Ray
Original: China
Infrared alignment device, effectively sawing logs, maximizing wood utilization.
Machine Parts
Name: Spocket
Brand: FJDELI
Original: China
High-density gear,wear-resistant,shock resistance,good toughness enables the long-term stable operation of equipment.
Main Features
Name: Transmission-gear type Reducer
Brand: FJDELI
Original: China
Self-made deceleration system, HRC52 hardness. durable and effective.
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Packing & Delivery
Packaging | ||
Size | 4400(L) * 2600 (W) * 1920 (D) | |
Weight | 4.5 T | |
Packaging Details | The machines' normal package is plastic film. Spare parts packed with wood box or carton. If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. | |
