Supreme Price Of Pvc Pipe 4 Inch 4Kg Rate Latest List Making Plant
Production line configuration reference
| Item | component | quantity |
| 1. | single screw extruder | 1set |
| 2. | mould | whole 1set |
| 3. | vacuum calibration tank | 1set |
| 4. | vacuum spraying tank | 1set |
| 5. | hauling machine | 1set |
| 6. | cutter | 1set |
| 7. | stacker | 1set |

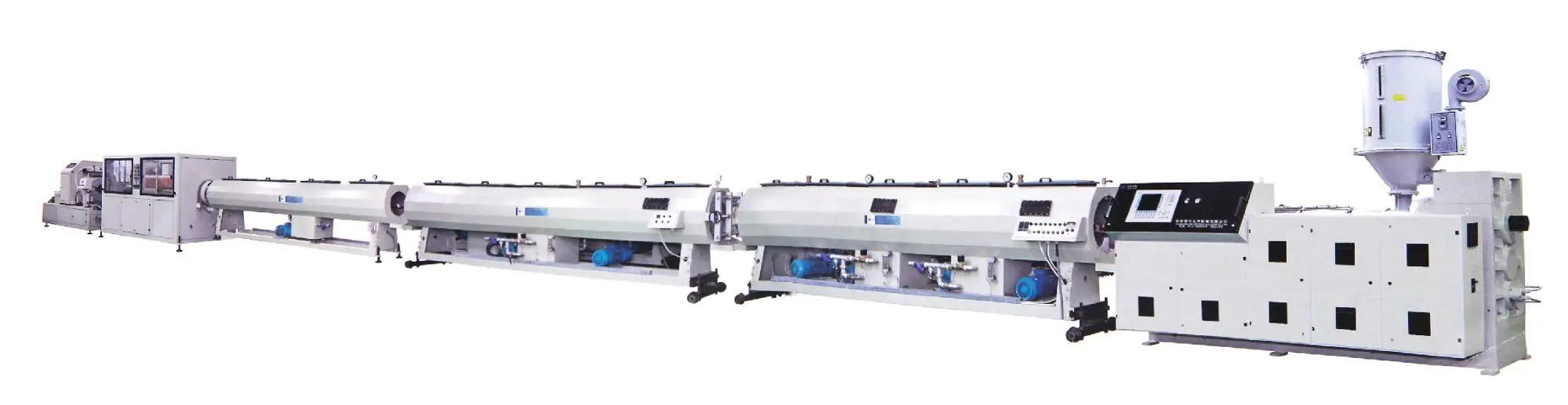

Detail descriptions hdpe pipe machine line ;
This single screw extrusion line is suitable for any thermoplastic extusion,including PP-R,PE,PVC,ABS,etc....
Main parameter of extruder reference
Model | Pipe range(mm) | Extruder Model | Mark-line Extruder Model | Linear Speed (m/min) | Max.ouput(kg/h)
| Total power(kw) |
FHSJL-63 | 20-63 | SJ-50/33 | FSJ-25X25 | 0.2-16 | 120 | 65 |
FHSJL-110 | 20-110 | SJ-65/33 | FSJ-25X25 | 0.2-20 | 220 | 115 |
FHSJL-160 | 63-110 | SJ-75/33 | FSJ-25X25 | 0.2-6 | 300 | 160 |
FHSJL-250 | 75-250 | SJ-80/33 | FSJ-25X25 | 0.2-5 | 400 | 200 |
FHSJL-400 | 160-400 | SJ-90/33 | FSJ-25X25 | 0.2-2 | 550 | 250 |
FHSJL-500 | 200-500 | SJ-100/33 | FSJ-25X25 | 0.1-1 | 700 | 300 |
FHSJL-630 | 355-630 | SJ-120/33 | FSJ-30X25 | 0.1-1 | 900 | 420 |
FHSJL-800 | 400-800 | SJ-135/33 | FSJ-30X25 | 0.1-0.8 | 1200 | 500 |
FHEG-1200 | 800-1200 | SJ-150/33 | FSJ-30X25 | 0.05-0.5 | 1400 | 650 |
FHEG-1600 | 800-1600 | SJ-150/33 | FSJ-30X25 | 0.05-0.5 | 1500 | 850 |
1.screw specication:various kinds of screw speciation are optional for client,adopt high quality screw,38CrMoAlA material with Nitriding treatment.
2.full set of mould can safisfy different diameter pipe production
3.spraying and cooling in high level vacuum condition
4.stainless steel material barrel ,recycling water device to keep the reasonable working temperature
5.automatic length accounting device for precise cutting
6.different kinds of cutting way are optional:
1)non chipping machine ,adopt advanced Germany technique
2)planetary cutting machine (main suitable for large diameter pipe)
3)saw blade cutting
7.stainless steel and adopt pneumatic controlled

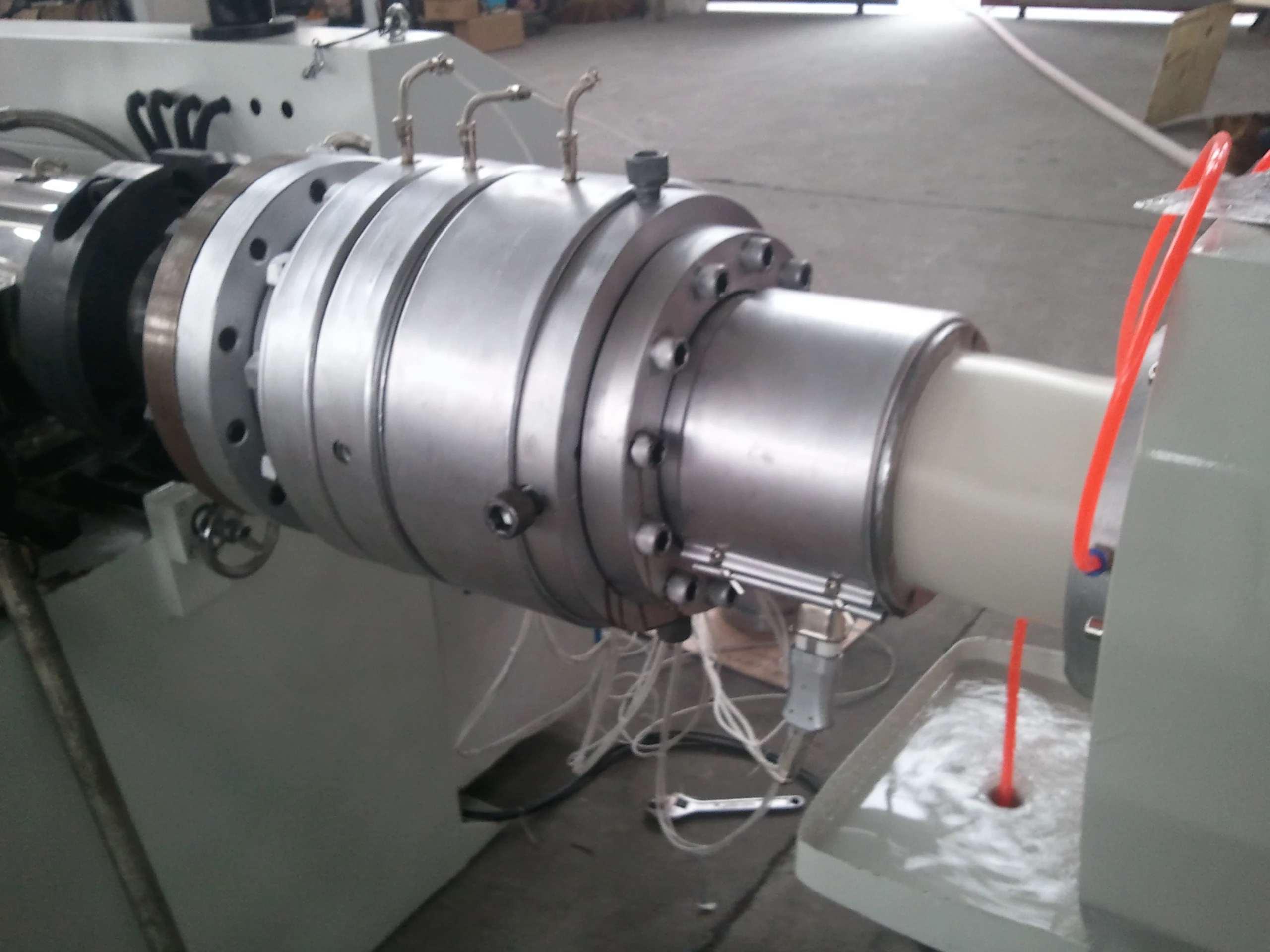

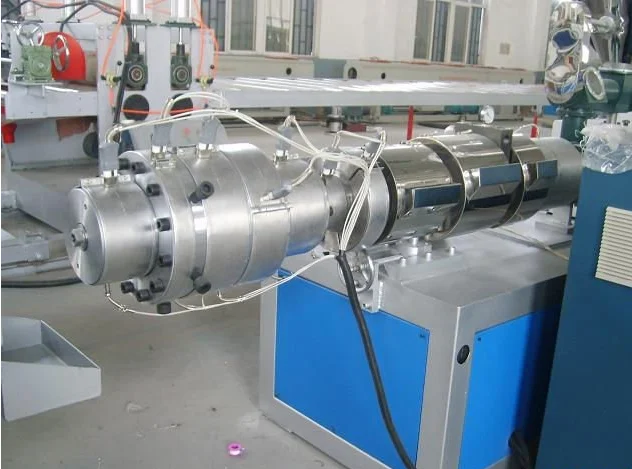

High quality mould for high quality pp/pe pipe extruder

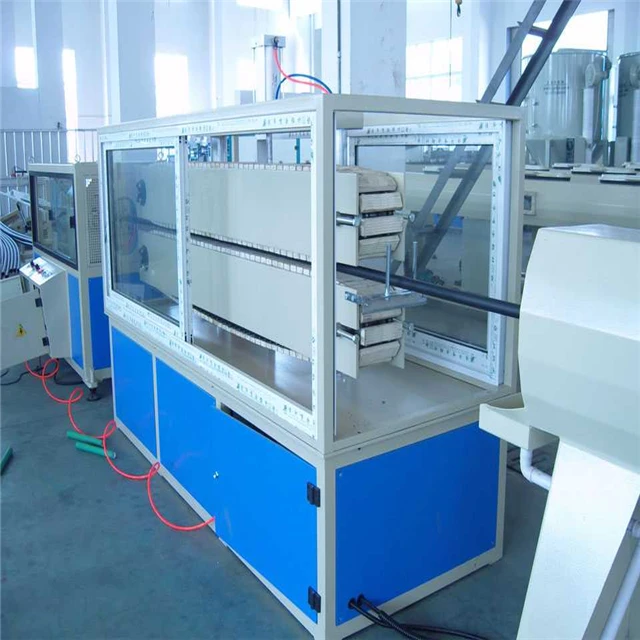

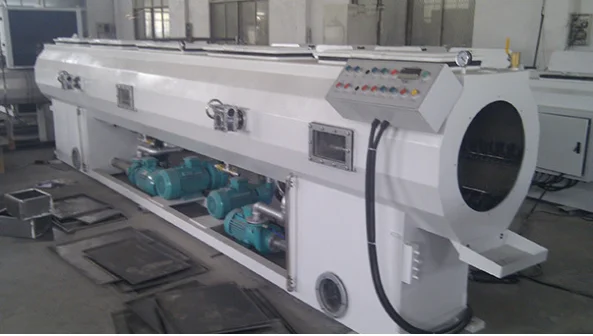

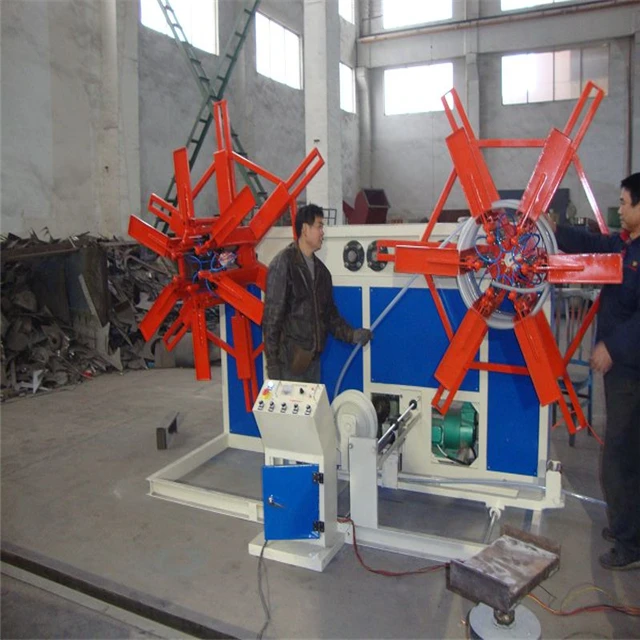

Relevent photos of high quality pp/pe pipe machines
Company Information
ZHANGJIAGANG FUNGWAH MACHINERY CO.,LTD
The company was established in April 1995,is located in jiangsu zhangs' port,mainly engaged in
plastic extrusion machine, washing recycling line, plastic crusher,pipe productionline, production
line and other plastics research and development, production, sales andother business. Enterprise strength strong, strong technical force, strict grasp the production quality, at the same time uphold the operating principle of goodfaith. Operatedby reliable product quality, reasonable price, well
received by customers, has many longterm partner. To use platform to make a man of insight for a better future.
Today the quality of tomorrow' s market. Start now!L ook to the future! With person whowith breadth of vision to create plastic industry tomorrow.
Our Advantages
Certificates
Any question about plastic pipe production line high quality pp/pe pipe extruder ,please feel free to contact us ,
we are pleased to recommend suitable scheme and production configuration for you specially!
Trade Fair
Transportation
FAQ
1 Q: Why choose us?
A: Fenghua machinery is specialized for the products with long time experience. We always
pay attention to the quality of equipment we manufactured, and we have sufficient team
which can go to customer factory in very short time when it's required. And so far we have
installed machines at most hot spot region around the world, the stable running of
machines are the best explanation. Welcome contact us to know reference customer near to
2 Q: How long the machine can be delivered?
A: Generally we have the semi-ready machines or even ready machine at store, so the deliv-
ery time is very fast, normally around 30 40days,depending on the kinds of machines and
the quality of machines you will order.
3 Q: How to install the machines?
A: Upon customer's requirement,we can send technician to customer's factory for installation
and training. So the Chinese technician will install machines, teach local workers about
machine installation and operations and so on.
4 Q: What kind payment terms?
A: We can accept multiple kind payment terms,like T/T, LC,ETC.
5 Q: What's the warranty?
A: One year since installation completed. In the warranty period, in case any parts broken by
uncontrolled factor, we will be responsible and send the parts immediately by courier or air
cargo.
