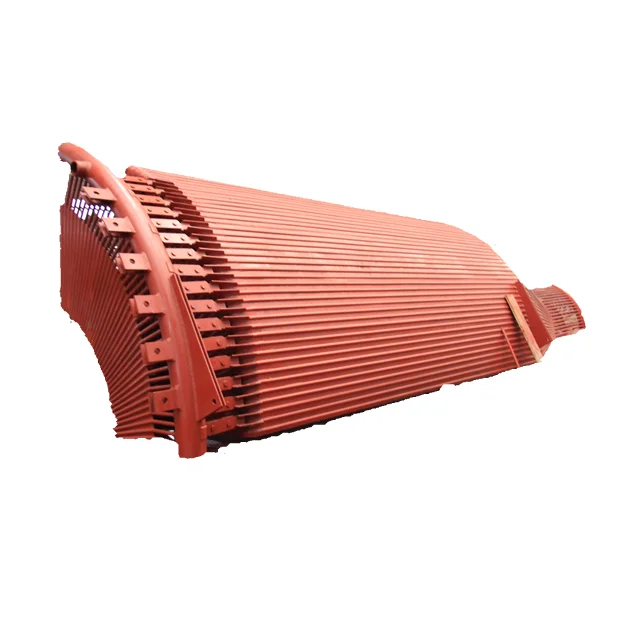

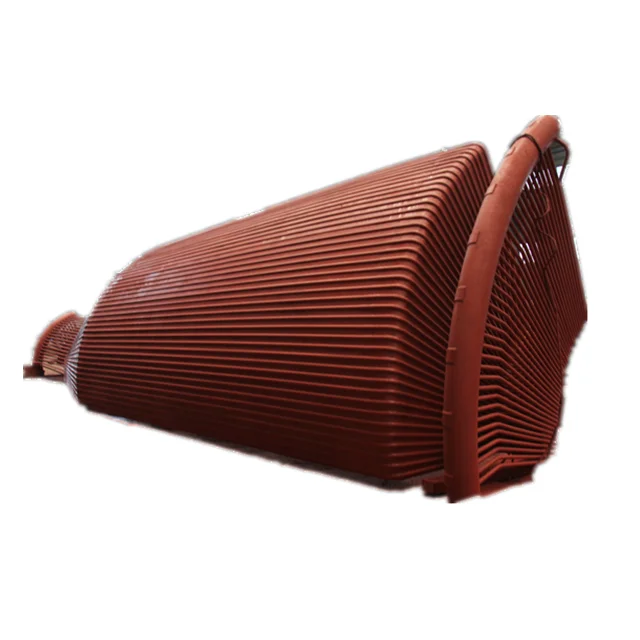

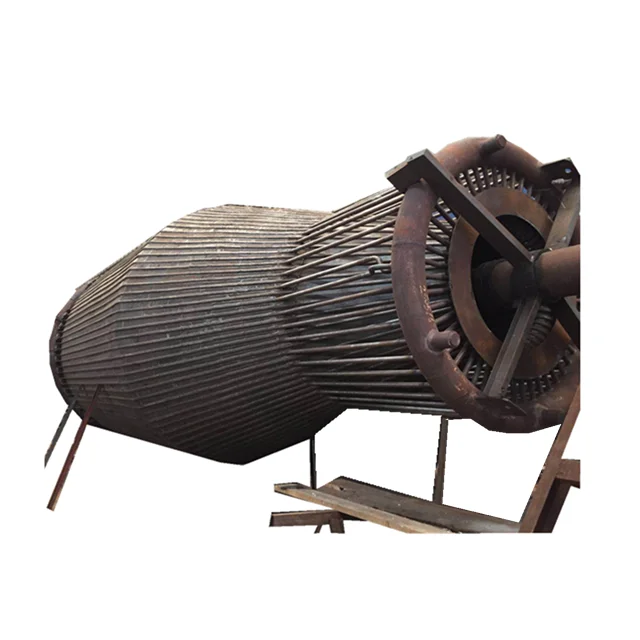

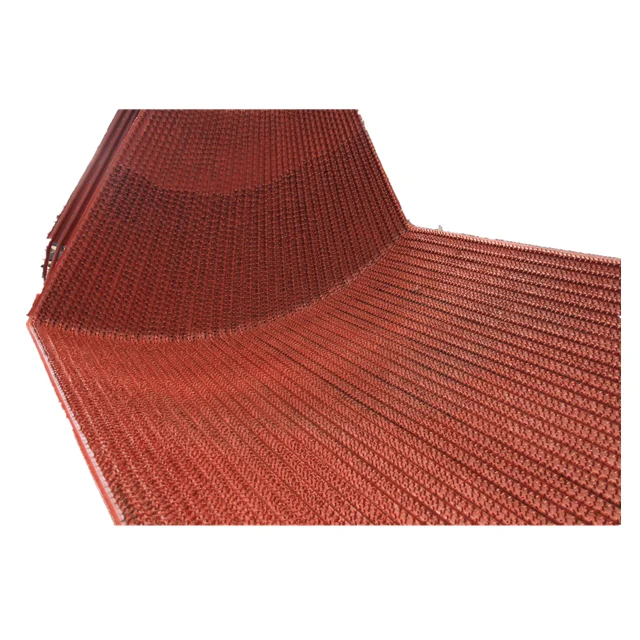

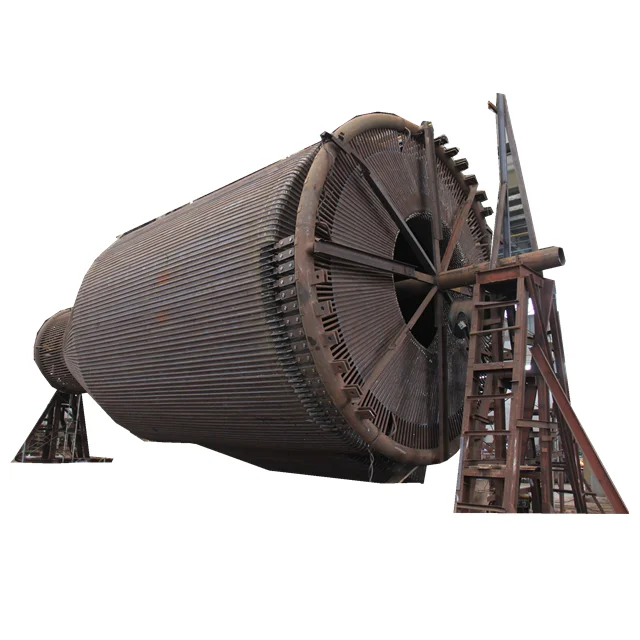

CFB Boiler Industrial Cyclone Separator With High Speed Rotating

A high speed rotating (air)flow is established within a cylindrical or conical container called a cyclone. Air flows in a spiral pattern, beginning at the top (wide end) of the cyclone and ending at the bottom (narrow) end before exiting the cyclone in a straight stream through the center of the cyclone and out the top. Larger (denser) particles in the rotating stream have too much inertia to follow the tight curve of the stream and strike the outside wall, falling then to the bottom of the cyclone where they can be removed. In a conical system, as the rotating flow moves towards the narrow end of the cyclone the rotational radius of the stream is reduced, separating smaller and smaller particles.

Cyclonic separation can eliminate particulates, such as dirt and dust, from a stream of air, gas or liquid. Engineers sometimes call these tornadic dust busters centrifugal separators. That's because at the root of these machines is something called centrifugal force.

1.The collected product remainls dry
2.Can handle sticky and tacky solids with proper liquid irrigation
3.Low maintenance cost
4.Very compact in most applications
5.Can be used under very extreme processing conditions
6.No moving parts
7.Constant Pressure Drop
8.Can be equipped with erosion or corrosion resistant
9.Can be fabricated with plate metal
10.Separate liquid or solid particulates,sometiome both in combination with proper design
