Digital pH ORP Redox 2 in 1 Controller Monitor w/ Output Power Relay Control, Electrode Probe BNC, Water Quality Meter Kit

\t
Digital pH ORP Redox 2 in 1 Controller Monitor w/ Output Power Relay Control, Electrode Probe BNC, Water Quality Meter Kit

Product Description

The most advanced type of CONTROLLER with which it can simultaneously measure and display the pH value and redox value (ORP) as well as the other all at the same time which is contrary to almost all other PH/ORP controller. It has 2 electrodes (pH and redox) that can be replaced anytime, 2 circuits and 2 switched sockets. It can simultaneously control CO²-plant (via pH value) and ozoniser (via orp value) at the same time. It allows you to control or operate 1 value at time, if necessary, you can operate the equipment with only pH value or just the redox value. It regulates pH and redox values in liquids.

Simply set the desired pH/redox values in the controller. If the currently measured pH or Redox value increases or decreases this deviation is adjusted . This can be done with the relay-steered 110V/220V plug socket of the controller.

You can attach every 110V/220V device to it e.g. air outlet stone, O3 ozoni-ser, oxygen pump, CO2-regulator, electromagnetic valve and other ORP & pH control devices.

An ozone generation unit or ozonizers and CO2 system are control devices that regulate the amount of ozone and release carbon dioxide of the water respectively, which largely affects the pH level and filtration of the system. Ozone is an EFFECTIVE AGENT AGAINST PARASITES AND BACTERIAL DISEASES and an excellent water sanitizer, antipollution and disinfectant.

A CO2 system helps your fish to RELIEVE STRESS stress and your plants to grow, flourish, and have vibrant colors.



Applications & Usage:

Fish hatchery, wine production, swimming pool (bath), laboratories, water conditioning, schools & colleges, floristics, for analysis of fluids (ph-value), ponds, various industrial application, Pisciculture, Koi, Kois, Boilere, Pond, Pool, Spa, swimming pools, pool, analysis of liquids, orchids breed, breeder, hemp, grow, etc.



Features

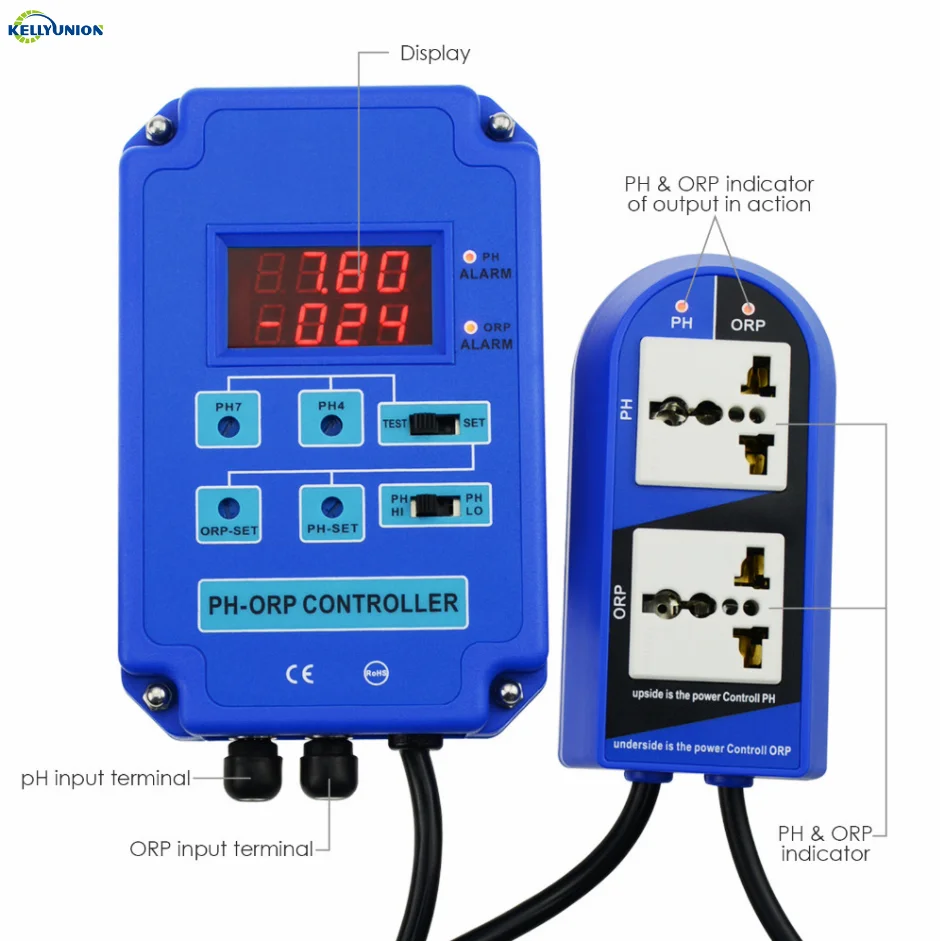

Display pH value and redox value (ORP) all at the same time in its LCD screen

Equipped with 2 probes (pH and redox), 2 circuits and 2 switched sockets.

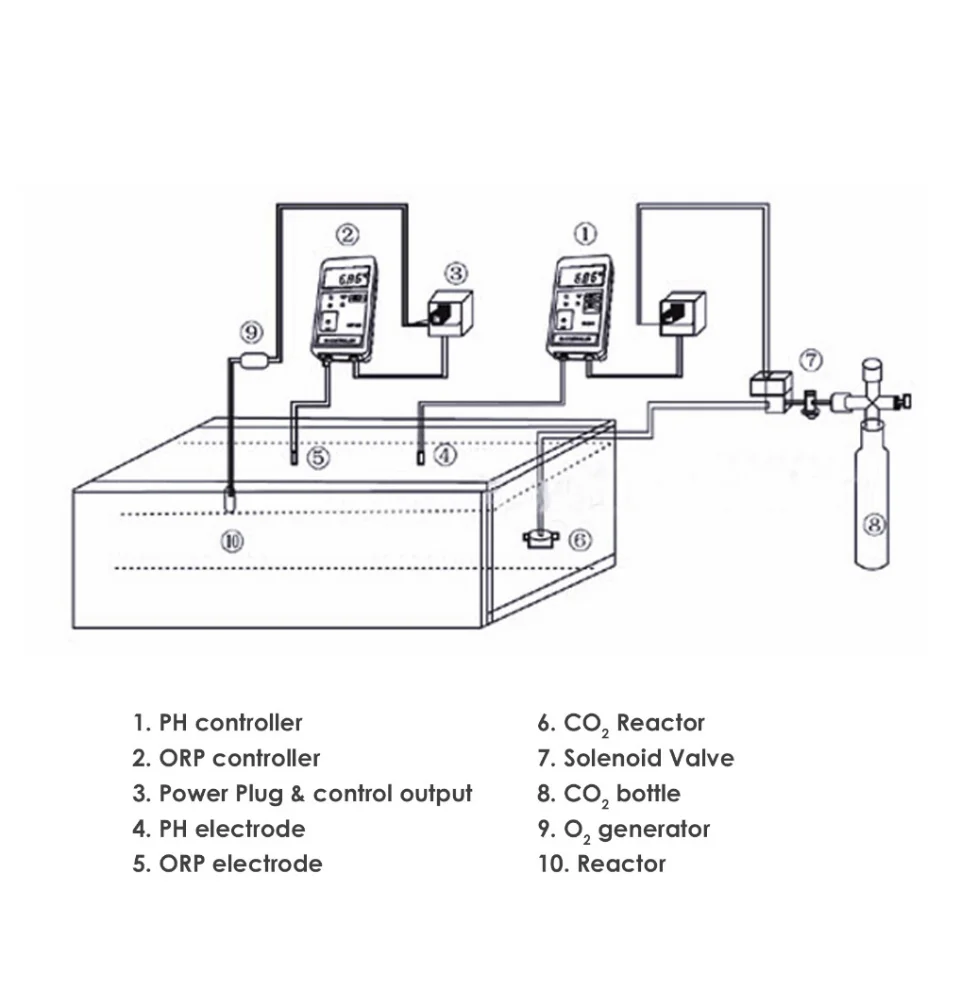

Simultaneously measure pH & ORP and control other pH & ORP related CO²-plant (via pH value) and a ozoniser (via orp value) Simultaneously regulates the pH and redox values in liquids

Accurately, easily and systematically MONITORS and CONTROLS pH and ORP values as well as the other pH and ORP related control devices all in one single unit

Power Plug for CO2 and Ozone Solenoids or Dosing Pumps are provided

Features fast response and easy to calibrate REPLACEABLE pH & ORP Electrodes no need to buy the whole unit

APPROVED BY STRICT QUALITY AND SAFETY STANDARDS ensures a reliability, stability, long and trouble-free life and can be transported easily Uses Protection Dead Band feature

Gives you an option to mount it on the wall or hung on the solution's container while using or installing the unit

Power Adaptor for US or UK or Australia or Europe is provided

Available in 110V/220V


Specifications

Display: double 4 LED, DUAL display reading

Conformity: CE and RoHS

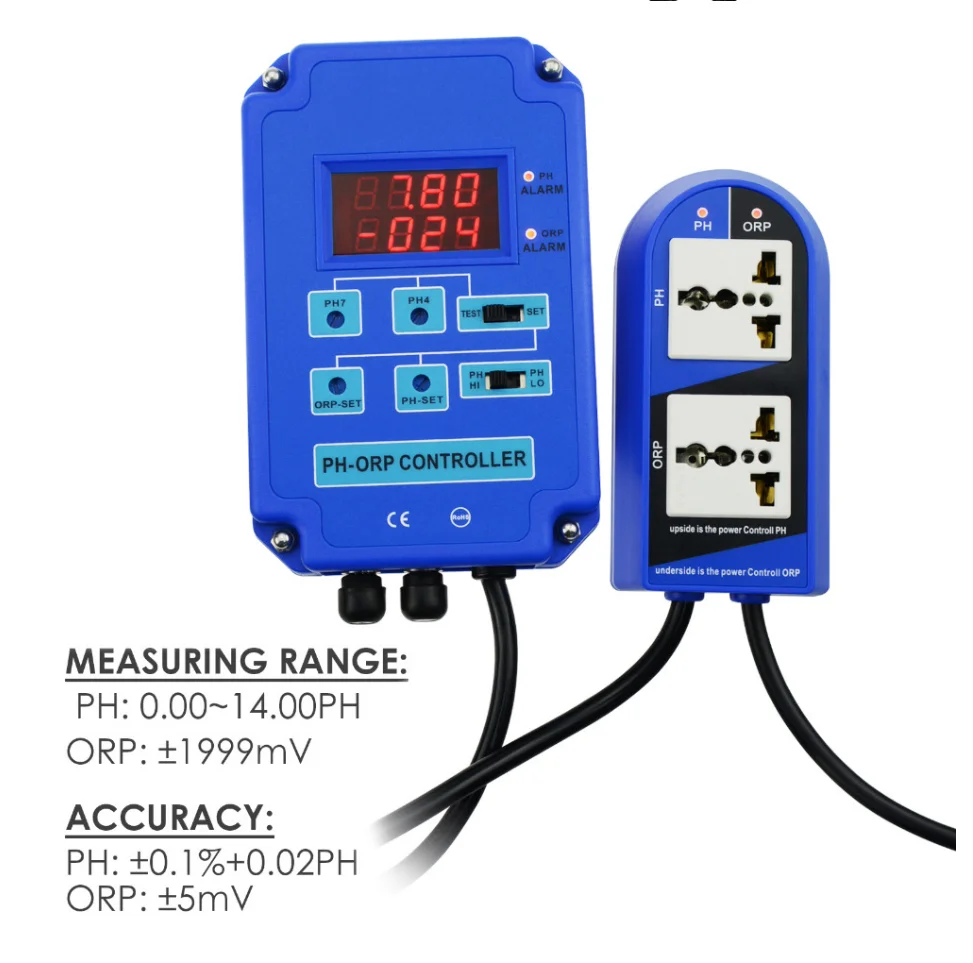

Measuring range

PH: 0.00 ~ 14.00pH

ORP: -1999 ~ 1999mV

Accuracy

PH: ±0.1%+0.02PH

ORP: ±5mV

Resolution

PH: 0.01pH

ORP: 1mV

Set Range

PH: 3.50 ~ 10.50pH

ORP: -500 ~ 500m

Environment

Operation Temperature : 0 to 50 °C (32 to 122 °F)

Ambient Humidity : 90 or less than 90 % R. H.

Relay Contact : 5A for AC 110V or AC 220V

Power Requirement : AC110V ±10% 60Hz / AC220V ±10% 50Hz

Power Consumption : 2 Watts

Output Voltage : the same as power supply voltage

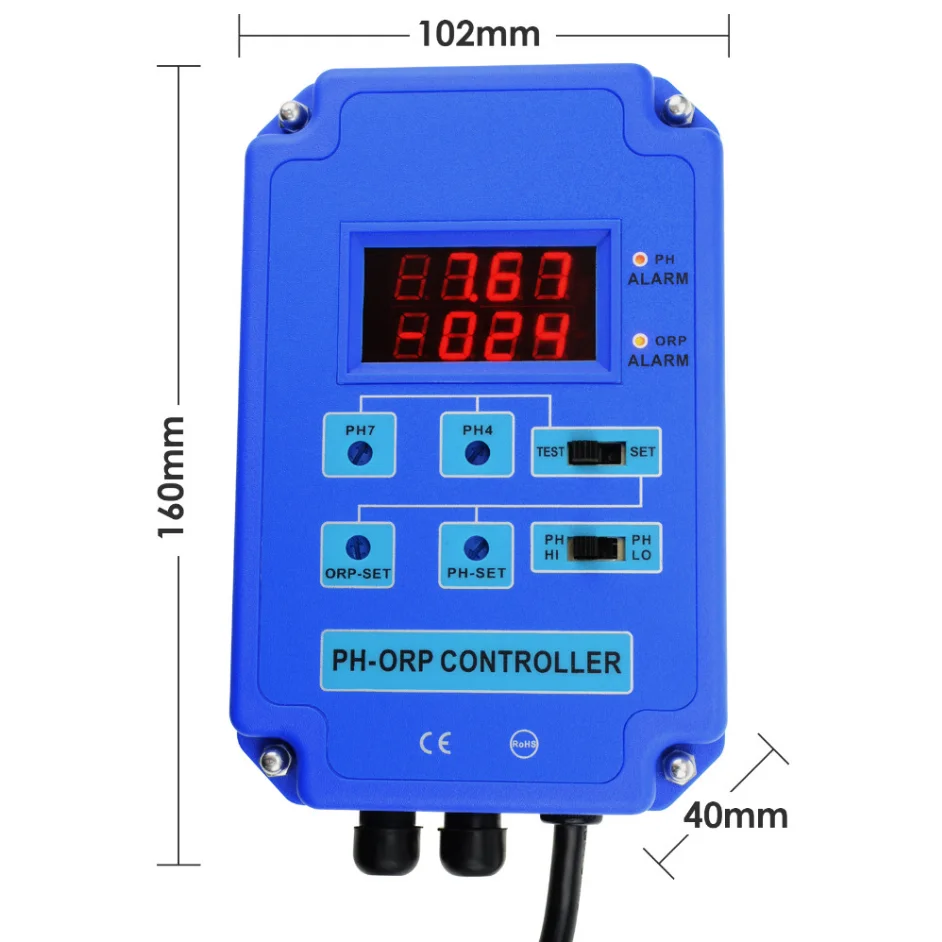

Dimensions: 160 x 102 x 40mm

Weight: 872g

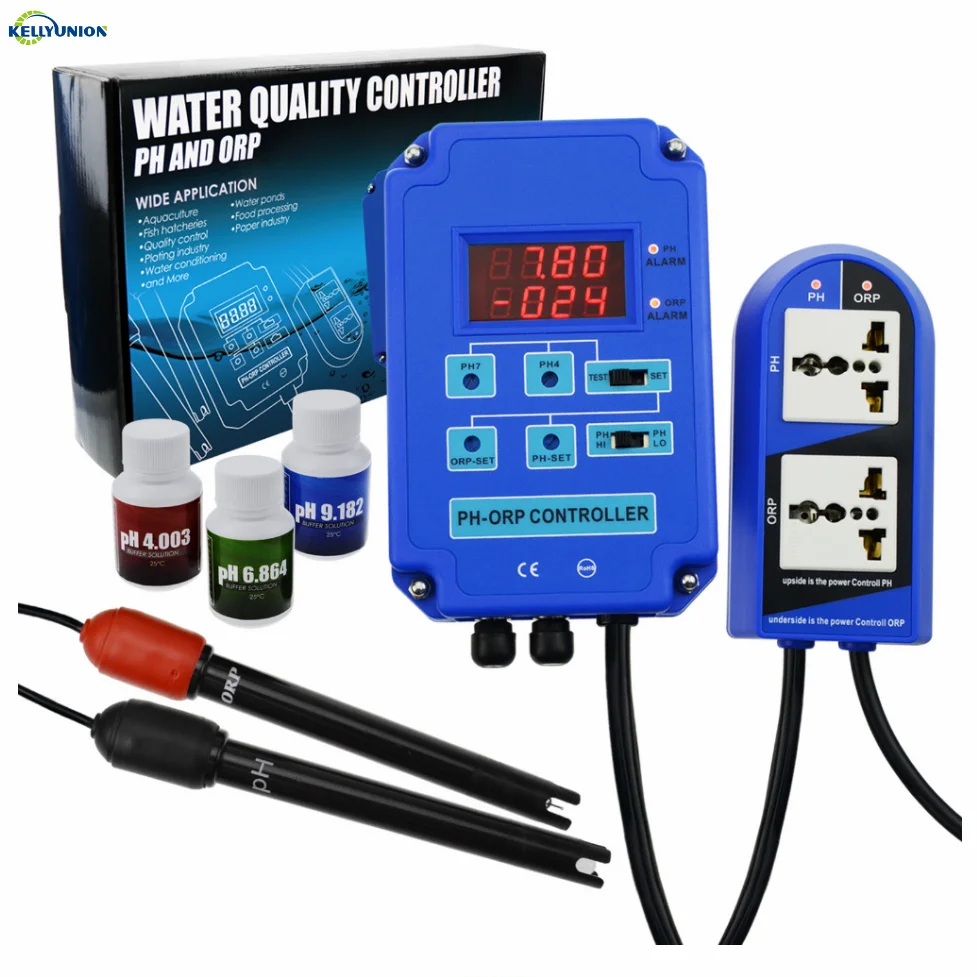

Set Includes

1 * Dual Aquarium Controller for pH & ORP

1 * bottle of 4.003 + 1 bottle 6.864 calibration (buffer) solutions (FREE)

1 * English Operation Manual

1 * Adaptor for US or Australia or UK or Europe ( We can provide the different type of adaptor , i.e US, Australia, UK or Europe )

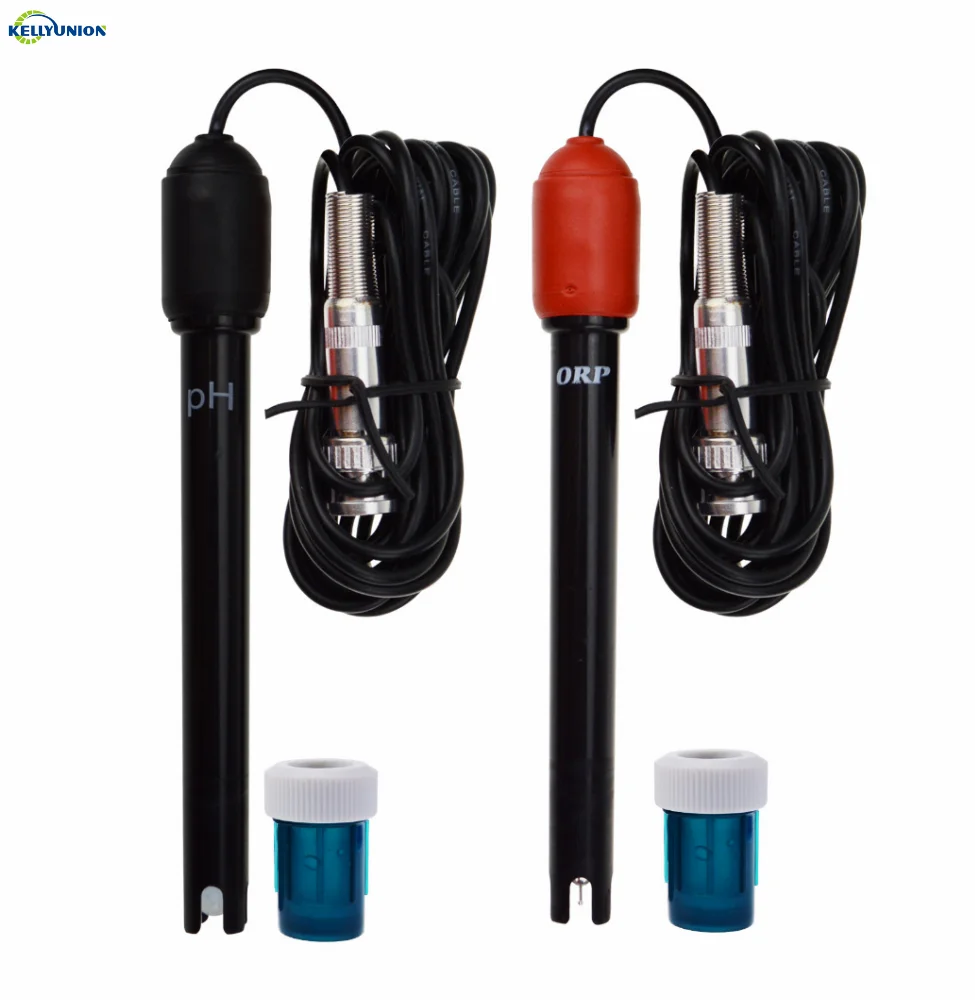

1 * Detachable 300cm pH electrode

1 * Detachable 300cm ORP electrode

2 * rubber cable holder with suction cap

Mini-screw driver

Metal Holder
