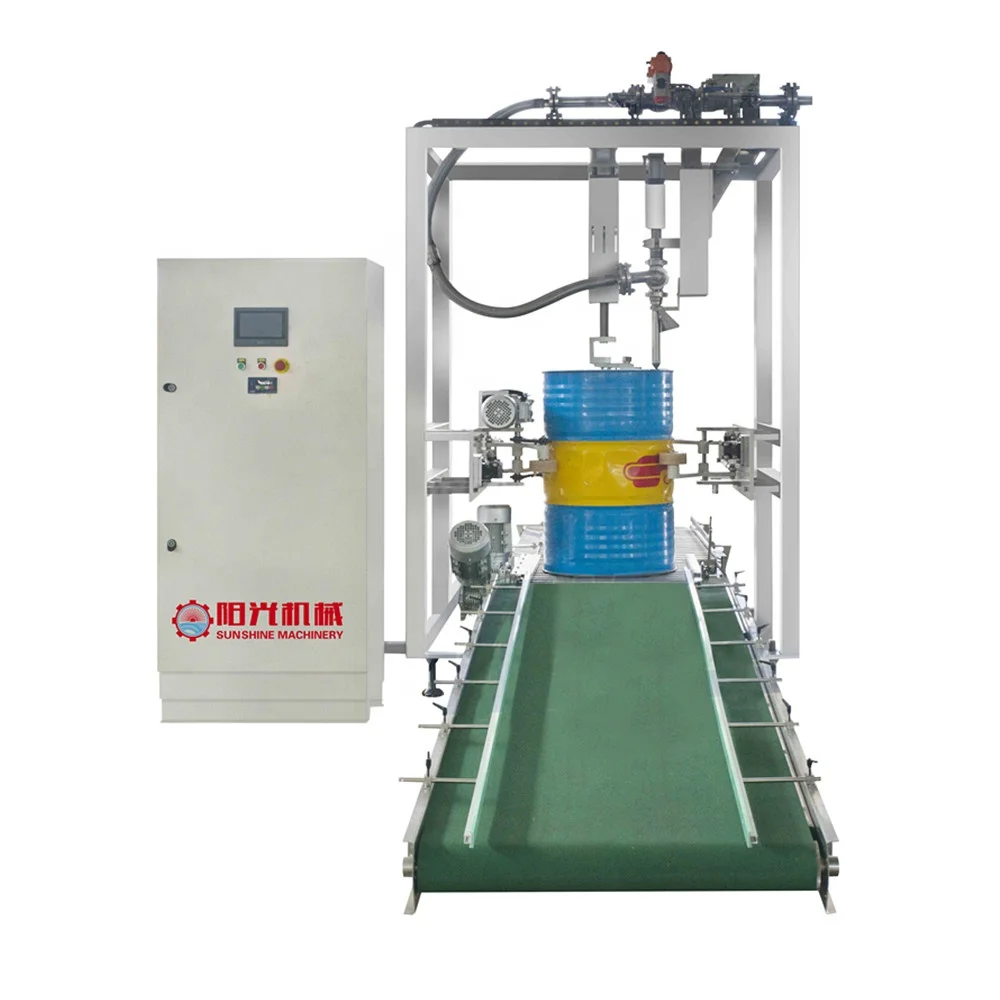

Automatic Controlled 100 300kg Weighing Type Large Barrel Drum Oil Paint/Wall Paint/Metallic Paint Filling Machine
Automatic Controlled 100-300kg Weighing Type Large Barrel Drum Oil Paint/Wall Paint/Metallic Paint Filling Machine
Automatic Controlled 100-300kg Weighing Type Large Barrel Drum Oil Paint/Wall Paint/Metallic Paint Filling Machine
Automatic Controlled 100-300kg Weighing Type Large Barrel Drum Oil Paint/Wall Paint/Metallic Paint Filling Machine
Automatic Controlled 100-300kg Weighing Type Large Barrel Drum Oil Paint/Wall Paint/Metallic Paint Filling Machine

Automatic Controlled 100 300kg Weighing Type Large Barrel Drum Oil Paint/Wall Paint/Metallic Paint Filling Machine

Share on (62164140571):


Price:RUB 1,932,504.60 - RUB 2,601,448.50

Quantity:


Product Overview

Description

Product Description

Brief Introduction :

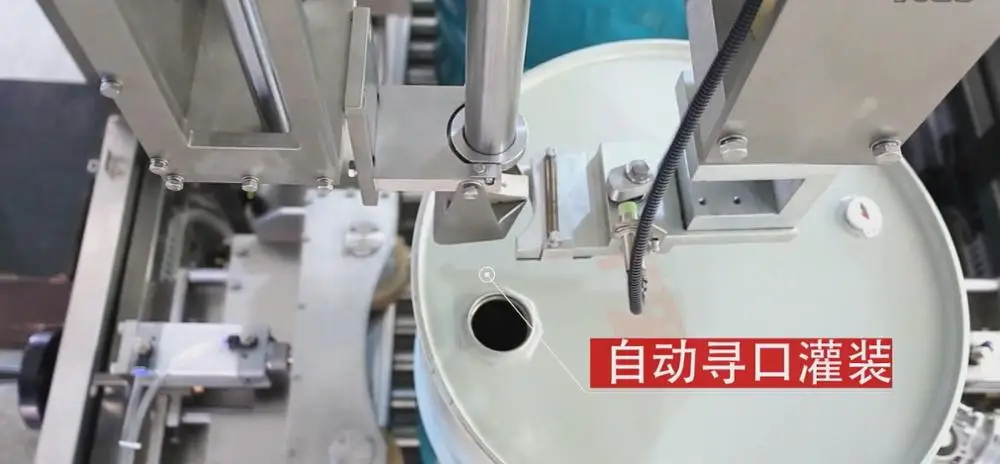

This machine is mainly designed intelligently  to 100-300kgs liquid barrel packing system, the filling main parts use stainless steel environmental frame, tempered glass door. When the machine is filling , it is totally enclosed, at the top, it has the air outlet, it can control air emission ;the whole line finish the process during barrel incoming, barrel distinguish, aiming, falling down.And slowly rising according to the filling quantity add, to prevent the bubble .After the filling automatically out of barrel, it is put the caps around the barrel outlet, through the pneumatic capping head screw.After the whole process ending, through the forklift or human handling of materials. This machine uses PLC to control, touch screen operation. I t has characteristics like convenient operation, high efficiency , wide range of application.This machine electric equipment control part is made by PLC, adjust speed channel , it had strong control ability, high automatically . It uses special equipment , so has function of no barrel, no filling, no aiming to barrel outlet, no filling  , it avoid of materil waste and pollution, so it made the elector mechanical integration present perfectly .

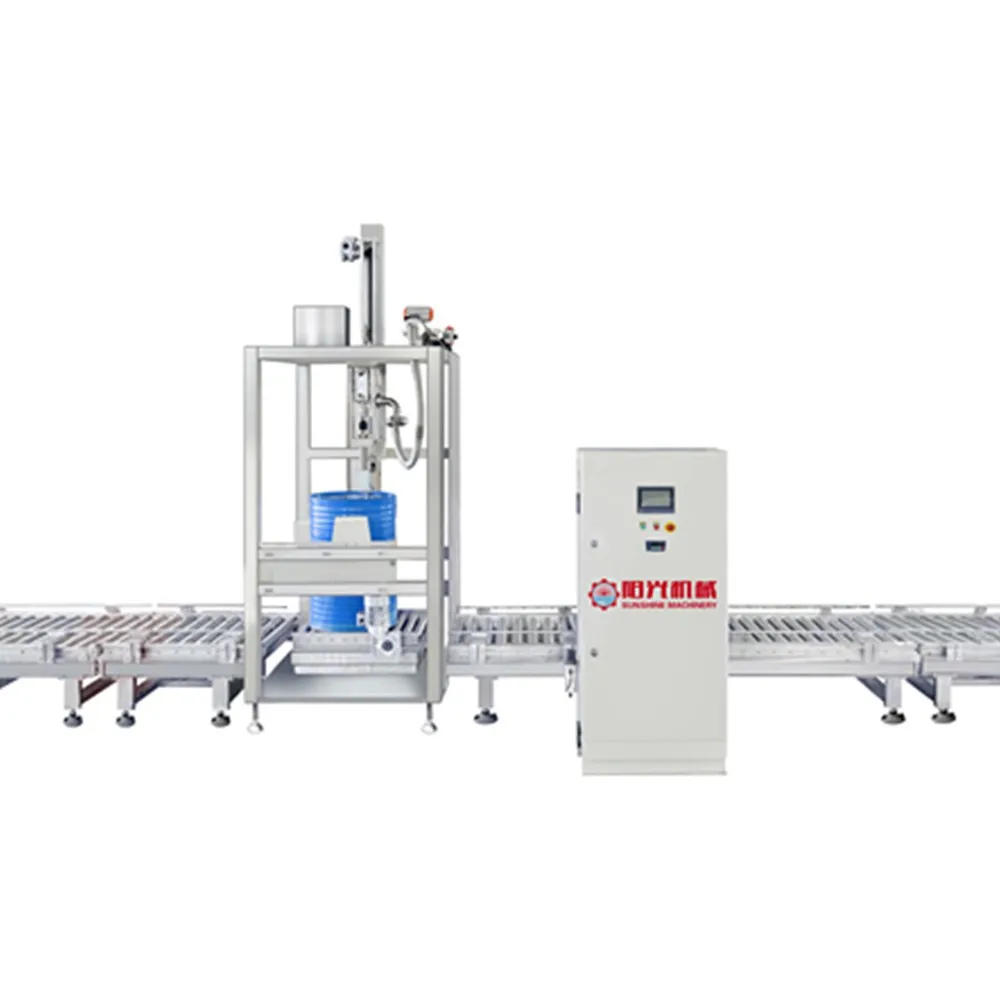

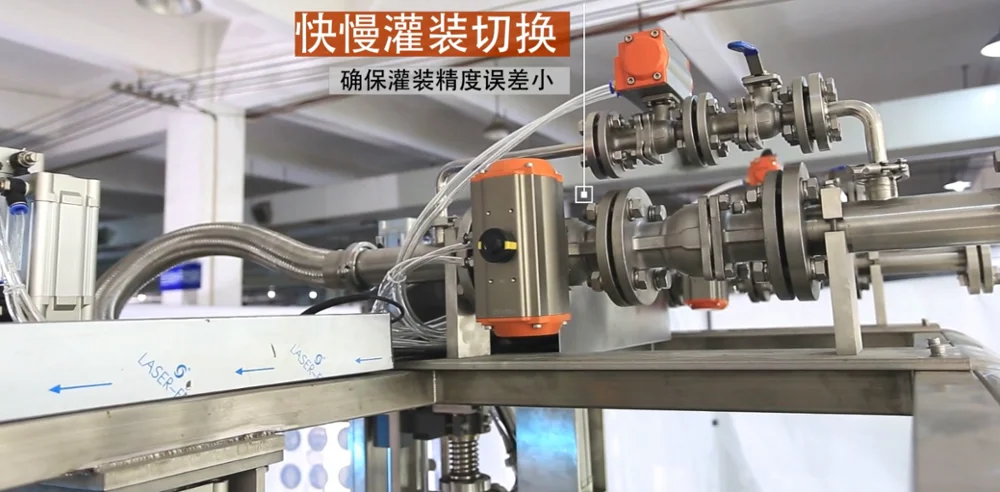

Detailed Images
Main Technical Data
Main machine size(Length*Width*Height)
2000*2300*3000mm
Container filling head diameter
≥50mm(Nozzle can be made according to the barrel head)
Container diameter
∅500mm~∅700mm(Special barrel can be mace)
Filling accuracy
≤ +-0.1%
Filling machine production power
2.5KW
Prepared air source
0.5MPa clean steady air
Weight
About 1600kgs
Power:
AC380V 50HZ Three Phase no limitation
Filling head
Two heads
Production capacity
≥60 barrels/hour
Working environment temperature
-10℃ -- 50℃
Working environment related moisture
<95% (No Condensation)
Material nozzle
Standard flange,material inlet pressure less to 0.3MPa

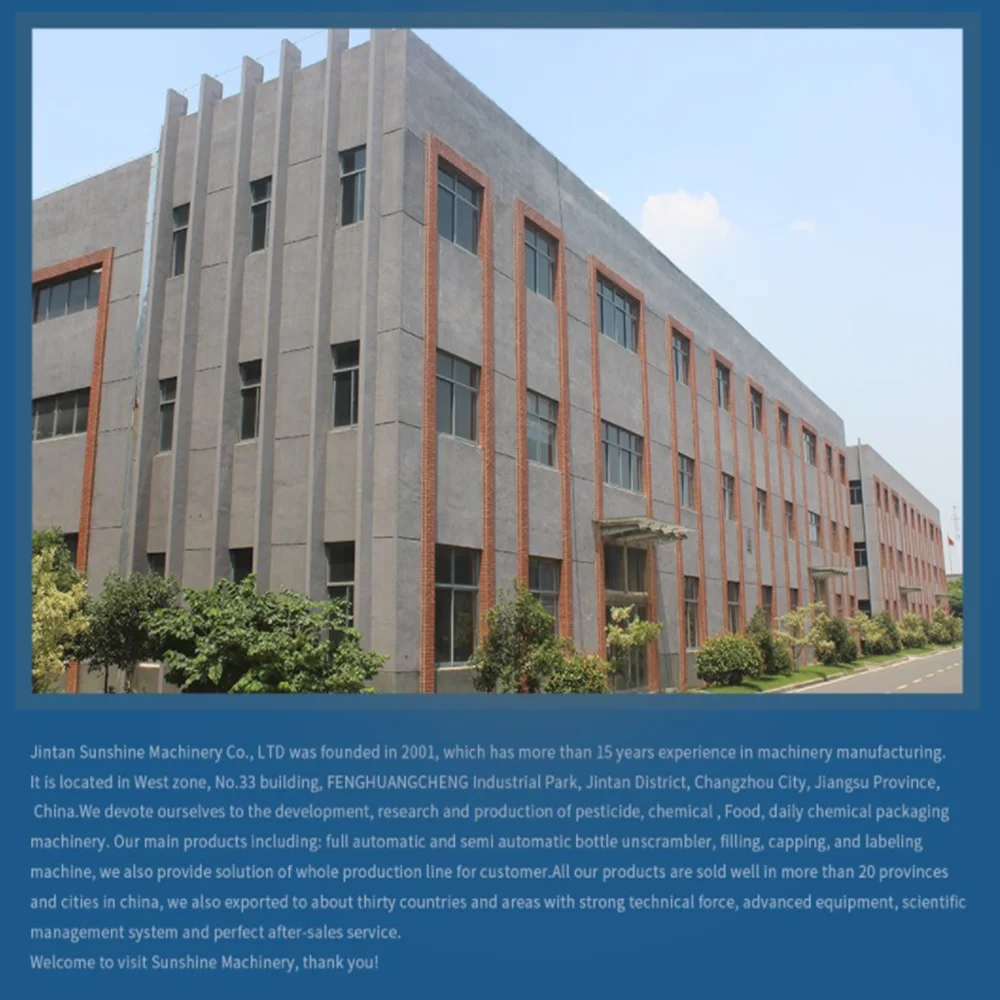

Our Company

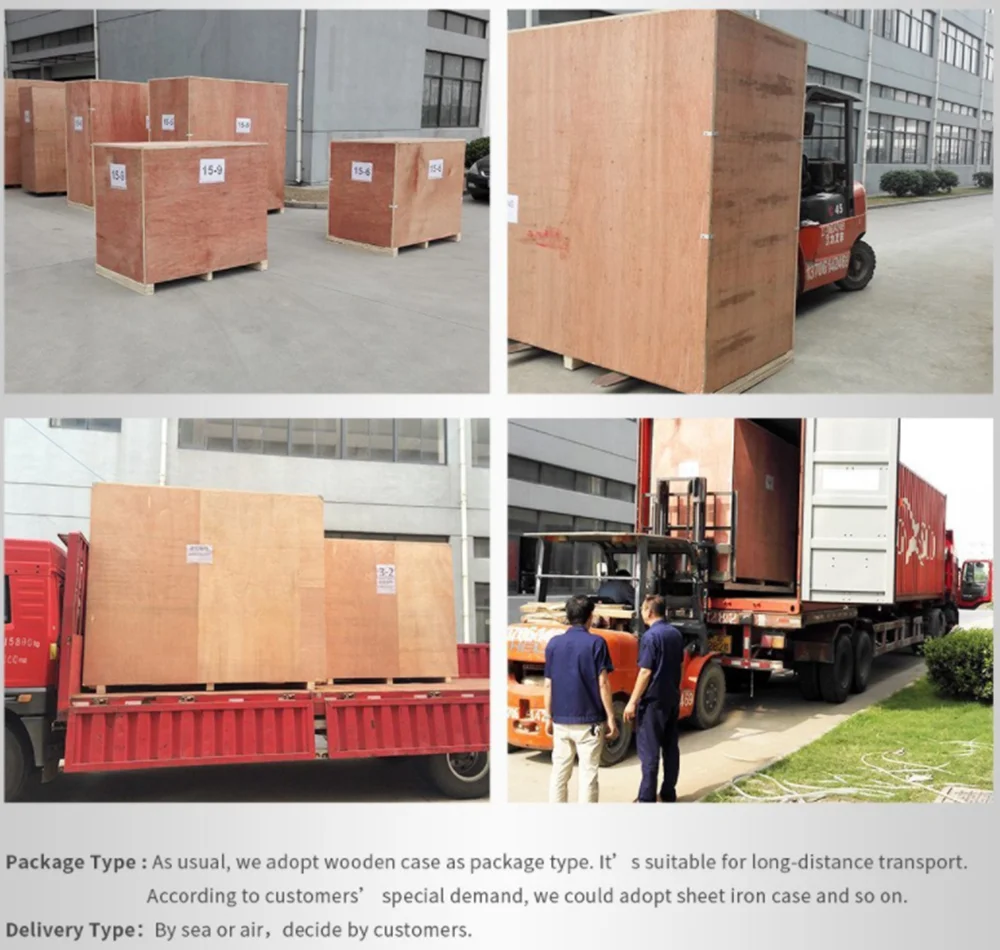

Packing & Delivery
Our Service

Sunshine Packing Machinery Company indtroducton

1. Installation, debug
After equipment reached the workshop of customer, place the equipment according to plane layout we offered. We will arrange seasoned technician for equipment installation, debug and test production at the same time make the equipment reach the rated producing capacity of the line. The buyer need to supply the round tickets and accommodation of our engineer, and the salary.
2. Training
Our company offer technology training to customer. The content of training is structure and maintenance of equipment, control and operation of equipment. Seasoned technician will guide and establish training outline. After training, the technician of buyer could master the operation and maintenance, could adjust the process and treat different failures.
3. Quality guarantee
We promise that our goods are all new and not used. They're made of suitable material, adopt new design. The quality, specification and function all meet the demand of contract.
4. After sales
After checking, we offer 12 months as quality guarantee, free offer wearing parts and offer other parts at the lowest price. In quality guarantee, the technician of buyers should operate and maintain the equipment according to seller's demand, debug some failures. If you could not solve the problems, we will guide you by phone; if the problems are still can not solve, we will arrange technician to your factory solving the problems. The cost of technician arrangement you could see the cost treatment method of technician.

After quality guarantee, we offer technology support and after sales service. Offer wearing parts and other spare parts at favorable price; after quality guarantee, the technician of buyers should operate and maintain the equipment according to seller's demand, debug some failures. If you could not solve the problems, we will guide you by phone; if the problems are still can not solve, we will arrange technician to your factory solving the problems.
