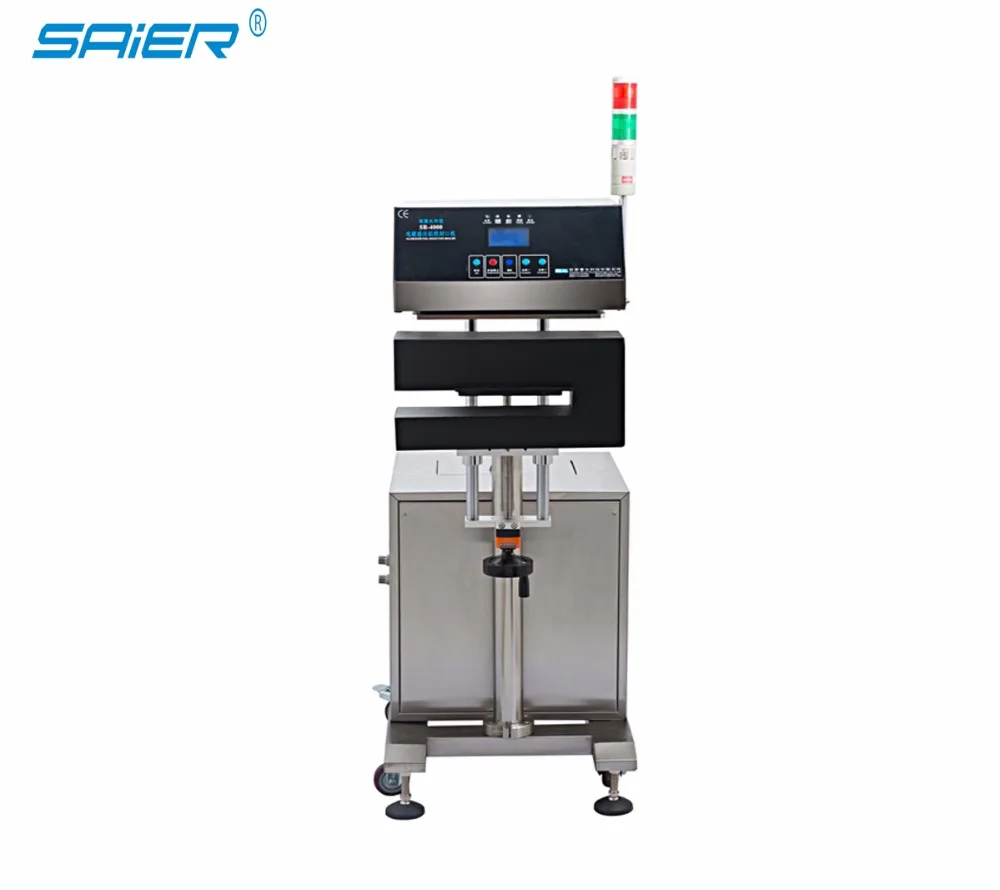

Induction Sealer Bottle Cap Sealing Machine Foil Cap Sealer Machine on ON GLASS JAR
- Category: >>>
- Supplier: Guilin Seal Technology Co. Ltd.
Share on (62164435860):
Product Overview
Description
Product Description
| Machine Name | Water cooled induction sealing machine | |
| Application | Sealing plastic bottles(HDPE,LDPE, PET, PVC,PP,PS ) and glass bottles | |
| for cosmetic, drinks, chemical, medical, lubricant&oil,food industry etc | ||
| Technical Parameters | sealing bottle diameter | 20-60mm or 20-80mm or 20mm- 120mm |
| bottle height | 0-490mm | |
| conveyor speed | 0-15m per min | |
| sealing speed | 0-200 bots/min | |
| max power | 3000W | |
| electricty power | 220V, 50/60HZ | |
| induction sensor size(L*W*H) | 665mm*170mm*100mm | |
| machine size(L*W*H) | 770mm*640mm*105mm | |

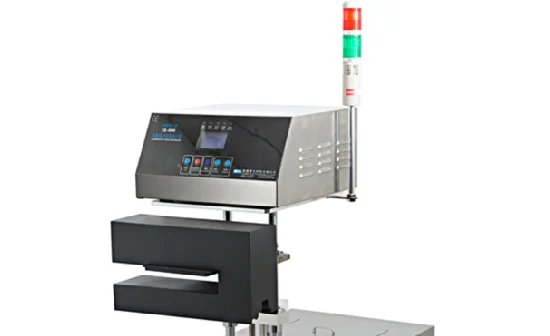

| Sealing head | The sealing head have adjustable supports to adapt to different bottle heights. | |
| The sealing head with 6 pieces 180°C coil and 5 pieces 220V fan,it can sealing quickly and perfectly | ||
| Induction generator | full modular component design, can be against moisture, erosion and dust | |
| the sealing power can be adjustable depending on the process(packaging speed, type of cover, etc.) | ||
| the induction generator,shelf and induction sensor can be separate to pack.it's easy for ship. | ||
| with CPU module contral and imported transistor(TOSHIBA) | ||

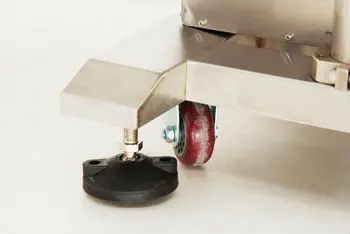

| trolley & carriager | allowing its displacement and eventual operation on a packaging line or another. | |
| optional part | ||
| no foil rejector | When detecting absence of packaging foil , it can generate the corresponding alarm or reject the no foil bottle | |
| conveyor | stainless steel body and customized height and width | |
| Certificater | CE | |
| Package | case material | plywood case |
| machine net weight | 65Kg | |
| gross weight | 85kg | |
| case size | 580mm*530mm*320mm | |
| Lead time | within 3 days | |
| Warranty | one year | |
| reference video link | https://www.youtube.com/watch?v=BCjQ5TN6WFg | |
Product Description

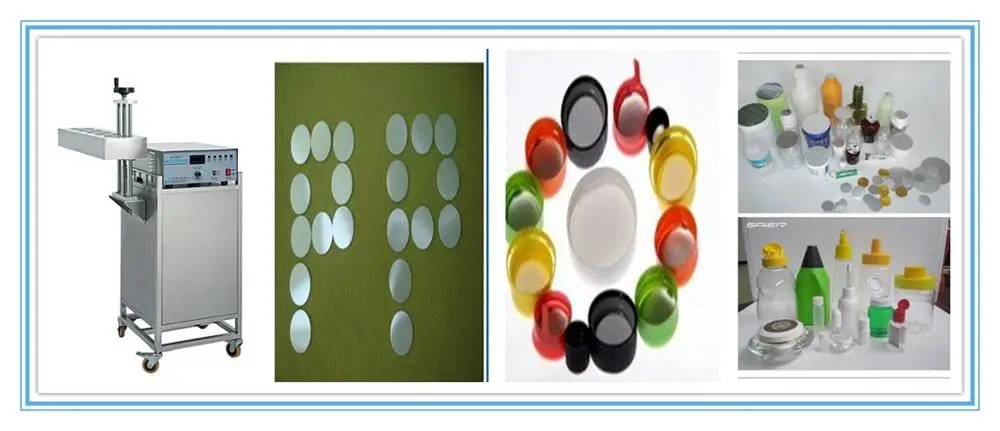

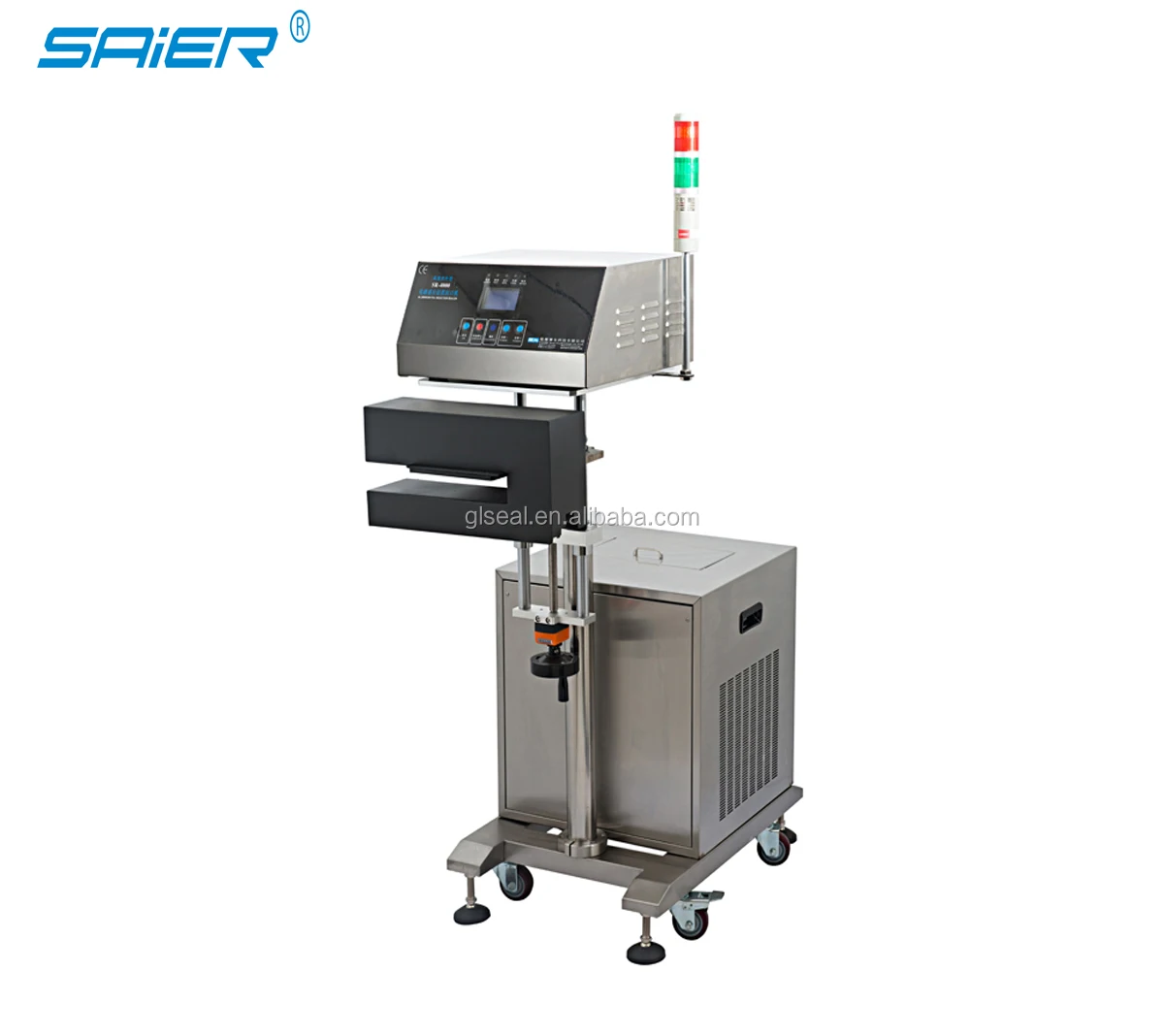

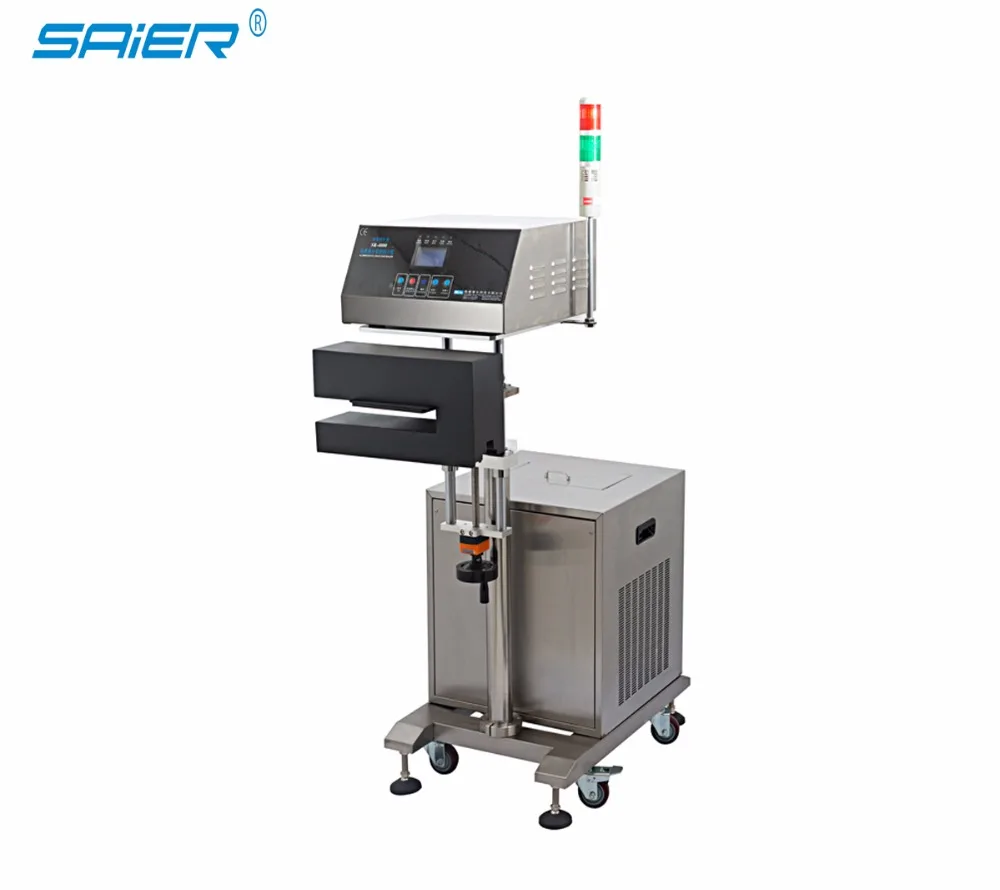

1.The Products Picture of Induction Sealing Machine
Guilin Seal Technology Co., Ltd. is a professional manufacturer engaged in the research, development, production, sale and service of Automatic Induction Sealers and other package equipment. Our company employs over 35 engineering who has 15 years' experience in the package equipment,sales,production,customer service and support staff that always take that extra step to ensure product quality and customer satisfaction.

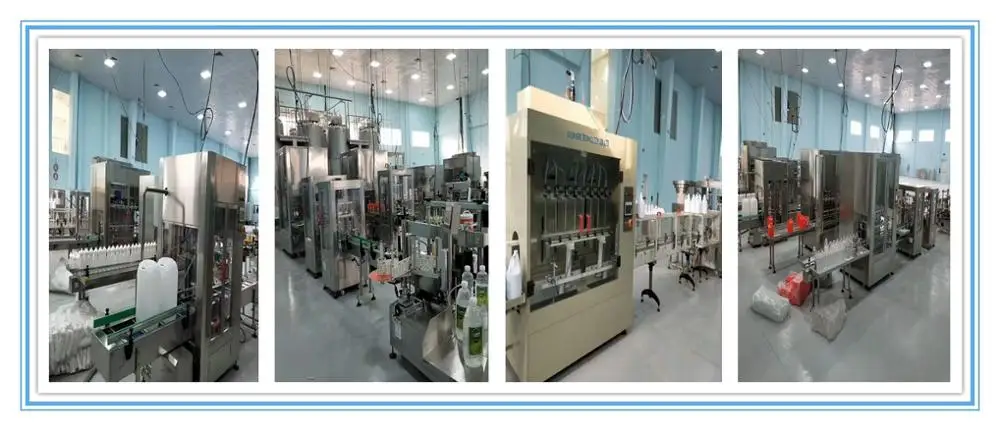

Our Customers

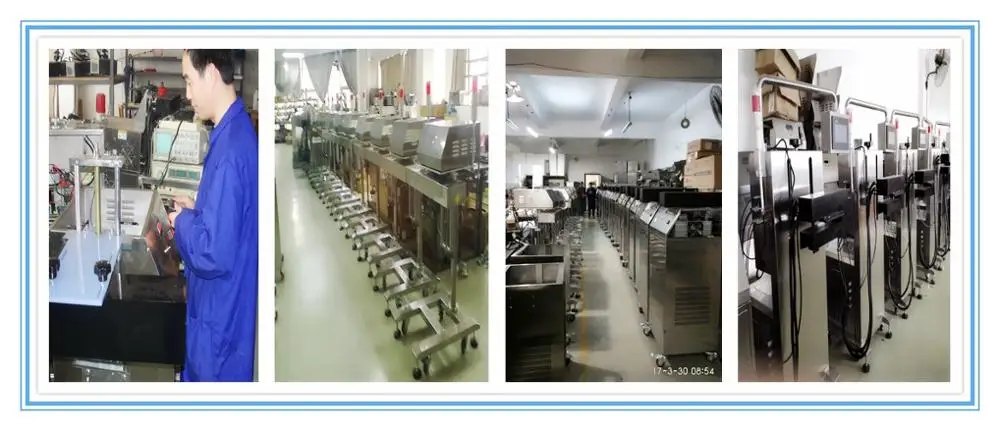

.Our Workshop
How it works
The closure is supplied to the bottler with foil liner already inserted. Although there are various liners to choose from, a typical induction liner is multi-layered. The top layer is a paper pulp that is generally spot-glued to the cap. The next layer is wax that is used to bond a layer of aluminum foil to the pulp. The bottom layer is a polymer film laminated to the foil.
After the cap or closure is applied, the container passes under an induction coil, which emits an oscillating electromagnetic field. As the container passes under the induction coil (sealing head) the conductive aluminum foil liner begins to heat. The heat melts the wax, which is absorbed into the pulp backing and releases the foil from the cap. The polymer film also heats and flows onto the lip of the container.
When cooled, the polymer creates a bond with the container resulting in a hermetically sealed product. Neither the container nor its contents are affected, and this all happens in a matter of seconds.

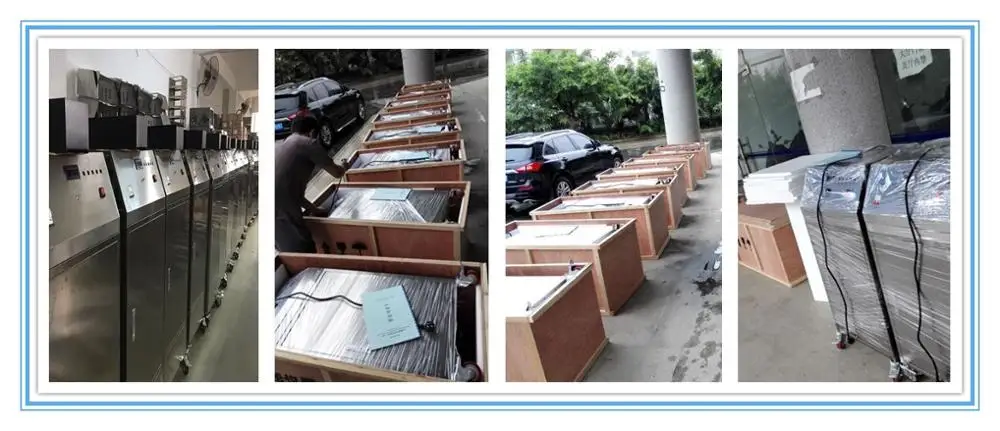

Packaging&Shipping of Induction Sealing Machine
Contact us
Guilin Seal Technology Co. Ltd.
Address: Plot D-3 ,high tech Information Industrial Park, Guilin.
Zip code: 541004
Tell: 0086-773-5870889
Fax: 0086-773-5866200
Web:www.glseal.com
Warranty
| Packaging & Shipping | |
| Packaging & Shipping Packaging & Delivery | 1, Packaging Detail: standard export wooden case package or carton. 2, Leading time: 1-3 days 3, Delivery time: depend on ways of shipping |
| Shipping & payment | 1,ways of shipping: 1) Small machine will shipped by express (DHL, EMS, FedEx and so on) or air 2) Big order and big machine shipped by sea (FOB Shenzhen/CIF) 2, payment methods:We accept LC, TT, West Union , Papal or MoneyGram |
| Services | 1) Any inquiries will be replied within 12 hours. 2) Quality of products will be strictly checked and every machine will be test to confirm whether it works well before packing. 3) All the machines have 1 year warranty and life time maintenance. 4) We have professional engineers , after-sales staff and a high-quality sales team to service you. 5) We have a sales team who are good at English to ensure zero communication barriers. |
| Certificate | CE |
