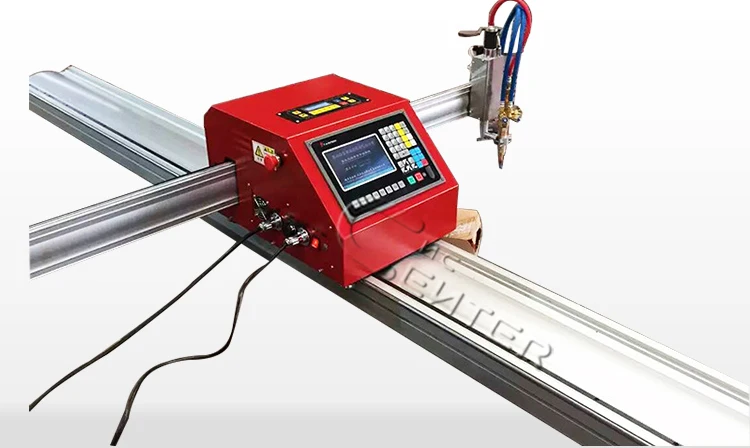

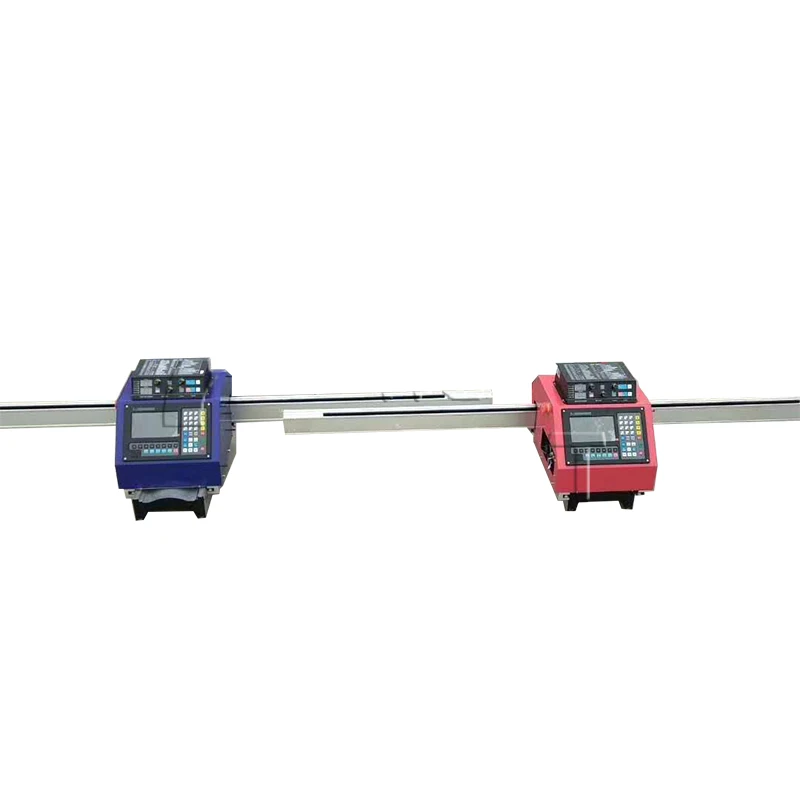

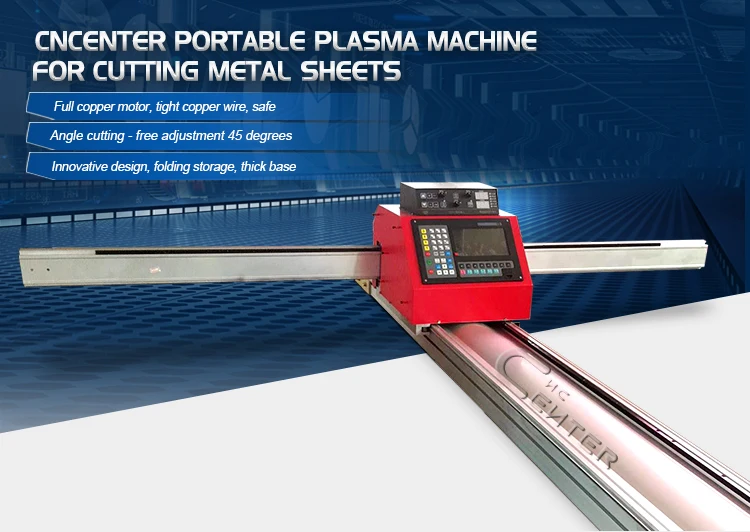

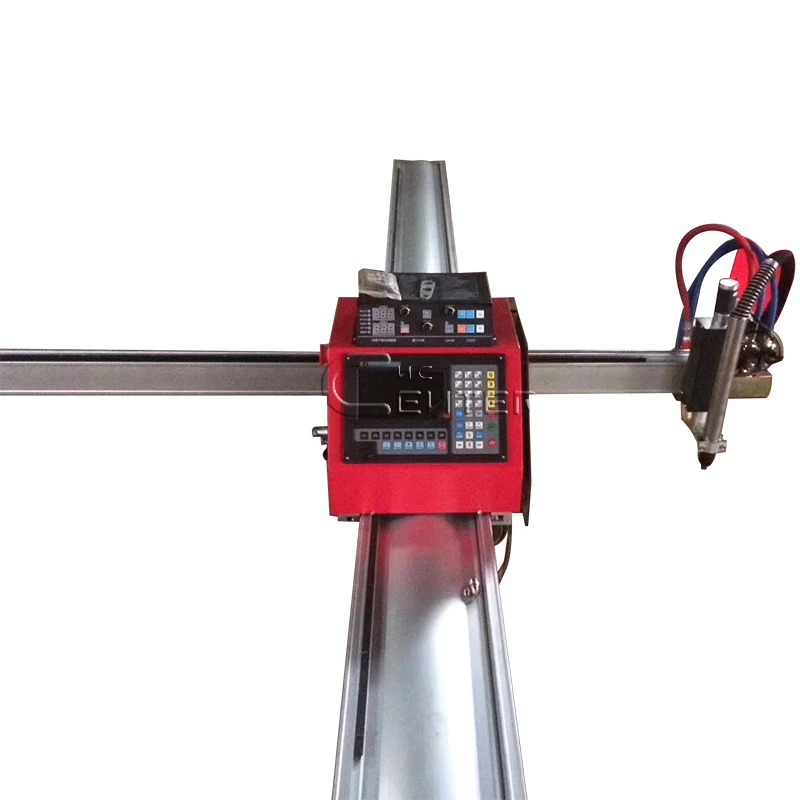

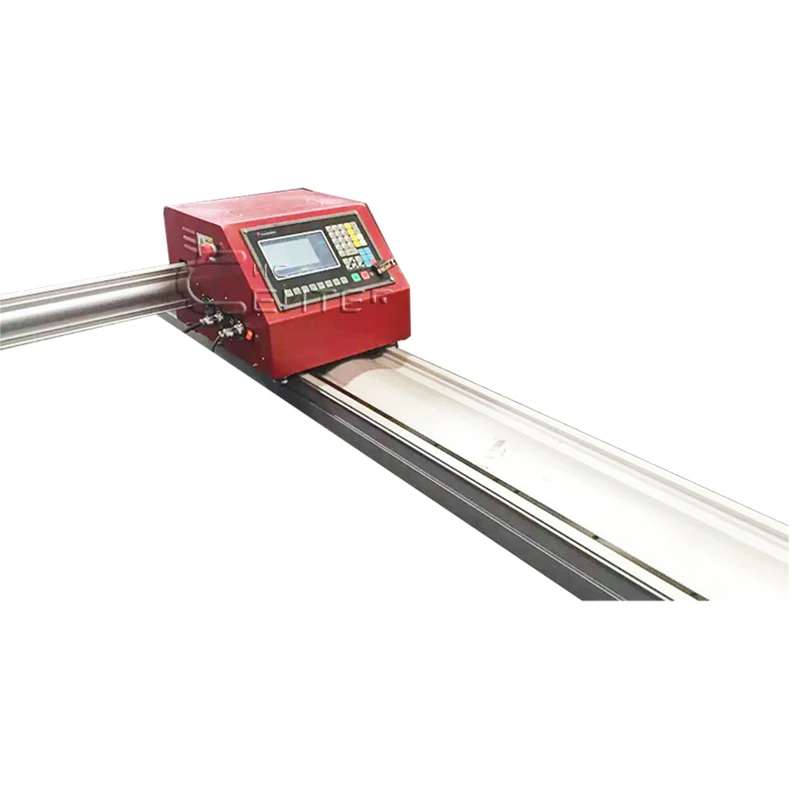

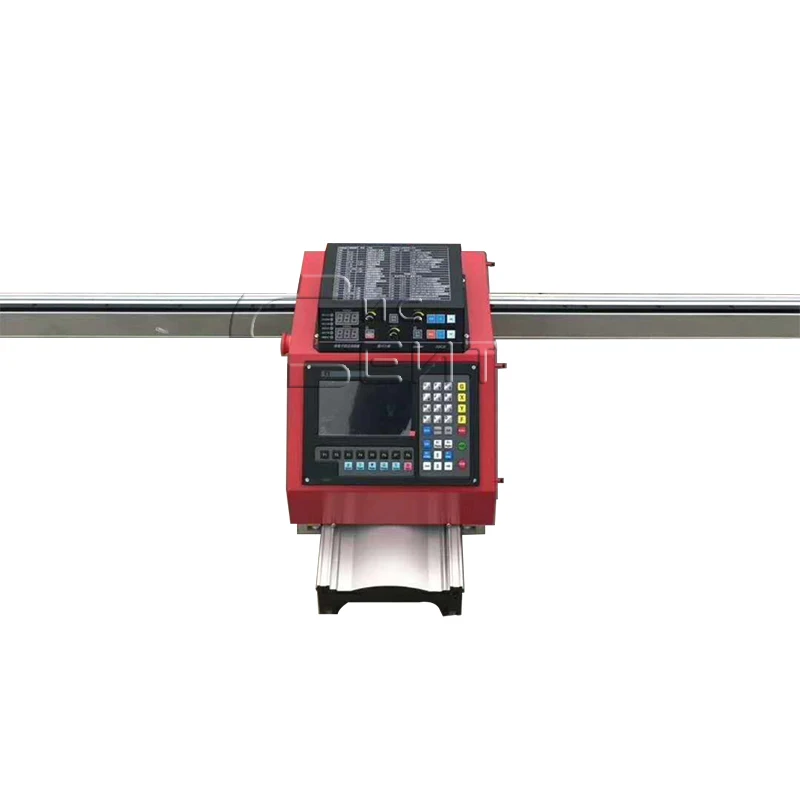

Plastic wood rubber leather fabric 2000x3000 1600x6000 2000x6000 200A plasma power source with great price

1. Cutting shape: Programmable cutting straight line and arc of any flat shape steel plate parts

2. Cutting accuracy: national standard JB/T10045.3-99.

3. Installation method: combined installation, free to move, does not occupy a fixed site

4. Cutting width: horizontal span 2200mm, effective cutting width 1500mm.

5. Track length: the track length is 3500mm, the effective cutting length is 3000mm, and the

effective cutting length can be lengthened according to your requirements.

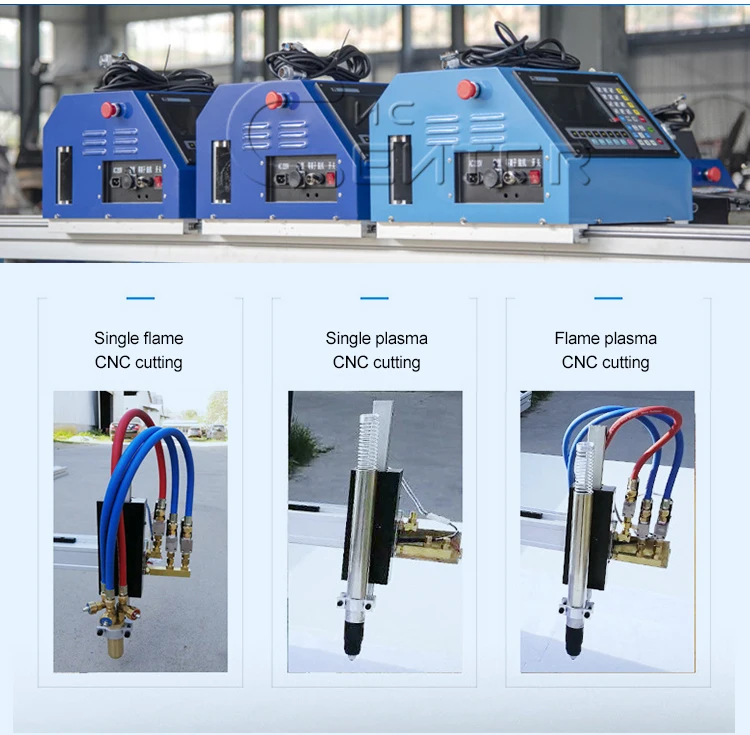

6. Torch configuration: 1 set of torch system, can be assembled according to customer needs, plasma dual-use.

7. Flame cutting thickness: 5-120mm, more than this thickness needs to be customized.

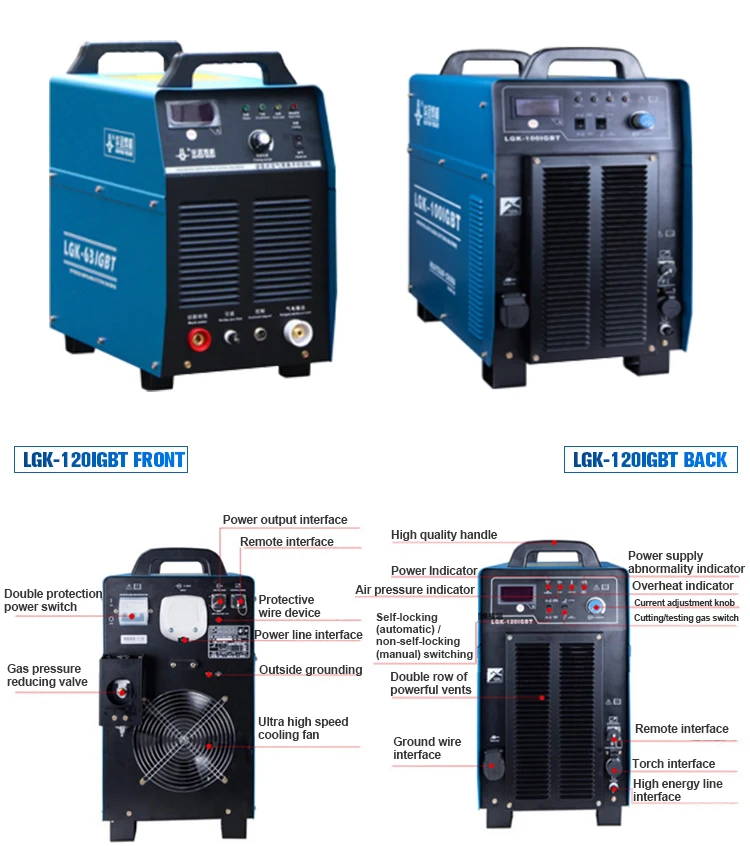

8. Plasma cutting thickness: determined according to the plasma power source size.

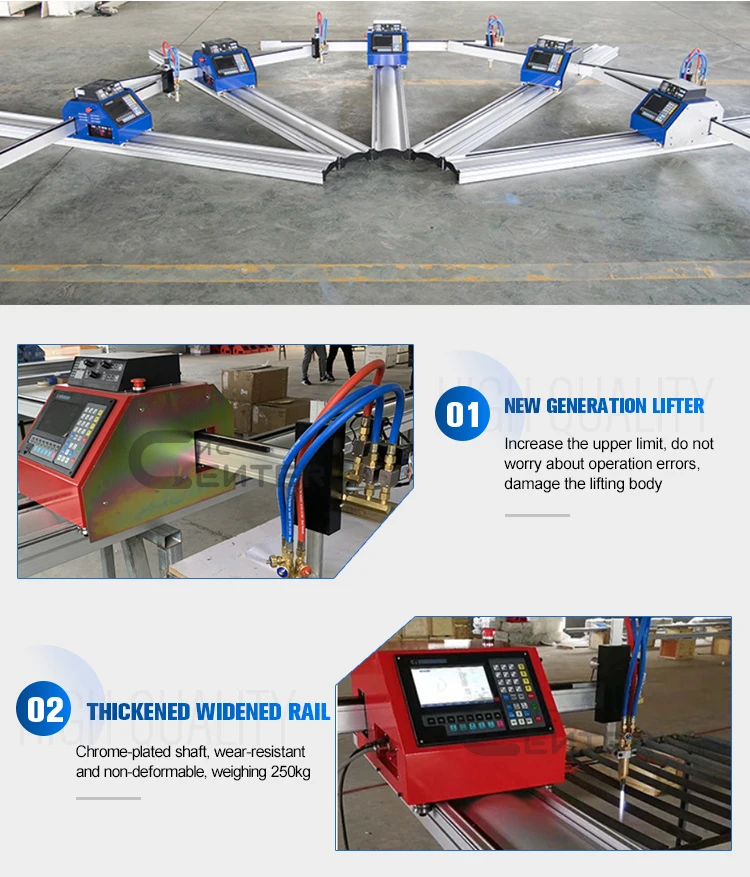

9. Height-adjusting system: standard electric height adjustment, can be installed with arc voltage automatic height adjustment according to your requirements.

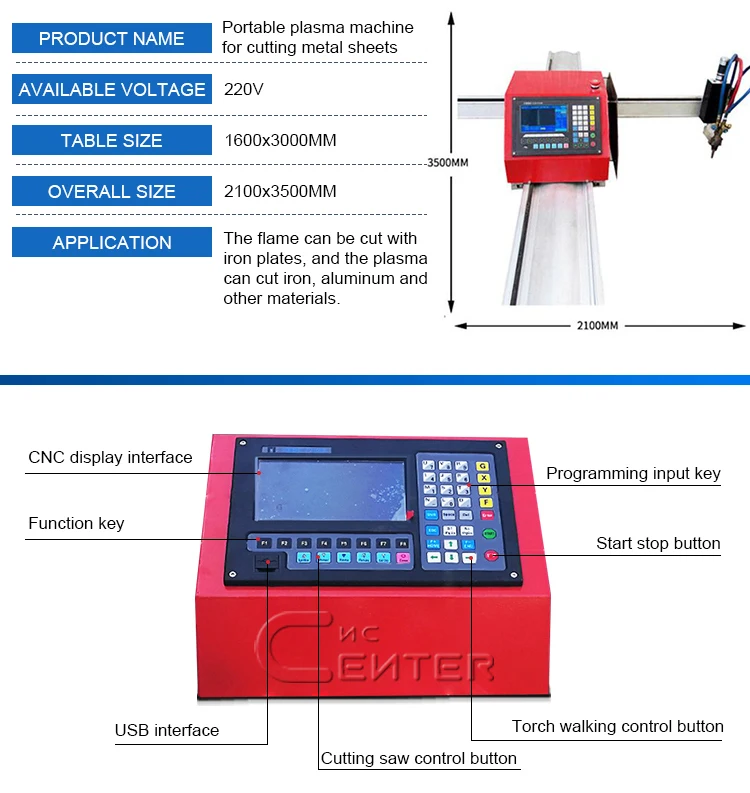

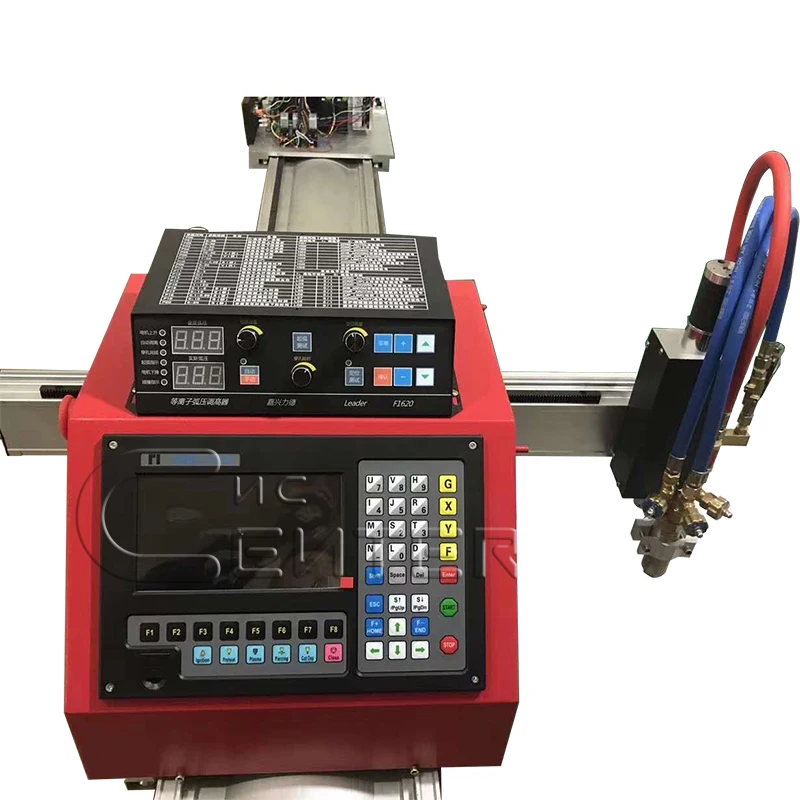

10. CNC system: Embedded CNC cutting control system SH-2012, easy to use, stable and reliable.

11. CNC programming: AutoCAD-based fully automatic graphical programming software

12. File transfer: with USB interface.

13. Cutting gas: oxygen + acetylene or propane.

14. Speed range: 0-3500mm/min (mm/min)

Feature:

1. The walking part adopts the gapless gear, the rack drive, and the motor drive adopts the German Baigra drive technology;

2. The longitudinal guide rail adopts Taiwan imported linear guide rail with high precision and stable operation.

3. The bottom plate is made of special aluminum alloy industrial profiles, anti-rust and wear-resistant, beautiful and clean.

4. The beam is made of special aluminum alloy industrial profile, which is light in weight and does not deform.

5. Control system full English interface, easy to operate, U disk import CAD graphics straight cut, no programming required.

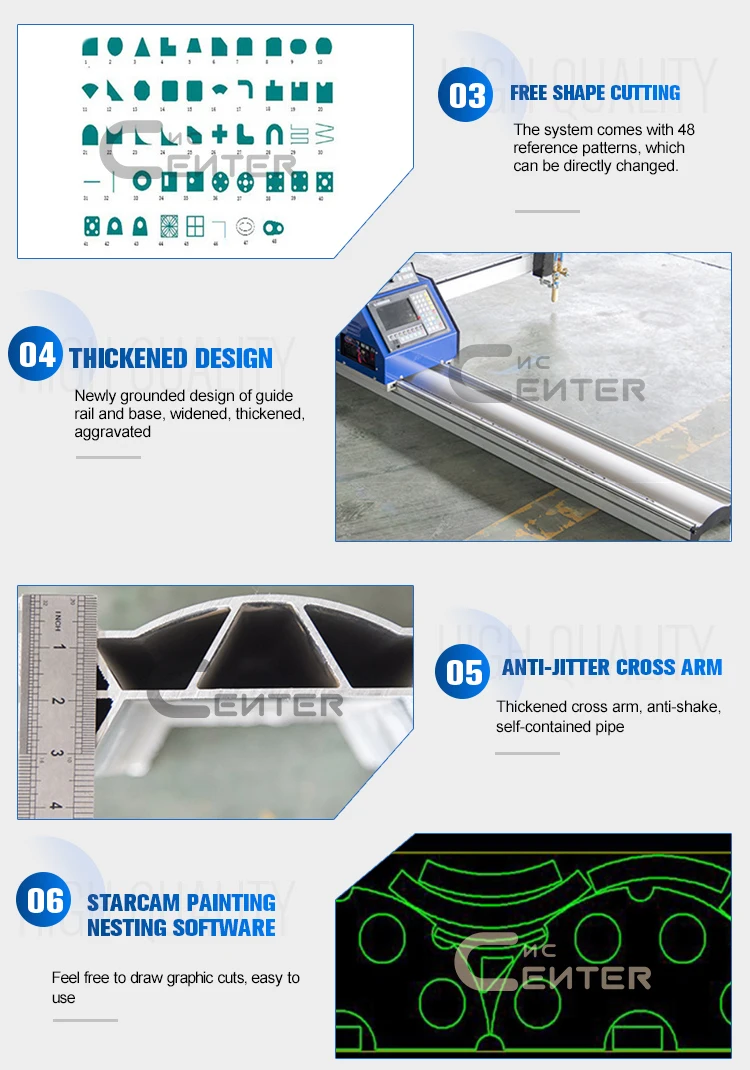

6. Compiled in CAD environment is simple and efficient, it can realize simple nesting, automatic sorting, kerf compensation and other cutting functions, saving time and materials, and effectively saving cutting nozzles and consumables.
