CF1300B semi automatic carton die cutting machine

Product Overview

Description

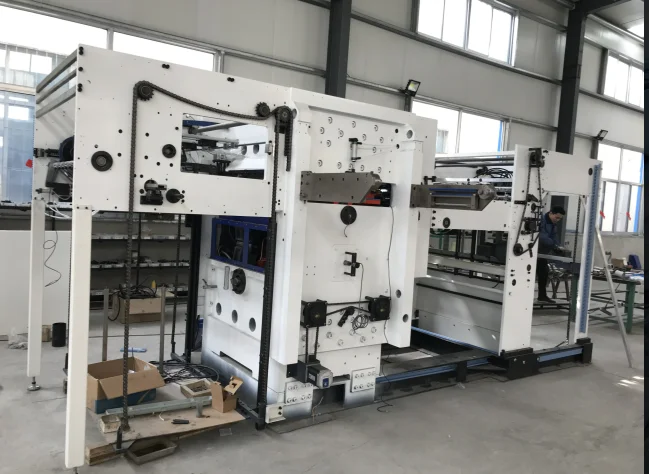

 CF1300B semi automatic die cutting machine







Characteristics:



CF1100/1300/1500 semi-automatic die cutting machine is researched and developed by our company ,and it is special used for die cutting the high grade color box .

This series of machines has the characteristics of high cutting thickness, high precision and high speed,all kinds of shaped bending corrugated paper can also be die-cutting in high speed.

 Advantage:

A)Human-Machine Interface

1. it shows the running status of the whole machine and can be adjusted in real time

2. It is equipped with a functional switch to achieve a variety of working instructions

3. It shows the faults and the faults also can be conveniently and timely eliminated.

B)High precision intermittent mechanism.

1. The transmission is smooth and dividing precision is accurate, it can ensure the precision of die cutting.

2. The immersion lubrication system has small wear and long service life.

C)High stacking paper and pre-stacked paper

1. the height for the feeder table is about 1.6m, it can save time for the whole work.

2. There is pre-stacked paper device, It is easy to operate and improves the work efficiency effectively.

D)Intelligent electric cabinet

1. The electrical components, electrical switches, PLC adopt domestic and international famous brands.

2. It has rapid response, precise control and stable performance .

3. It is equipped with multiple safety protection switches, and it can stop automatically in case of accident.

E)High strength gripper

1. the gripper is made of high quality super hard aluminum alloy profile, and the surface is treated with anodic oxidation,it can guarantee complete the die cutting process in high speed.

2.The transmission chain for the gripper adopts the world famous brand ,it can guarantee the stability of the precision and service life

Technical Parameter



Model	CF1100	CF1300	CF1520
Max feed size	1100x780mm	1300X960mm	1520X1120mm
Min feed size	420x370mm	500X450mm	5450x400mm
Mad die-cutting range	1090x770mm	1280X920mm	1500x1100mm
Max speed	5000S/H	4500S/H	4500S/H
Paper type	Corrugated paper1 to 7mm	Corrugatedpaper1to 7mm	Corrugated paper1 to 7mm
Max die-cutting pressure	300T	300T	300T
Weight	12T	13T	15T
Power	13KW	13KW	17KW
Min gripper size	8mm	8mm	8mm
Machine size	58200X4100X2250mm	6200X4300X2250mm	6700X5100X2250mm





Main spare parts list:





No.	Name	Brand	Original Place
1	Man-machine interface	Delta(10.4tft)	Tai Wan
2	Under tablet for matrix	Dae  Dong	Corea
3	Main Electric Motor		Tai Wan
4	Pneumatic clutch	Ompi	Italy
5	Air Pump	Beke	German
6	Main slip′s chain	Iwis	German/Iwis ketten
7	Revolving connection	Smc	SMC/Japan
8	Main electromagnetic	Smc	SMC/Japan
9	Intermittent division	Dex	Taiwan
10	Feeding strap	Sampla	Italy
11	Lubrication pump	Weliang	Tai wan
12	Bearings	Nsk,Koyo,Skf	Japan/NSK,KOYO,SKF
13	Worm wheel	Wancheng	Manufactured in Taiwan
14	Torsional force limit	Tong Shin	Tai wan
15	Crank shaft material:Nickel,Chromium&Molybdenum alloy sttel/Japan
16	Crank shaft manufacturated in		Tai wan

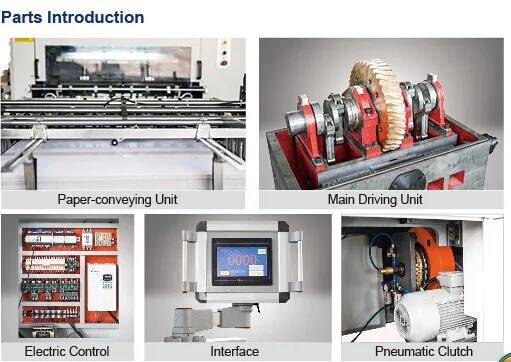

Spare parts pic:





 After-service



   1)payment term: we accept TT ,30% prepaid, when we delivery the machine , you need to pay the balance

   2)we provide 1 year guarantee.

   3) we could send our eigineer to install the machine and training.

   4)we could delivery the machine within 20-30 days after we get the payment.

  if there is any need or question ,please contact with us :
