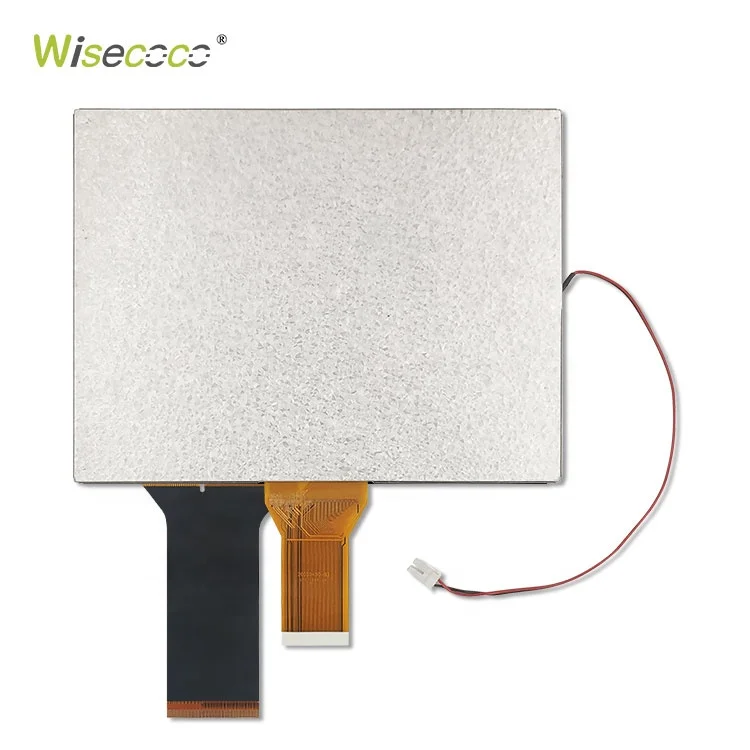

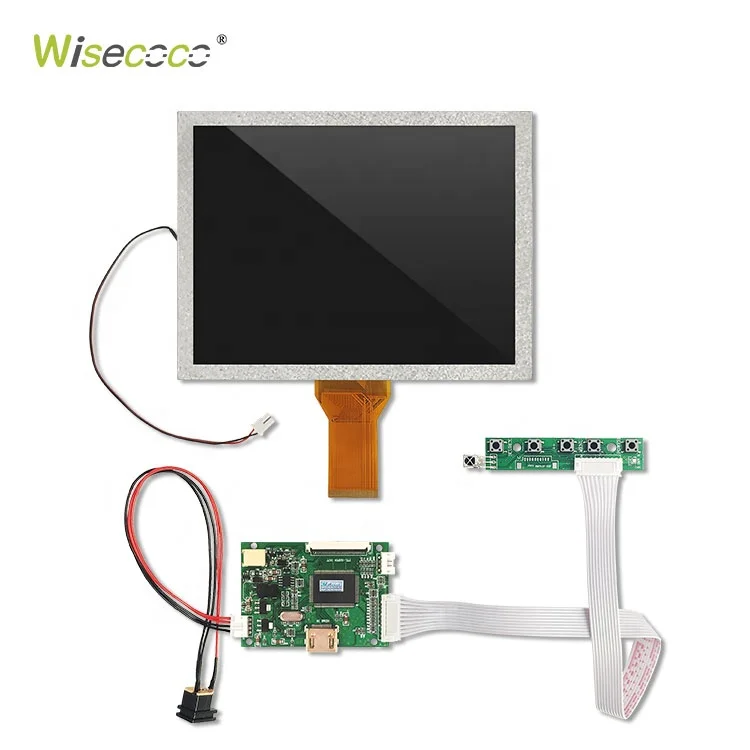

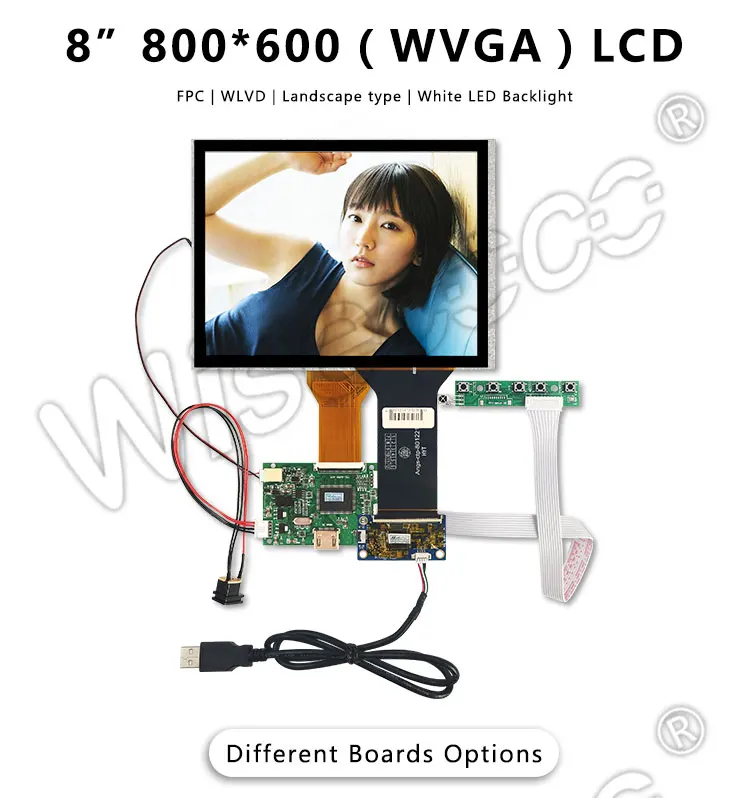

Antiglare Surface 8 Inch 800*600 LCD Screen Module AT080TN52 V.1 Touchscreen Available PDA Digital Photo Frame
- Category: >>>
- Supplier: Shenzhen Huaizhi Technology Co. Ltd.
Share on (62164951683):
Product Overview
Description
Product Description
Antiglare Surface 8 inch 800x600 LCD Screen Module AT080TN52 V.1 with Touchscreen Available for PDA and Digital Photo Frame
General Features | |||
Screen Size | 8.0 inch | Type | LCM , a-Si TFT-LCD |
Pixel Number | 800(RGB)*600 (SVGA) | Configuration | RGB Vertical Stripe |

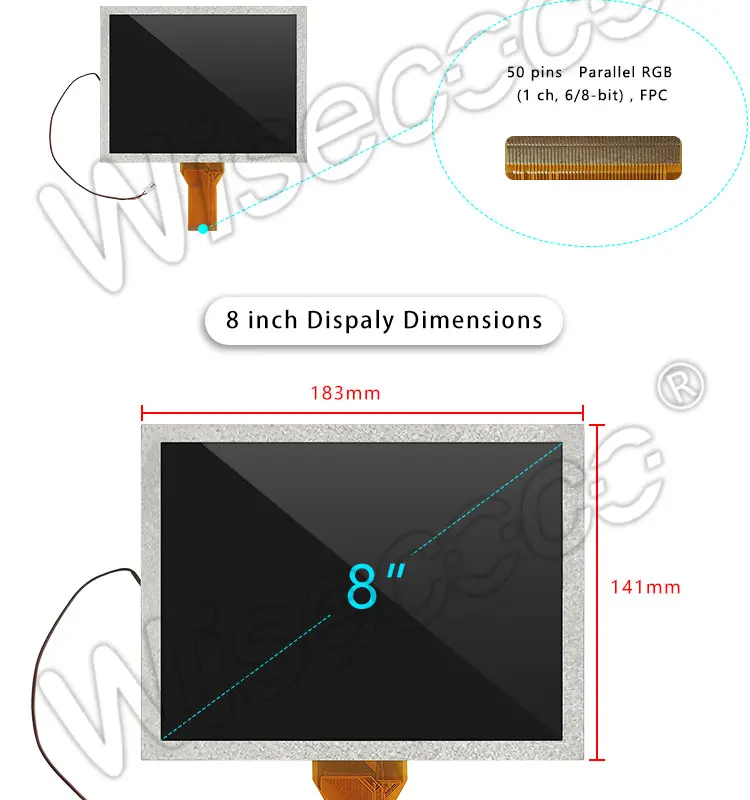

Active Area(mm) | 162*121.5 (H*V) | Outline(mm) | 183*141 (H*V*D) |
Bezel Area(mm) | 164.8*124.3 (H*V) | Treatment | Antiglare |
Luminance | 250 cd/m² (Typ.) | Contrast Ratio | 500 : 1 (Typ.) (TM) |
View Direction | 6 o'clock | Response Time | 10/15 (Typ.)(Tr/Td) ms |
Viewing Angle | 70/70/50/70 (Typ.)(CR≥10) | Operating Mode | TN, Normally White, Transflective |
Support Color | 262K/16.2M | Backlight | 3S9P WLED , 20K hours , No Driver |
Outline Shape | - | Used for | Portable DVD Player & Digital Photo Frame |

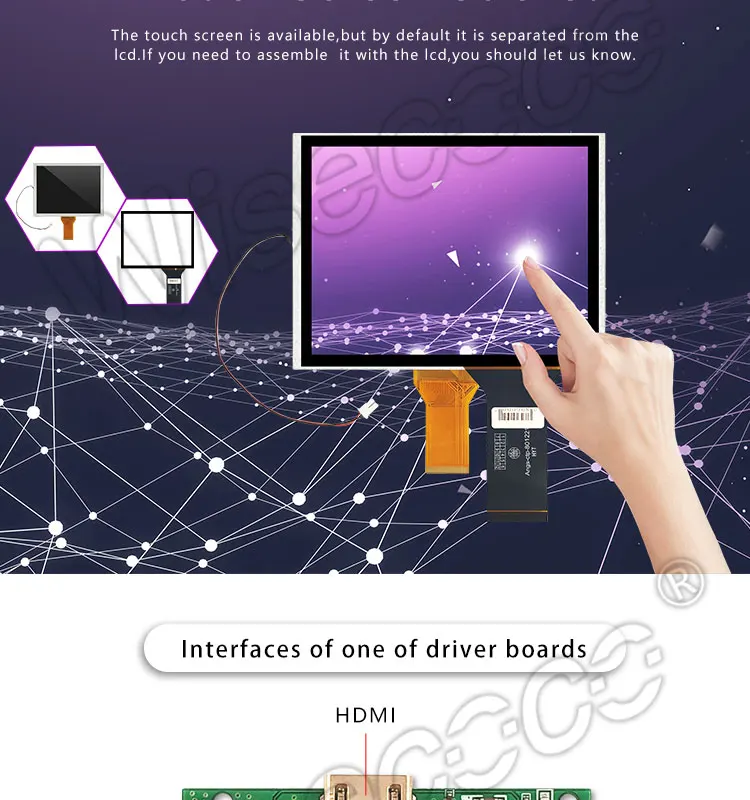

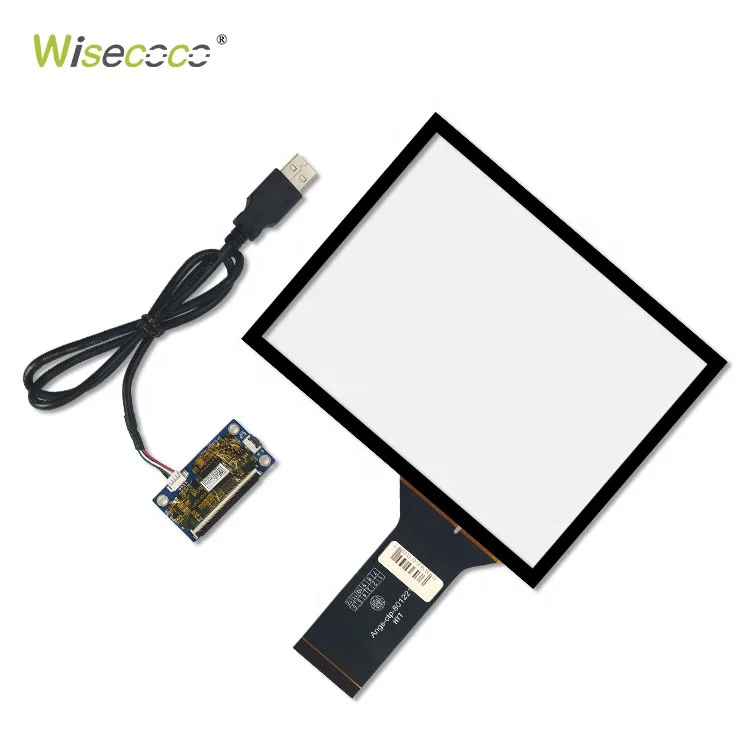

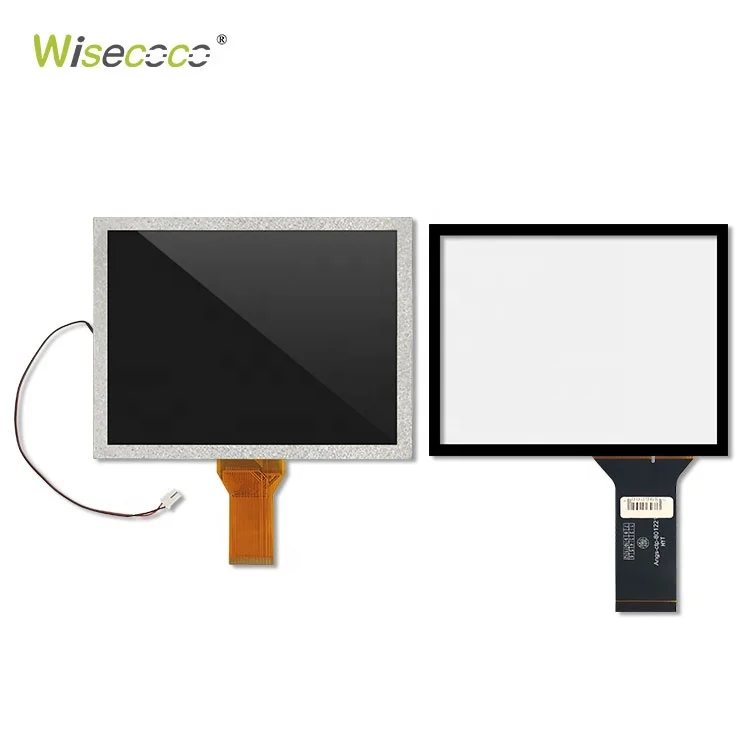

Refresh Rate | - | Touchscreen | Available |
Voltage Supply | 3.3/10.4/16.0/-7.0V (Typ.) | Signal Type | Parallel RGB (1 ch, 6/8-bit) , FPC , 50 pins |
Environment | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C | ||
