COLO-S-Multi Cyclone Powder Coating Spray Booth For Electrostatic Powder Coating
Model: COLO-S-Multi
The Automatic Powder Paint Booth with Multi Cyclone Recycling, is almost 98 % powder utilization. Work with automatic reciprocator and auto spray gun, it achieves a high level powder recycling and working efficiency. work dimmension :5000 x W 1200 x H 2000mm
Specifications of Powder coating spray booth
Model
COLO-S-Cyclone
Booth Type
Multi-Cyclone
Operator dimensions
800width x 2000 height x 6000 depth
Weight
4000kgs
Power supply
Electric
Nominal power
15KW
Voltage
380V
Frequency
50-60Hz
Filters
Polyester
Filters count
16pcs
Filters hang type
easy for change
Powder spray booth Main Features
Advantages 1. Quick color change. 2. Maximum recovery efficiency with cyclone recycling 3 Simple structure, easy for clean and disassemble 4 PLC control for Highly reliable running 5 Durability.

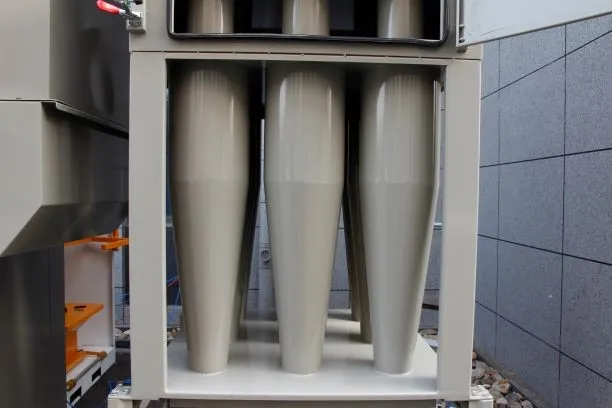

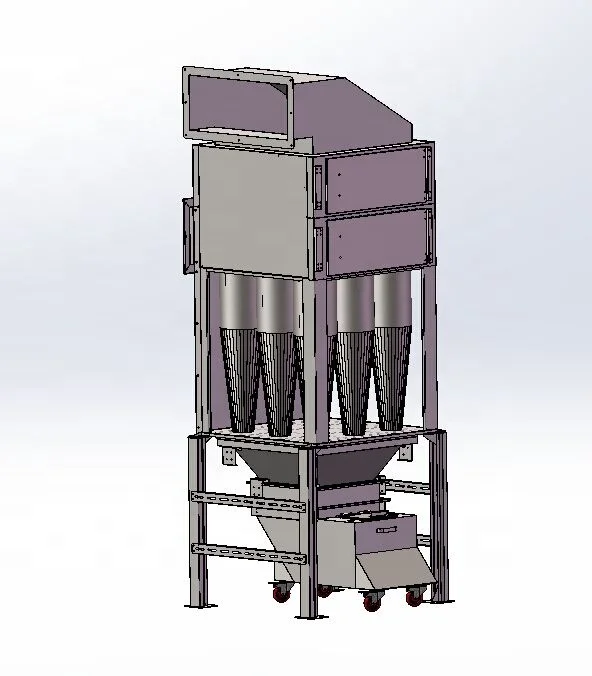

Multi cyclone
This Automatic Powder Paint Booth adapts double powder recycling system 1. Muti-cyclone system to recycle most poweders into the bottom type, the collected powder could be used again

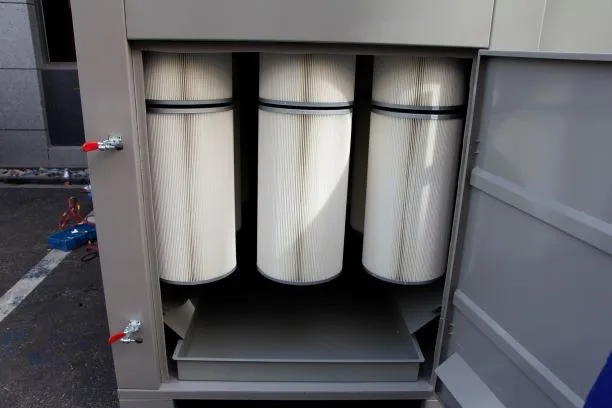

Cartridge filters system
2. Cartridge filters system is to recycle waste powder which could not be used next time.

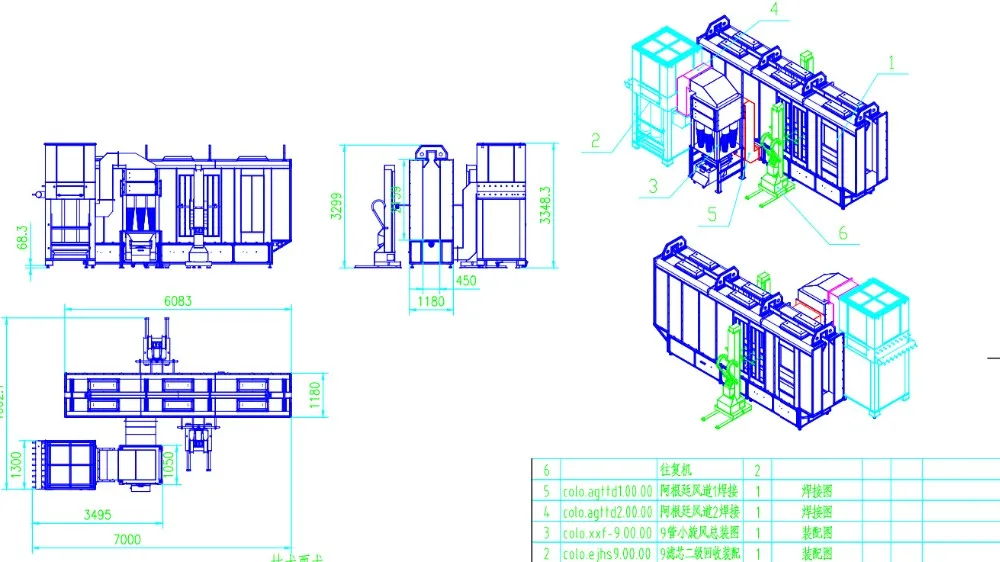

Drawing
We have professional and experienced technical department to provide design.
other models
powder coating gun
is the perfect solution for laboratory powder coating applications. Designed for short runs, the Lab Unit features a Dia 20cm ,Height 30cm or 40cm fluidizing powder hopper and is easily cleaned between color changes.
Powder Curing Oven
Small Electric Powder Coating Curing Oven Model: COLO-1688
Hot Sell & Quick Delivery & Saving Budget & Save Space & Save power Working size: L0.85m x W0.85m x H1.6m Application: The COLO-1688 powder coating oven is used in the process of powder curing, perfect for powder curing not big metal work-pieces, like auto parts.
Automatic powder coating model
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to install machinery overseas.
Packing & Delivery
Packaging
Size
215 (L) * 90(W) * 90 (D)
Weight
420kgs
Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
