Product Overview

Description


Product

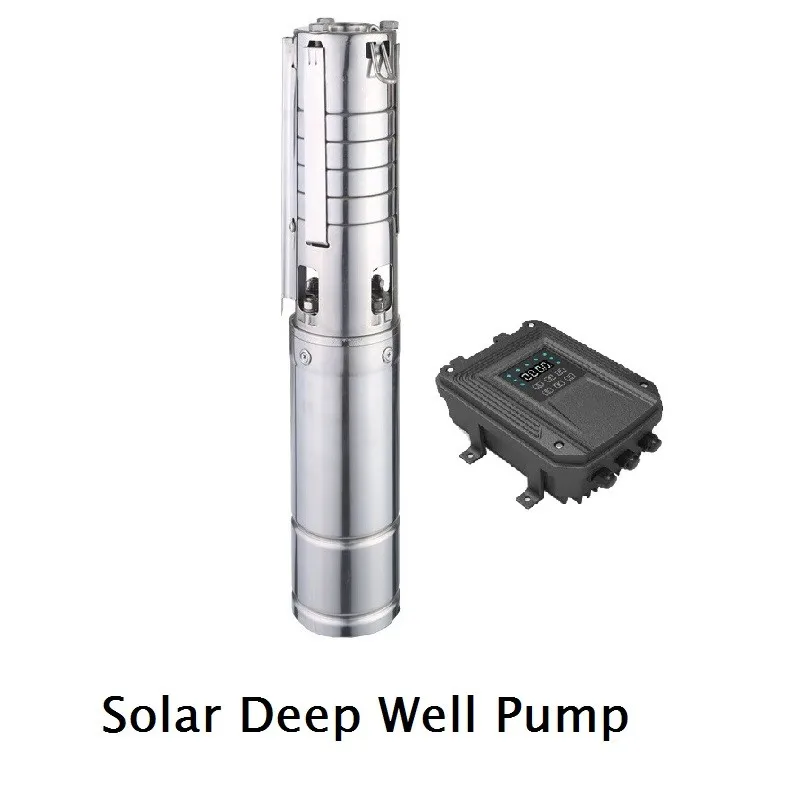

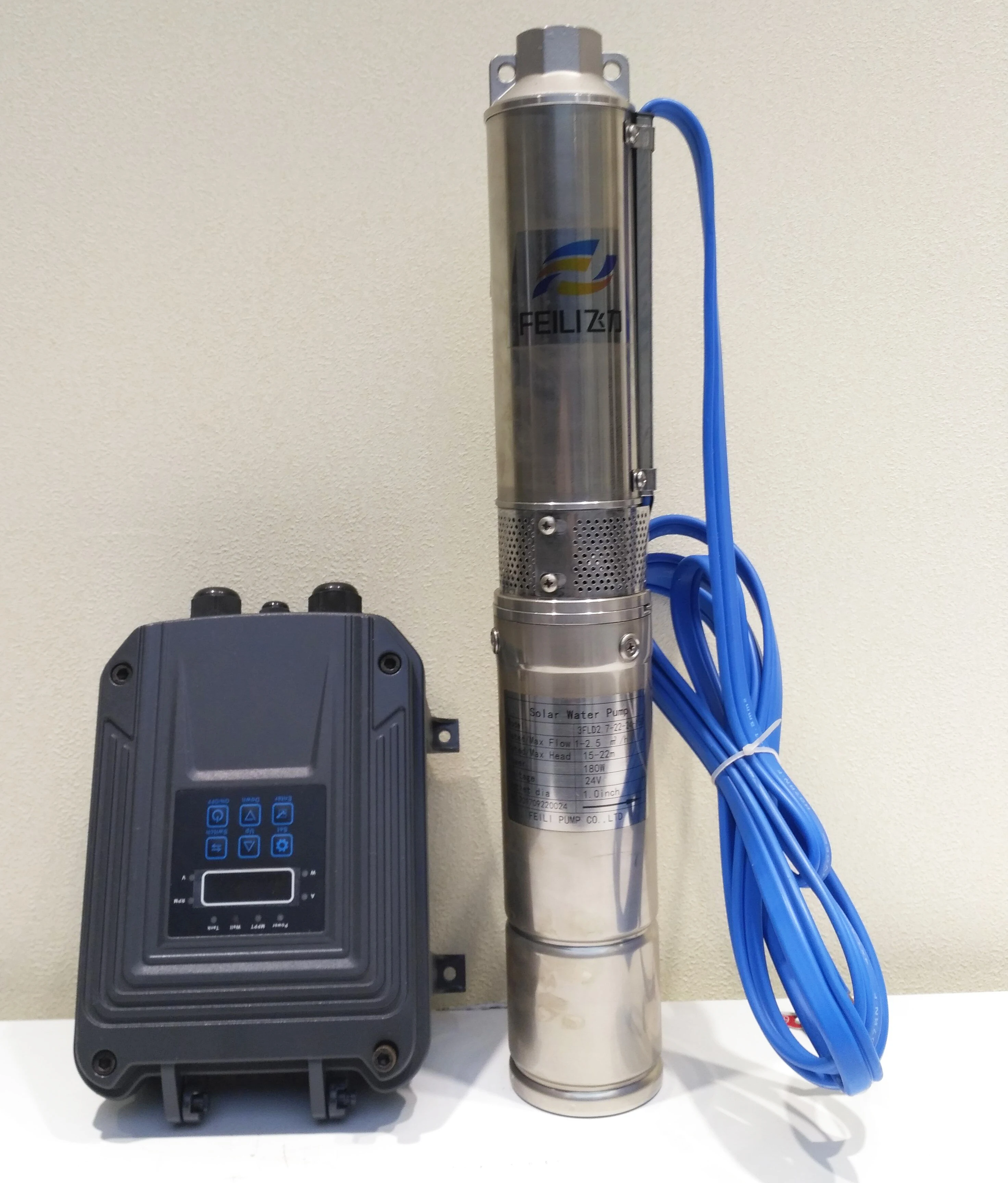

FEILI Solar Submersible Pumps

1) Low voltage dc solar pumps: 24V, 48V, 72V, 96V
Type: ① 3FLS series 3'' solar SCREW pumps
② 3FLD series and 4FLD series solar Centrifugal
pumps(impeller type)
Screw pump & Centrifugal Pump difference: for same
power pump, screw pump is higher head but less water
flow; centrifugal pump with more water flow but lower
pressure.
2) DC/AC high voltage solar pumps: 110V, 220V, 380V
Pump diameter: 3'', 4'', 6'', 8'', 10''

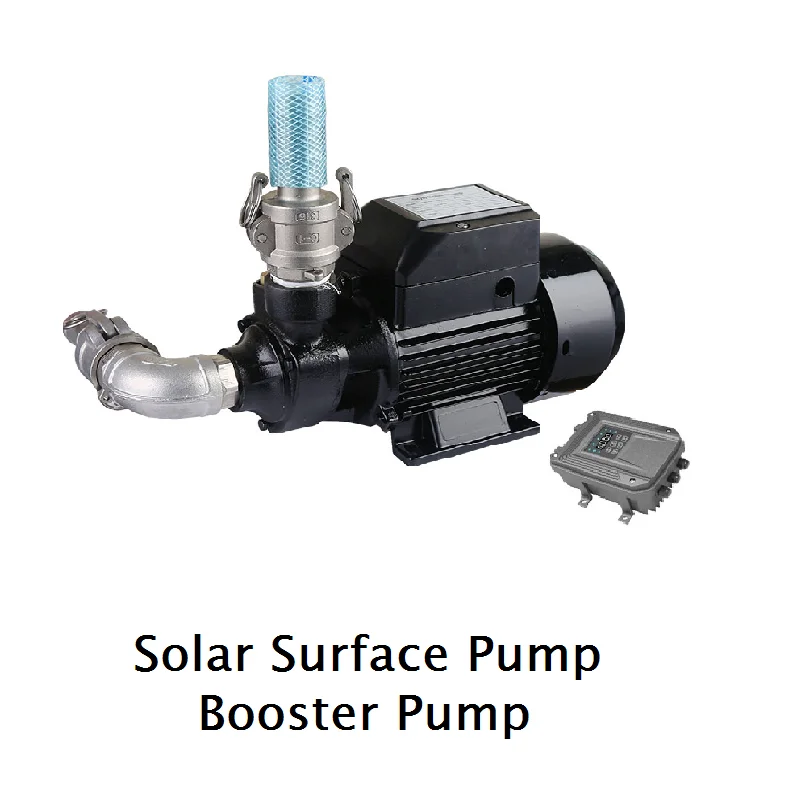

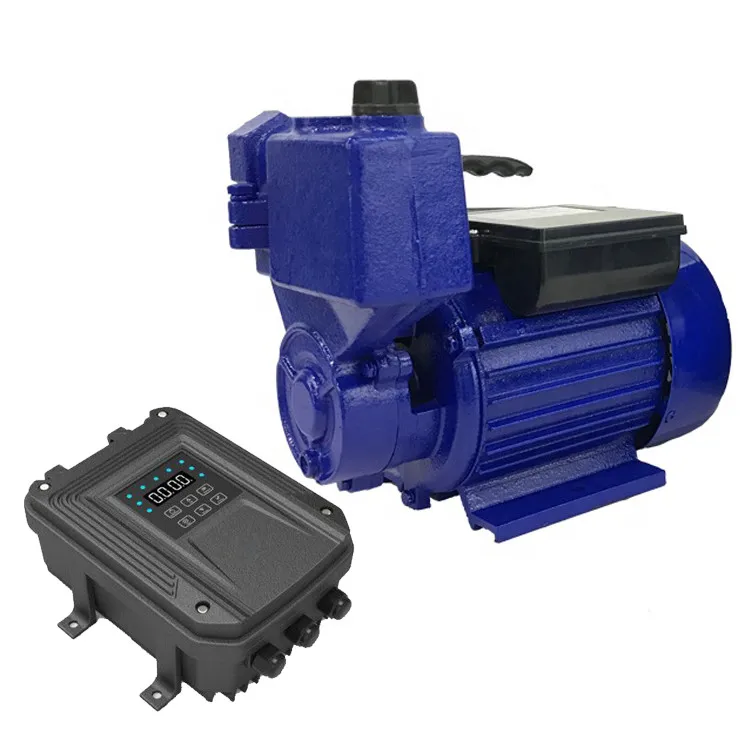

FEILI DC Solar Surface Pumps

1) SQB series: high pressure solar booster pump, pipe
diameter is all 1''
2) SCPM series: big water flow solar booster pump, pipe
diameter have 1'', 1.5'' and 2''
3) SJET series: stainless steel pump body solar booster
pump, pipe diameter: 1''
4) SZB series: self-priming solar booster pump, suction
head is 5 meters, pipe diameter: 1''

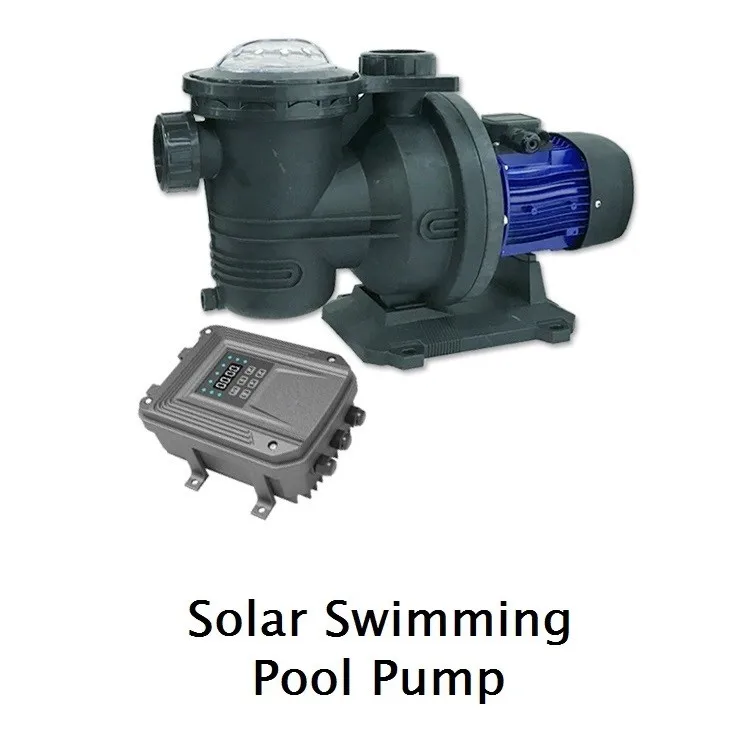

5) SJP series: DC solar swimming pool pumps, 200W,
500W, 900W and 1200W

Features
\t

1
\t
High efficiency:  Newly Developed DC Brushless Permanent-magnetic synchronous motor, 10-20% higher than common motors
\t

2
\t
Easy Movement: Volume and Weight is only 1/2 of other pumps with same specification.
\t

3
\t
Auto-protecting: If there is no water in well for 1 minute, will stop working automatically. After 30 minutes, will start automatically to test whether there is water or not.
\t
4
\t
Multi-Power Choices: Could connect with solar panels or batteries.

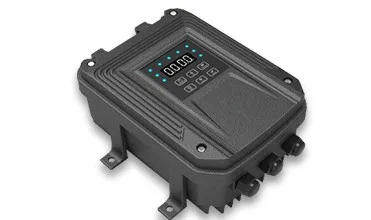

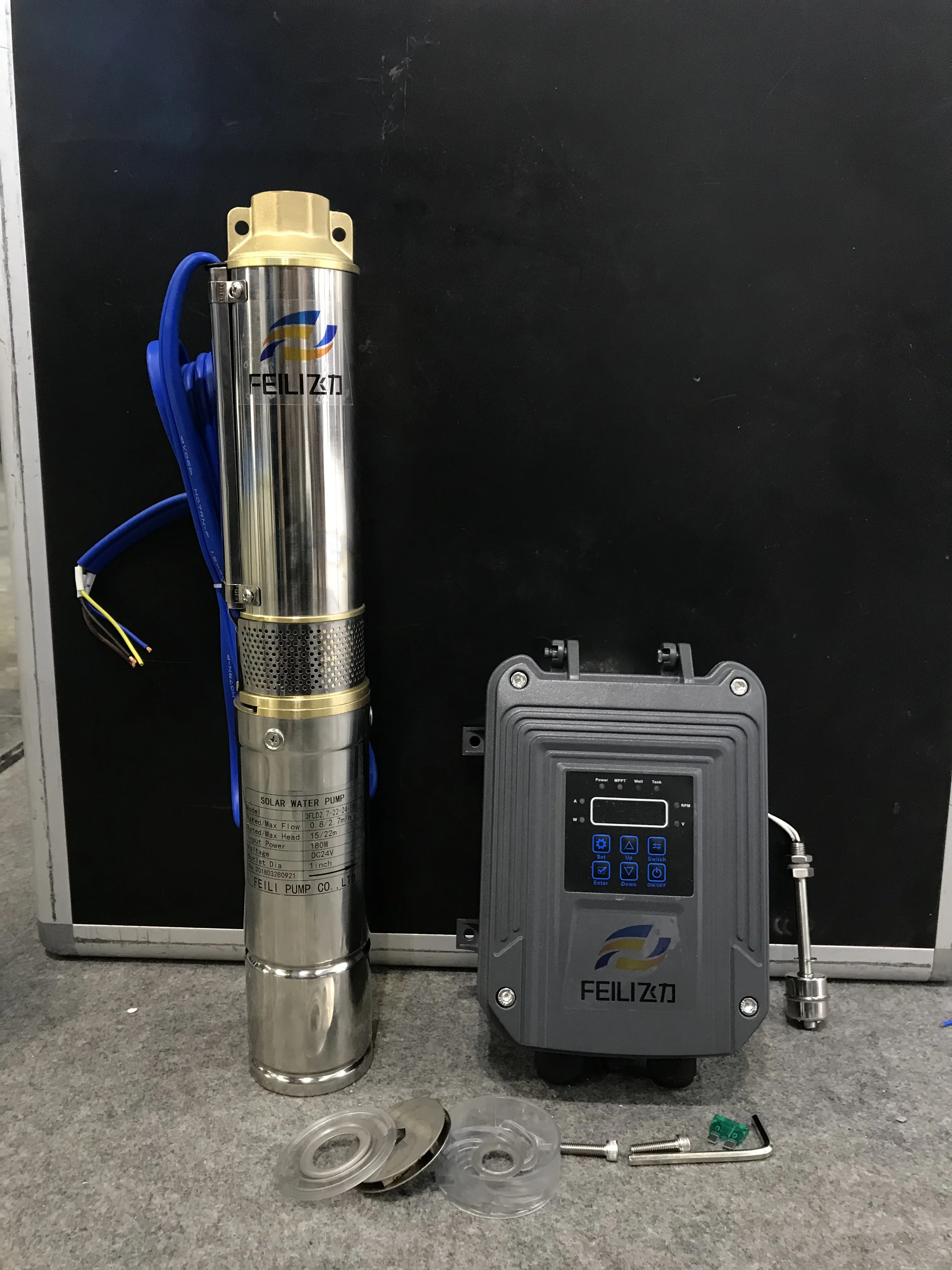

MPPT Controller

 1.Sand-proof, high temp

 2.Work with both solar water pump power and batteries
 3.Do not need deep well float switch, if there is no water in well for 1 minute, solar water pump dc brushless will stop working

 4.Controller will detect energy source to see it is solar panels or batteries, then start working

Permanent Magnetic
Synchronous Motor

DC Brushless Permanent-magnetic synchronous motor

15%-20% more efficient than common motor

Can realize flow control function.

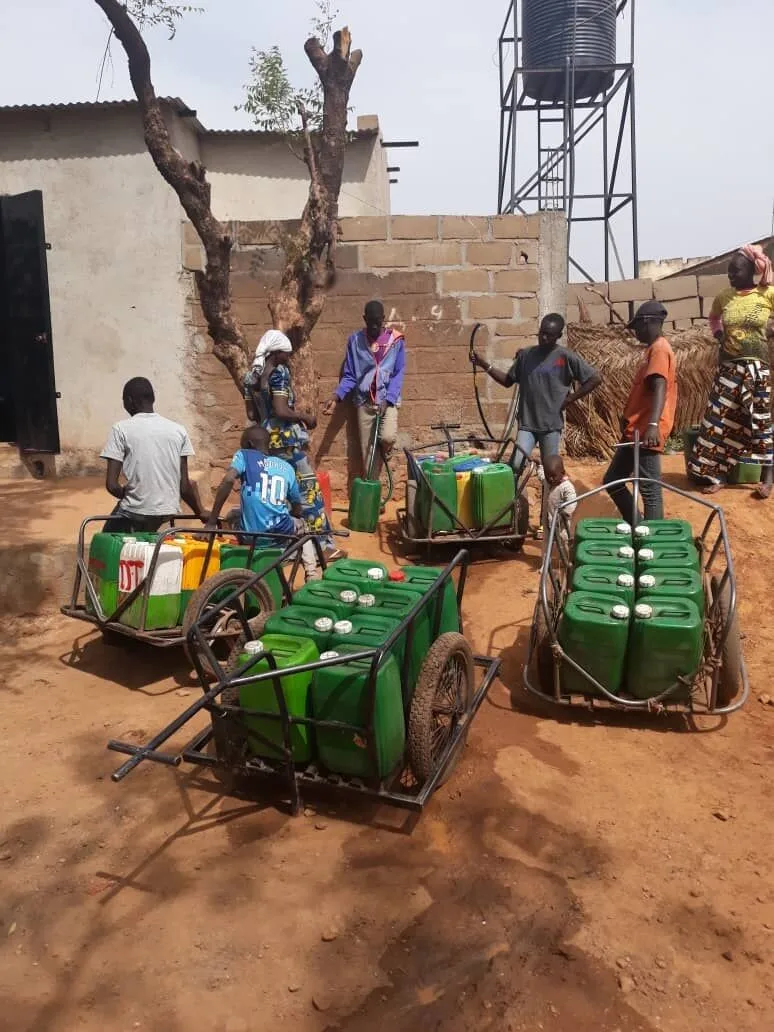

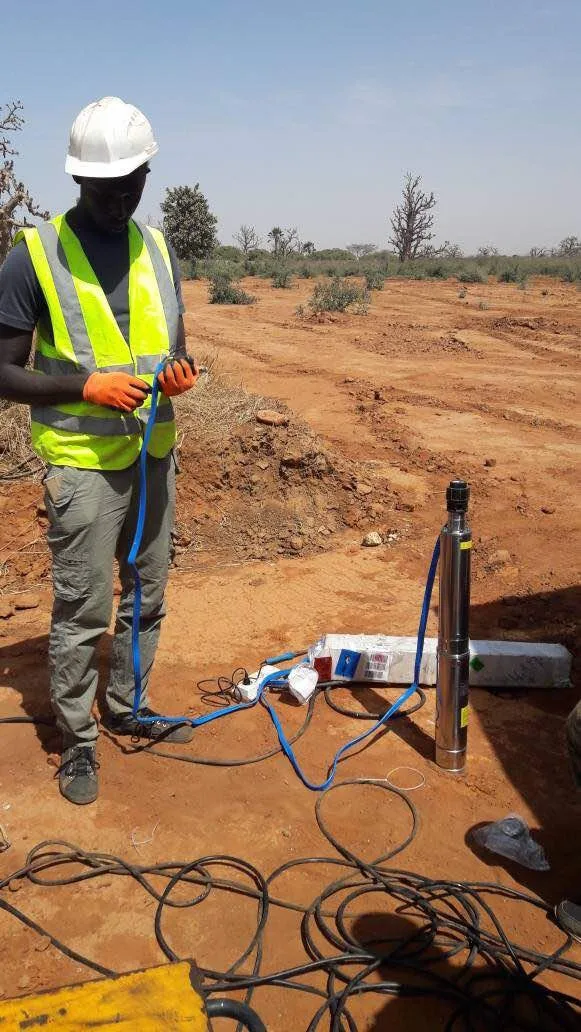

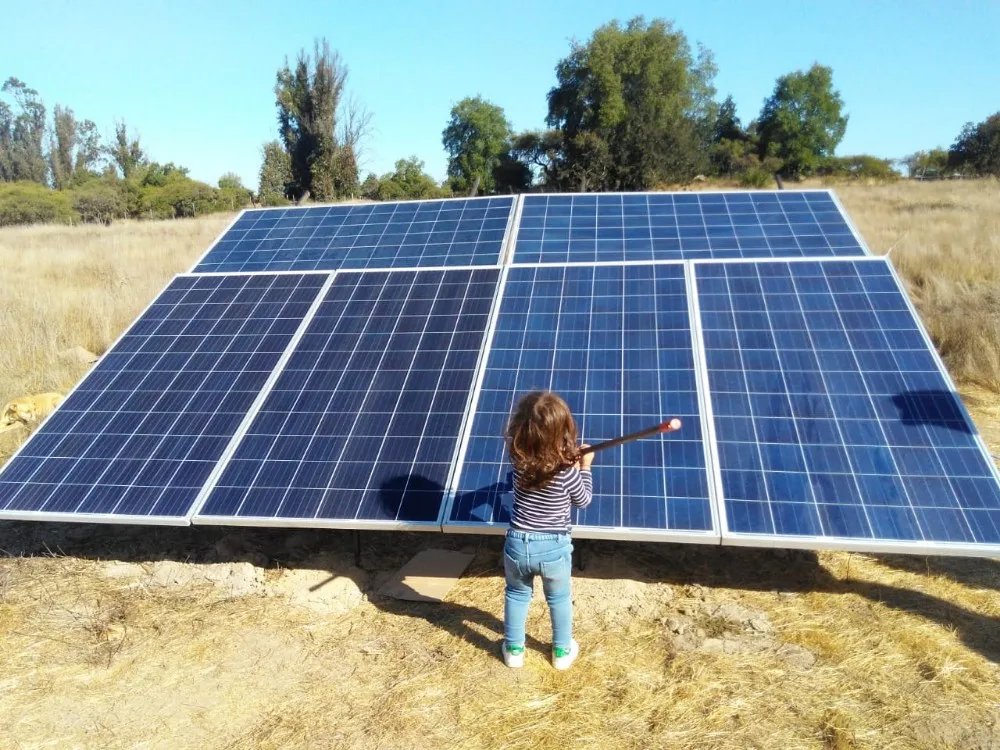

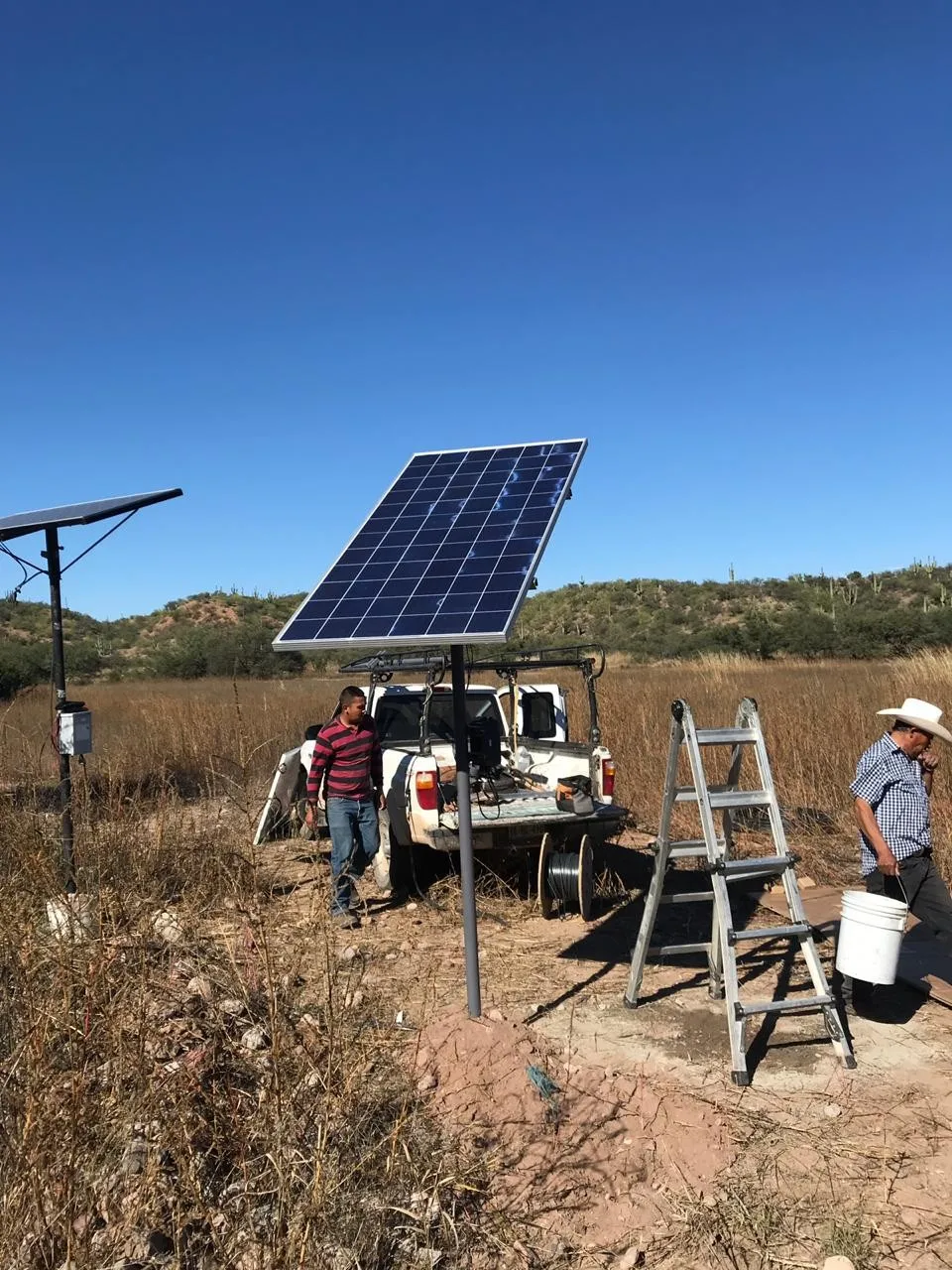

Application Feedback

Well, Tank, Pool, Lake...Water Pumping, Irrigation, Livestock Water Supply



Multiple Models

3'' Solar Pump

\t

Model
\t
Rated/Max.Flow
(m3/h)
\t
Rated/Max.Head
(m)
\t
Pump Voltage(V)
\t
Pump Power (W)
\t
Suggest Solar Panels Quantity
\t
3FLD2.5-15-24-140
\t
0.5/2.5
\t
9/15
\t
DC24
\t
140
\t
1*200W, connect directly to P+ P-
\t
3FLD2.7-22-24-180
\t
0.8/2.7
\t
15/22
\t
DC24
\t
180
\t
1*250W, connect directly to P+ P-
\t
3FLD3-35-24-300
\t
2/3
\t
16/35
\t
DC24
\t
300
\t
2*250W, two panels connect in series
\t
3FLD3-35-48-300
\t
2/3
\t
16/35
\t
DC48
\t
300
\t
2*250W, two panels connect in series
\t
3FLD3.2-40-48-400
\t
1/3.2
\t
30/40
\t
DC48
\t
400
\t
2*320W, two panels connect in series
\t
3FLD3.2-54-48-550
\t
1/3.2
\t
40/54
\t
DC48
\t
550
\t
4*200W, 2PCS in series, 2PCS in parallel
\t
3FLD5-35-48-550
\t
2/5
\t
22/35
\t
DC48
\t
550
\t
4*200W, 2PCS in series, 2PCS in parallel
\t
3FLD3.2-65-48-600
\t
1/3.2
\t
48/65
\t
DC48
\t
600
\t
4*250W, 2PCS in series, 2PCS in parallel
\t
3FLD3.2-80-48-750
\t
1/3.2
\t
60/80
\t
DC48
\t
750
\t
4*320W, 2PCS in series, 2PCS in parallel
\t
3FLD5-50-48-750
\t
3/5
\t
33/50
\t
DC48
\t
750
\t
4*320W, 2PCS in series, 2PCS in parallel
\t
3FLD3.2-80-72-750
\t
1/3.2
\t
60/80
\t
DC72
\t
750
\t
4*320W, 2PCS in series, 2PCS in parallel
\t
3FLD5-50-72-750
\t
3/5
\t
33/50
\t
DC72
\t
750
\t
4*320W, 2PCS in series, 2PCS in parallel
\t
3FLD3.2-120-72-1100
\t
1/3.2
\t
80/120
\t
DC72
\t
1100
\t
6*320W, 3PCS in series, 3PCS in parallel
\t
3FLD5-72-72-1100
\t
3/5
\t
50/72
\t
DC72
\t
1100
\t
6*320W, 3PCS in series, 3PCS in parallel
\t
3FLD5.4-85-96-1300
\t
3/5.4
\t
63/85
\t
DC96
\t
1300
\t
6*320W, 3PCS in series, 3PCS in parallel

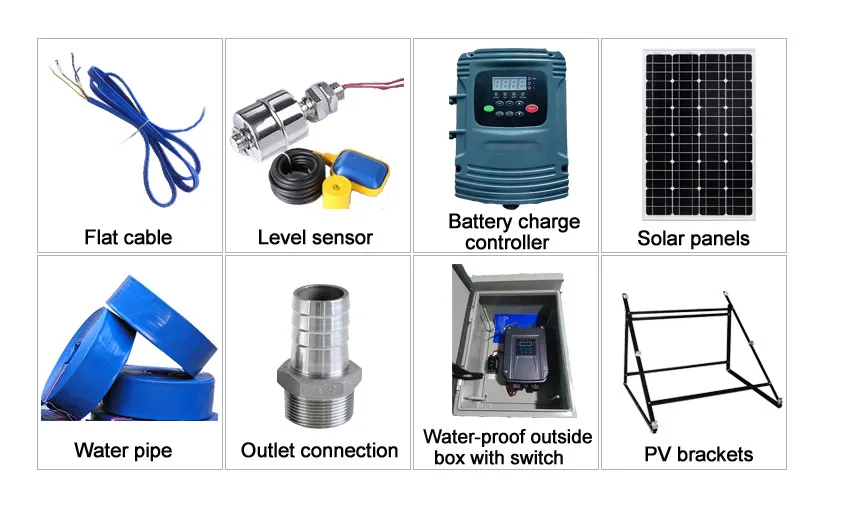

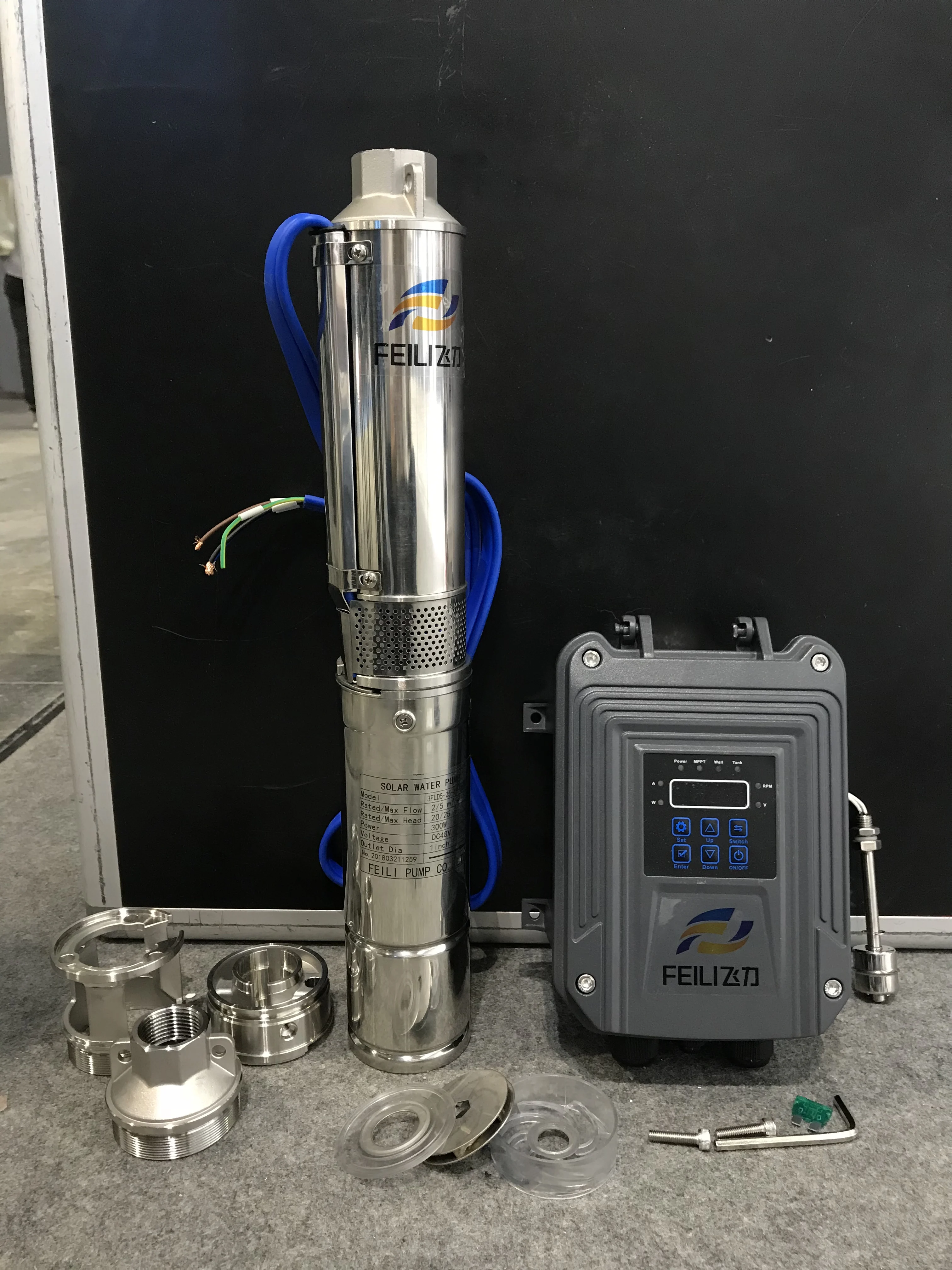

Other Accessaries for Options

If need bellow accessaries for extra price, welcome to contact with us.

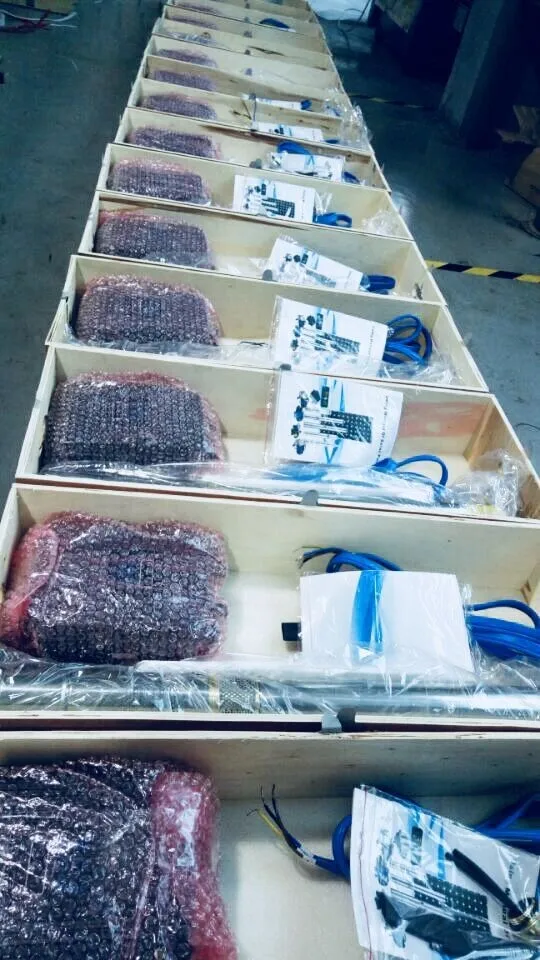

Packing

Company & Factory

FEILI PUMP CO ., LTD

In 2005, Mr Chen established a company named Zhejiang Feili Pump Co.,ltd.,with 5 professional experienced engineers, 80 workers and a sales team in Taizhou. We always insist "best quality , long-term cooperation".That's the reason why our reorder rate up to 80% for years. And we always offer quick response within 2-8hours, solve problems in 2 days.
We have Two Sales Department, one is in Taizhou City, the other is in Hangzhou City which is very near to Shanghai.

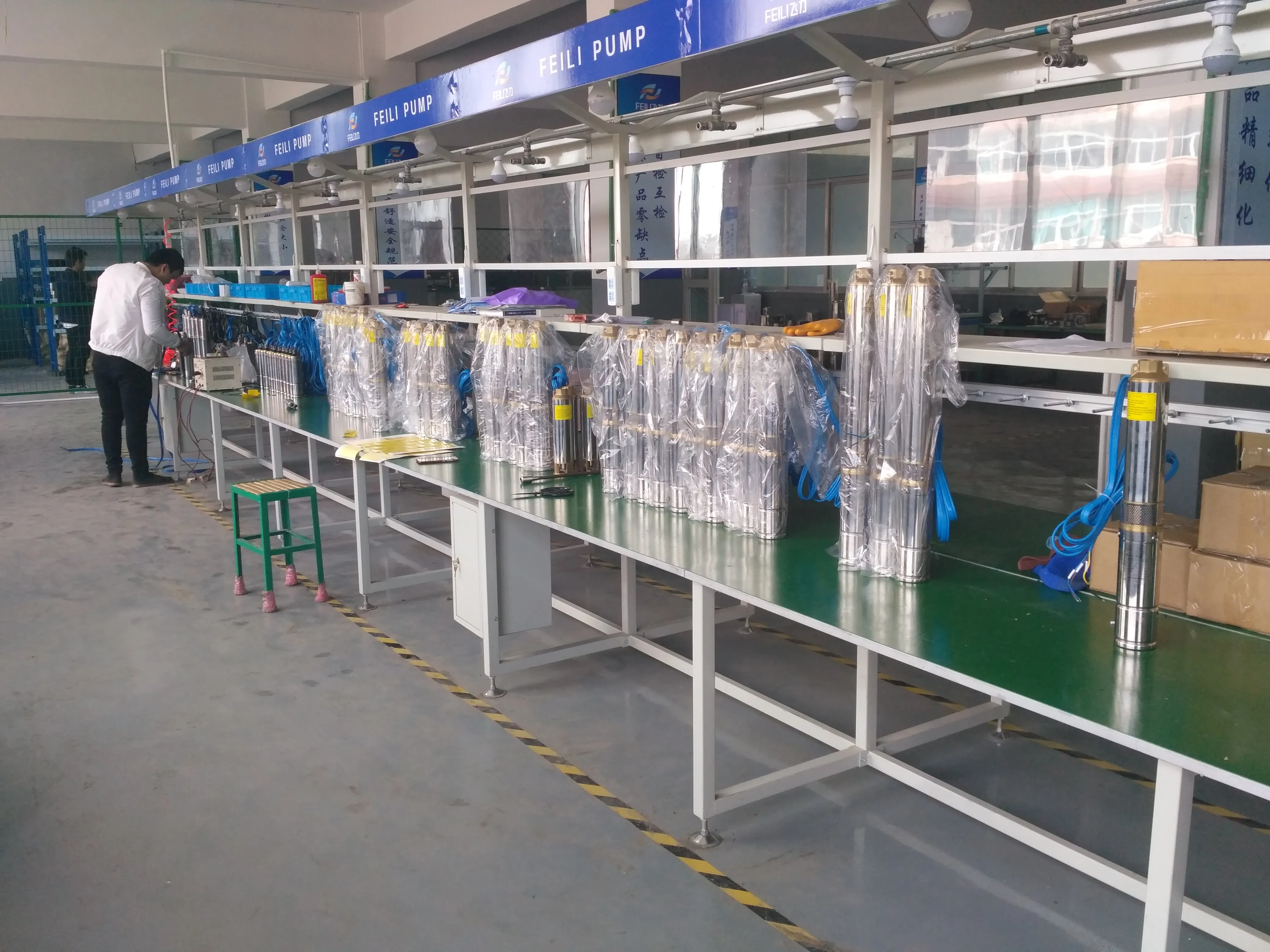

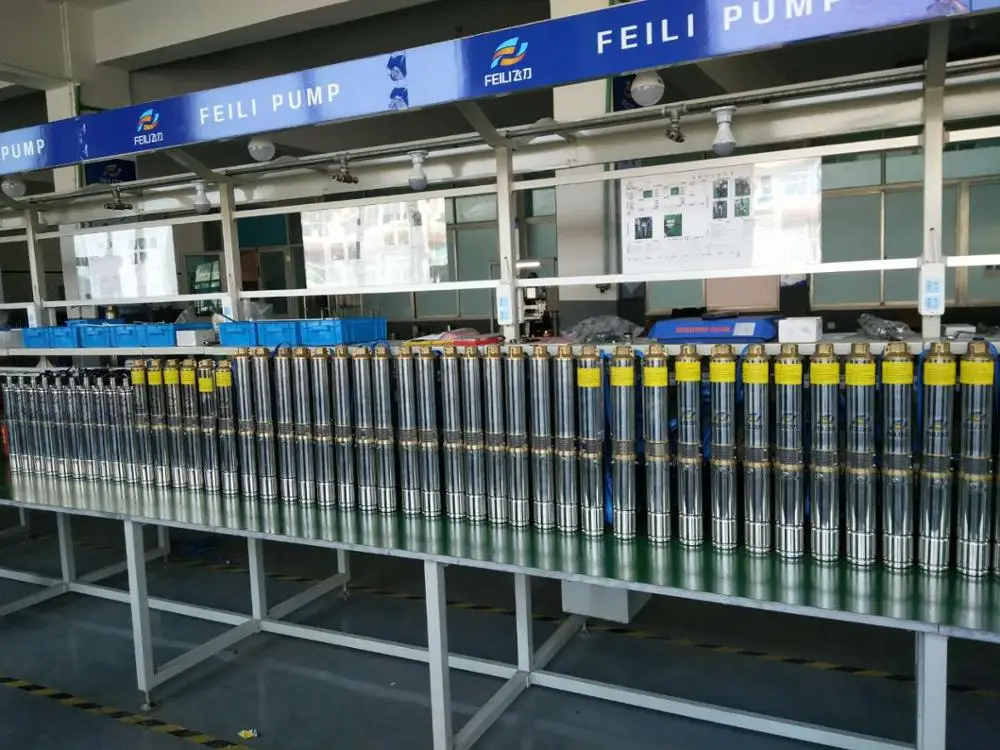

Factory

Our Factory is in Zhejiang Province, Taizhou City Daxi Town which is famous for industrail chain of different kinds of pumps making in China Mainland.

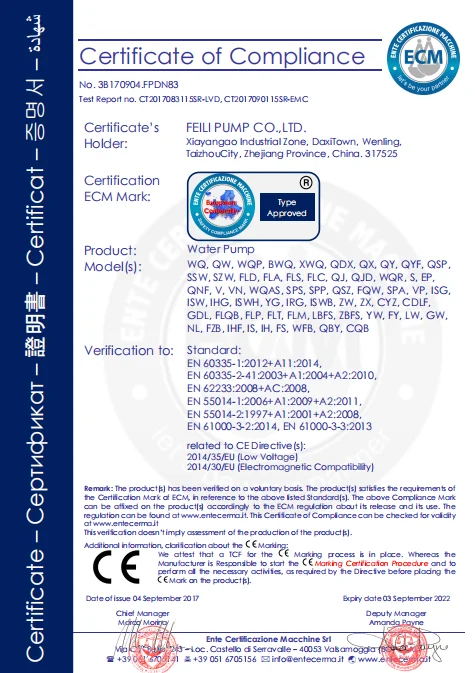

Certificate
