250m long range ir beam break detector infrared fence alarm
- Category: >>>
- Supplier: Shenzhen Eker Electronic Co. Ltd.
Share on (62165292574):
Product Overview
Description
Brief introduction
250m long range ir beam break detector infrared fence alarm
1.The Active Infrared Beam Detectors utilize invisible Infrared barriers to detect the intrusion. It has long detection/guarding range, low-cost, high-quality, and installation-friendly features.
2.These photoelectric beam detectors have N.O. and N.C. alarm output, can work with difference systems through reliable wired connection. It's the ideal security detectors for your intrusion alarm system, access control system, IP surveillance system and home automation system.

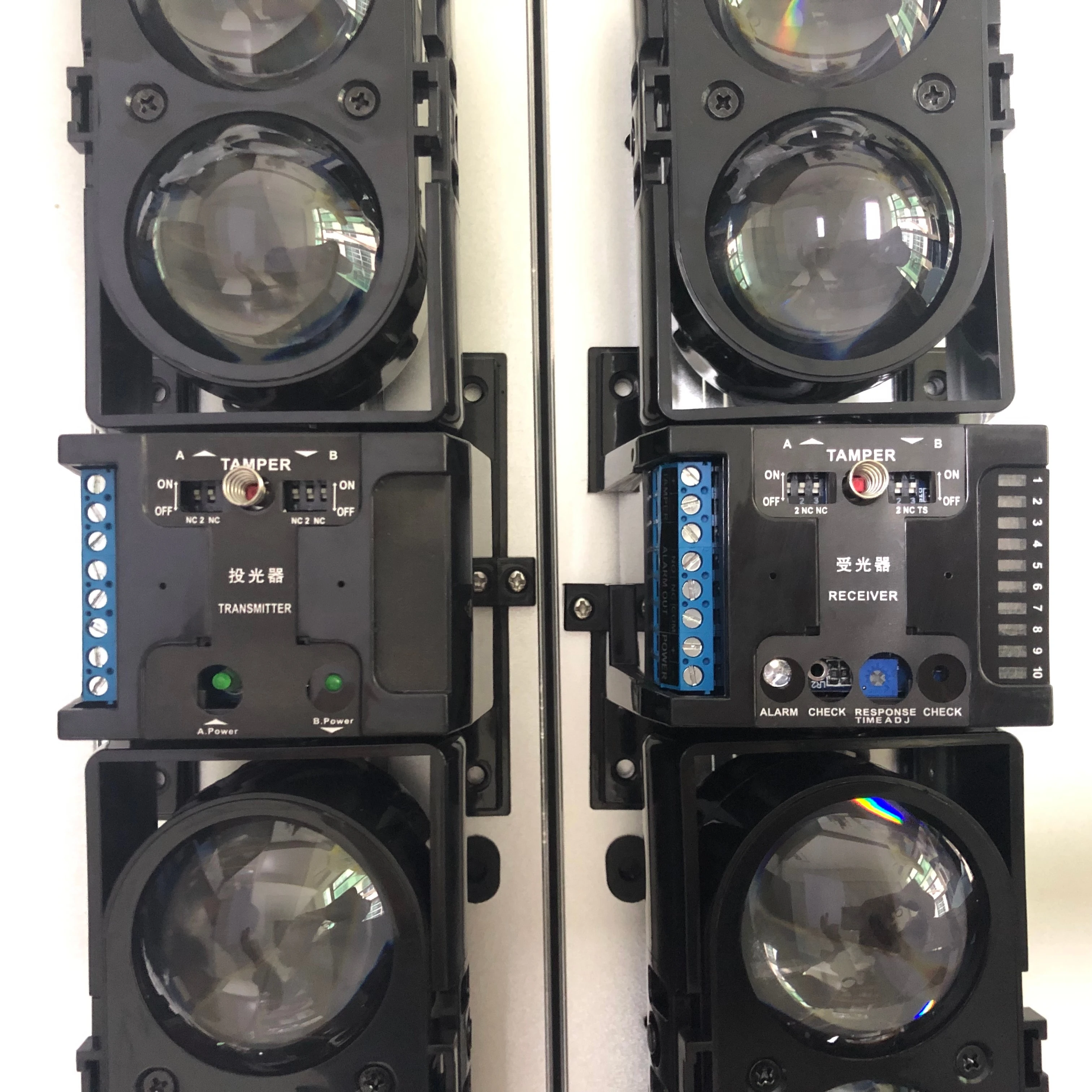

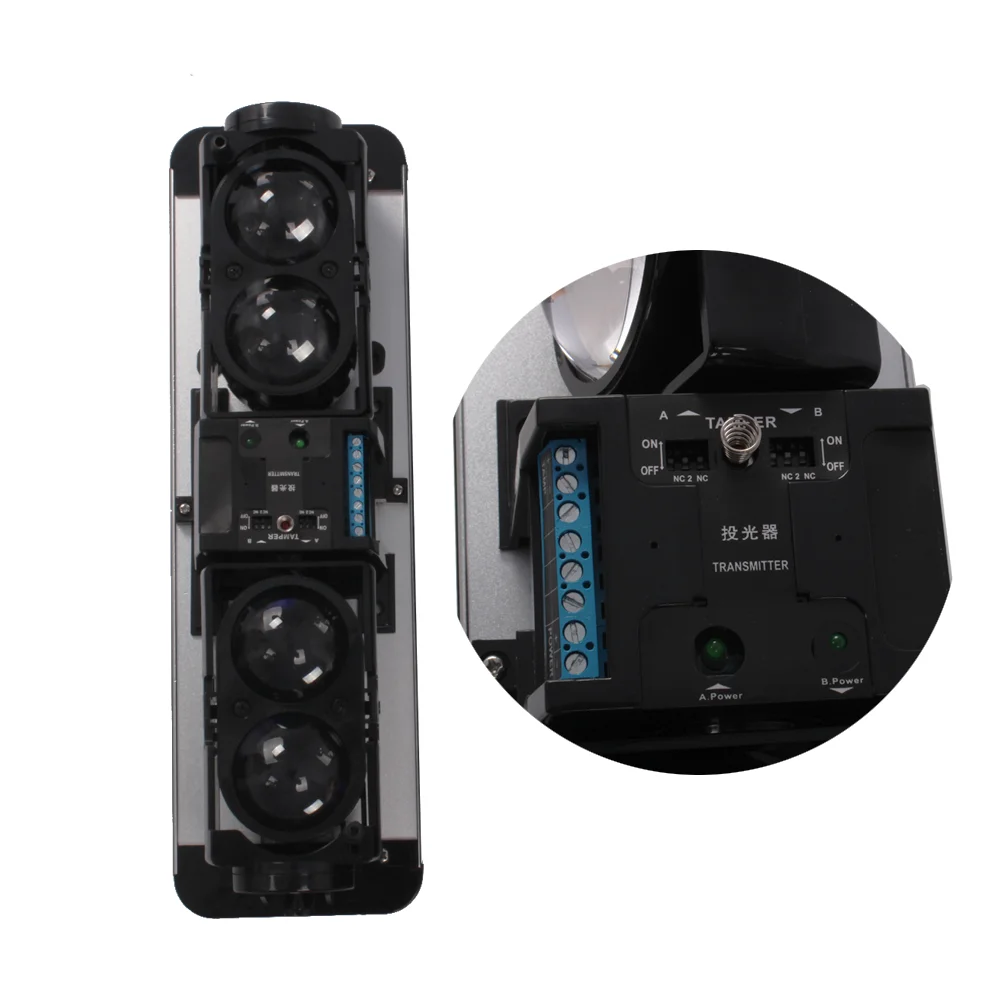

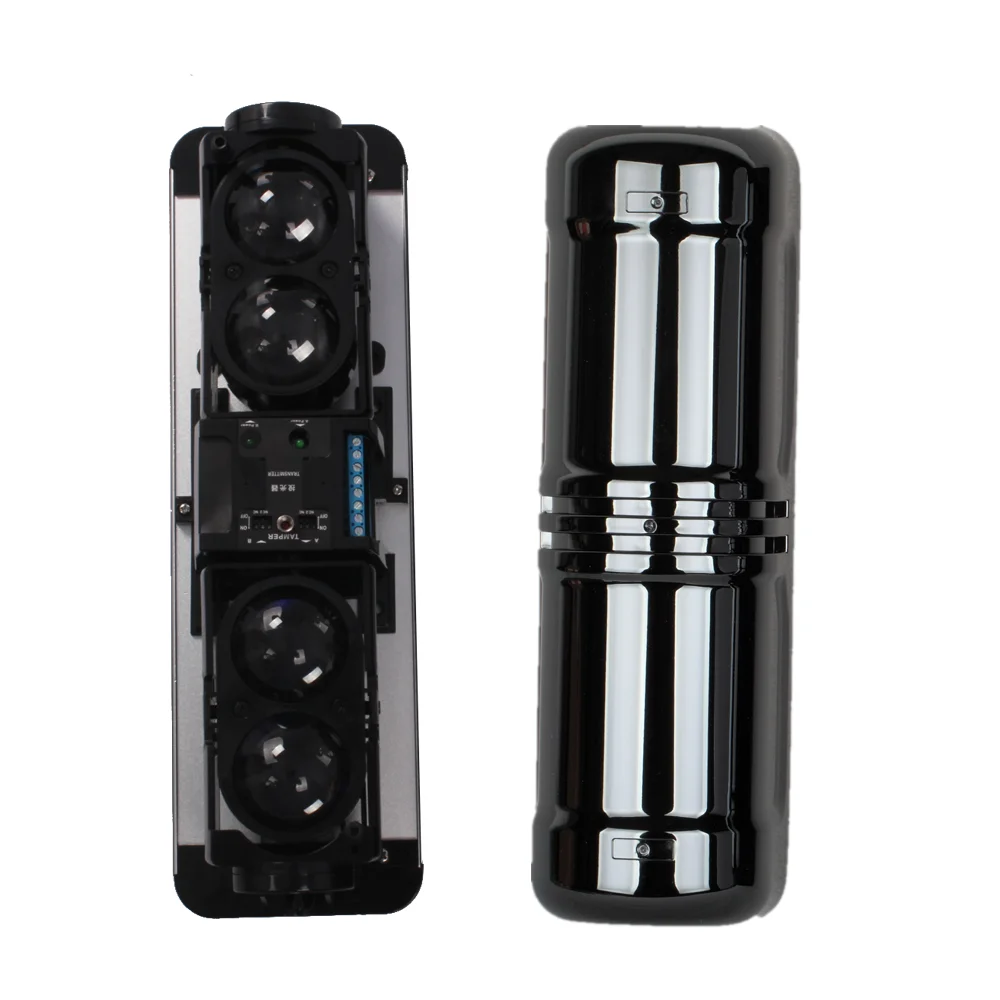

Structure
Features
1. 4 beams active infrared detector: can reduce the false alarms that are caused by bird, pet leaf...etc.
2. Adopt digital DIP technology, frequency, sensitivity, indicator and operation power can be adjusted through DIP switches.
3. Special-purpose DSP chip, patent multidimensional fault-tolerant, true detection alarm technology.
4. NC/NO relay outputs, compatible with other brand alarm systems like Honeywell, Bosch, Paradox, DSC, GE Alef, HONEYWELL etc.
5. Anti-glare up to 50,000 LUX, built-in automatic adjustment strong light filtering system.
6. AGC circuit: when faced with fog or inclement weather,t he detector sensitivity will increase automatically.

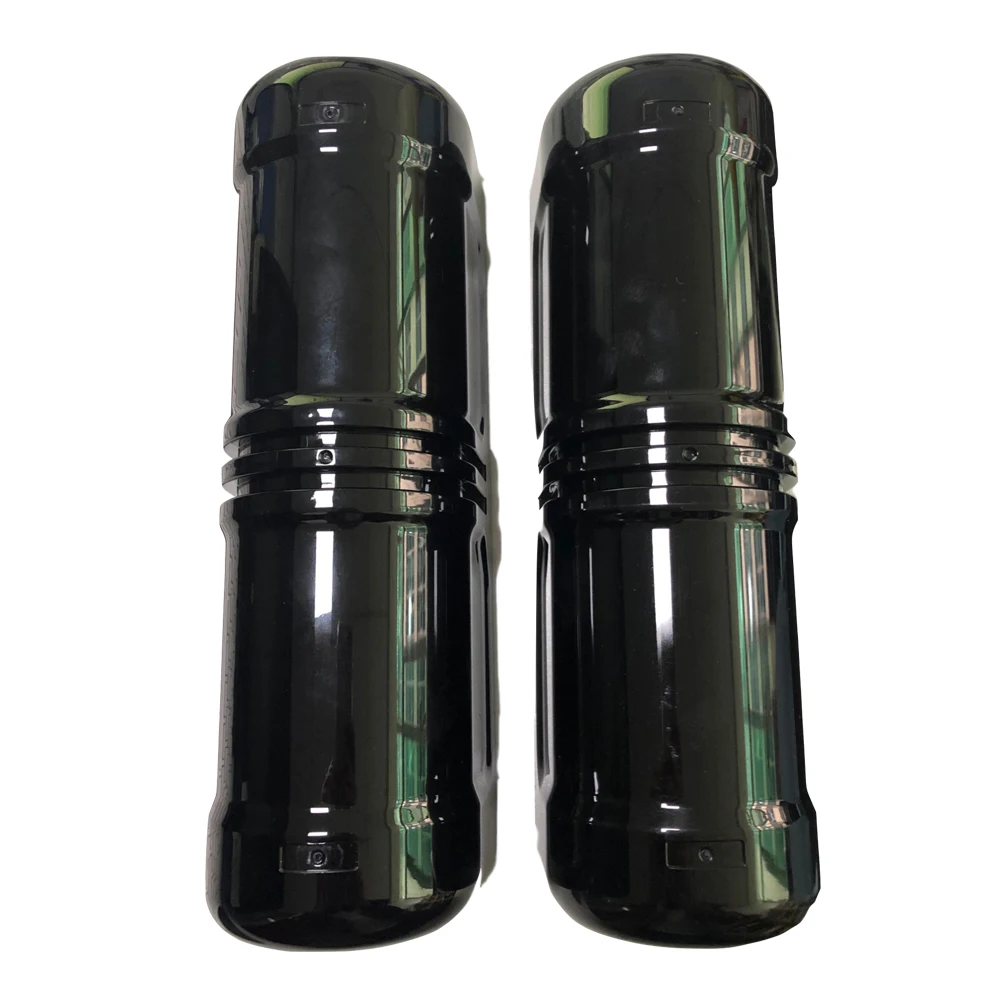

7. Fully seal structure, with rain cover design, C relay output.
8. External Protection: Protection from rain, dust & insects.
9. Sniper viewfinder with x2 magnification
10. Alignment angle: Horizontal ±90° / vertical ±10°.
Parameters
Model | ABH-50L | ABH-100L | ABH-150L | ABH-200L | ABH-250L | |
Detection Range | Outdoor | 50m | 100m | 150m | 200m | 250m |
Indoor | 150m | 300m | 450m | 600m | 750m | |
Number of beams | 4 beams | |||||
Beam characteristics | Pulsed infrared | |||||
Viewfinder | Removable | |||||
Alignment level | 10 alignment LEDs | |||||
Detection Method | Simultaneous interruption of 4 infrared beams or a group of 2 infrared beams | |||||
Interruption Time | 50~700m/sec (selectable) | |||||
Power Supply | DC 10~24V; AC 10~18V | |||||
Current Consumption | 95mA max | 100mA max | 100mA max | 100mA max | 105mA max | |
LED | Red LED Alarm(receiver), Digtal LED Display | |||||
Alarm Output | Form C relay (DC30V/0.5A max) | |||||
Alarm period | 2sec(±1) Nominal | |||||
Tamper Switch | NC opens when cover is removed | |||||
Operating Temperature | -25℃ to +55℃ | |||||
Environment Humidity | 95% max | |||||
Alignment Angle | Horizontal 180°(±90°), Vertical 20°(±10°) | |||||
Mounting | Wall or Pole | |||||
Protection Degree | IP65 | |||||
Material | PC engineering plastic+Aluminum alloy | |||||
Dimension (L*W*H) | 340*110*103mm | |||||
Weight (Transimtter and Receiver) | 2730g | |||||

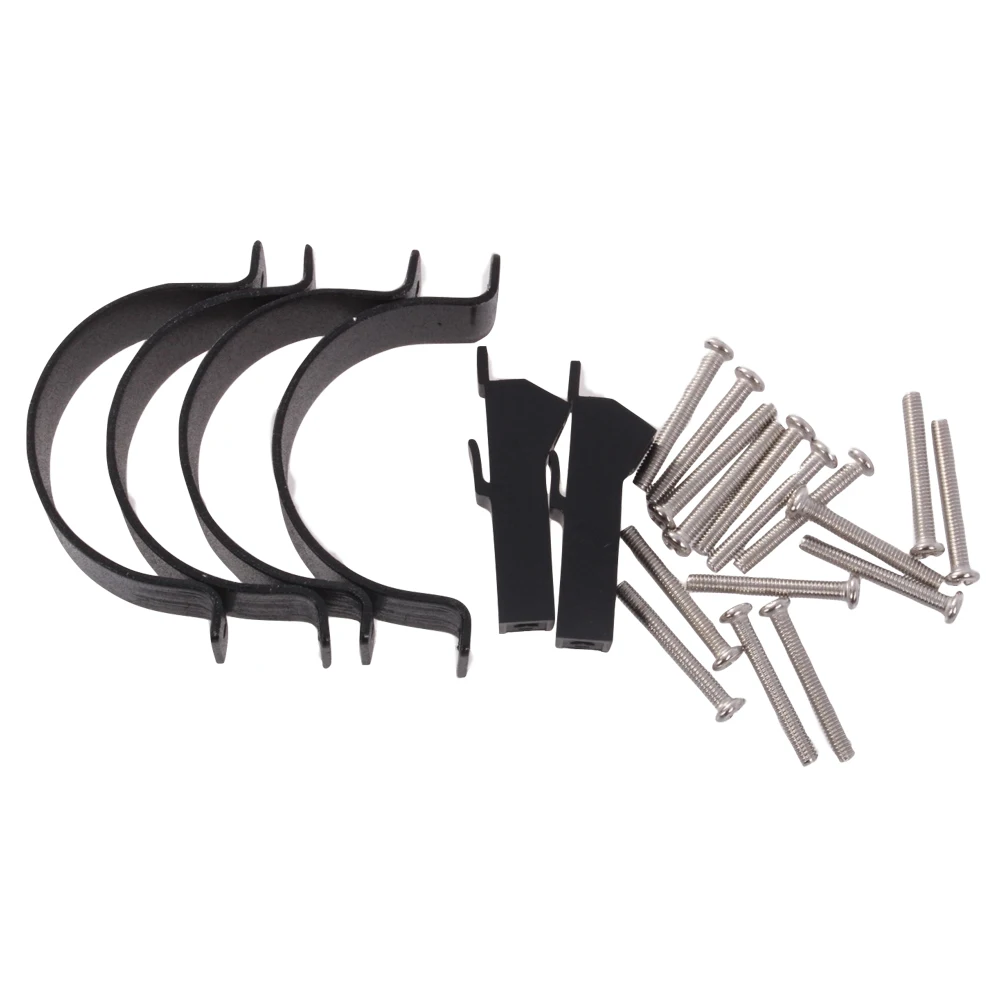

Attachments | U bracket | 4pcs, 70.4*37.5*21.5mm, δ=1.5mm, stainless steel | ||||
| Pole mounting srew | 16pcs, PM4*30mm | |||||
| Installation manual | 1 | |||||
Spiral Terminal Dedew and Defrost Method | Heaters(need to purchase separately) | |||||
| Note: When environment termperature lower than -20℃, please use heaters to ensure normal working. Heater is non-polarized. | ||||||
Product Description
Our Services
Company Information
FAQ
Q
How can I get the beam detector sample to check your quality?
A
Sample order is available, you need to pay for the sample and the express freight. After bulk order confirmation, we can return the sample cost to you.
Q
What can I get the price?
A
We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please tell us in your email so that we will regard your inquiry as priority.
Q
What is your trade term of delivery?
A
We accept EXW, FOB Shenzhen or CIF destination port. You can choose the one which is the most convenient or cost effective for you.
Q
What about the lead time for the mass production?
A
Honestly, it depends on the order quantity and the season you place the order. Sample order is within 2 days. OEM/OEM order will need extra time.
