Product Overview

Description


Product Description

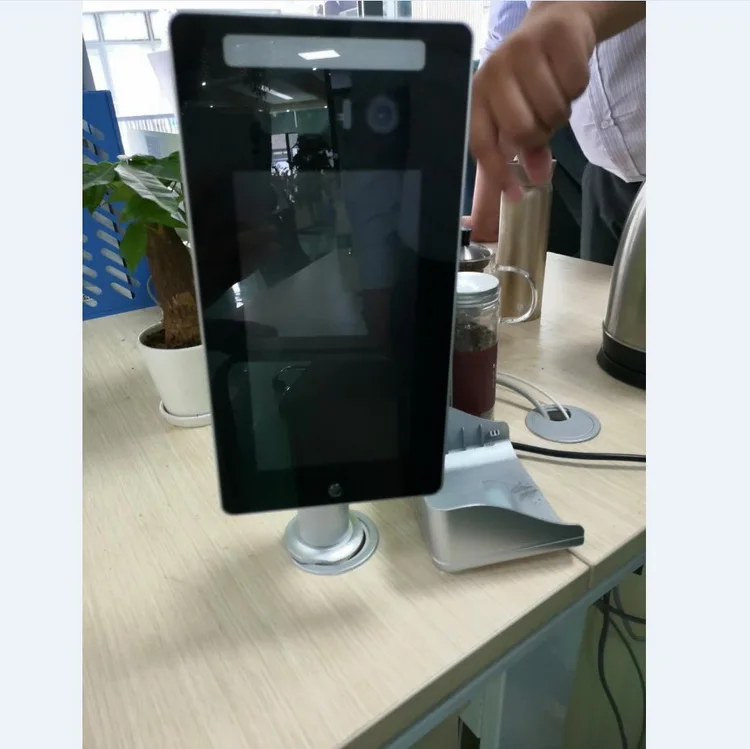

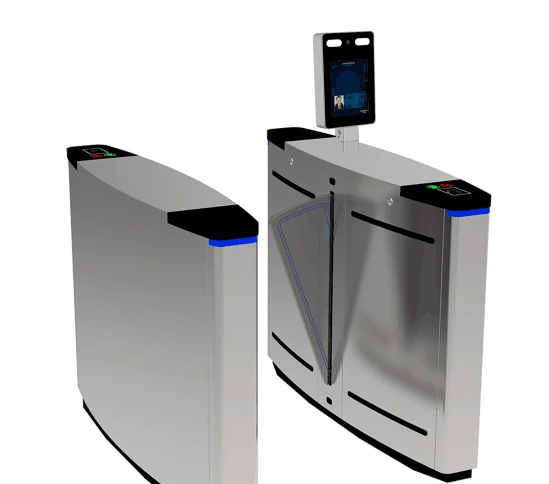

Buit-in face recognition algorithm time attendance terminal swing barrier




Terminal face recognition swing barrier is using Linux operating system,better system stability.Buit-in face recognition algorithm to accurately recognize faces, face recognition time is less than 0.8s.

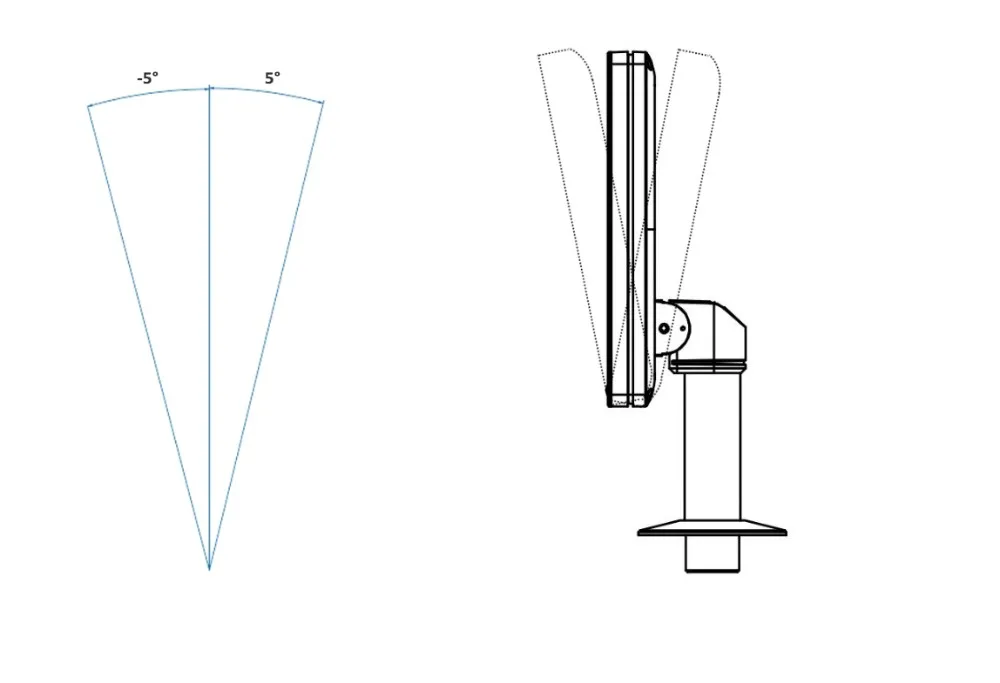

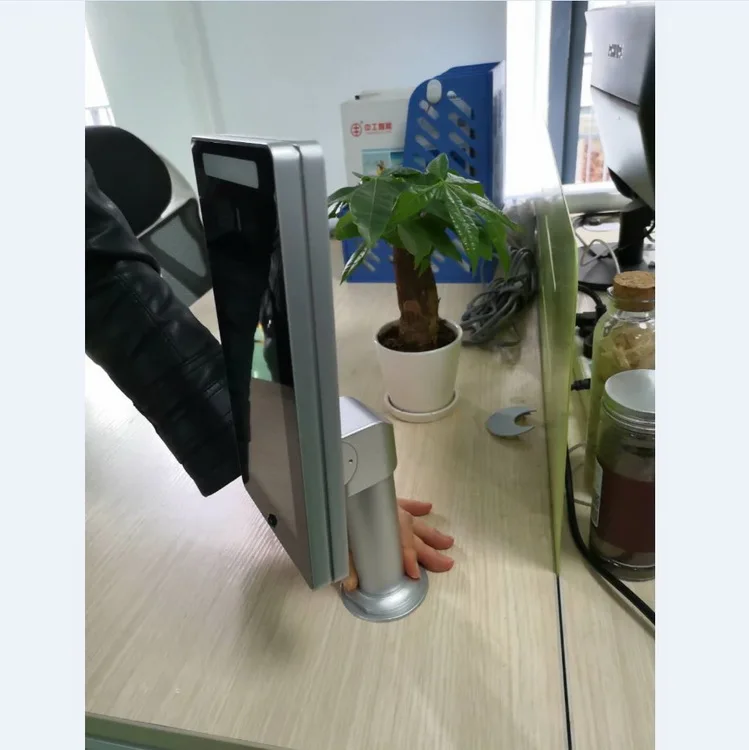

Face detection machine installation adjustable of angle
It's can be used under strong backlight conditions,and can be adjusted the angle according to the specific situation. ±5° is better.


The face recognition terminal support Wiegand protocol(26 bits,34bits),It's easy to integrate to existing security/access control system

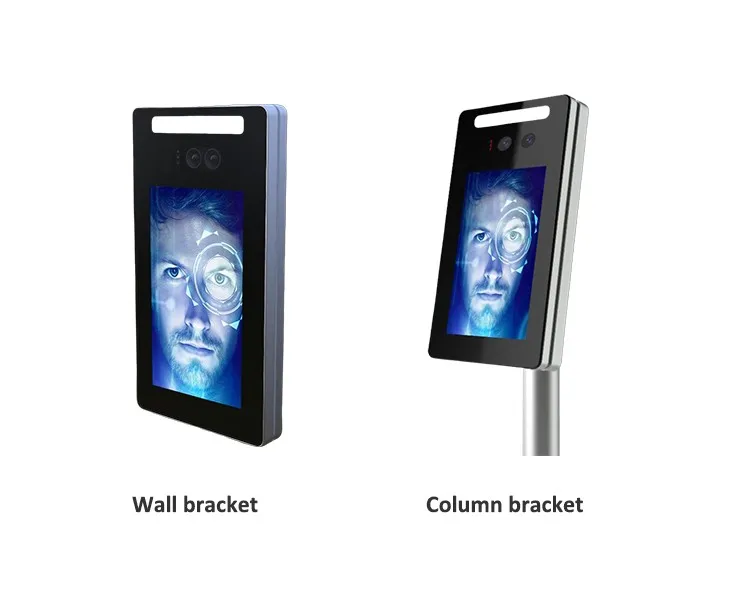

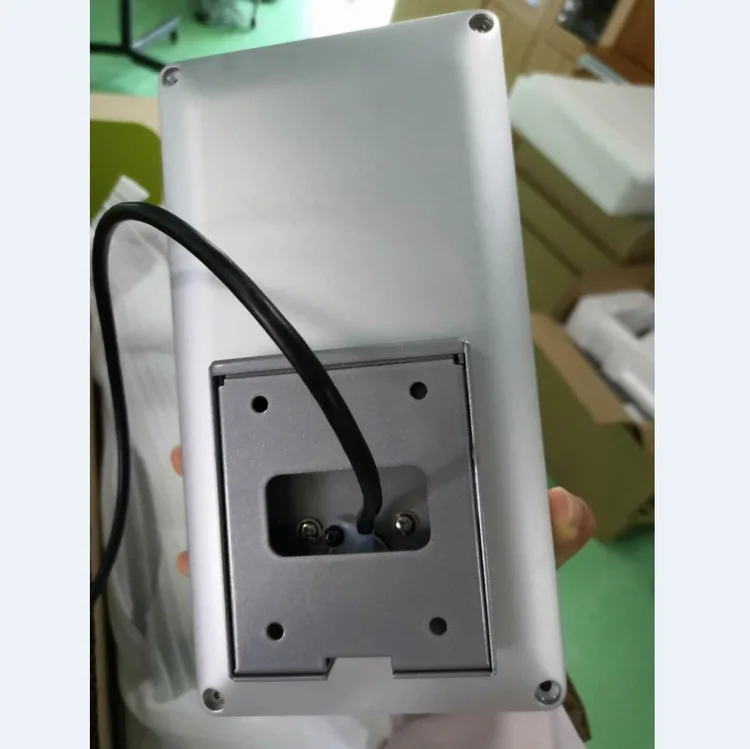

The face recognition terminal have Wall bracket and column bracket optional



Features:
1.Embedded Linux standalone operation system,more stability
2.Support Real Time Human Body Detection
3.Support PIR human body sensing wake-up function
4.Support 65000+ face matching library and 500,000 face recognition records
5.Support tracking of personnel movements under strong backlight conditions
6.Face recognition algorithm to accurately recognize faces,face recognition time is less than 1s
7.The host supports the Wiegand interface to connect with the personnel gate and the access control host,and acts as a face recognition reader.



Technical specification:

\t
Model
\t
FS1002-U21R-FDLK-M06
\t
Processor
\t
Sextuple processor + 2G memory + 32G flash
\t
Operating system
\t
Linux Operating system
\t
Storage
\t
Support TF card storage
\t
Camera module
\t
U21R
\t
Sensor
\t
1/2.8" Progressive Scan CMOS
\t
Lens
\t
6mm
\t
Recognition height
\t
1.2~2.2 meters,Angle can be adjusted
\t
Recognition distance
\t
0.5~5 meters,depends on lens
\t
Face angle
\t
30 degrees left and right, 30 degrees up and down
\t
Recognition time
\t
Less than 1 second
\t
Function
\t
Support 500,000 capture library, real-time capture, support 65,000 list library
\t
Switch inputs
\t
1ch switch input
\t
Power
\t
DV12V/3A
\t

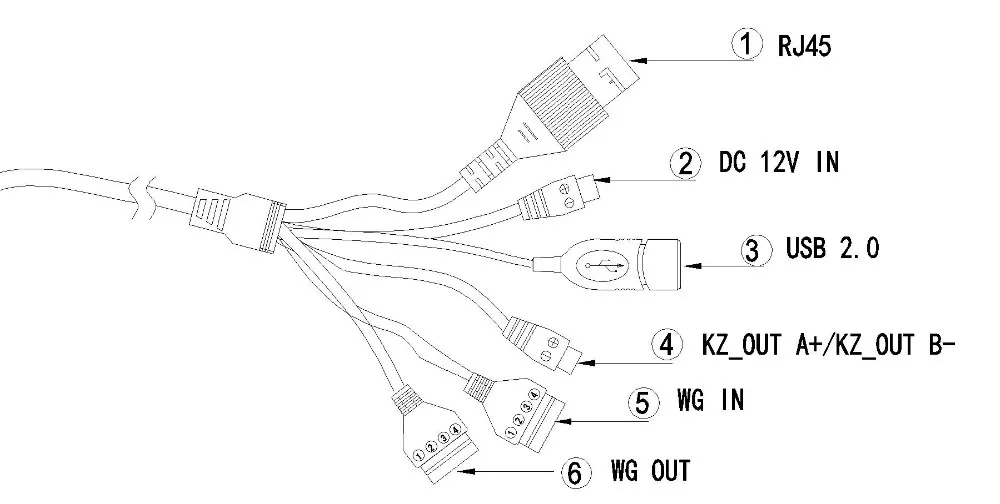

Network Interface
\t
1x RJ45 10M / 100M Adaptive Ethernet port
\t
Wiegand Interface
\t
1ch Wiegand interface input/output
\t
USB interface
\t
1ch USB interface
\t
Camera
\t
Two cameras:1x B/W camera;1x color camera
\t
Effective pixels
\t
2MP,1920*1080
\t
Resolution
\t
Main stream:50Hz: 25fps (1920×1080,1280×720);60Hz: 30fps (1920×1080,1280×720)
Sub stream:720*576,1-25(30)fps/640*480,1-25(30)fps;320*240,1-25(30)fps
\t
SNR
\t
≥50db(AGC OFF)
\t
WDR
\t
≥120db
\t
Weight
\t
1.5 kg(without base plate)
Related products
Our company

Our advantages:
1.Make the reliable IP security surveillance cameras used for professional surveillance project
2.Strong and experienced R&D engineer team,offer SDK&API for you,meanwhile we can help and support you to develop,revise and integrate to your own system
3.As a developer of professional software and web applications for managing video surveillance systems,we developing competitive and reliable products that meet the requirement of out customers.


Exhibition
FAQ


MOQ:
1.Sample t order, have no limit for the quantity
2.OEM MOQ is 50pcs/model
Payment Terms:
T/T,Western Union,PayPal
Delivery Time:
1.Sample order about 2-7 working days
2. General order about 15-30 working days
3. Bulk order can about 25-50 working days
Shipping:
FEDEX,DHL,TNT,UPS,EMS,Aramex,by air,by sea
OEM & ODM Service:
OEM and ODM service are acceptable;Free provided SDK&API
Warranty Policy:
We provide 3 years warranty after the shipment date
Technical Support:
We have professional technical support team to support our customers, and if you have any question for the technology of our products, please email or chat with us by skype or whatsapp,thank you in advance.
