5m3/h steel rotor plate electric dry concrete spraying shotcrete machine price
- Category: Shotcrete Machine >>>
- Supplier: Zhengzhou Gaode Equipment Co. Ltd.
Share on (62165758325):
Product Overview
Description

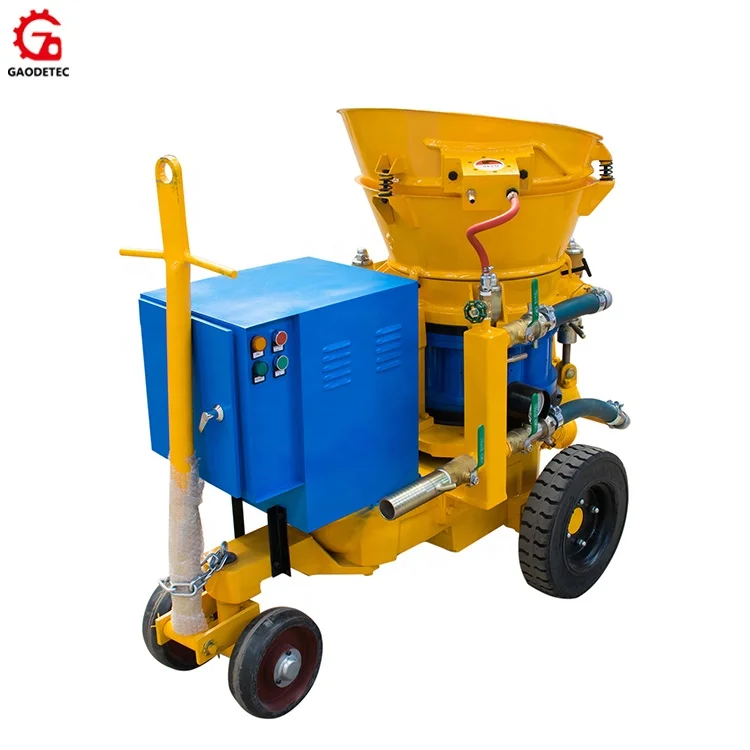

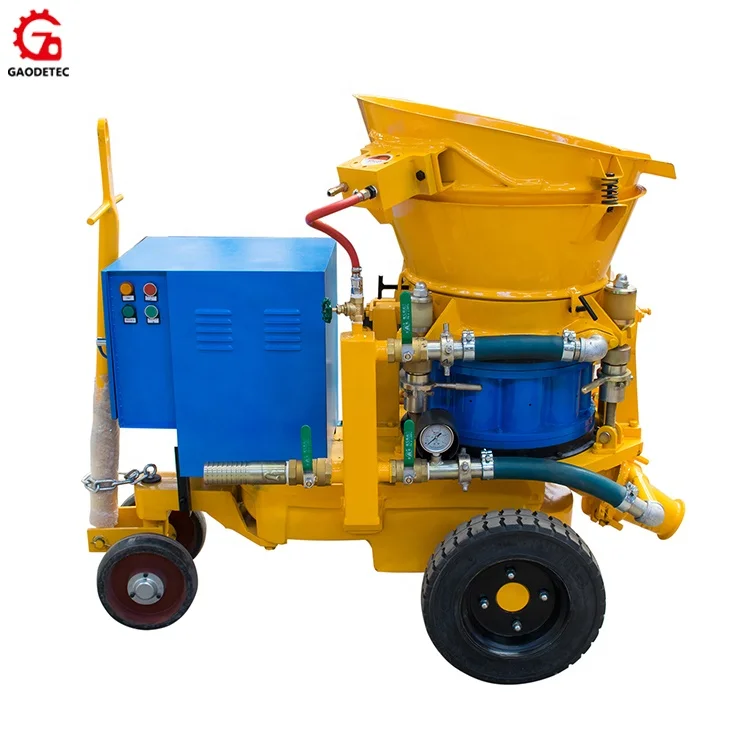

5m3/h steel rotor plate electric dry concrete spraying shotcrete machine price
Product Description
Product description:
GZ-5E concrete machine is medium-sized shotcrete machine for the dry spraying process. And it is widely used by so many contractors. GZ-5E concrete can be used for tunneling building, mining operations, hydropower projects and hillside protection, ect.
Specification
Rated Output | 5m 3 /h |
Max. Horizontal Conveying Distance | 200m |
Suitable Mix Ratio(Cement/Sand) | ≤ 1:3~5 |
Water Cement Ratio | < 0.4 |
Max. Aggregate Size | Φ 15 mm |
Conveying Hose Inner Diameter | 51mm |
Operating air Pressure | 0.2-0.4MPa(29-58PSI) |
Air Consumption | 8~9m 3 /min(285-325CFM) |
Motor Power | 5.5kW(7.5hp) |
Voltage | 220V, 380V, 440V, 660V, 50Hz/60Hz |
Material Charging Height | 1.1m |
Rotor Speed | 11r/min |
Overall Dimension(L× W× H) | 1.35× 0.75× 1.2m |
Net Weight | 720kg |
Detailed Images
Feature:
- WEG motor for choose, support global service
- Good seal performance, little dust
- Convenient operation and longevity of service
- Four-point clamping device make it easy to asjust the press between seal plate and rotor disk so as to no air and dust leak and prolong consumption parts life.
- Thin flow conveying methos with vortex flow, so the spraying flow is even, vontinuous and steady, to improve the shotcrete quality.

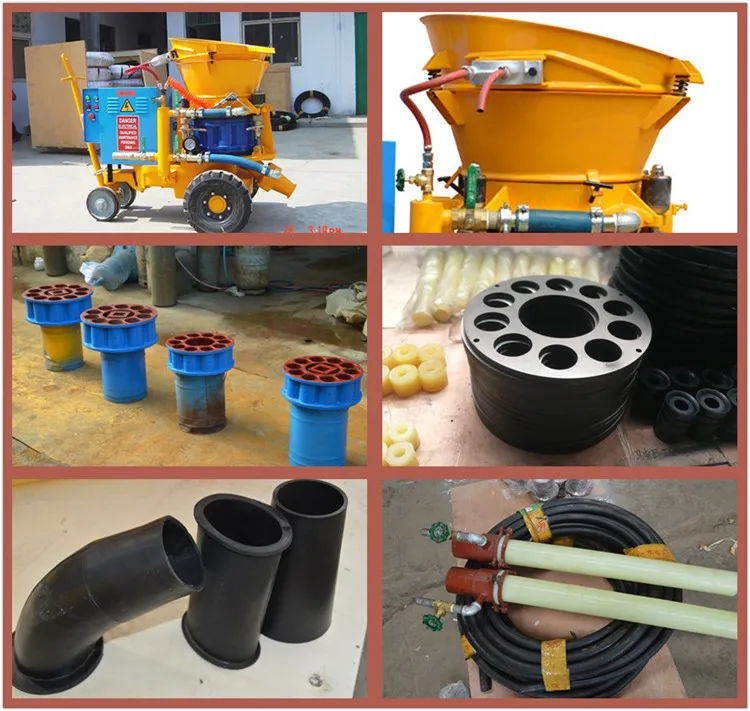

Product Details:

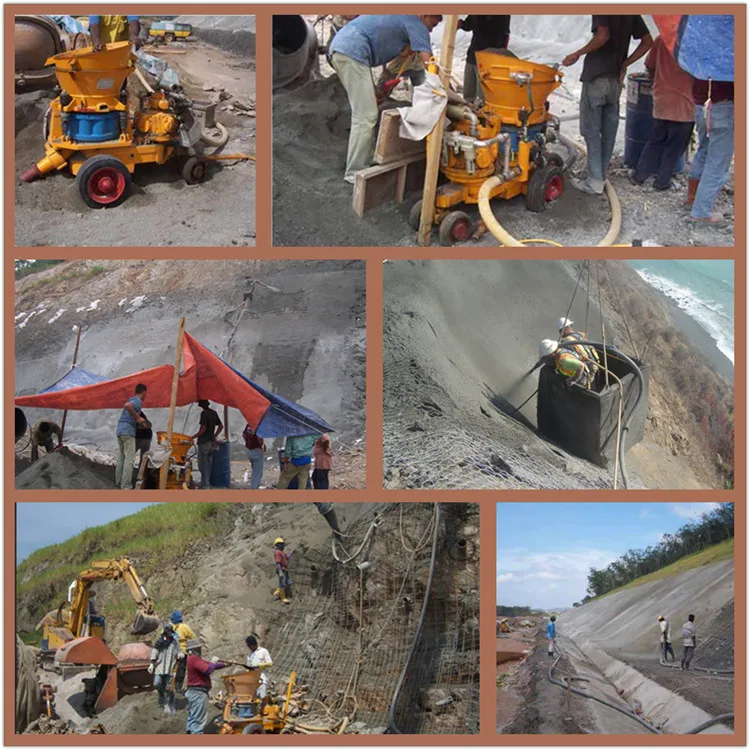

Application
Application:
The GZ-5 dry mix electric motor concrete machine is widely used in mining, tunnel building, culvert, revetment, ect.

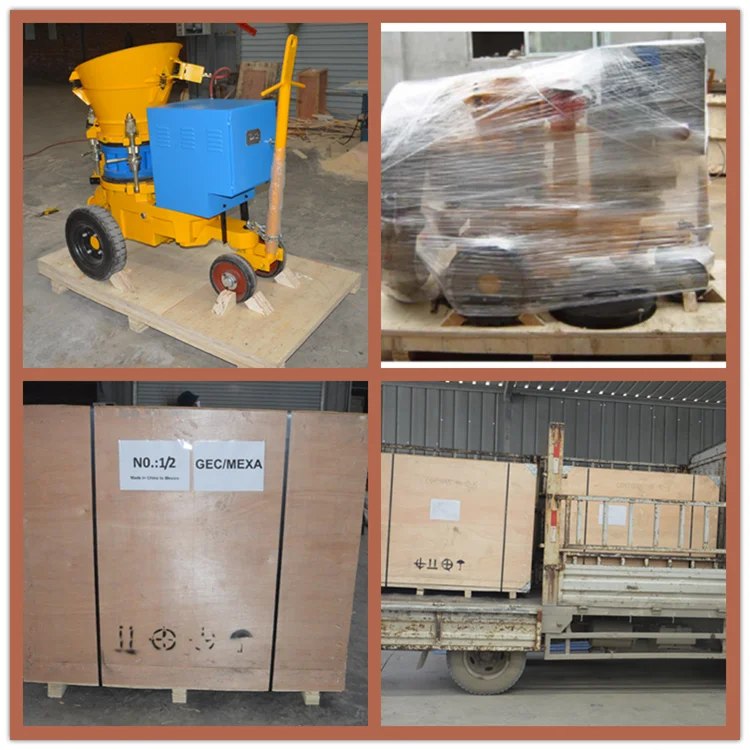

Packaging & Shipping
Packing & shipping:
Related Products
We have developed full series of dry-mix shotcrete machines and wet-mix shotcrete machines, output from 1.5m3/h to 9m3/h, electric motor, diesel engine, air motor and gasoline engine are available options for customization. We also have refractory shotcrete machine for spraying refractories, electric motor and air motor, output can be customized.
Now we introduce you to the relevant hot-sale shotcrete machine and refractory gunning machine products:
GZ-9E electric motor dry shotcrete machine:
GSZ3000E electric motor wet shotcrete machine:
GZ-3ER electric refractory shotcrete machine:
Company Information
Contact Us
In order to recommend you more suitable models shotcrete machine, please let us know clearly about your requirements:
What's the project you will use the machine do, for slope protect, or other?
Do you need dry-mix shotcrete machine or wet-mix shotcrete machine?
What's the output you need, 3m3/h, 5m3/h, 7m3/h, 9m3/h, or other?
What's the maximum particle size of the material, less than 10mm, 15mm, or 20mm?
About the engine, do you need air motor, electric motor or diesel engine, if you like the electric motor, voltage 3 phase, 380 V, 50 HZ is ok for you?
