Product Overview
Description
Product Description
hand-held pneumatic for button bits handheld rock drill bit grinder
Bestlink Button bit grinding machine Series

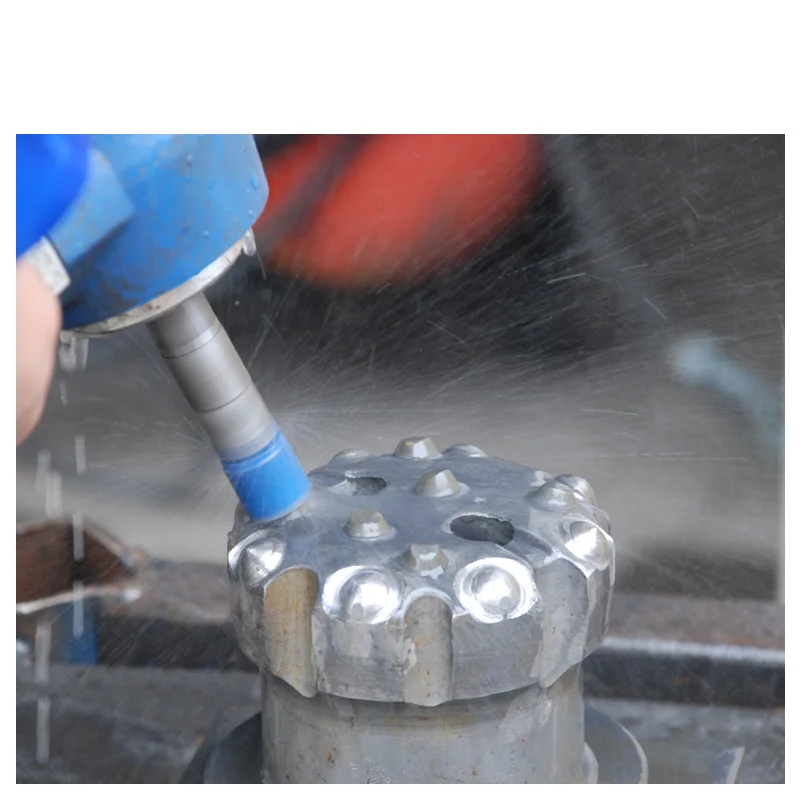

1.Hand-held button bit grinder BTON200
BTON200 is a high powered hand-held button bit grinder, it is ergonomics and power are combined to give the operator a very powerful tool to get the job done quickly and effectively.
The technical data for BTON200
| Air pressure, max | 5-7 bar (100psi) |
| Air consumption | 2m3/min (50ft3/min) |
| Rate power | 1.5kw |
| Idling speed | 20,000 rpm |
| Water flushing presuure, max | 4 bar (60psi) |
| Hose diameter, air | 19 mm(1/2″) |
| Hose diameter, water | 4mm |
| Weight, exclude hoses | 3.2 kg |
| Sound level | 80 dB |
| Grinding button size | Φ6-25 mm |

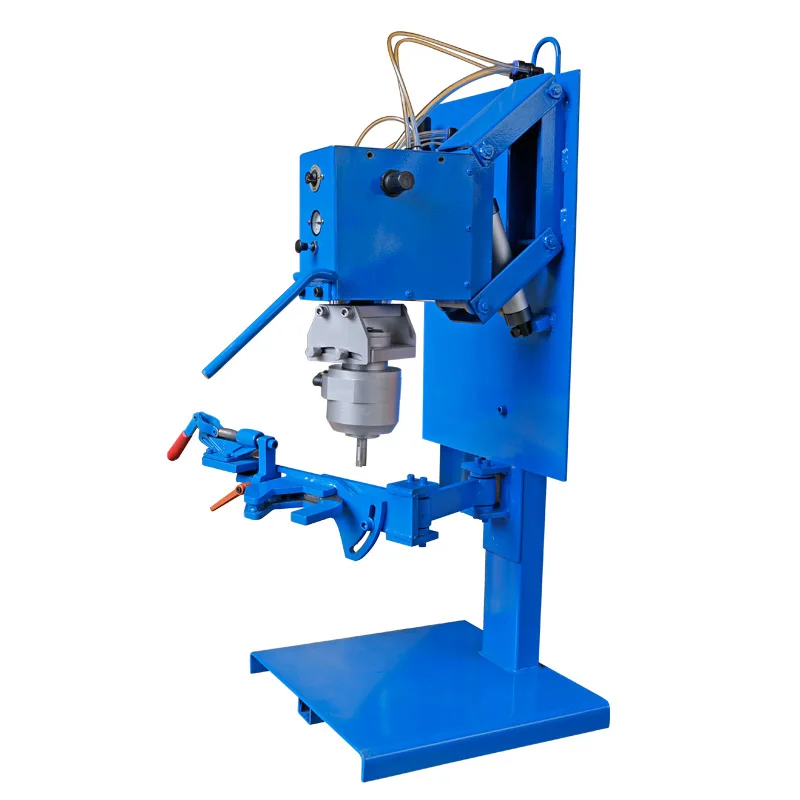

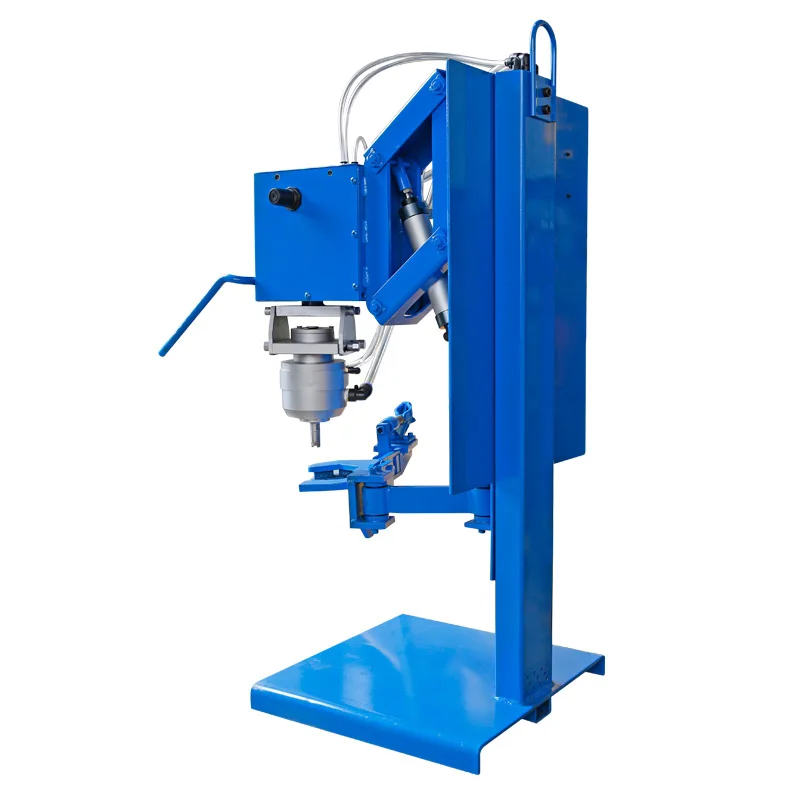

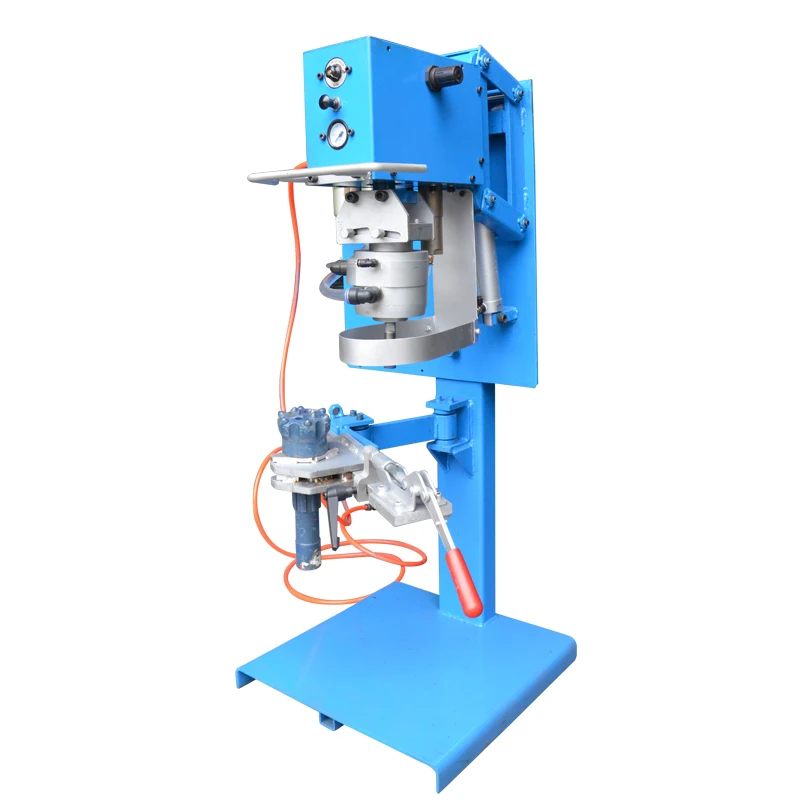

2.Pneumatic Semi-automatic grinder BTON500
| Rotation speed | 20000 rpm |
| Motor: Pneumatic (air powered) Power output | 1.5 KW |
| Work pressure | 5-7 bar (100 psi) |
| Max. air pressure | 8 bar (115 psi) |
| Air consumption | 2.2 m3 / min (80ft3/min) |
| Max. water pressure | 4 bar (60 psi) |
| Air hose diameter | 19 mm |
| Water hose diameter | 4 mm |
| Weight excl. packaging | 120.0 Kg |
| Weight incl. Packaging | 130.0 Kg |
| Transport dimensions | 500x500x800mm |
| Sound level | 92 dB(A) |

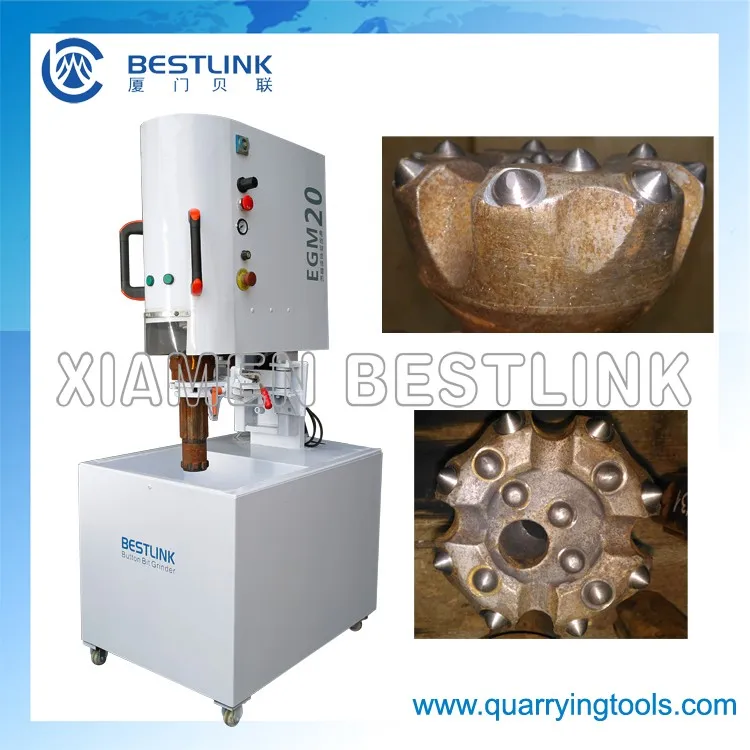

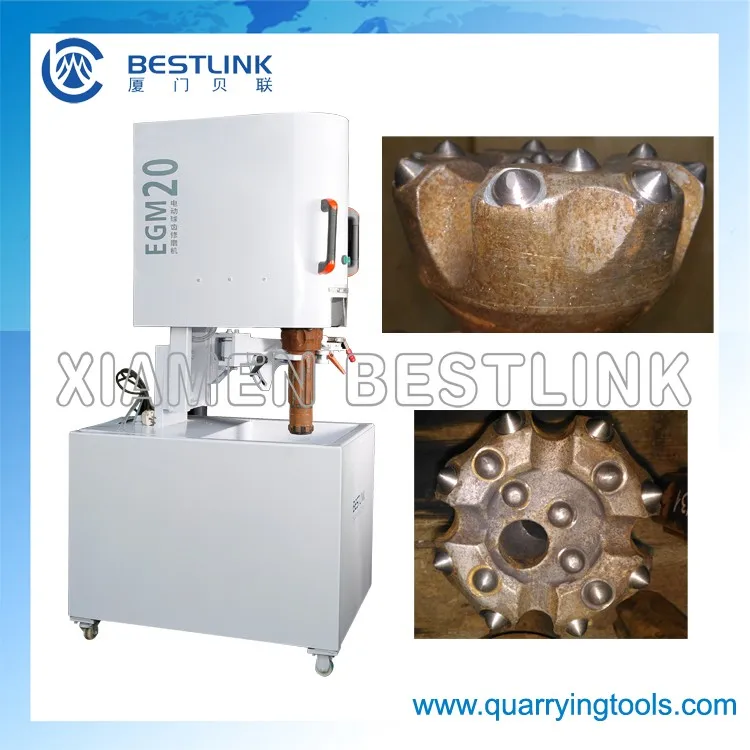

3.Electric button bit grinder EGM20
| Working air pressure | 5-7 bar (100 psi) |
| Air consumption | 1.2-1.8 m3 / min (40-65ft3/min) |
| Water pressure | 4 bar (60 psi) |
| Water consumption | 2-4 l/min * |
| Rated power (motor) | 1.5 Kw |
| Coolant/flushing medium | Water |
| Air connection, air hose | 19 mm |
| Water connection, water hose | 6mm |
| Dimensions: H*W*D | 900x630x1500mm |
| Weight | 200kg |
| * With cooling tank unit | 0.2-0.3 l/min. |
| Electric power data | 1phase 220V,50 Hz or 3 phases, 380V,50 Hz** |

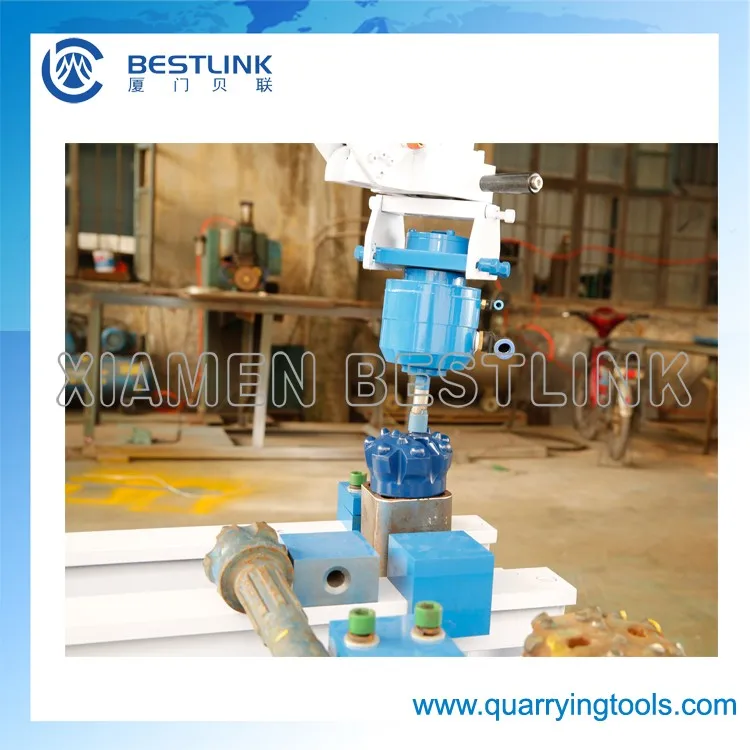

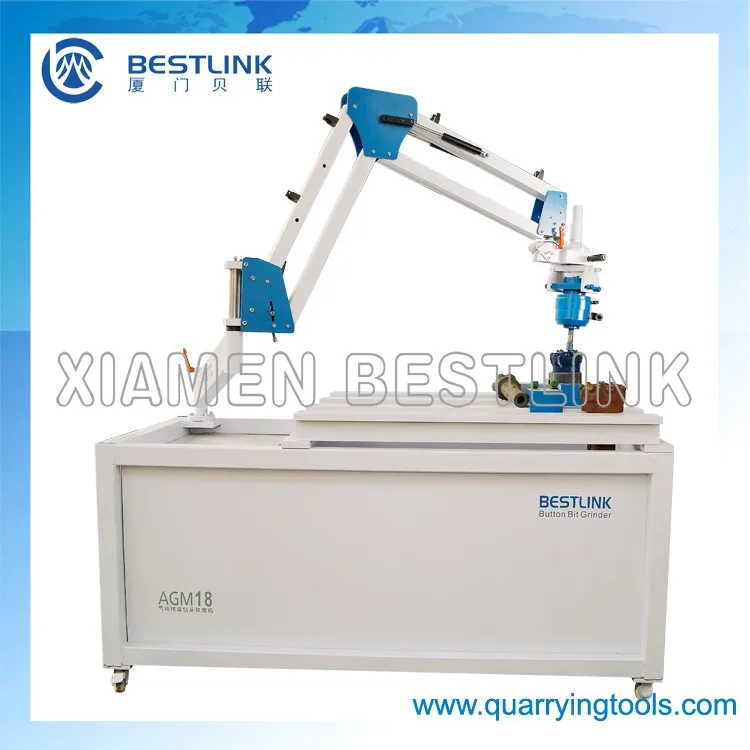

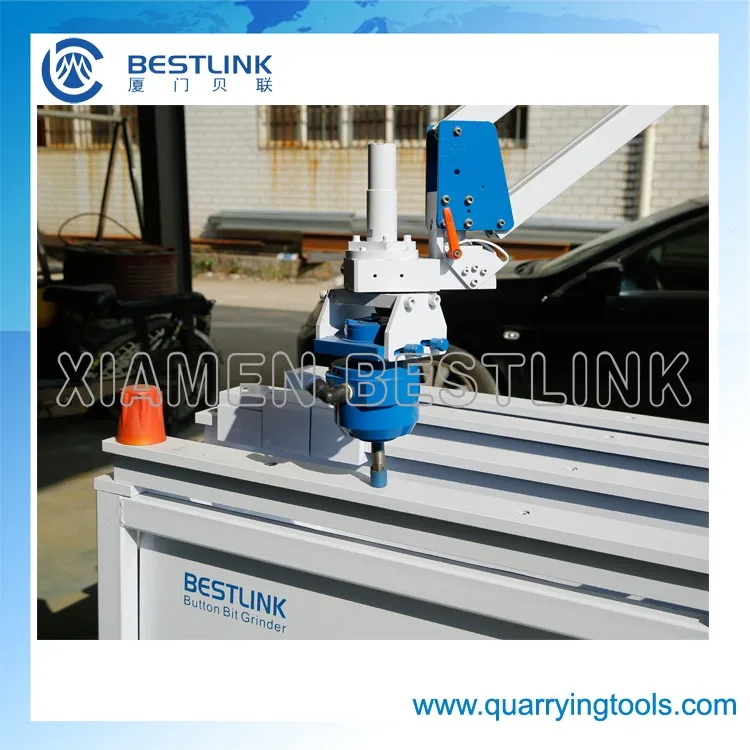

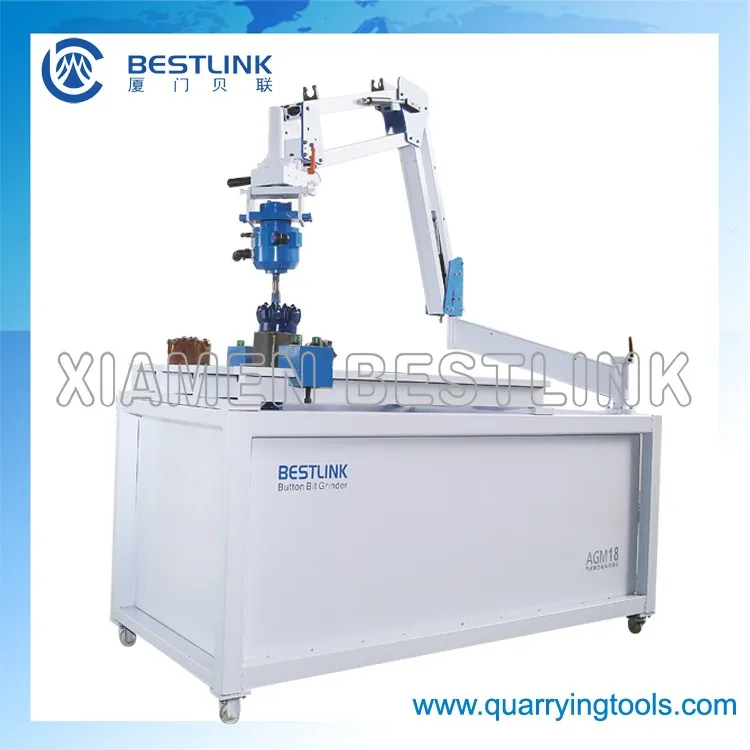

4.Pneumatic robot arm grinder AGM18
| Rotation speed: | 20000 rpm |
| Motor power: | 1.5 KW |
| Work air pressure: | 5-7 bar (100 psi) |
| Air consumption: | 2.2 m3 / min (80ft3/min) |
| Max. water pressure: | 4 bar (60 psi) |
| Air hose diameter: | 19 mm |
| Water hose diameter: | 6 mm |
| Weight excl. packaging: | 330.0 Kg |
| Weight incl. packaging: | 350.0 Kg |
| Transport dimensions: | 1600*700*1500mm |
| Sound level: | 92 dB(A), |
There are two kinds of button shape we can sharpen, Spherical buttons and ballistic buttons,also steel removal is available.

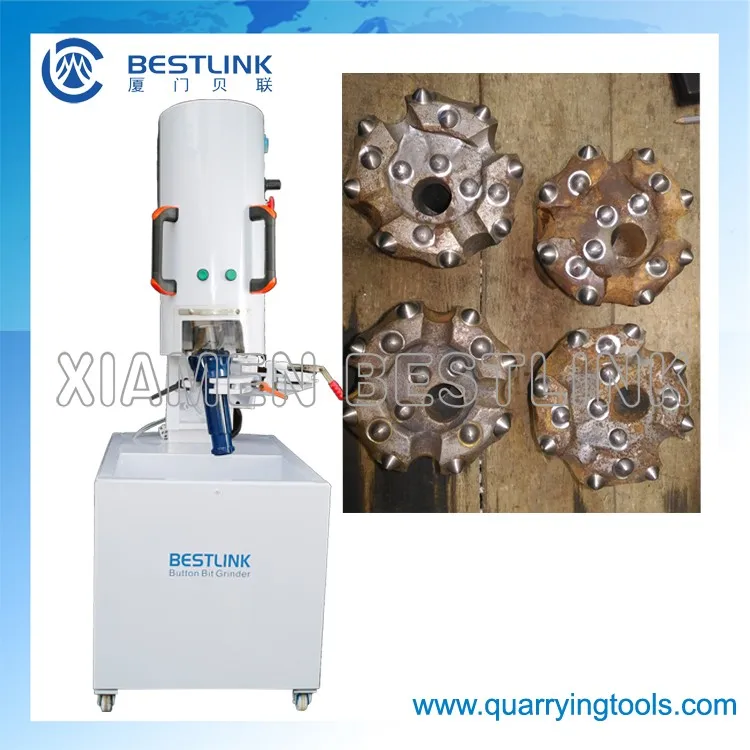

The Finished Effect pictures:

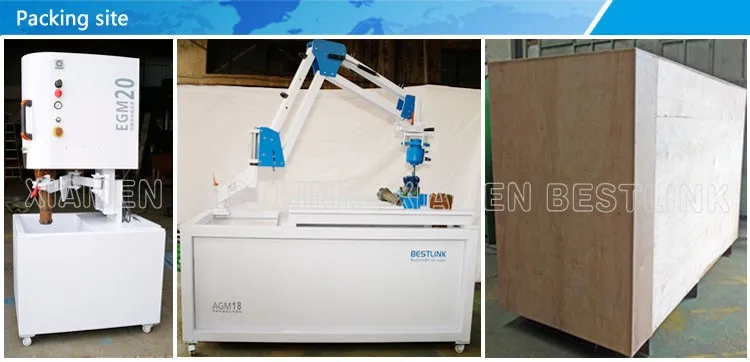

Packaging & Shipping
Our Services
We have two main business field:
1) All Drilling and Quarrying equipments
website:www.quarryingtools.com
2) Natural Stone Processing/Cutting/Splitting machines
website:www.split-stone.com
Our products range:
1. Expansive mortar (non-explosive demolition agent, soundless cracking agent)
2. Hand-held rock drill Y6,Y20, Y24, and Y26 (pneumatic),TY24C
3. Fully hydraulic rock drill BH26, BH28 (with pushing cylinder)
4. Pneumatic rock drill with pushing air-leg YT18, Y19A,YT24, YT28
5. Internal combustion rock drill (hand held, gasoline) YN27
6. Line drilling machine
7. DTH driller, diamond wire saw
8. Button bits, cross bit, chisel bits
9.Plug hole rod, Extension rod, shank adapter,coupling sleeves
10. DTH hammers & bits,DHD, COP, IR, Bulroc and SD series
11. Diamond wire rope, hydro-bag (steel), air bag (polymer) for blocks pushing
12. Stone cutter for block cutting
13. Hydraulic splitting machine
14. Wedges & feathers
15. Hose (for air, water, hydraulic...)
Company Information
Xiamen Bestlink Factory Co., Ltd is committed to provide the best drilling and cutting machine, tools and accessories products in marble and granite stone quarrying, as well as in civil engineering application, especial demolition project. it is now a leading manufacturer of cutting and drilling equipment for the extraction of marble, granite and ornamental stones in china.
we offers a vast range of hydraulic and pneumatic drills and machines for diamond wire cutting as well as all kinds of accessories for quarrying activities.With years of experience,our quality products are being exported to more than 45 countries all over the world including USA, and Europe with high reputation.
Factory and workship
