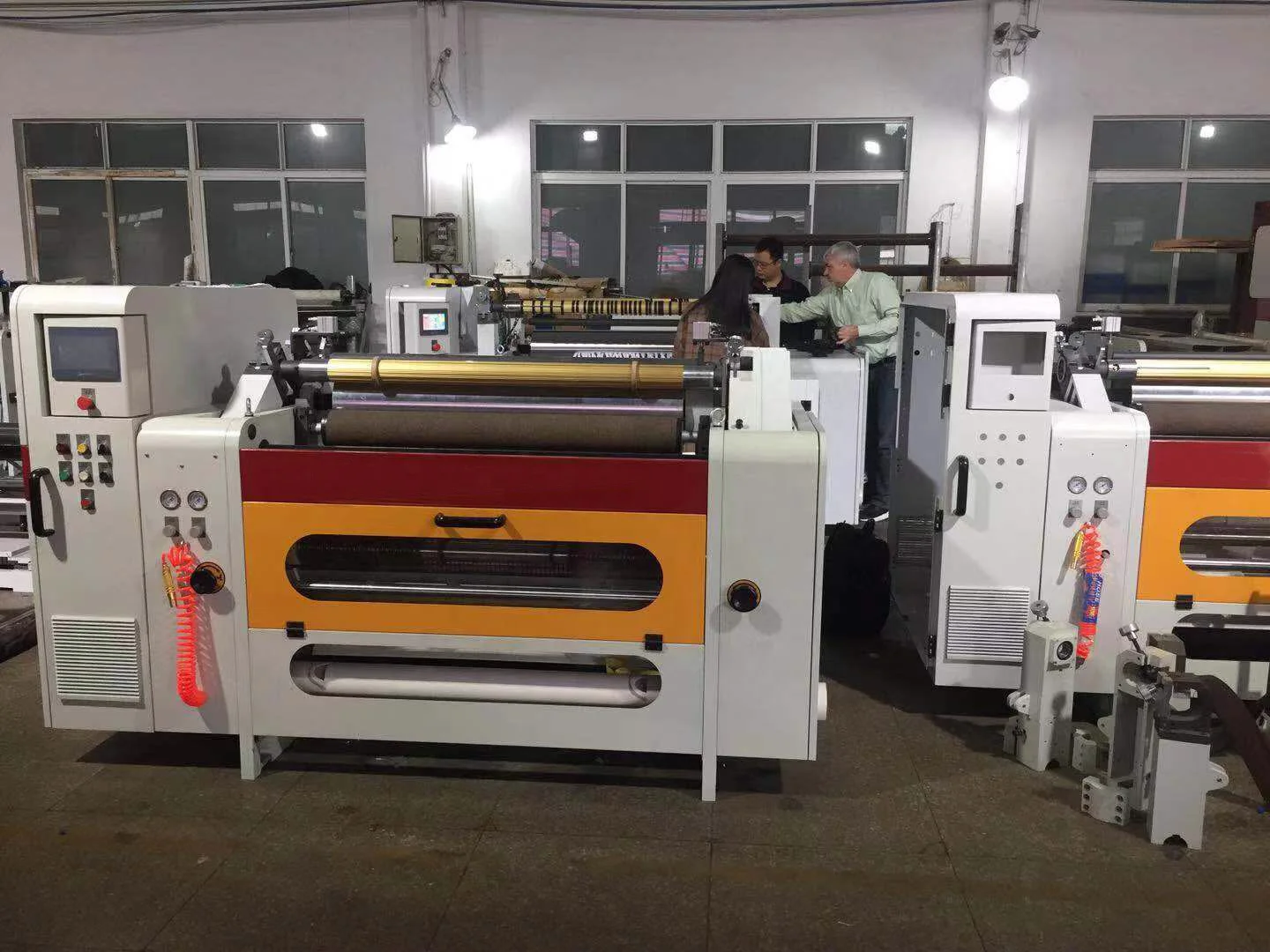

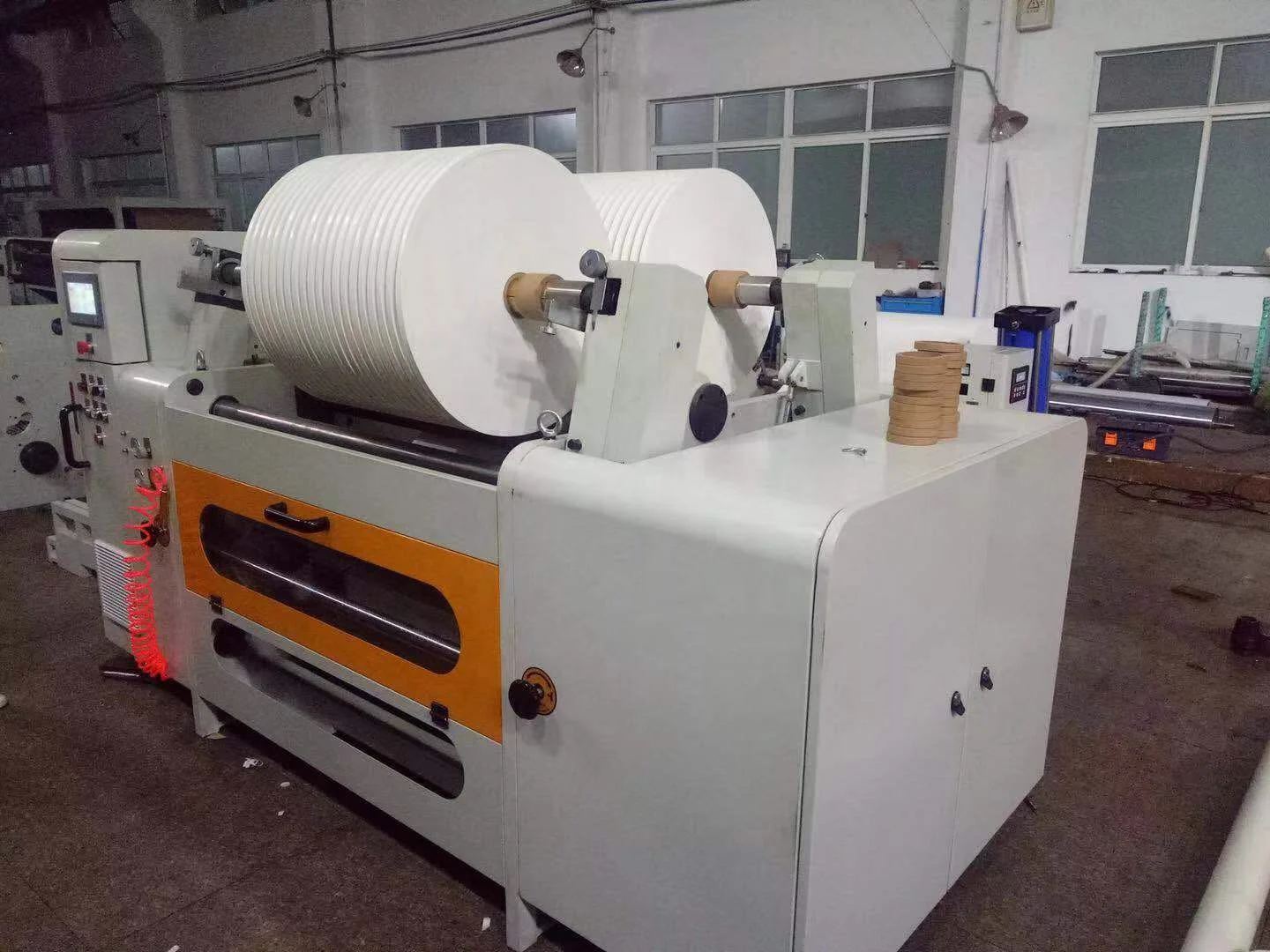

BDFQ Series Full Automatic Paper Straw Slitting Machine Paper Straw Raw Material Slitting

Product Application

Machine suitable for slitting many kinds jumbo roll material to help customer producing small width roll.

Machine suitable for BOPP, LDPE,HDPE , Paper straw material, 15-200gsm thickness paper whatever laminated paper or raw paper material. some special material , please send us require.

Main Features

1) Machine adopt 3 sets servo motor to control, it can guarantee machine working very stable.

2) Machine adopt Siemens PLC brand, through PLC to adjust parameter( include  meter, tension, blower etc).

3) Unwinding&Rewinding device adopt 3 inch air shaft

4)Unwinding device have EPC control, through ultrasonic sensor to correct edge of feeding , to guarantee feeding is very exact .

5) Unwinding device have automatic pneumatic loading function

6)Standard machine slitting blade adopt circular slitting blade(SKD material), but some special material and width need use Razor blade.

7) Machine has automatic counting meter, automatic stop ,automatic alarm etc function.

Machine Parts

Name: Unwinding Device
Brand:LINGFENG
Original: CHINA

This device bottom use cast iron material to support;
include 3 inch air shaft, 160 # pneumatic cylinder, 20KG magnetic powder brake, three pcs aluminum alloy roller ,EPC correct control box, correct sensor and motor.
Whole device is vert strong, it can loading 1.2Ton roll paper weight.

Main Features

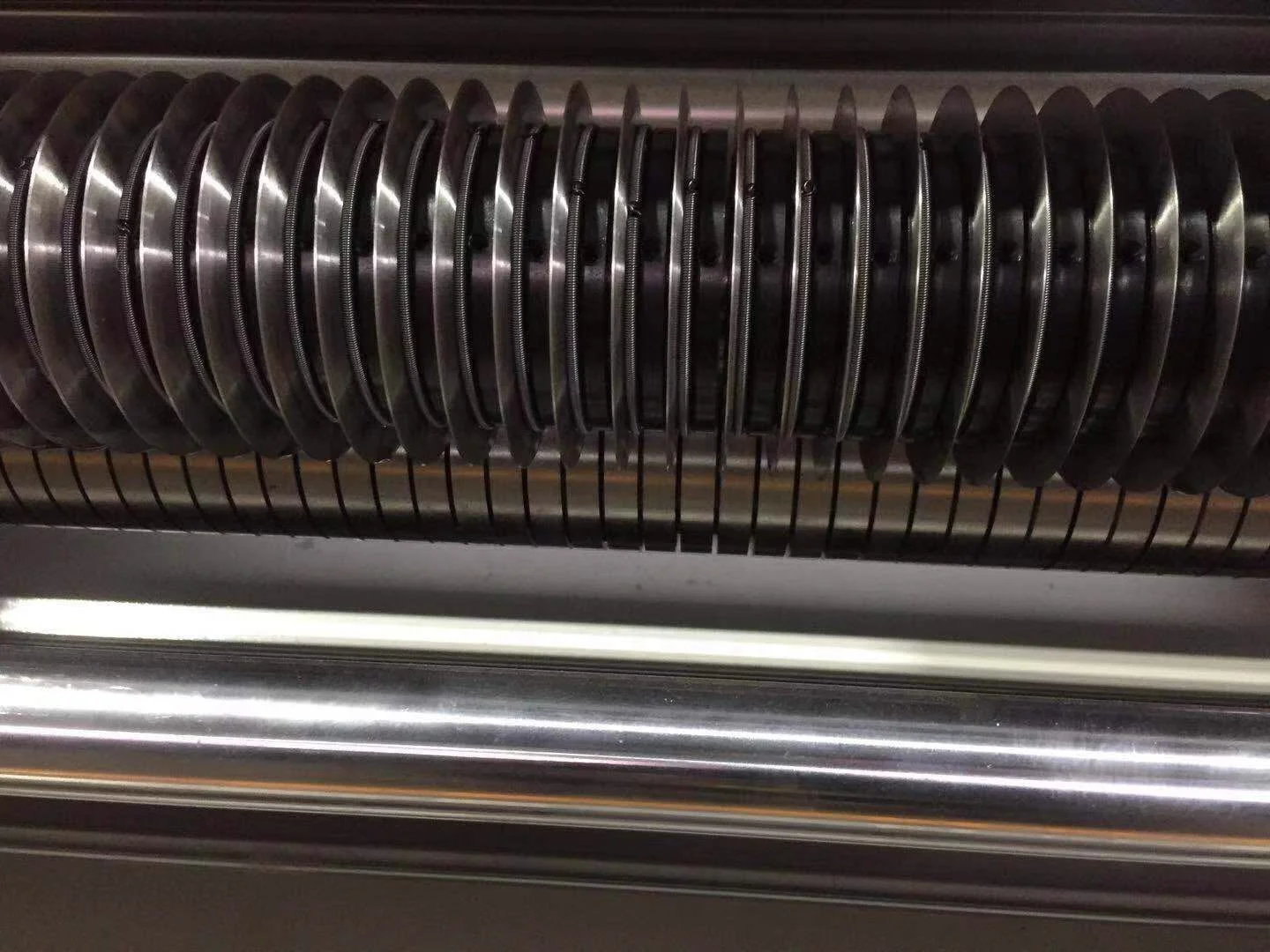

Name: Slitting Blade
Brand: LINGFENG
Original: SKD material
This is circular slitting blade, one set blade include top and bottom part.

bottom blade width depend on customer's require

the slitting blade specification has customization service

it means different final slitting width has customiza blade.

Machine Parts

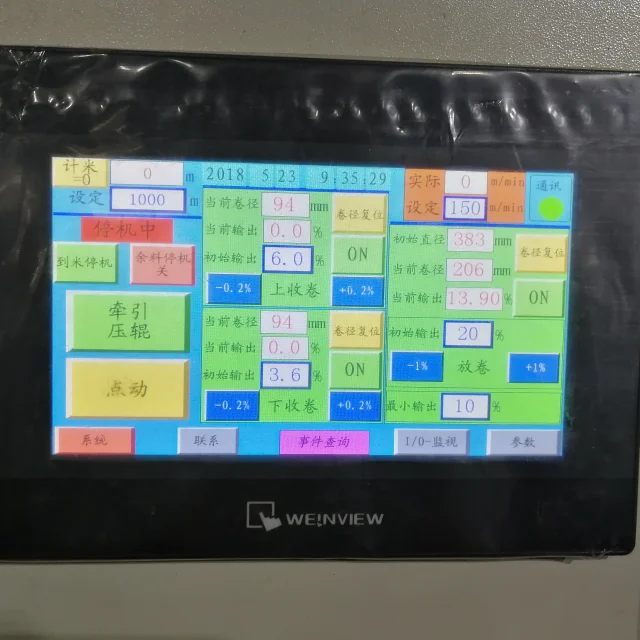

Name: Computer System
Brand: Taiwan,China Touch Screen and Siemens PLC
Machine adopt Chinese and English Language.

customer can set many parameter on touch screen, include tension control, speed control, quantity control etc.
This System we can provide details operation manual.

Main Features

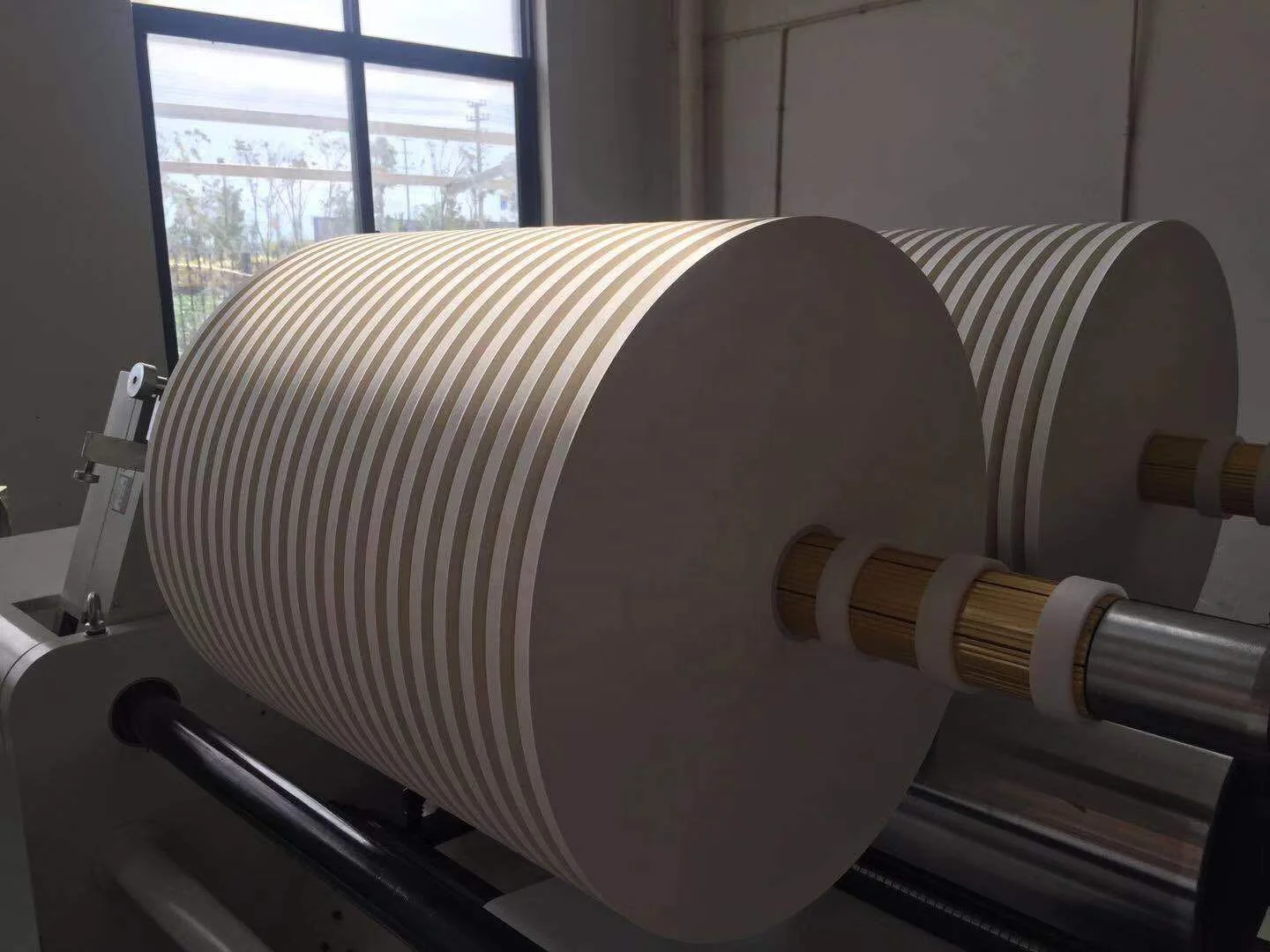

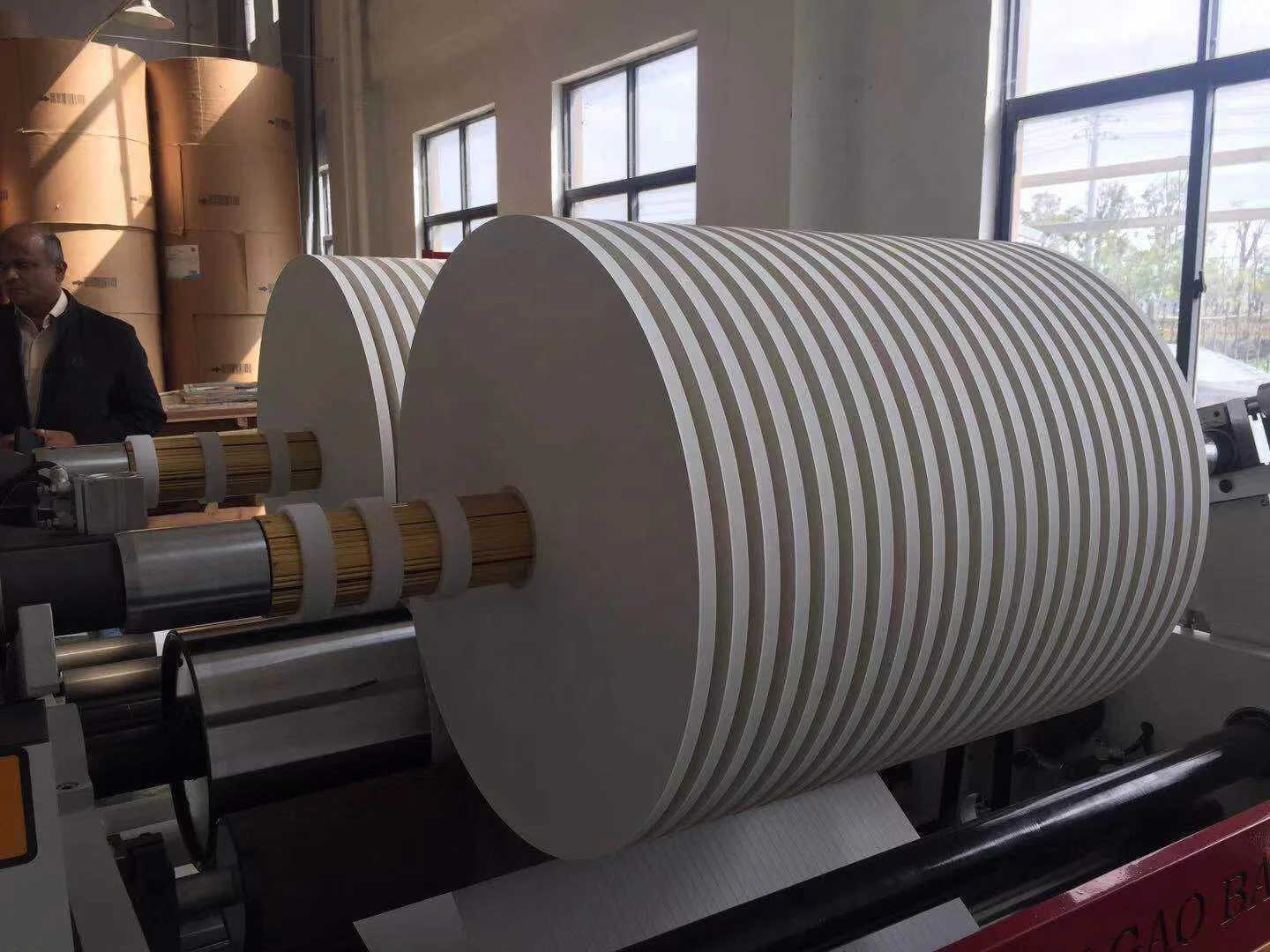

Name: Rewinding
Brand: LINGFENG
Original: CHINA
Machine Rewinding adopt right&left working way

each air shaft maximum rewinding diameter is 600mm.

each rewinding have separate motor to control the speed and control.
