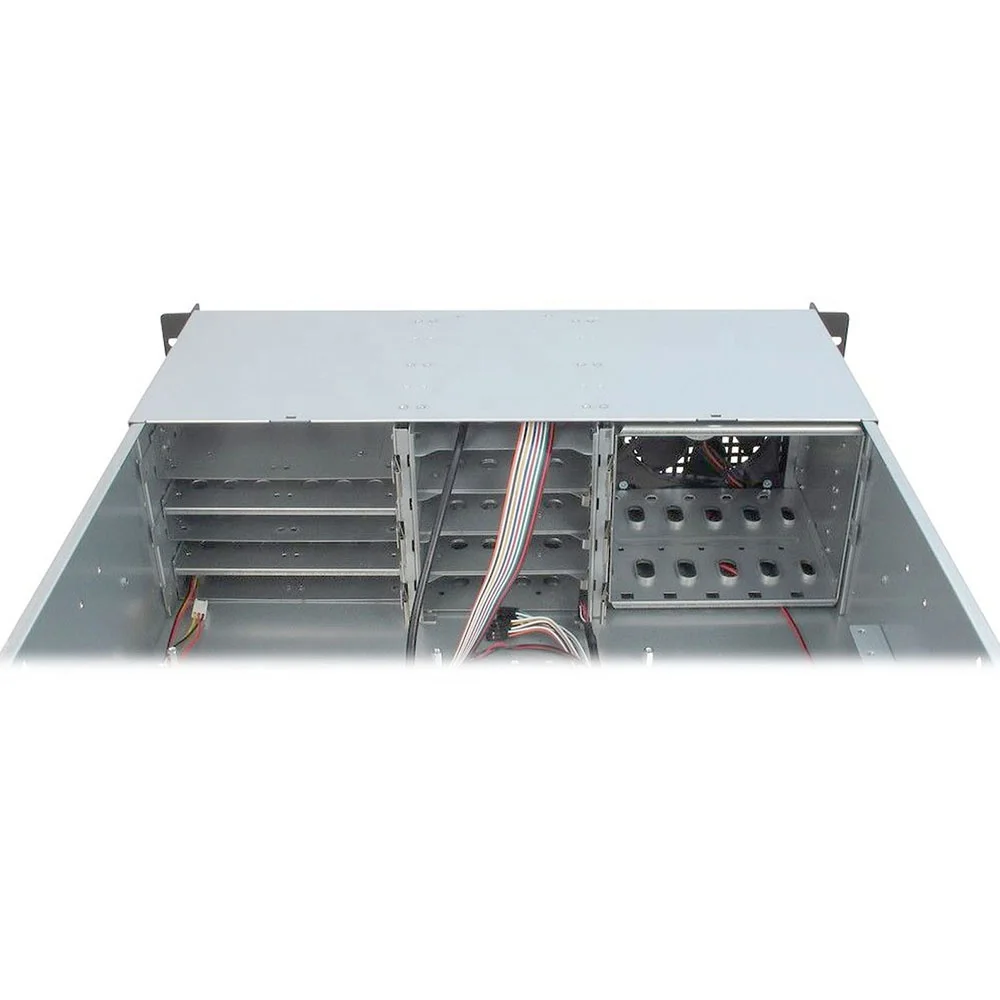

ПК компьютер промышленный монтаж стойка сервер корпус 3U

Product Overview

Description

Product Description

Model	NP-F340001

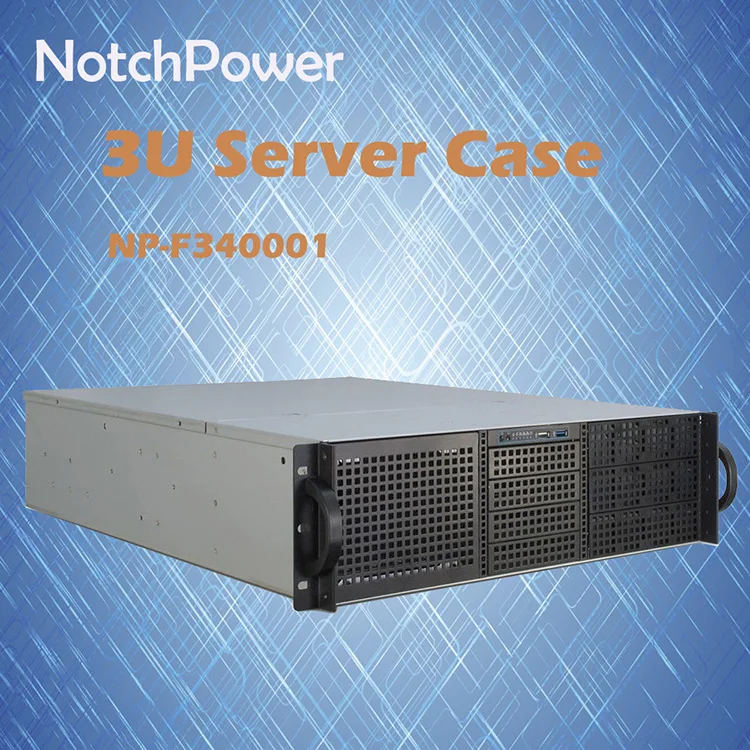

Form Factor	3U Rackmount Server case
Material	Metal material	SGCC
	Metal thickness	1.2mm
	Panel material	Metal
	Handle material	Metal
M/B support	Max. Motherboard 305mm x 191mm (12" x 7.5")
CPU support	DP Xeon(Intel)/DP Opteron(AMD)/Core(Intel)

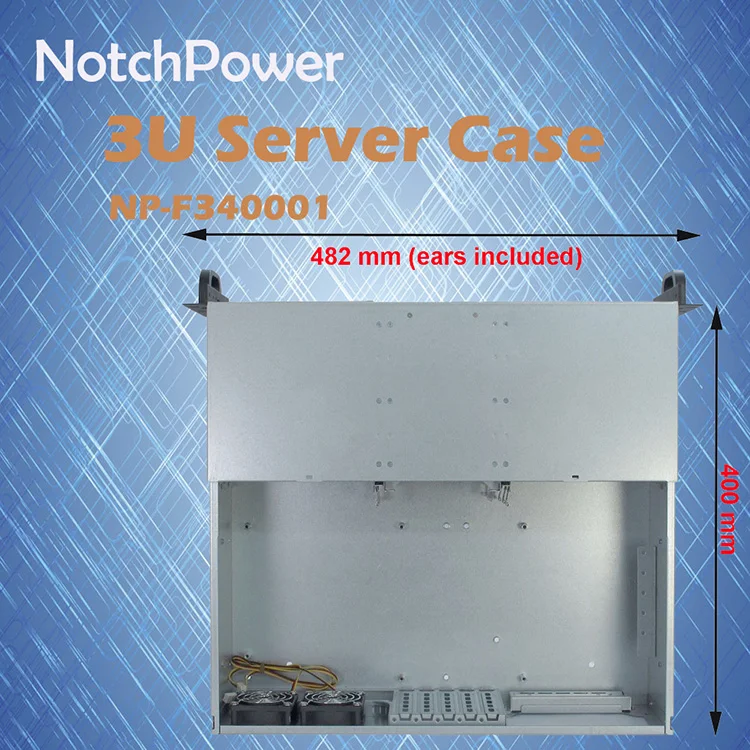

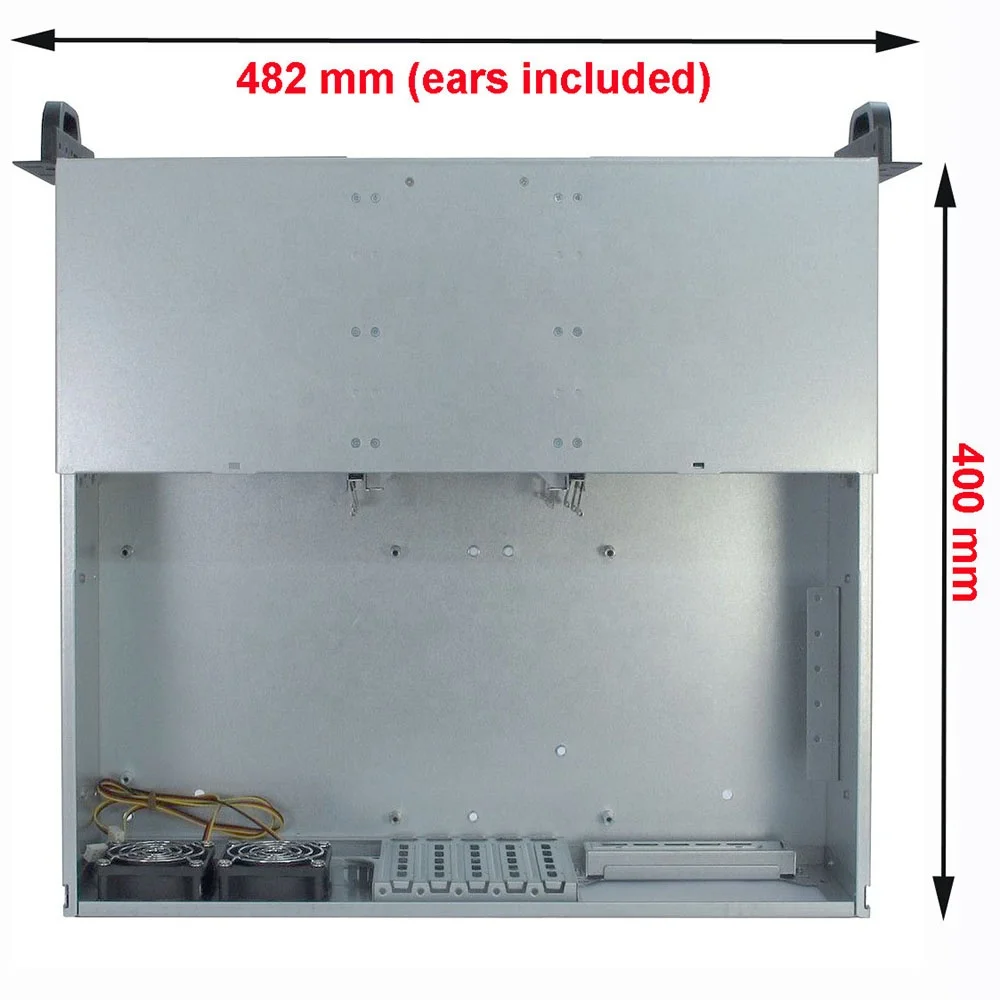

Size	D*W*H(mm)	400 x 482 x 132
	D*W*H(inch)	15.7x 19 x 5.1

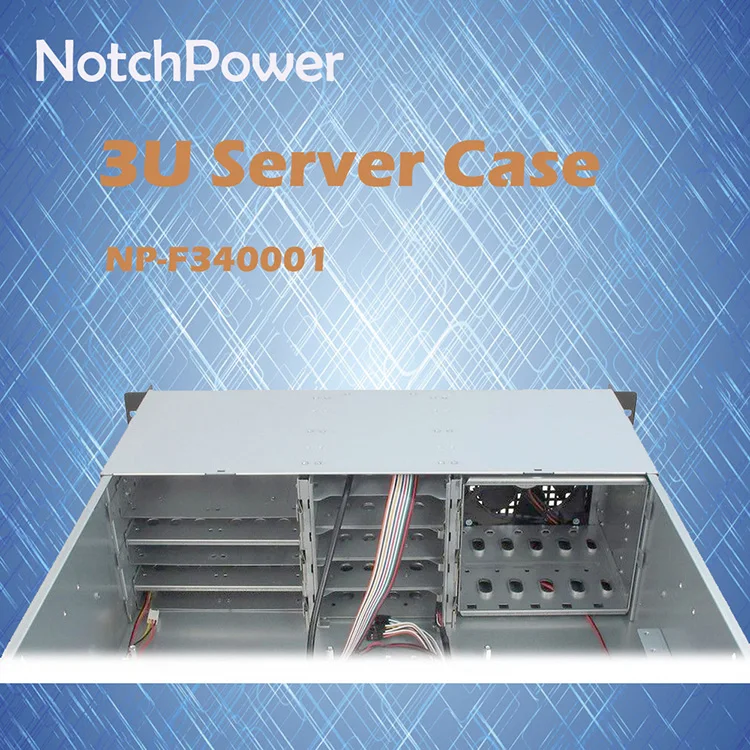

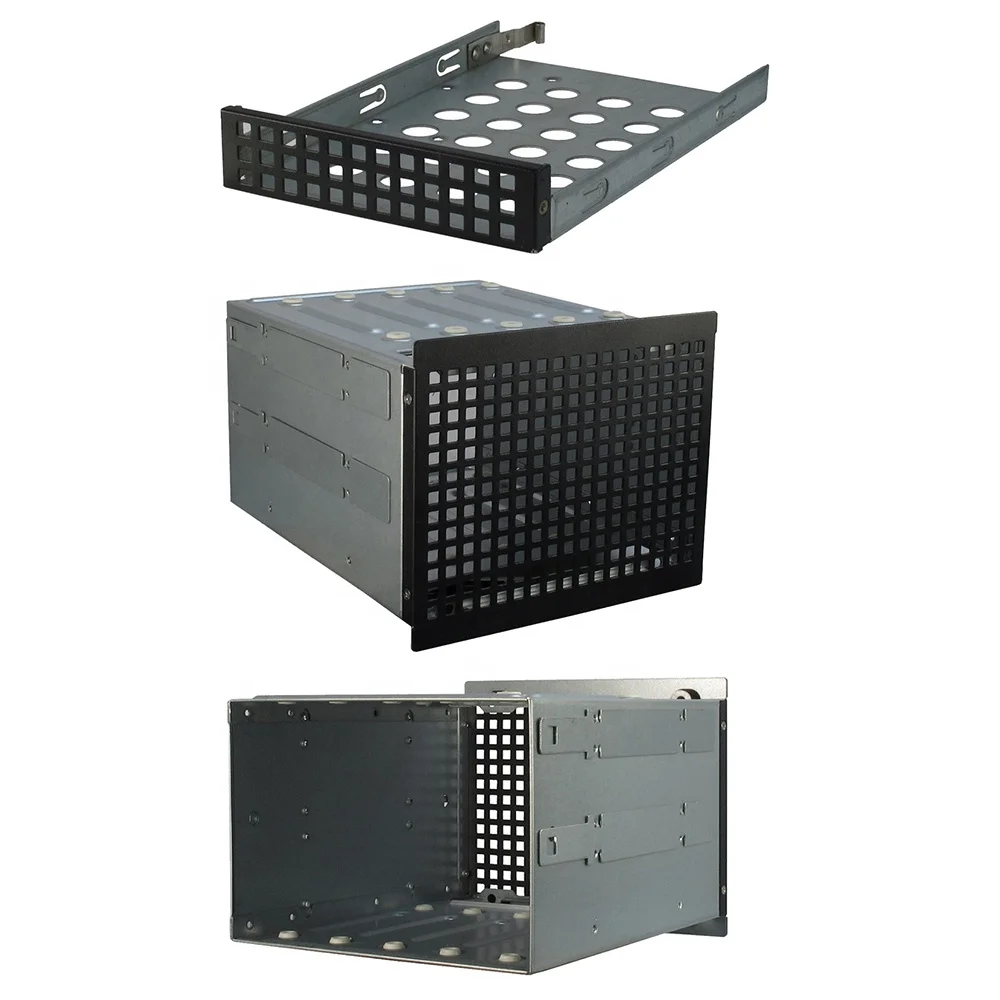

Drive Bay	External 5.25"  bays	6
	External 3.5" bays	4
	Internal 3.5"	14
	Internal 2.5"	4
Power Supply support	ATX power supply
Front panel	Control button	Power ON/OFF x 1, system reset x 1
	Indicator	Power ON/OFF x 1, HDD x 1, NETWORK x 3, Alarm x 1
	Ports	USB 2.0 x 1 , USB3.0 x 1
Expansion	Riser Slot	6 (5 full-size + 1 full-size horizontal using a riser card)
Hot-swap Backplane	Mini SAS 6.0GB/s	NO
	SATA	NO
System cooling(optional)	Front	1x 120mm (standard) and 6x 40mm (optional in the 5.25 "drive bezels)
	Middel	NO

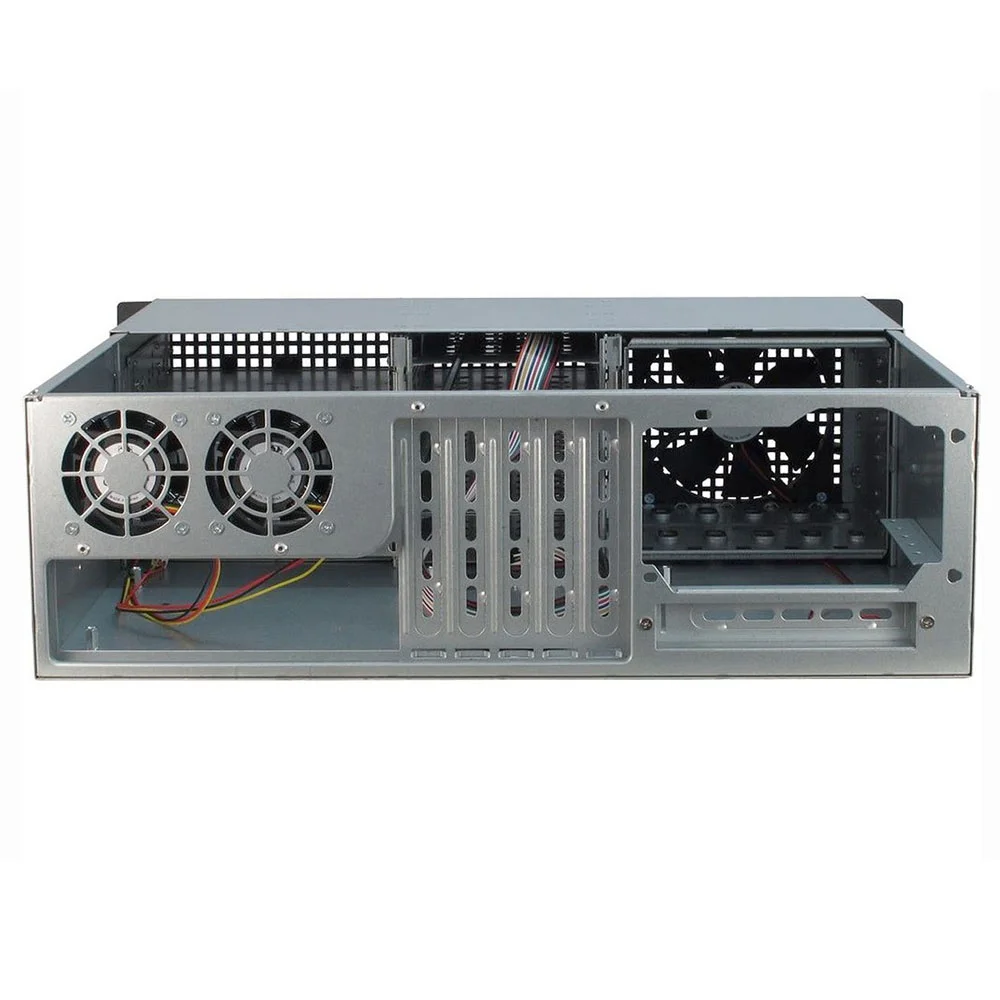

	Rear	2x 60mm (standard)
Net weight	8.6kg
Gross weight	10.4kg
Packing size	D*W*H(mm)	540*555*195
	D*W*H(inch)	21.2*21.7*7.7
Packing Material	Polyfoam with carton box
Environment Temperature	0/55 °C, 32/131 °F (Operating) -20/60 °C, -4/140 °F (Non-Operating)
Relative Humidity	5% to 95%,non-condensing
Vibration ( 5-500 Hz )	1 Grms (Operating), 2 G (Non-Operating)
Shock	10 G(with 11ms duration, half sine wave) (Operating), 30 G (Non-Operating)

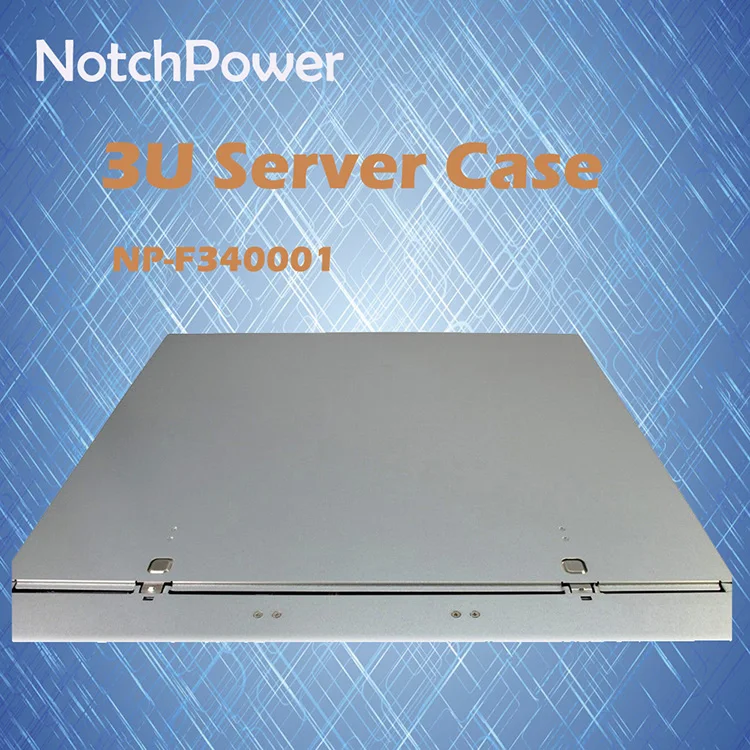

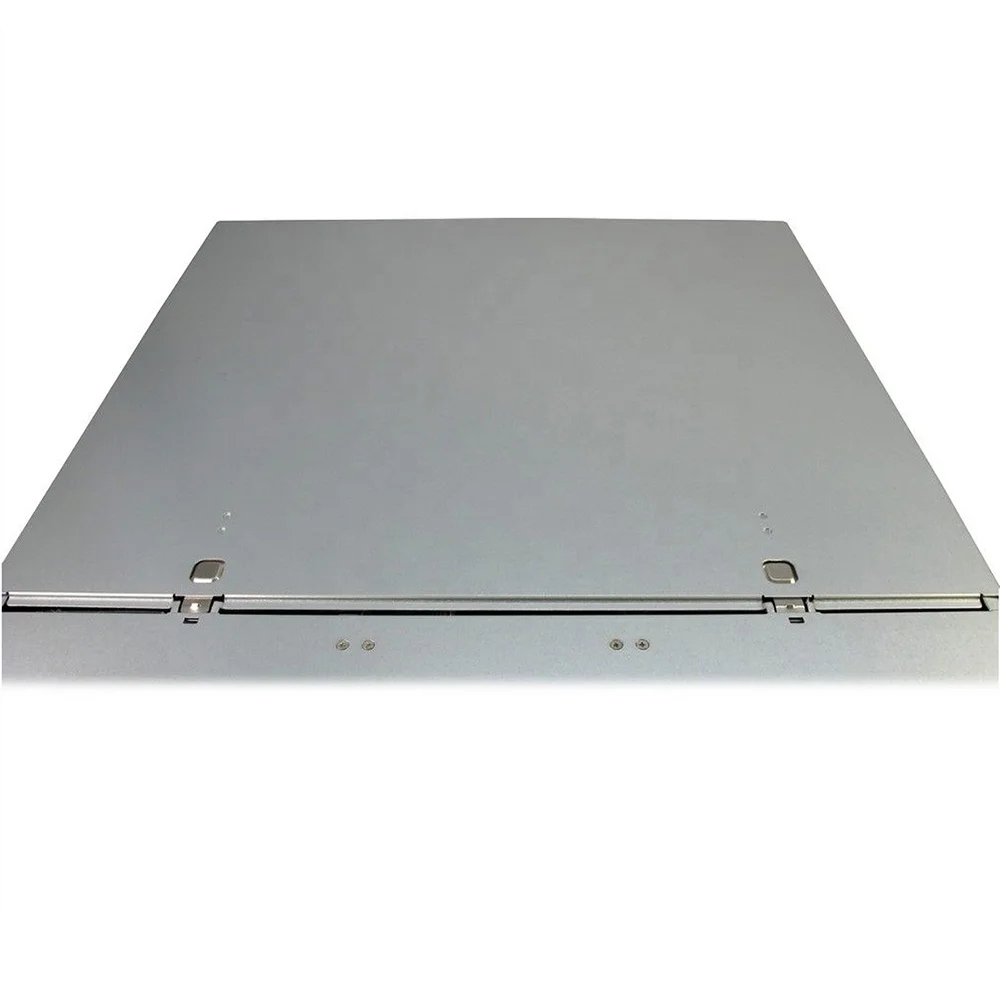

Detailed Images
