TPS Bante520 Portable Conductivity Meter, Handheld EC Tester with CE certificate
- Category: >>>
- Supplier: Shanghai Toposun Industries Co. Ltd.
Share on (62166259877):
Product Overview
Description

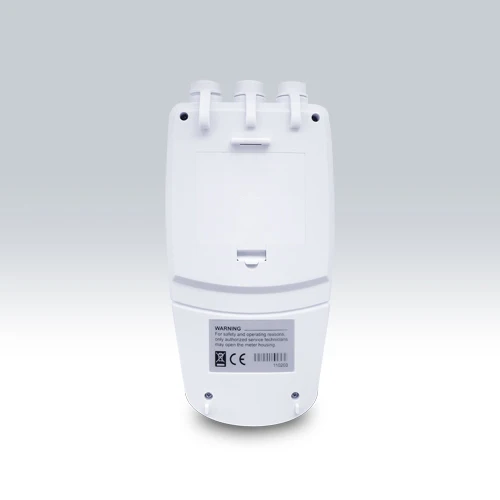

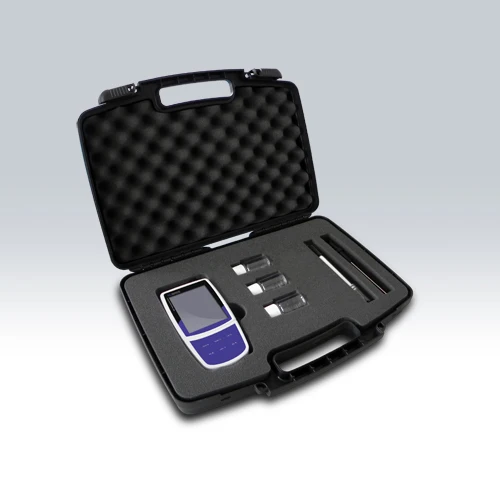

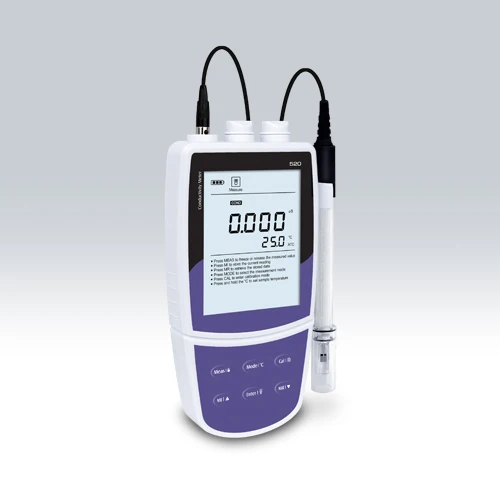

Bante520 Portable Conductivity Meter
Economy portable conductivity meter, 3 point calibration, selectable temperature coefficient and cell constant. The meter is suitable for outdoor applications. Accuracy: 0.5% F.S.
Features:
• Economical portable conductivity meter is equipped with a large backlit LCD display.
• 1 to 3 points push-button calibration, automatically recognizes the calibration solutions.
• Selectable cell constant (K=0.1/1/10), reference temperature (20/25°C), linear, non-linear
and pure water compensation modes.
• Automatic Temperature Compensation provides accurate reading over the entire range.
• Auto-Hold feature senses and locks the measurement endpoint.
• Setup menu allows setting the 10 parameters, including the number of calibration points,
temperature unit, auto-power off, etc.
• Reset feature automatically resumes all settings back to factory default options.
• Expanded memory stores and recalls up to 100 readings.
• Stored readings can be transferred into the computer by USB communication interface.
• Multi-mode power scheme (batteries, power adapter or USB port) ensures that use the
meter smoothly.
Model | Bante520 |
Conductivity | |
Range | 0.01~20.00, 200.0, 2000µS/cm, 20.00, 200.0mS/cm |
Accuracy | ±0.5% F.S |
Resolution | 0.001, 0.01, 0.1, 1 |
Calibration Points | 1 to 3 points |
Calibration Solutions | 10µS/cm, 84µS/cm,1413µS/cm,12.88mS/cm,111.8mS/cm |
Temperature | |
Range | 0~105°C, 32~221°F |
Accuracy | ±0.5°C |
Resolution | 0.1°C, 0.1°F |
Calibration Points | 1 point |
Calibration Range | Measured value ±10°C |
General | |
Temperature Compensation | 0~100°C, 32~212°F, Manual or Automatic |
Temperature Coefficient | 0.0~10.0%/°C |
Compensation Modes | Linear, Non-linear or Pure water |
Cell Constant | K=0.1, 1, 10 |
Reference Temperature | 20°C or 25°C |
Data Hold | Manual or Auto-Endpoint |
Power Off | Manual or Automatic (30 minutes after last key pressed) |
Reset Function | Yes |
Memory | Stores up to 100 data sets |
Output | USB communication interface |
Connector | 6-pin mini plug |
Display | LCD |
Power | 3×1.5V AA batteries or DC5V power adapter |
Battery Life | Approximately 150 hours (Turn off the backlit) |
Dimensions | 170(L)×85(W)×30(H)mm |
Weight | 300g |

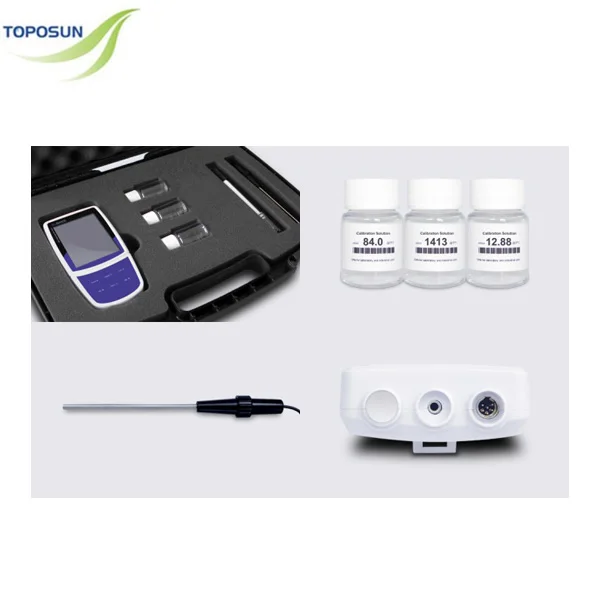

optional accessories
| Items | Description |
| CON-0.1 Conductivity Electrode | Suitable for the pure water |
| CON-1 Conductivity Electrode | Suitable for the general applications |
| CON-10 Conductivity Electrode | Suitable for the high conductivity liquids |
| TP-10K Temperature Probe | Special-purpose temperature sensor |
| Conductivity Standard Solutions | 480mL/bottle |
 |  |  |
