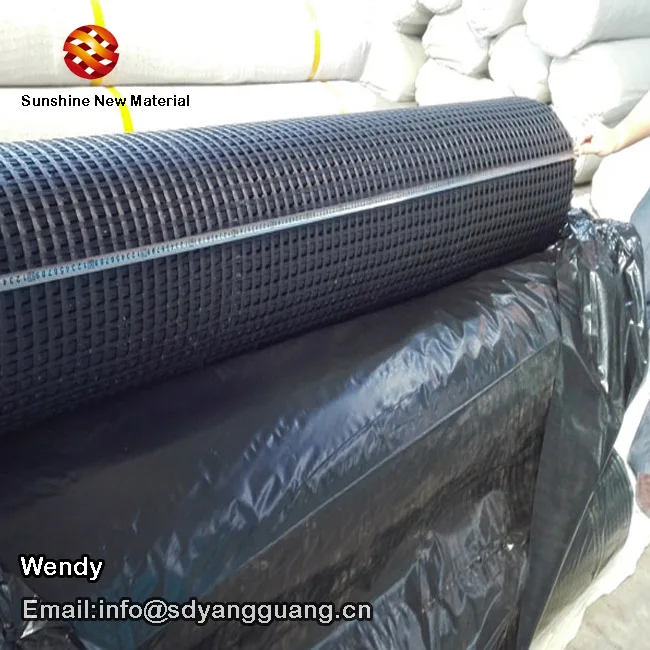

Polyester PVC Polymer Reinforced Geo Grid Geogrid for Earth

Share on:

Price:RUB 34.51
Price in USD:Details


Product Overview


Geogrid Description

The Most Professional Manufacturer of Geogrid in China

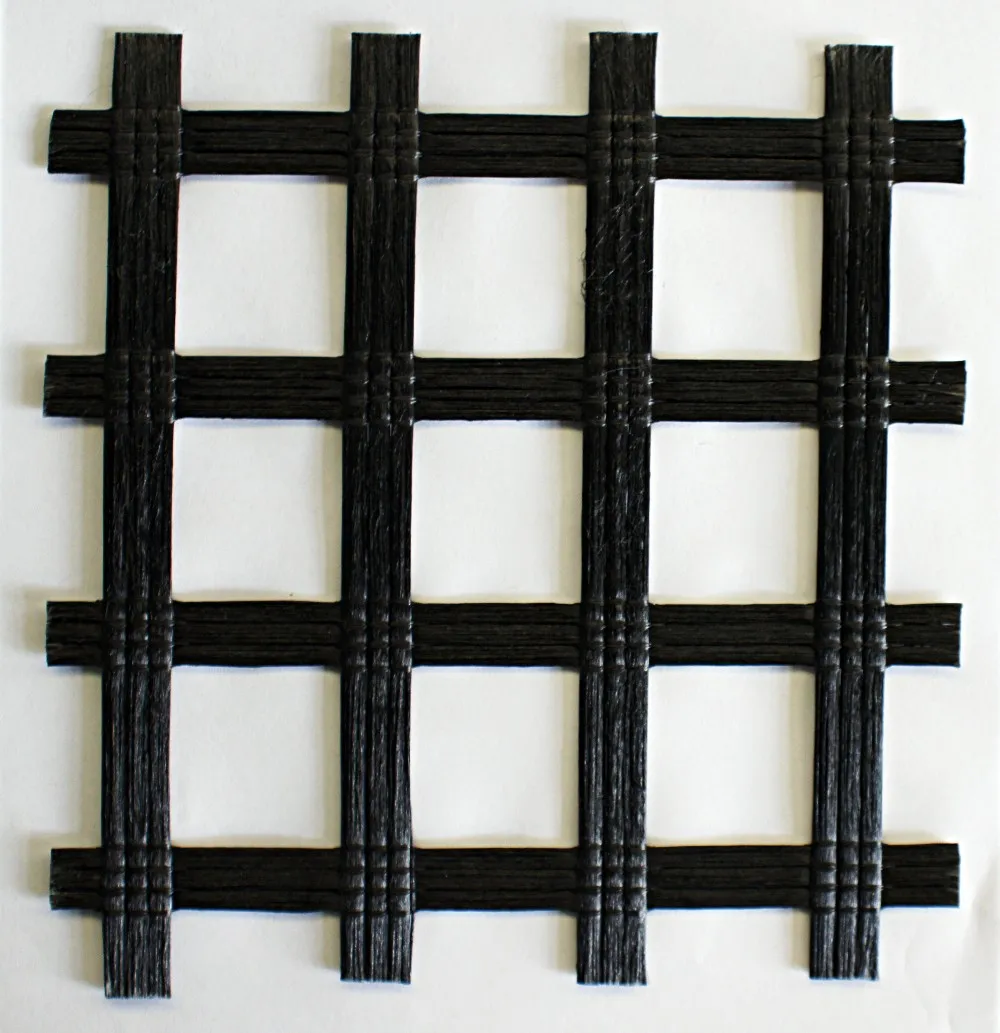

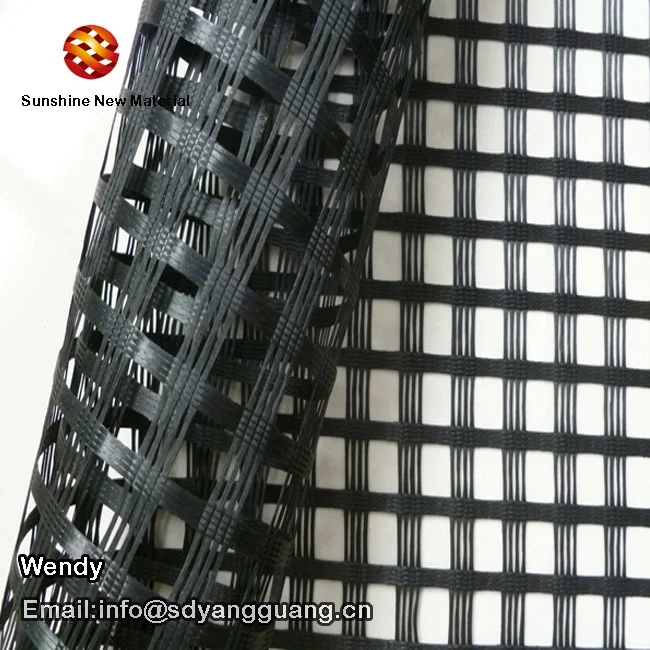

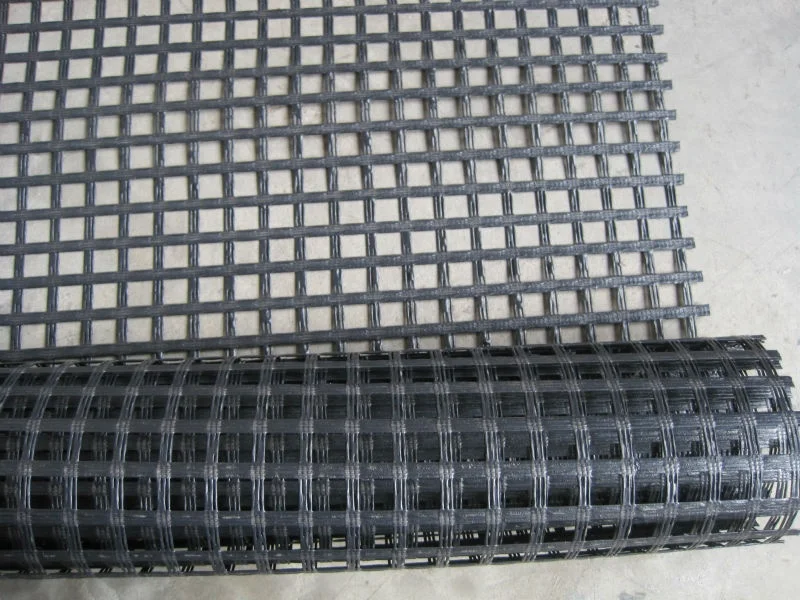

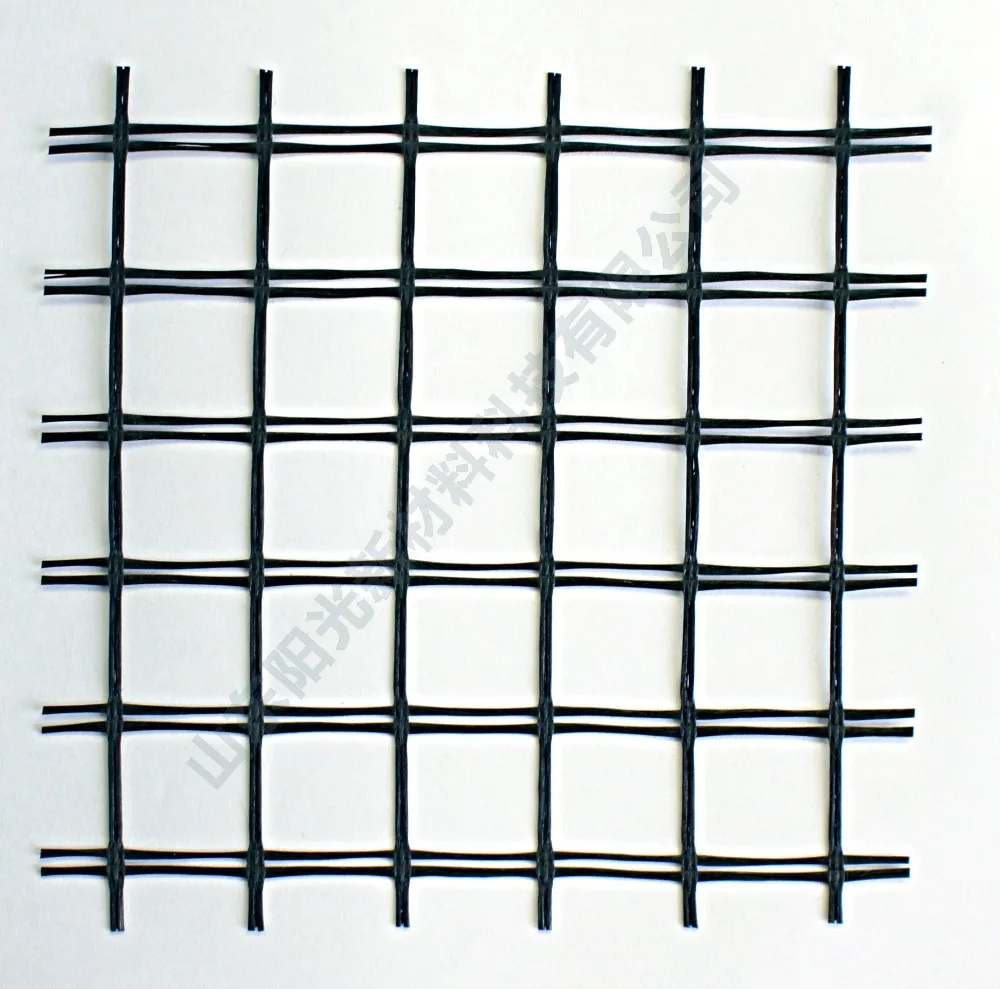

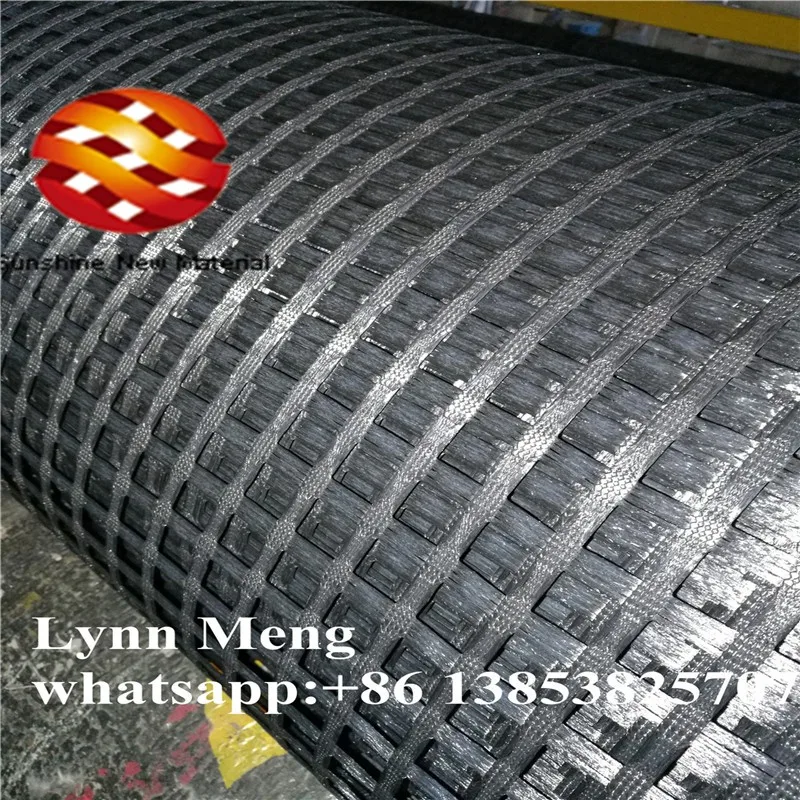

Polyester PVC Polymer Reinforced Geo Grid Geogrid for Earth Geogrid is woven by polyester yarn as per desired mesh sizes coating water soluble or oil soluble PVC and strength from 15 kN/m to 1200 kN/m(Biaxial type),35-30KN/m to 1000-50KN/M(Uniaxial type)

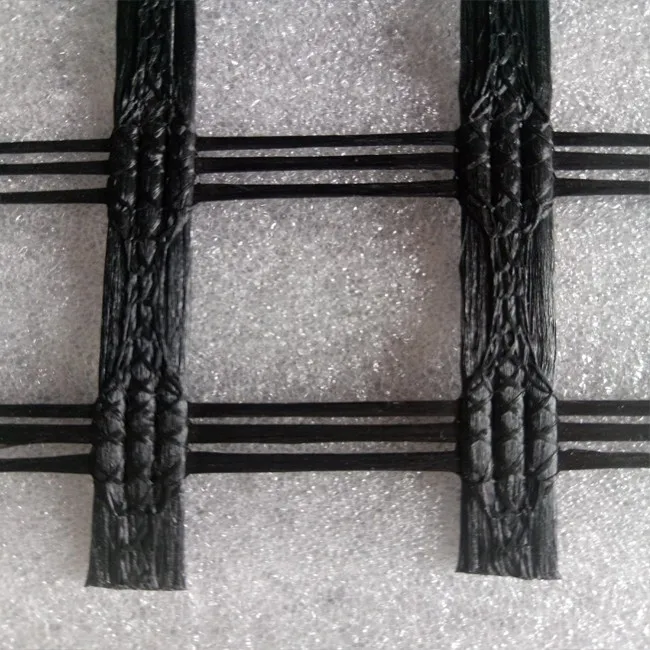

Bi-axial Uni-axial Geogrids are produced with high molecular weight, high tenacity, polyester yarns using a precision knitting process. These geogrids are dimensionally stable and through a uniform network of ribs and apertures provide tensile reinforcement to the surrounding soil to provide the long-term design strength (LTDS) required for each specific application.
 Bi-axial Uni-axial Geogrids are woven and then coated with a polymer or PVC coating to provide dimensional stability and offer resistance to installation damage. They are also chemically stable and appropriate for using in aggressive soil environments which pH levels from 3.0 to 12.0. Their primary characteristic is excellent creep performance with low strain and high tensile strength under constant load.

 Basic Information

Product Name
Polyester PVC Polymer Reinforced Geo Grid Geogrid for Earth
Tensile Strength
15kn/m to 1200kn/m(Biaxial typle) 35-30 to 1200-100kn/m(uniaxial typle)
less than 13%
1m to 6m,normal 3.95m ,5m,5.95m
Mesh Size
Coating Material
Water soluble or Oil soluble PVC
 Flexible and durable
 Excellent creep resistance
 High long-term design strength
 Lightweight and easily installed
 Cost effective
Black pe film outside and paper tube inside,strength belt on two end side(normal)
Shandong Sunshine New Material Technology Co.,Ltd
Factory Advantages

With 12+ years productions experience,We produce biaxial geogrid strictly according to the ASTM standard and pass the test.

The most advanced equipments from Germany,KARL MAYER RS3MSU-N/LIBA COPCENTRA HS-2/ST,24 hours production.

We exported to many countries and districts,such as Russia,Canada,Vietnam,Britain,America and etc.


 Soil stabilization Sub-base reinforcement
 Foundation support Heavy duty pavements
 Railway ballast reinforcement over soft foundations Access roads to oil platforms

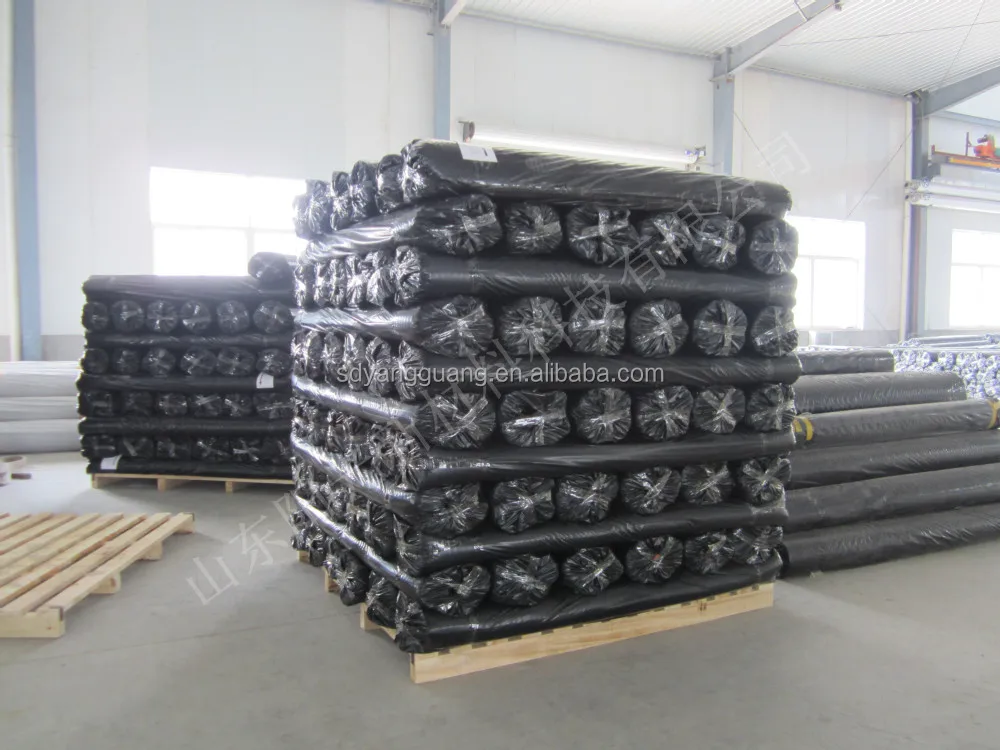

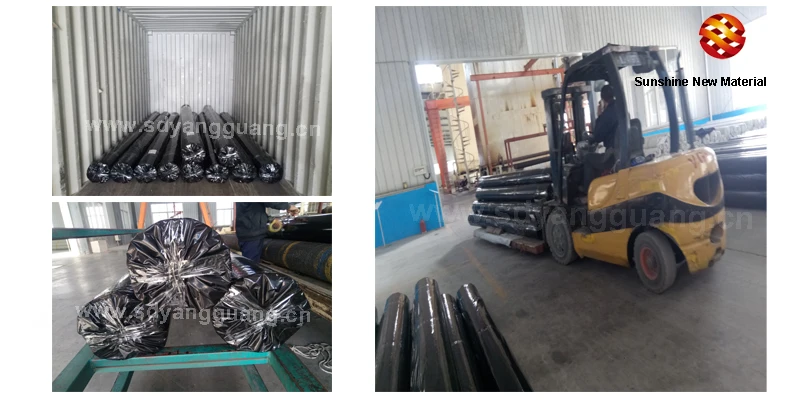

Packing & Delivery

PE film outside paper tube inside with pallet

Width 2m or 2.5m is available.

PE film outside paper tube inside without pallet

Width 3.95m or 5.0m is available.
Our Company

Established in 2005, Shandong Sunshine New Material Technology Co.,Ltd is a subsidiary company of Shandong Enfly Group. The company is located in the city of Taian, Shandong Province, and it is closed to Qingdao Port. The factory covers an area of 100,000 m2 and its registered capital is more than 16 million USD dollars. In the geosynthetic field, we are famous as a professional manufacturer of Fiberglass geogrid, Polyester geogrid, Mine grid, Geocomposites, Geomembrane, Geotextile, Geocell and etc. Our machines and technologies are all imported from Germany, and we have an annual production capacity of 30 million m2. Our products have got the certificates of ISO 9001, ISO 14001, MA, CE, GIG, two application patents and more than 11 invention patents. Our products are exported to more than 20 countries, such as UK, Germany, Italy, Poland, Russia, America, Canada, Israel, Thailand, Indonesia, and they are widely used for roads, railways, retaining wall, landfill, water conservancy and etc.

Our geogrids have been tested in TRI Environmental, BTTG and FITI. The CE approvals were awarded by BTTG, U.K on Geogrids, Geocomposites and Asphalt Reinforcement Grids.

Creep Reduction Testing for 75 yrs and 114 yrs

The long term creep reduction testings were conducted in TRI/Environmental in 2009. For the detailed testing reports please feel free to contact with us.
