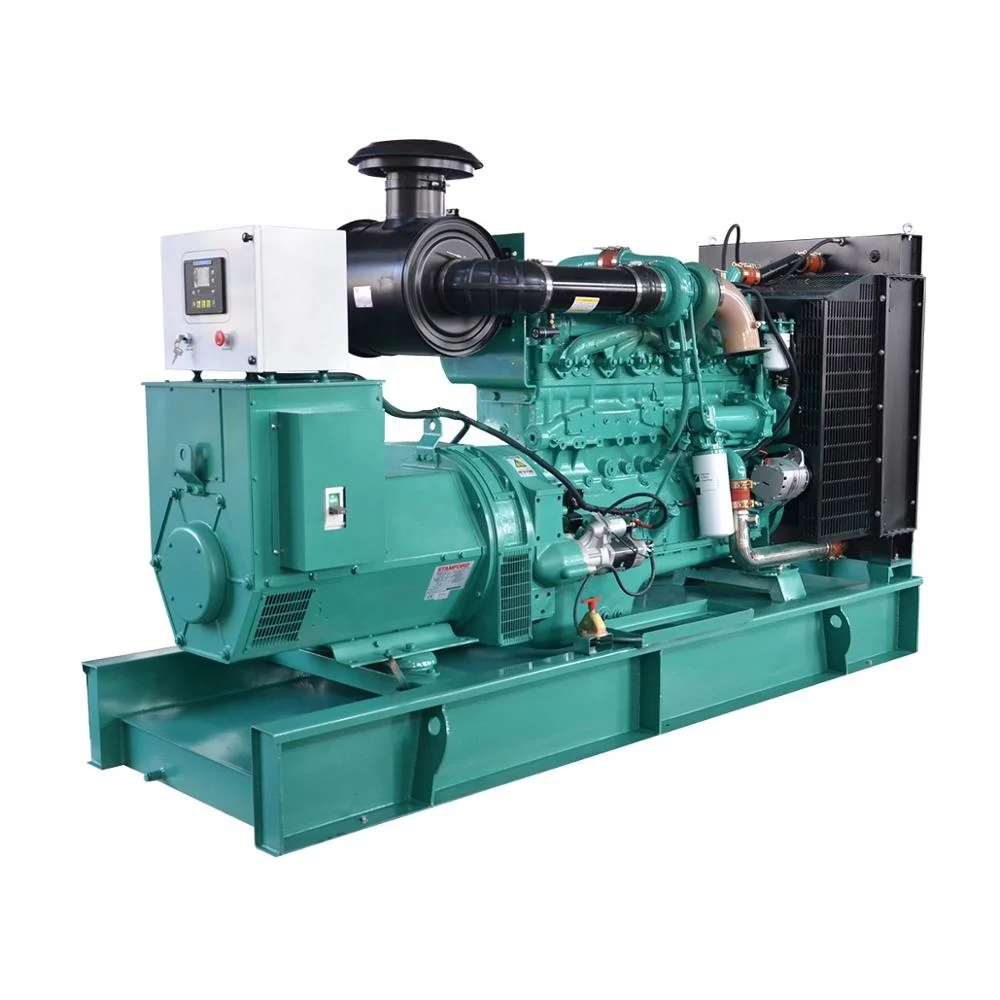

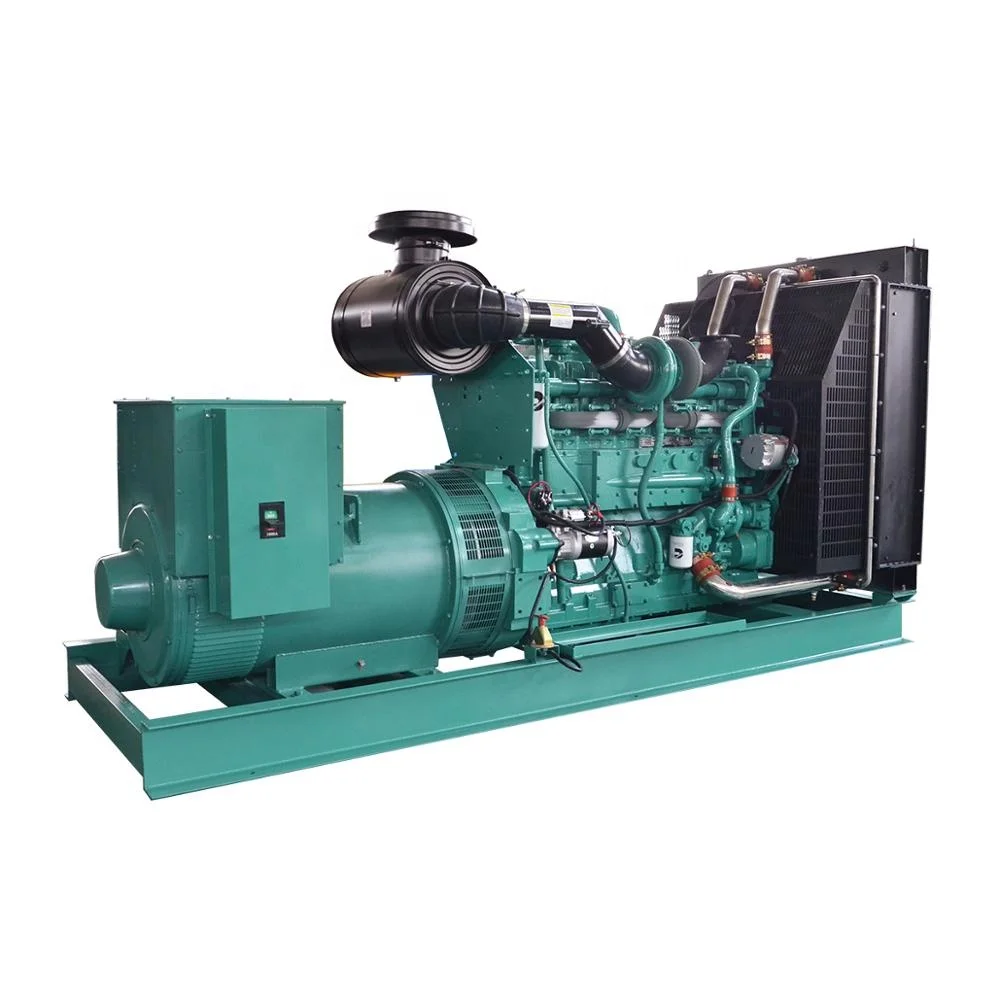

50Hz USA UK KTAA19 G6A engine 700KVA diesel generator 700 KVA with Cummins
- Category: >>>
- Supplier: Taizhou Flying Dragon Machinery Equipment Co. Ltd.
Share on (62166302480):
Product Overview
Description
Diesel Generator Details | |
| Model | CLC-560GF |
| Power | 560KW|700KVA |
| Current | 1008A |
| Frequency | 50 Hz (60Hz for optional) |
| Voltage | 380/220V |
| Optional Type | Open / Rainproof / Silent / Trailer / Containerized |
| Size of Silent Type | 3500*1560*2100mm |
| Diesel Engine Details | |
| Brand/Model | CUMMINS KTAA19-G6A |
| Aspiration | Turbocharged& After cooled |
| Bore*Stroke(mm) | 159*159 |
| Displacement(L) | 19 |
| Oil Capacity(L) | 50 |
| Starting Method | DC 48V electrical Start |
| Fuel Consumption(g/kw.h) | 206 |
| Alternator Details | |
| Brand | Stamford |
| Output Power | 560KW |
| Exciter type | Single bearing,brushless,Self-excited |
| Power factor | 0.8 |
| Voltage adjust range | ≥5% |
| Insulattion Grade | H |
| Protection Grade | IP23 |
| Controller Details | |
| Brand | Deepsea/ComAp/Smartgen |
| Standard | Optional |
| Diesel Engine | Weatherproof/Sounproof canopy |
| Alternator | ATS |
| Control Panel | Water heater |
| Starting Batteries and battery connect wires | Oil heater |
| Circuit Breaker | Battery charger |
| Water cooled Radiator | Fuel tank |
| Steel base frame | / |
| Silencer and flexible exhaust pipe | / |
Plywood case or pallet packing as below:
Any interest in Flying Dragon,please contact us.Thanks
