Best Selling High Configuration 2D CMOS QR PDF417 Barcode Scanner Desktop GT 9208
- Category: Scanners >>>
- Supplier: Foshan,Xincode,Electronics,Technology,Co.,Ltd.
Share on:
Product Overview
Description
HOT SELLING
Technical Parameters
| GT-9208Technical Parameter | |||||||
| Model | GT-9208 | ||||||
| Item | Omnidirectional 2d barcode scanning platform | ||||||
| Physical Parameter | |||||||
| Material | ABS+PC | ||||||
| Power Supply | DC 5V 2A | ||||||
| Power Consumption | 1.60W(working);0.80W(standby);2.34W(maxium) | ||||||
| Weight | 294.0g±5g(without cable) | ||||||

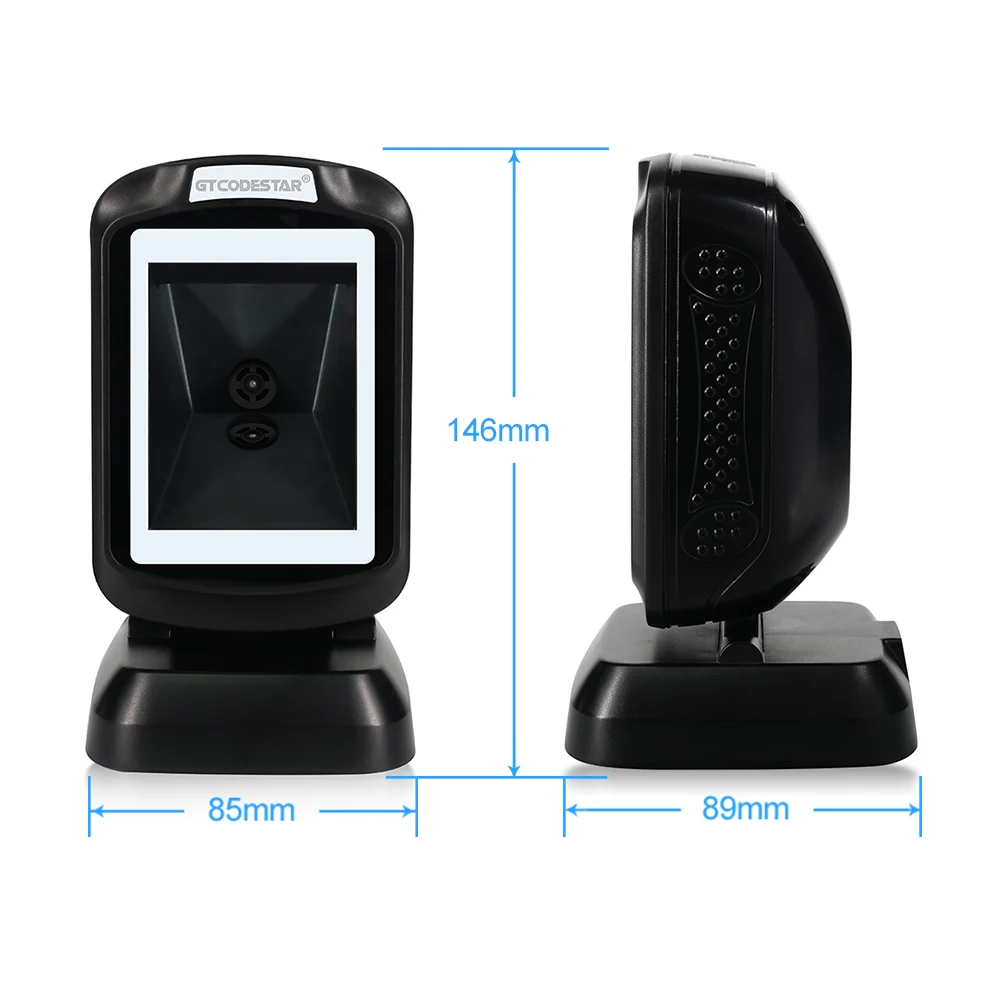

| Size | L * W * H:146.99 * 85.27 * 89.97(unit:mm) | ||||||
| Color | Black | ||||||
| Performance Parameter | |||||||
| Interface | USB;(RS232 can be customized) | ||||||
| System Supported | Linux,Android,Windows XP,7,8,10,MAC | ||||||
| Language Supported | American; French; German; Hungarian; Italian; Italy142:; Japanese; Spanish; Finnish; Russian; Irish; Polish; Dutch; Arabic; Czech; Portuguese (Portugal); Portuguese ( Brazil); Greek; Swedish; Turkish F; Turkish Q [Support virtual keyboard] | ||||||
| Sensor | Planar CMOS sensor 1600 * 900 | ||||||
| Light source | Red lightLED | ||||||
| Processor | 32-bit ARM MCU + DSP | ||||||
| Motion Tolerance | 3.24m/sec | ||||||
| Resolution | Code39 4mil | ||||||
| Error Rate | 1/5000000 | ||||||
| Reading Mode | Image | ||||||
| Trigger Mode | Imaging Sensor | ||||||
| Prompt Mode | Buzzer, Indicator Light(LED) | ||||||
| Image code | Support | ||||||
| Invoice Function | Support | ||||||
| Button | Can cut and scan code mode (mode 1: 1D; 2D can scan; Mode 2: only scan 1D) | ||||||
| Print Constrast | ≥25% | ||||||
| Decoding Capability | 1D | Interleaved 2 of 5 Standard 2 of 5 Matri 2 of 5 RSS-14 Code39 Code39-FullASCII Code93-Regular Code93-FullASCII Code128 Code11 UPCE0/E1 EAN/GSL/UCC-128Auto Codabar JAN/EAN-8 EAN/JAN-13 UPC-A | |||||
| 2D | MICRO QR Data Matrix QR AZTEC PDF417 | ||||||
| Scanning Angle | Roll360°,Pitch45°,Yew45° | ||||||
| Scanning Depth | 5mil code39: 1 cm -- 12 cm 13mil UPC-A : 2 cm -- 30 cm 20mil code39 : 1 cm -- 30 cm 6.7mil PDF417 : 1 cm -- 6 cm 10mil Data Matrix : 1 cm -- 9 cm 15mil Data Matrix : 1 cm -- 20 cm Payment 1D : 0 cm -- 42 cm Payment 2D : 0 cm -- 42 cm | ||||||
| Environment Parameter | |||||||
| IP Grade | IP52 | ||||||
| Operating Temp. | 0 to 50℃ / 32 to 122℉ | ||||||
| Storage Temp. | 0 to 50℃ / 32 to 122℉ | ||||||
| Operating Humidity | 20% to 85%(No condensationc) | ||||||
| Storage Humidity | 20% to 85%(No condensation) | ||||||
| ESD Protection | 15KV | ||||||
| Shock Resistance | 1.5m free fall on concrete surface | ||||||

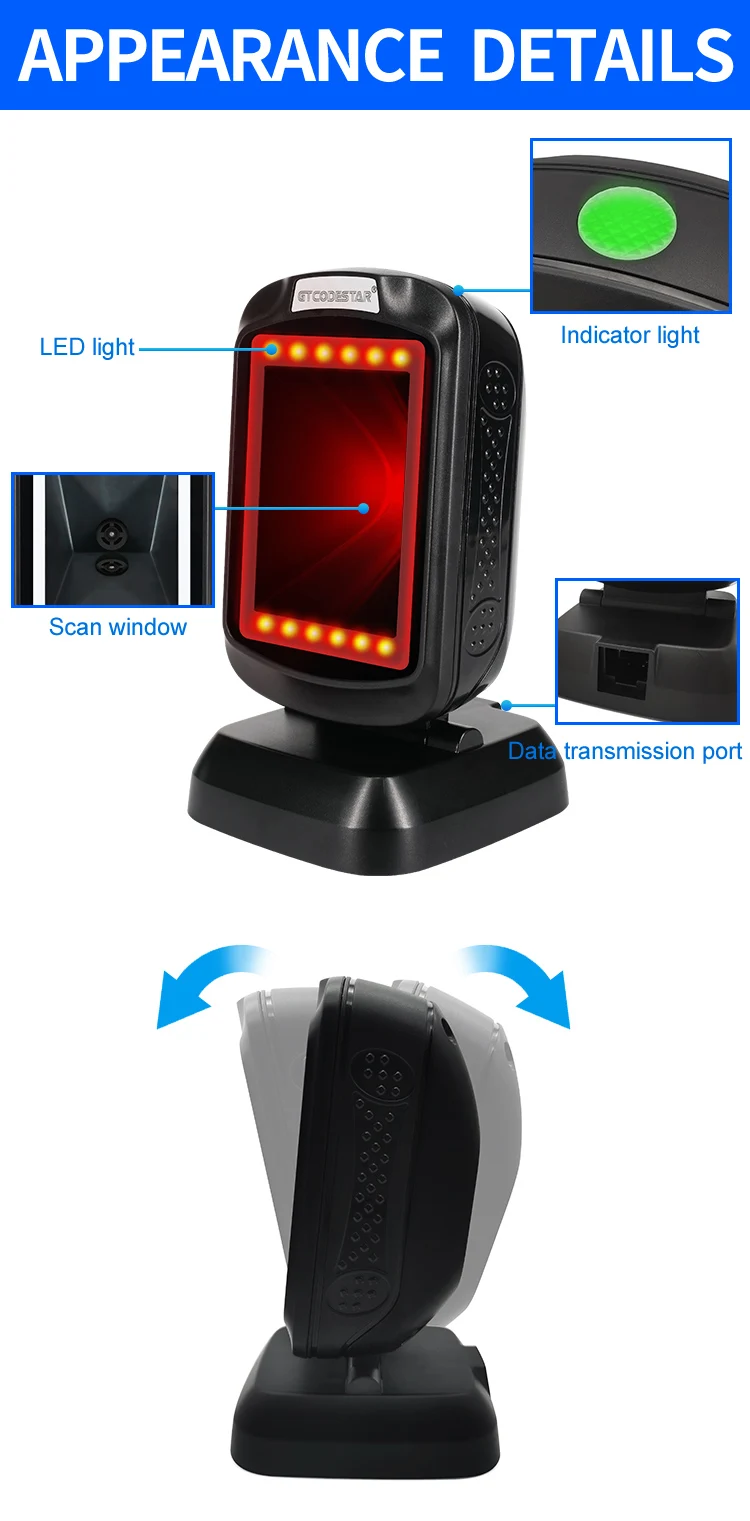

Detailed Images
Company Information
FAQ
1. How about the quality?
Professional QC team and testing machine(Engine age testing,wire bending machine,
switch life testing,shock resistance testing).All the products pass CE,FCC,ROSH,etc.
2. Why so competitive?
With almost 10 years experience,we owned a large domestic market in China.
We are the best seller in China.So large quantity will reduce our raw material cost directly.
What's more,we have mature technology to save cost.
3. How to control the performance stable?
We take the flow line production in the whole processing.
Every product will test 4 times at least before it delivery.
4. Is OEM or ODM available?
Yes.We are the factory directly.We can make it as your requirement.
5. Why customer choose us?
ISO9001&ISO14001 factory with strictly quality control system.Prompt after-sales service.
6. How about the factory?
We have more than 200 workers with advanced dust-free plant.We are approved the new high-tech enterprise by the government.Owned many technical and design patents in different professional fields.
