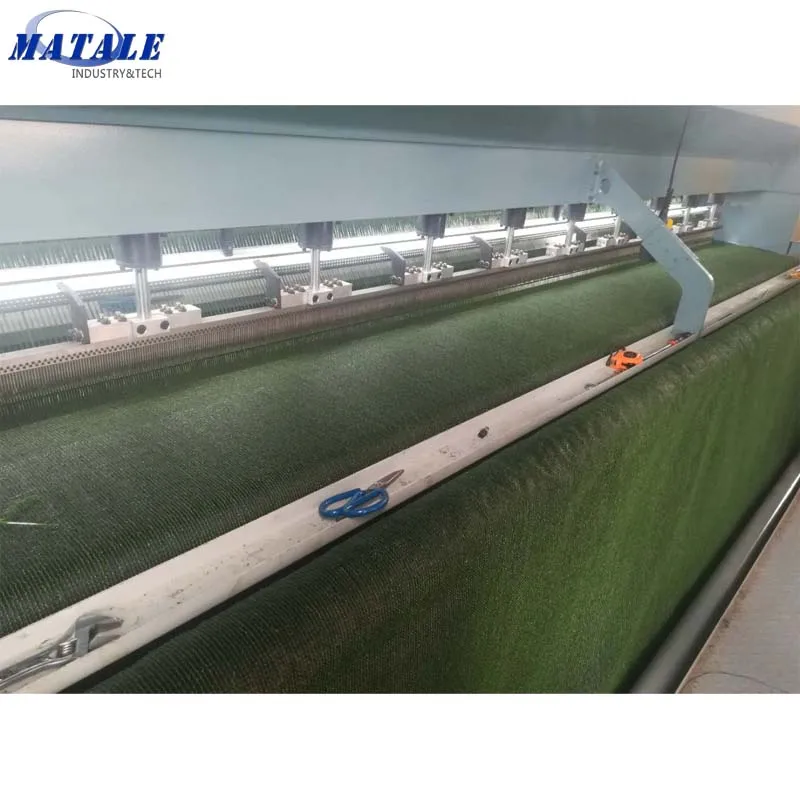

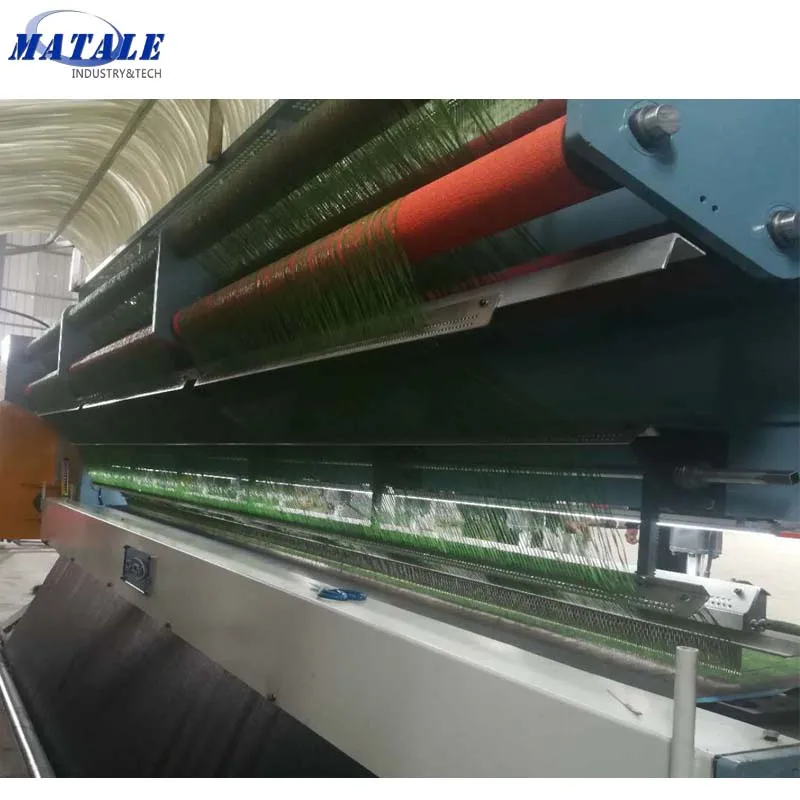

1.Main Machine: 1.1 Working width: 4.1 m Spec: 3/8'' Pile Height: 20~60 mm (Adjust by touch screen) Range: 10~35 stitch/10 cm (Adjust by touch screen) Mechanical speed: 300-500 RPM Yarn Range: 3500--10000 DTEX Main machine body: 7.6 m*1.5 m*2.6 m Full casted machine frame, Japan NSK Bearing applied for chief axis which made by Steel SUJ2 after quenching and polishing. All supporting item and rocker arm apply QT 500 full casted. One line needle, needle beam apply 40 Cr drawing temper, even cut pile Variable frequency adjustable motor Manual adjustable bed board and Locking system Adjustable stroke
1.2 One side yarn feeding system 2*3kw sevo-motor Inovance Brand
1.3 Base fabric feeding system 2*3kw sevo-motor Inovance Brand
1.4 3/8 needle, hook, knife(thickness 1MM), fork, keep 420Pcs each for 4.1m working width M/C. Spare part each type 20pcs. Knife frame 2pcs.
1.5 Siemens Main Motor 2*15KW 4 end. Frequency converter and PLC and 10 inch high-definition touch screen apply Inovance Brand. PLC Built-in electronic cam to make sure feeding yarn and base fabric more smooth and even.
1.6 Control cabinet: Soft start/stop, High stop, Error display, Electronic meter, Oil pressure monitoring, with the rope switch, Front photoelectric switch. Equipped mechanical and personal protection system, Such as: The oil pressure is lower than the setted value then machine cannot run(Filter need cleaning); During machine running, opening any side of the shield will stop M/C immediately; During the operation of the photoelectric switch when the equipment running, if any person enter the equipment running space, Machine stops immediately.
1.7 Yarn board 1pcs
1.8 Electric oiler

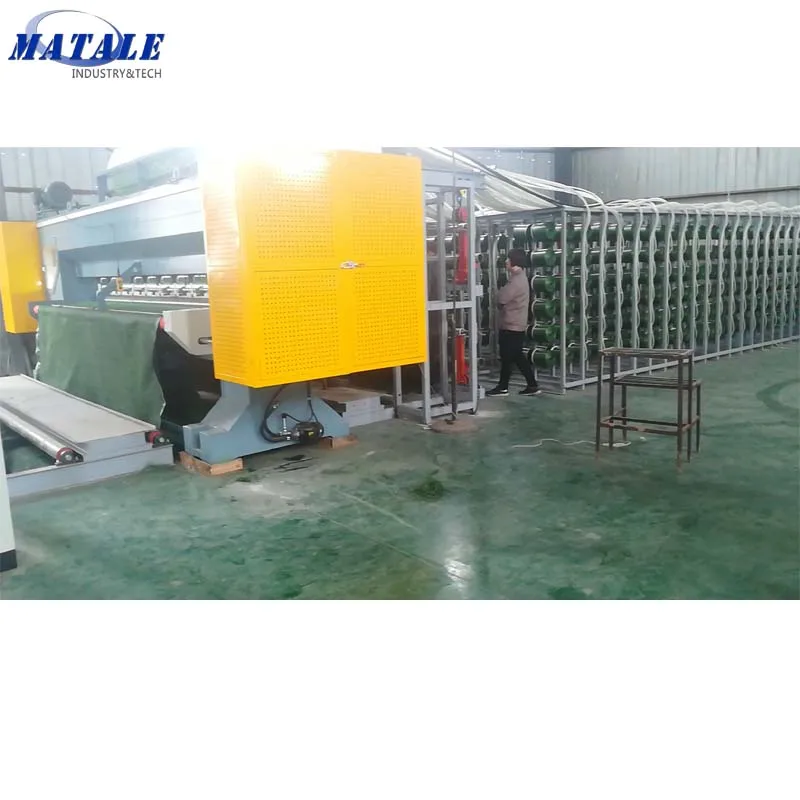

1.9 432 end double position yarn frame 1Set, base fabric holder 2 pcs, amendment frame and layout frame, nylon pipe for yarn Outer Dia:10mm Inner Dia: 8mm

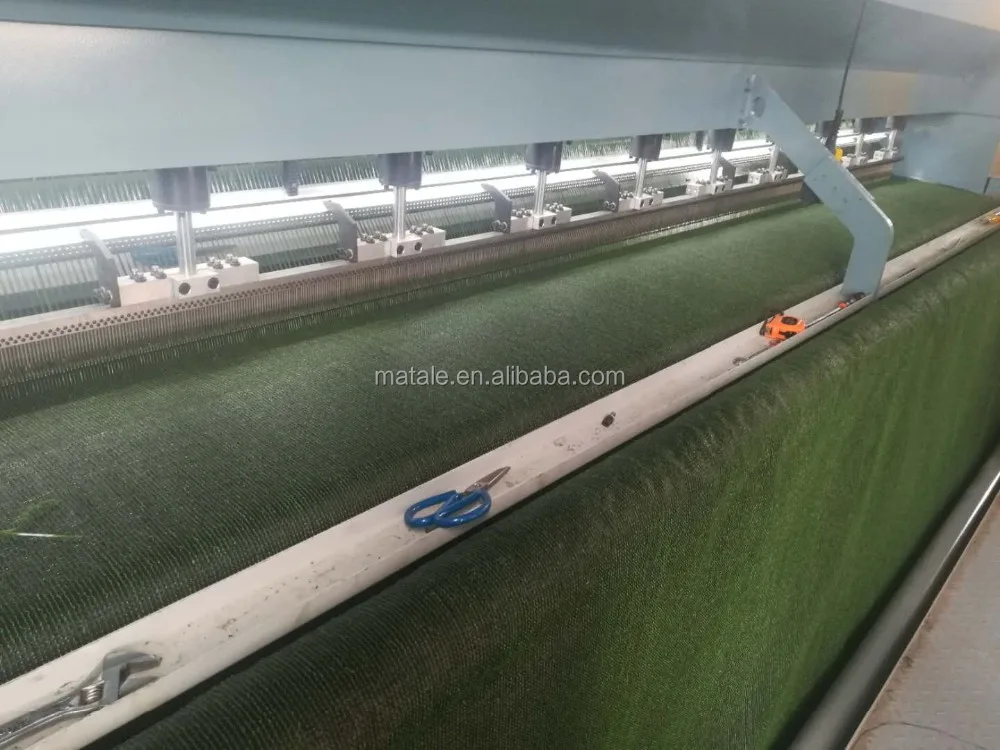

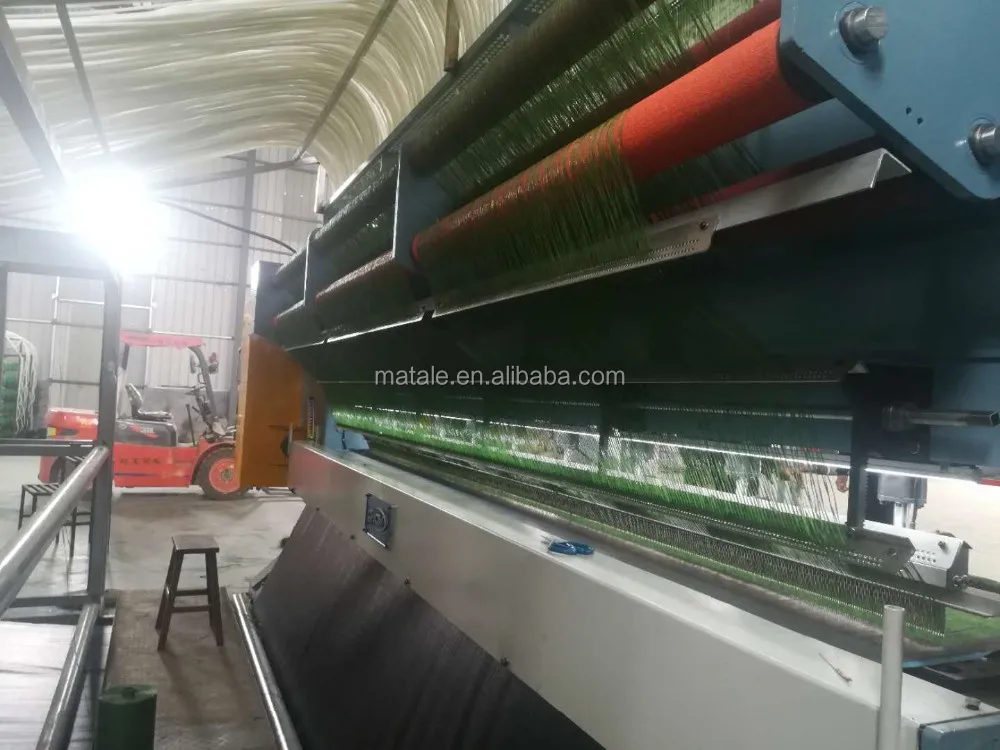

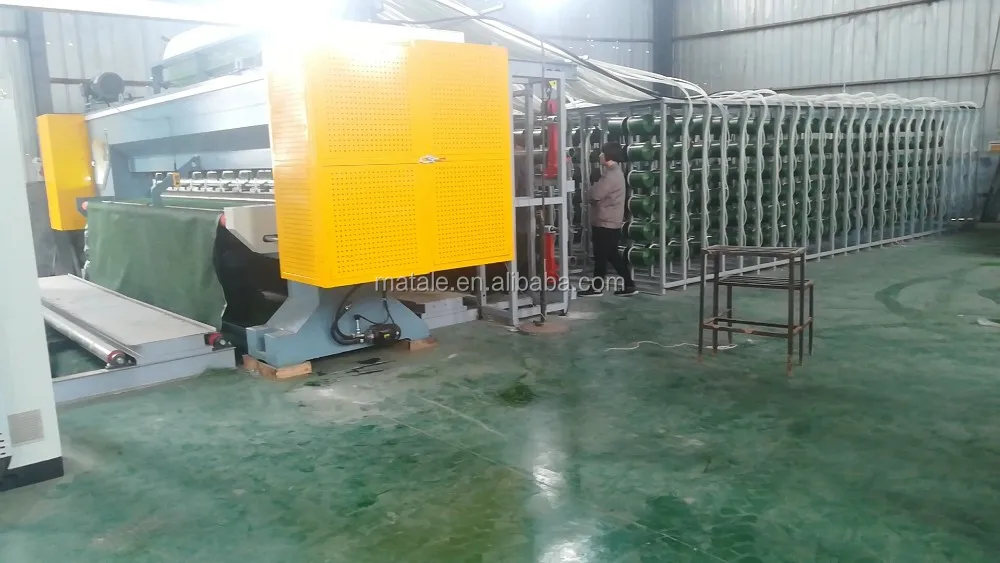

Product Photos
