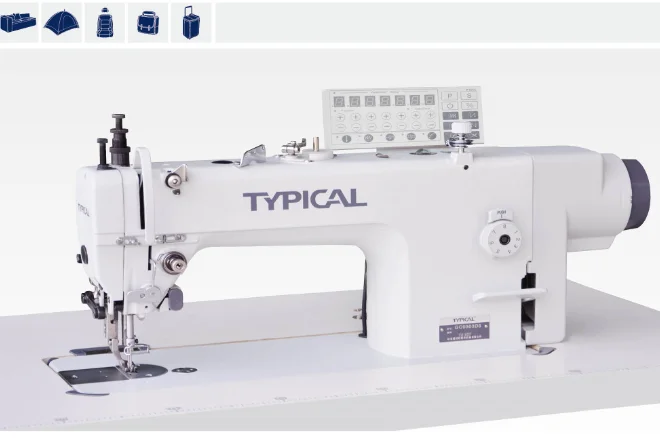

GC0303D2 GC0303D3 TYPICAL sewing machine with trimmer

Product Overview

Description

GC0303D2 GC0303D3 TYPICAL sewing machine

GC0303D2:direct drive top and bottom feed lockstitch sewing machine with trimmer

GC0303D3:direct drive top and bottom feed lockstitch sewing machine with trimmer WITH ELECTRONIC THREAD TENSION

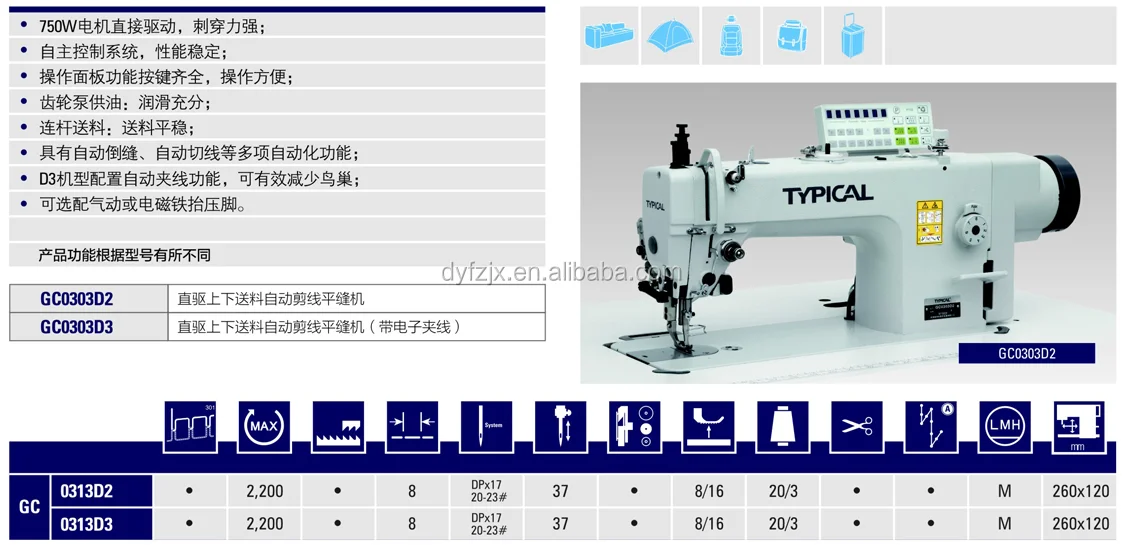

PARAMETER:



speed:	2200rpm
feed:	top and bottom feed
length of stitch:	8mm
needle type:	DPX17 20-23#
needle bar stroke:	37mm
height of presser foot:	8/16mm
working space:	260*120mm
usage:	sofa,tents,car seat,bags,suitcase...







SPECIFICATION:

750W  motor direct drive,strong penetrating force

stable control box

full function for the screen and easy operation

gear pump for lubrication

link rod feeding and feeding stable

automatic back tack,automatic trimmer

OPTIONAL:pneumatic or electromagnet foot lifter
