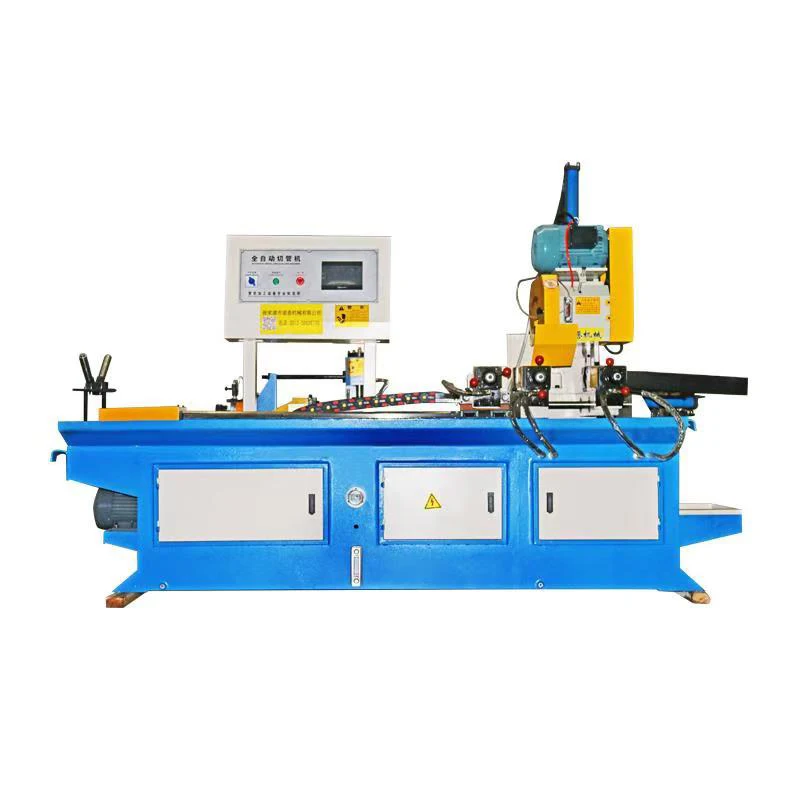

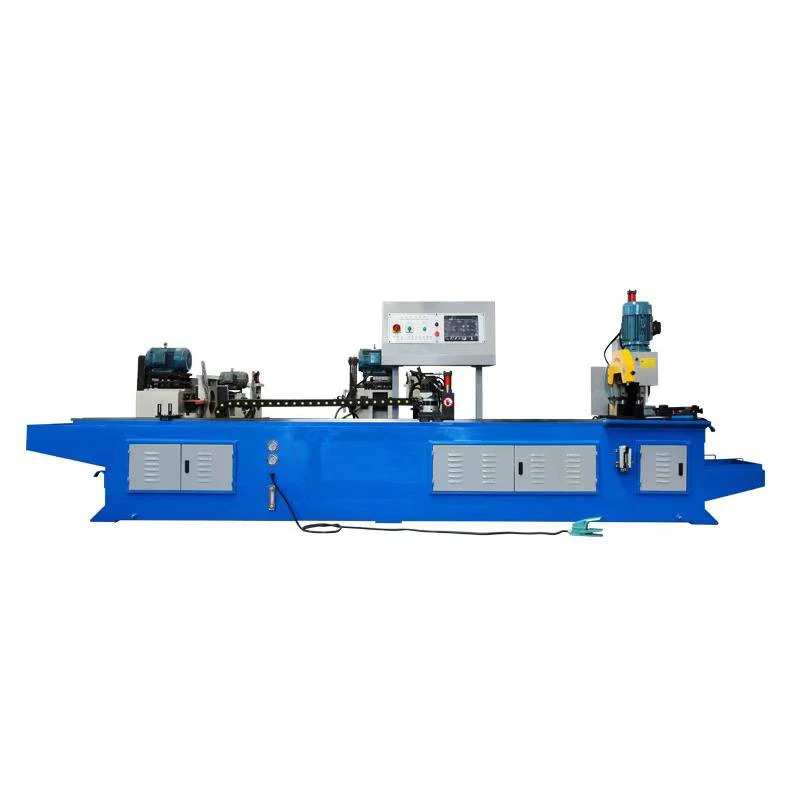

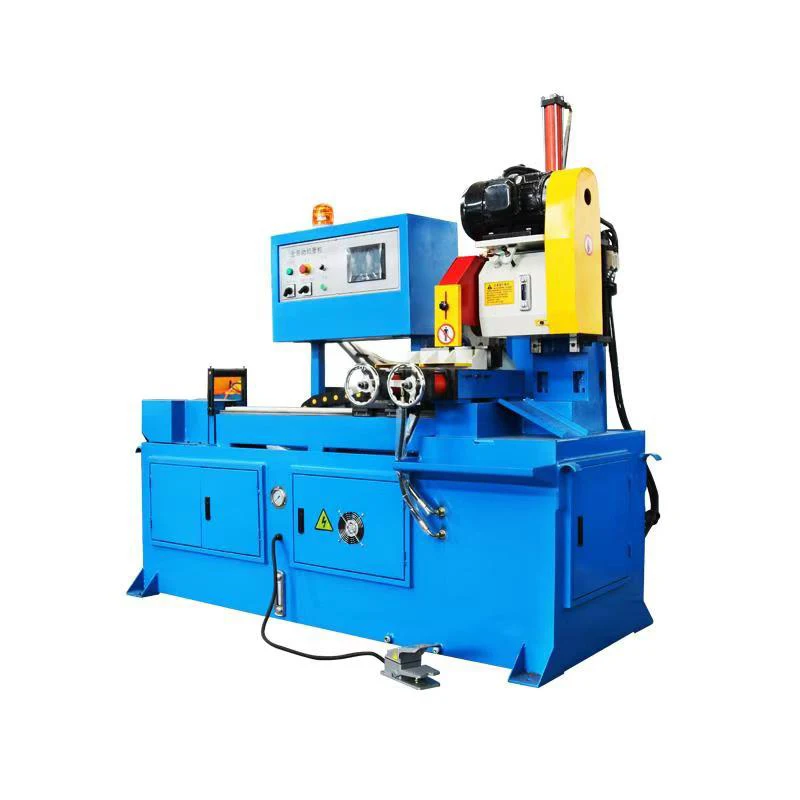

RT 425CNC tube cutting hydraulic feeding automatic pipe cutter machine CNC automatic pipe tube cutting machine for hot sale

Product Overview

Description

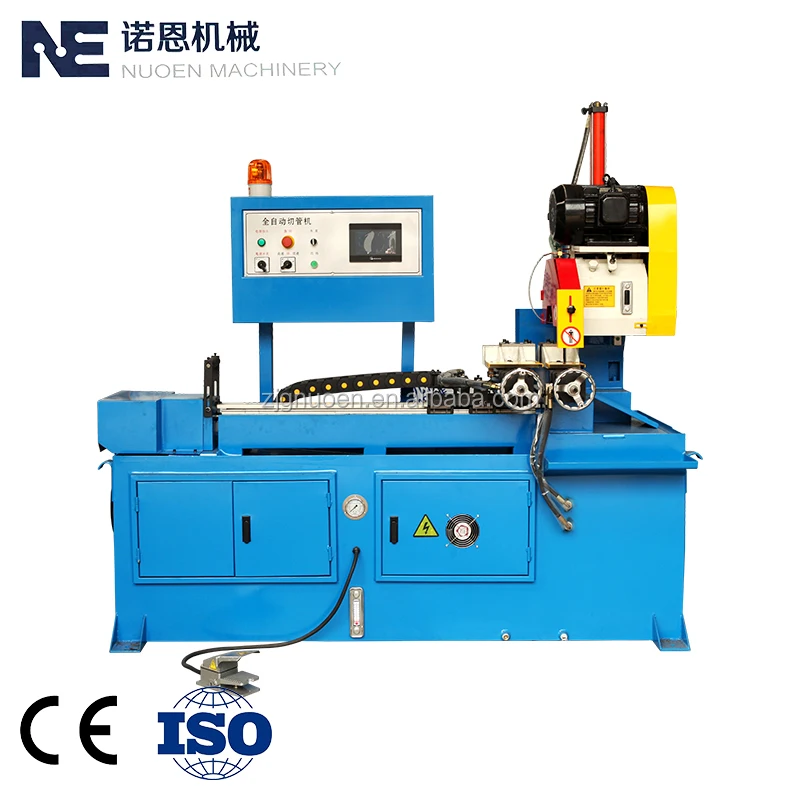

Rt-425NC Metal Circular Saw Cutting Machine



A. Main technical parameters model introduction:

Rt-425NC servo (pull tail) type metal circular sawing machine is an automatic clamping, automatic feeding, automatic feeding type metal cutting machine tool. The feeding adopts imported servo motor. The feeding speed is fast, and the speed is adjustable, and the precision is high. Different sizes can be cut on one tube. It can cut all kinds of ordinary steel, stainless steel, copper, aluminum and other metal materials with different cross-section shapes. This product avoids the cutting of the tailings separately before the automatic cutting machine is cut, saving labor.

 The machine has the characteristics of simple operation, low noise, no dust pollution, good sawing quality, etc.; and the saw cut surface has no flanging and burr, eliminating the need for two processing steps, greatly improving productivity.

 Machine dimensions: 3700mm × 1800mm × 900mm (subject to the actual model)

Machine weight: 1400Kg (subject to the actual model)

1: Feeding speed 300mm precision ball screw per second

2: feeding speed 500mm racks per second

3: feeding accuracy 0.02mm precision ball screw per meter

4: feeding accuracy 0.15mm gear rack per meter



B. Main technical parameters:

1. Main motor power: 2/4 pole change 3.3/4.0Kw

2. Voltage: 380v 50Hz

3. Cooling pump motor power: 90w 380v

4. Maximum opening of the clamp: 120mm

5. Applicable saw blade: outer diameter Φ325 ~ Φ400mm, inner hole Φ32mm Pin hole 2×Φ11×63 mm

6. Maximum sawing capacity: 120mm

Serial	Material type	Cutting size	Cutting state	Cutting angle
1	Round Pipe	Φ120	Tangent	90°
2	Square pipe	100x100	Tangent	90°
3	Angle steel	110x110	Tangent	90°
4	Rod steel	Φ40	Tangent	90°
5	Square steel	40	Tangent	90°

C. Main component parts configuration:
