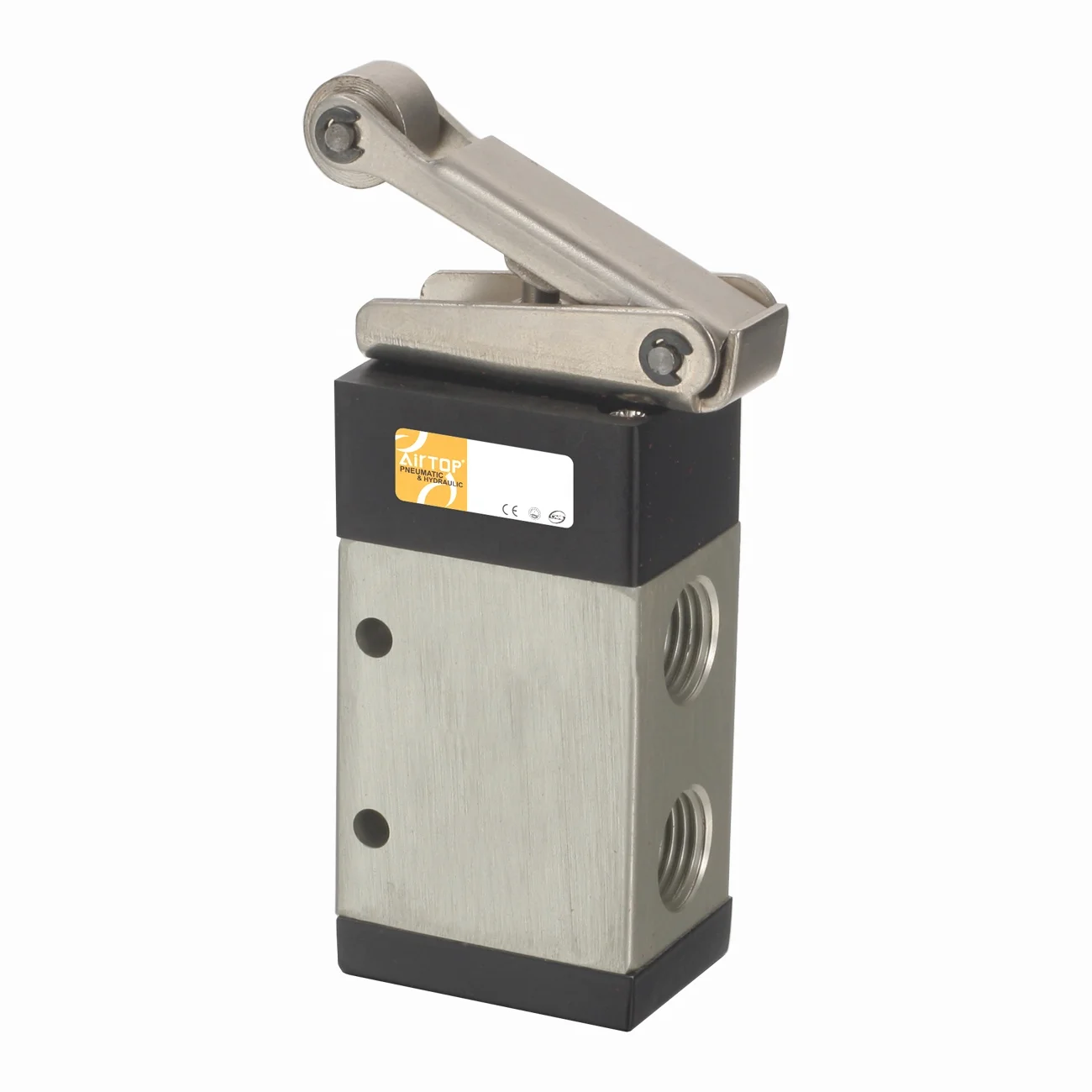

MSV Series Mechanical Valve
- Category: >>>
- Supplier: Ningbo Airtop Pneumatic Hydraulic Co. Ltd.
Share on (62166840514):
Product Overview
Description
Banner
Product Description
- As a professional solenoid valve manufacturer,AirTOP Pneumatic & hydraulic has a wide range of solenoid valves widely used in many sections of the industrial control systems.
- AirTOP solenoid valve have zero differential valves,plastic solenoid valves,high pressure solenoid valves,etc.
JM Series Two-Position Three-Way Mechanical Valve
Specification
Model | MSV86321 | MSV86522 | MSV98322 |
Working Medium | 40 Micron Filtered Air | ||
Position And Way Number | Two-Position Three-Way | Two-Position Five-Way | Two Position Three-Way |
Pressure Range | 0~0.8Mpa | 0~0.8Mpa | 0~0.8Mpa |
Temperature Range | 0~60℃ | ||
Effective Section Area | 12mm2(CV=0.67) | 16mm2(CV=0.89) | 16mm2 (CV=0.89) |
Joint Pipe Bore | G1/8 | G1/4 | G1/4 |

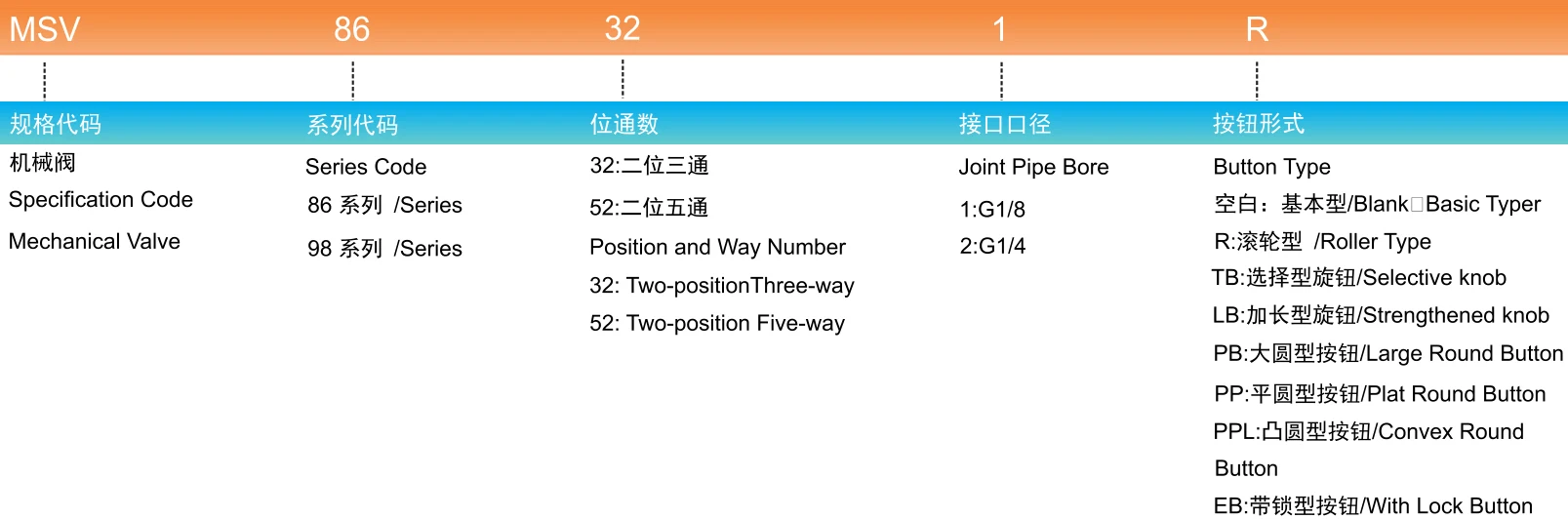

Ordering Code

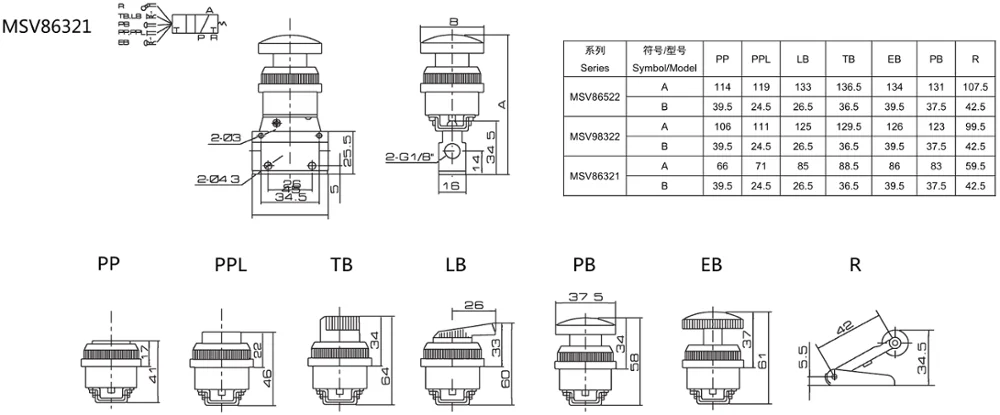

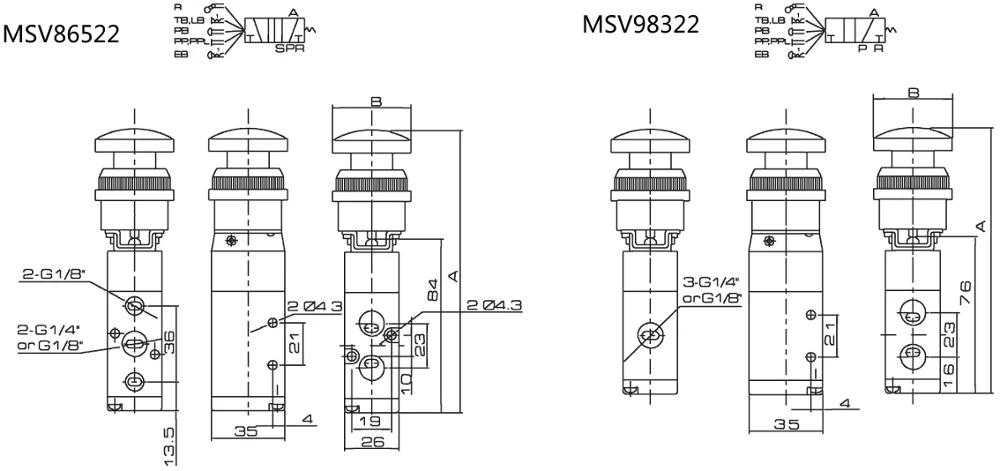

Dimension

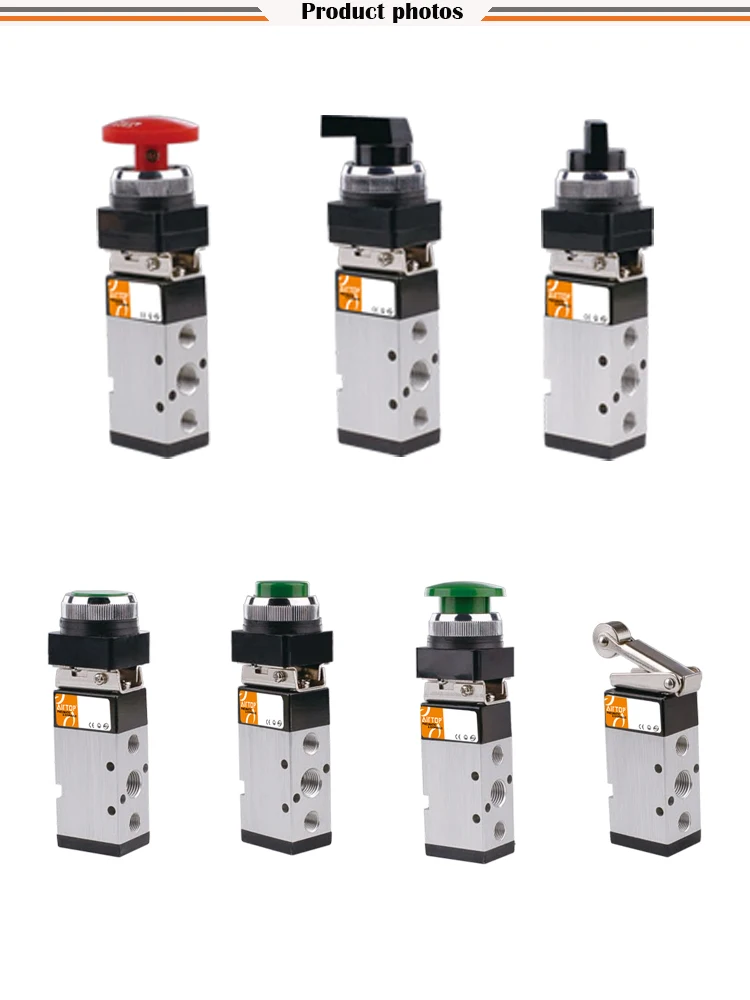

Product Photos
