4CH 1080P SD card 4G WIFI and GPS mobile dvr for all vehicles from Original Manufacturer
- Category: >>>
- Supplier: Shenzhen Recoda Technologies Limited
Share on (62166981858):
Product Overview
Description
Product Description
Key Features:
Supports 4 CH FULL HD 1080P ,Hybrid Mobile DVR ,support AHD ,CVI,TVI ,CVBS, IPC optional
Supports 2 pcs SD cards for recording, each max.256 GB
Dual streams for local recording and wireless transmission

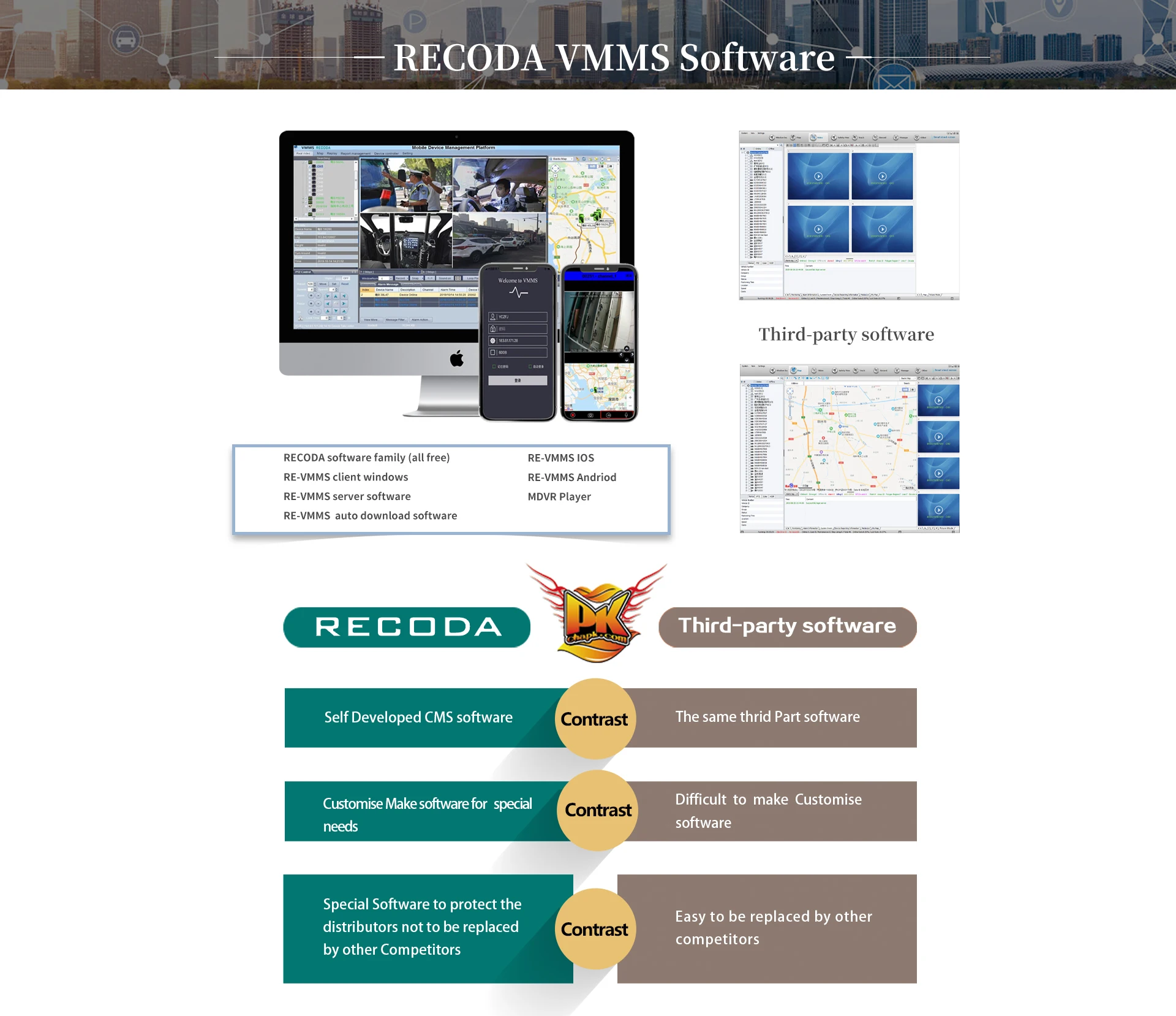

Functional CMS platform for live view and remote managementConcise design
high performance4G GPS WIFI ,G sensor optional
wifi hotpot
- Allow to integrated with various devices like: people counting system/DSM system and ADAS system etc.
Specification
Item | Parameter | |
OS | Linux | |
Language | Chinese/English/Customized | |
Video Compression | H.264 | |
OSD | Overlays information such as date time and vehicle ID | |
GUI | Graphical User Interface | Setup system parameters with the remote control. |
Video Record System | Video Input | 4CH AHD input,CVI,TVI or CVBS 4X1080P(each 25/30 FPS) aviation connector, 1.0Vp-p, 75Ω |
Video Output | 1 CVBS, 1.0Vp-p, 75Ω,Aviation,Support 1CH Full Screen, 4CH Screen | |
Preview | Support 1 channel and 4 channels preview.,Support Manual /Alarm Trigger full screen preview | |
Resolution | 1080P/720P/D1/HD1/CIF, MAX:4 channels of 1080P | |
Video Quality | 0-7 levels, 0 is the highest level. | |
Video Standard | PAL: 100f/s , CCIR625 line,50field; 1080P:4Mbps-8Mbps,multi level video quality optional | |
Record Mode | The default setting is auto recording after power on. Timed recording, alarm trigger recording and manual recording are supported. | |
Audio | Audio Input | 4CH ,Aviation Plug |
Audio Output | 1CH,Aviation Plug | |
Compression | G.726 compression, 8KB/s speed | |
Alarm Input | 6Ch Alarm Input, kinds of alarm linkage support | |
Alarm Output | 2CH Alarm Output | |
Position | Support Built GPS/BD Module | |
Interface | 2CH RS232 to connect OBD, POS/Fuel Sensor/LED Advertisement Connection | |
1CH 485 Interface,Connect PTZ Camera | ||
G-Sensor | Support G-sensor | |
Storage | SD | Dual SD Card,each max 256GB SD Card loop recording |
Upgrade | Support SD Card updating | |
File Format | H.264 | |
File System | Special FAT32 File System | |
Video Playback | Video Search | Search By Record Time/Record Type etc |
Playback | Max support 4CH Replay /Stop/Fast/Slow at same time | |
Support forward and backward play at the speed of: x 2,x4,x8,x16. | ||
Voltage & Power | Power Management | Wide Voltage.Support Timed/Delay off |
Voltage Input | DC:+10V ~ +36V | |
Voltage Output | +12V 2.5A,+5V 2.5A | |
Power Consumption | Normal Working <5W | |
Working Environment | Temperature | -20℃ to +70℃ |
Humidity | 20% to 80% | |
Security | Password | User/Admin 2 Level Different Password |
others | Size | 150(W) x57(H) x168(D) mm |
Net Weight | 1.1kg | |

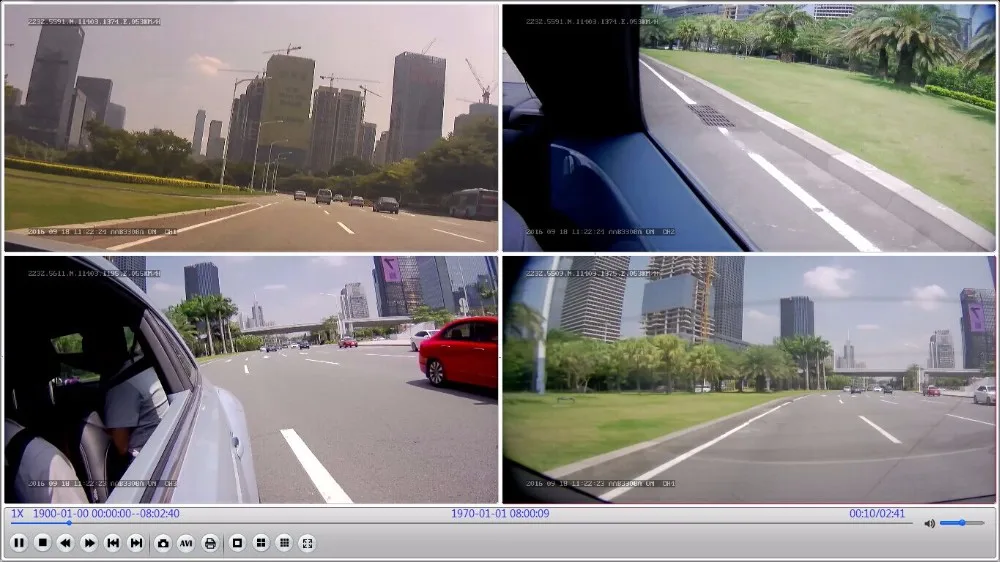

FULL HD 1080P Recording :
MDVR Peripheral Devices with RS232/485
Recoda Mobile DVR was designed with RS232/RS485 communication interface.Allow to integrated with various devices like: people counting system/DSM system and ADAS system etc.
Production Process
Packaging & Shipping
Company Information
RECODA is one of the leading vehicle surveillance system providers in China nowadays. We specialize in manufacturing, R&D of Mobile DVRs &Car Cameras for public transit, school buses, Ambulances, Trucks, Taxi, Vans & law enforcement vehicles and body-worn Camera Recorder.
Currently, all items are exported to America, Europe ,Australia and other Asian countries. RECODA have over30,000 systems installations all over the world.
All items were verified by European CE and ROHS, US FCC, IEC Security test.
With plenty skill workers, professional hardware and software engineer, and carefully component choosing, we are confident of our quality. Our mission is to provide you tested and qualified auto security products.
With over 10 years R&D team and full trained technical team to supply reliable products, effective after-sales service. We Looking for product regional or country agent . Once long term cooperation established, we will try our best to share benefit with you. Aim is simple: to share win-win future with all distributors worldwide.
