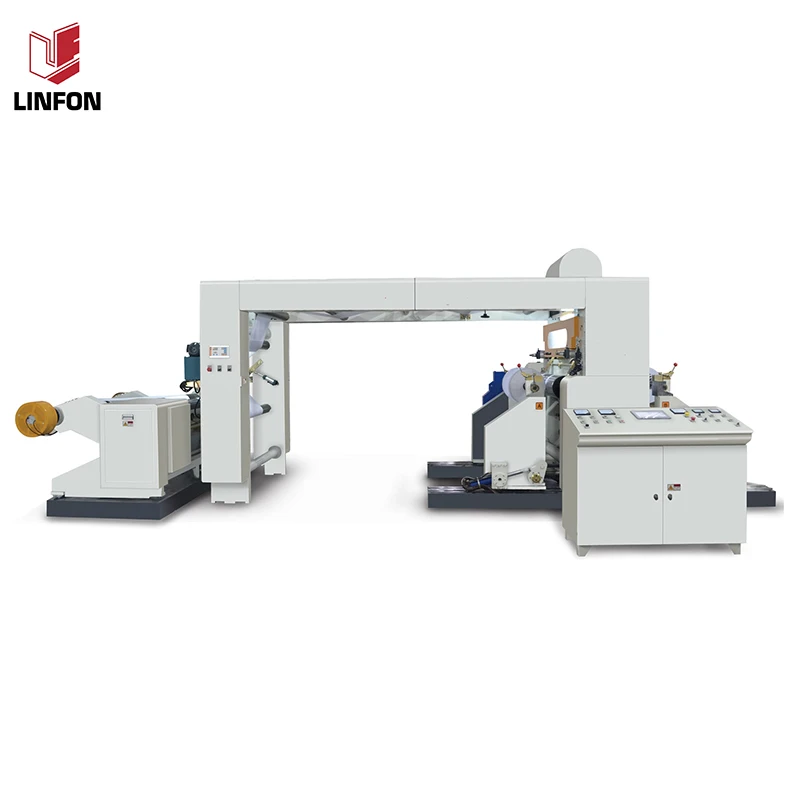

KFQ Full Automatic Jumbo Roll Paper Slitting Rewinding Machine




Introduce:


This Machine main use on packaging industry;it can according customer require to slitting rewinding different specification roll. Whatever it is printed material or white material. High Speed and Accuracy is it’s advantage.


Suitable for 30-450 g/m2 Paper such as crepe paper,condenser paper,capacitor paper, bull paper, double-face adhesive tape,paper label ,plastic label,coated paper.


Main Feature:


1) Machine adopt 3 sets servo motor to control, it can guarantee machine working very stable.
2) Machine adopt Siemens PLC brand, through PLC to adjust parameter( include meter, tension, blower etc).
3) Unwinding device adopt 3 inch heavy air shaft, Hydraulic loading system


Rewinding device adopt 3 inch/6inch shaft-less, Heavy Hydraulic loading system.
4)Unwinding device have Web Guide control, through CCD sensor to correct edge of feeding , to guarantee feeding is very exact .

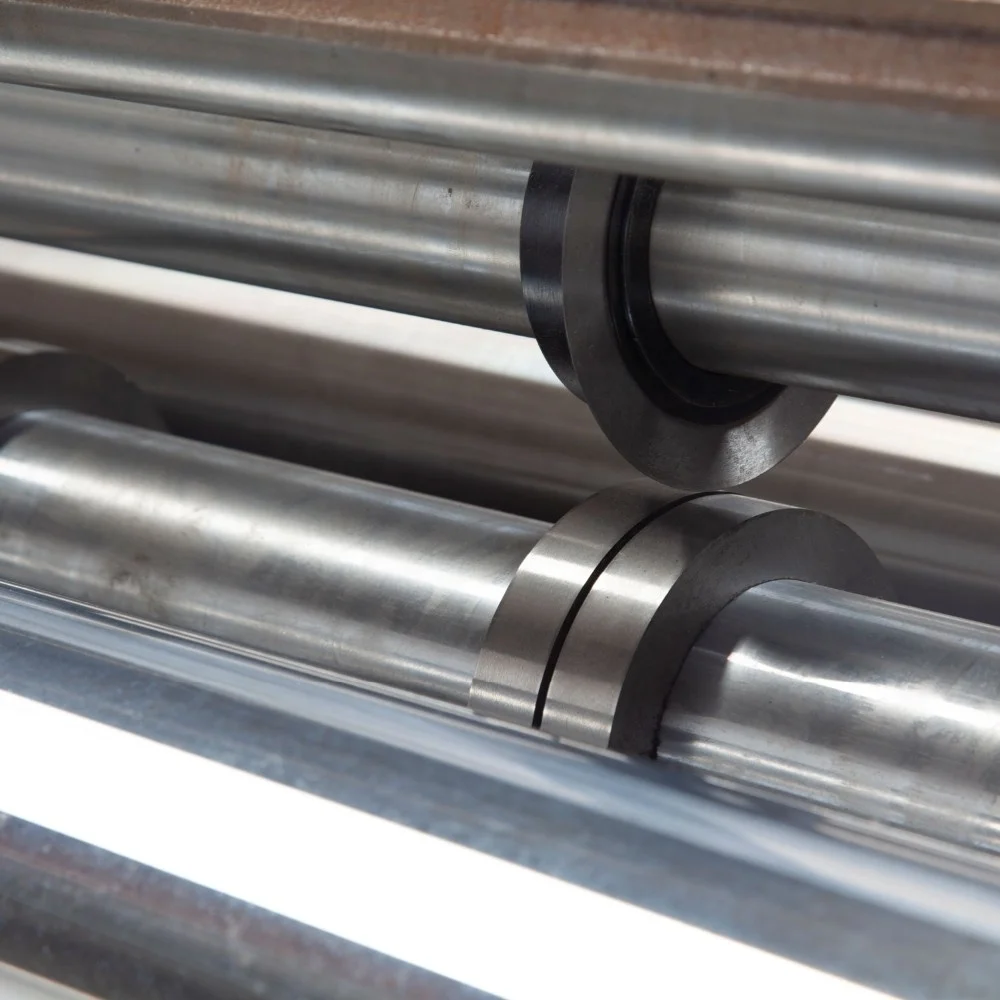

5)Standard machine slitting blade adopt circular slitting blade(SKD material). standard free give 10 sets
6) Rewinding device adopt Hydraulic loading system, automatic up and down and easy to control.
7) Machine has automatic counting meter, automatic stop ,automatic alarm etc function.


Machine Specification:



















































































ModelKFQ-1600KFQ-2000KFQ-2600
Max.Unwinding Wide1600mm2000mm2600mm
Max.Unwinding Diameter1500mm1500mm1500mm
Max.Rewinding Diameter1500mm1500mm1500mm
Rewinding Roll Width100-1600mm100-2000mm100-2600mm
Minimum Slitting Width100mm100mm100mm

Max.Unwinding Roll Weight



5000KG






50000KG






5000KG





Machine Working Speed400-500meter per mins400-500meter per mins400-500meter per mins
Maximum Machie Speed550meter per mins550meter per mins550meter per mins
Machine Volatge380V50HZ380V50HZ380V50HZ
Machine Power35KW35KW50KW
Machine Size1100mm*2500*2100mm11000mm*2900*2100mm11000mm*3500*2100mm
Machine Weight15000KG18000KG20000KG




Machine Details:

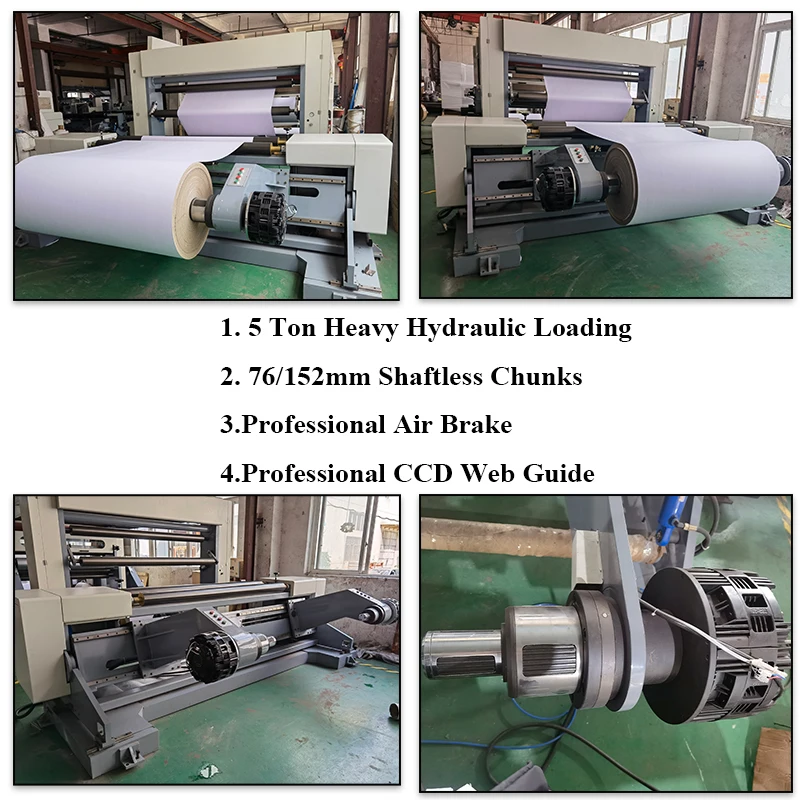

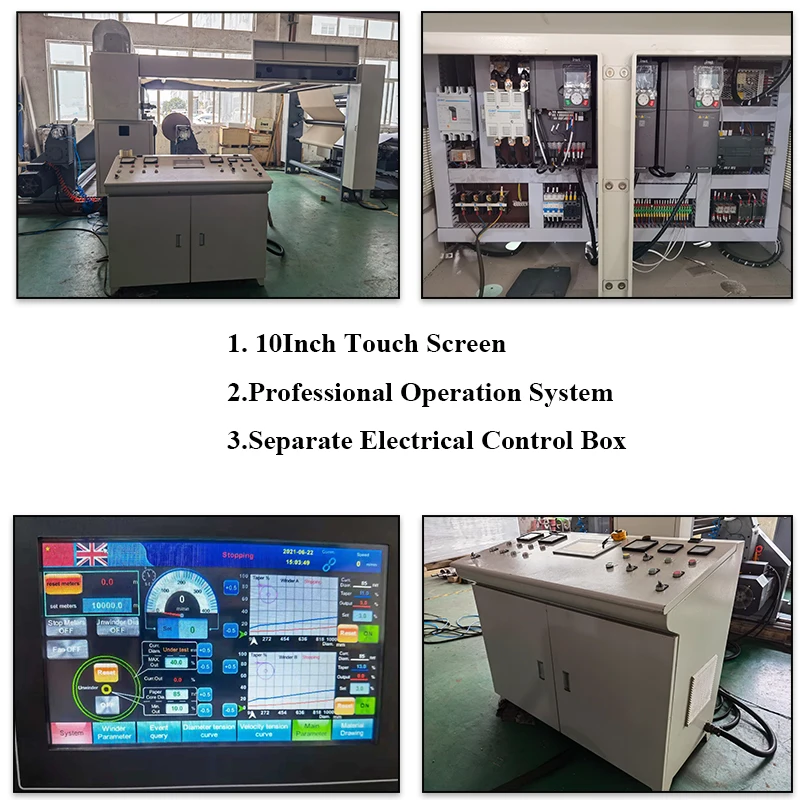

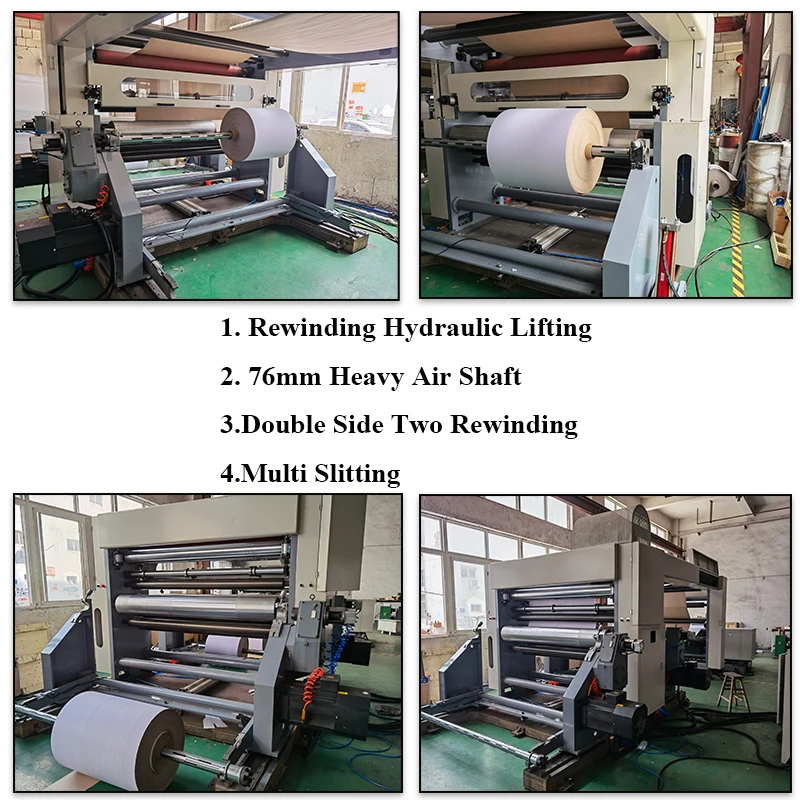

kfq rEWINDING MACHINE.jpgKFQ 11.jpgKFQ Slitting Machine.jpg


CE


Packaging and Shipping:


packaging


Company Information:


1. 20 YEARS TECHNOLOGY EXPERIENCE AND PROFESSIONAL WORKER TEAM
2.FOCUS ON PAPER ROTARY CUTTING MACHINE, CROSS SHEET CUTTING MACHINE, SLITTING REWINDING MACHINE,REWINDING MACHINE,PAPER BOX FORMING MACHINE,PAPER CUP MAKING MACHINE,PAPER BAG MAKING MACHINE ETC
3.PROVIDE PROFESSIONAL 24H TECHNOLOGY SUPPORT ONLINE
4. 20DAYS DELIVERY TIME FOR STANDARD MACHINE ORDER
5.SUPPORT OEM SERVICE,PROFESSIONAL ENGINEER TECHNOLOGY SUPPORT.


6.OWNNER WORKSHOP


1111111


FAQ:



FAQ


1.Q:Where is your factory? How can I get there?
A: We are located in Ruian City Wenzhou, Zhejiang Province.
To Wenzhou Longwan airport by Air, from Shanghai is about 45mins, from Guangzhou is about 1hr 50mins and from Hongkong is about
2hrs. We will pick up you in the airport.
2.Q:Can your machine be customized?
A: Your better improvement suggestions are highly appreciated. Almost all of our products can be customized, including the sizes,
color, logo, package and so on.
3.Q :What's the OLD(order lead time)?
A: For our standard model machines is about 30days after receiving your deposit.
4. Q: How about your package?
A: Our machines are well wrapped by plastic film to be water proof first, then loading and fixing in a plywood case. If by
FCL(full container loading) we might use the wooden case.
