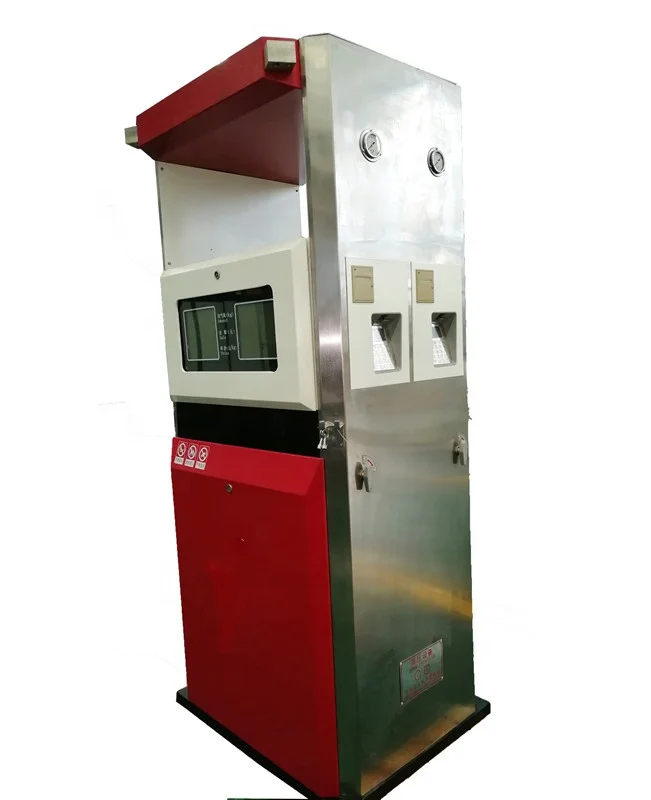

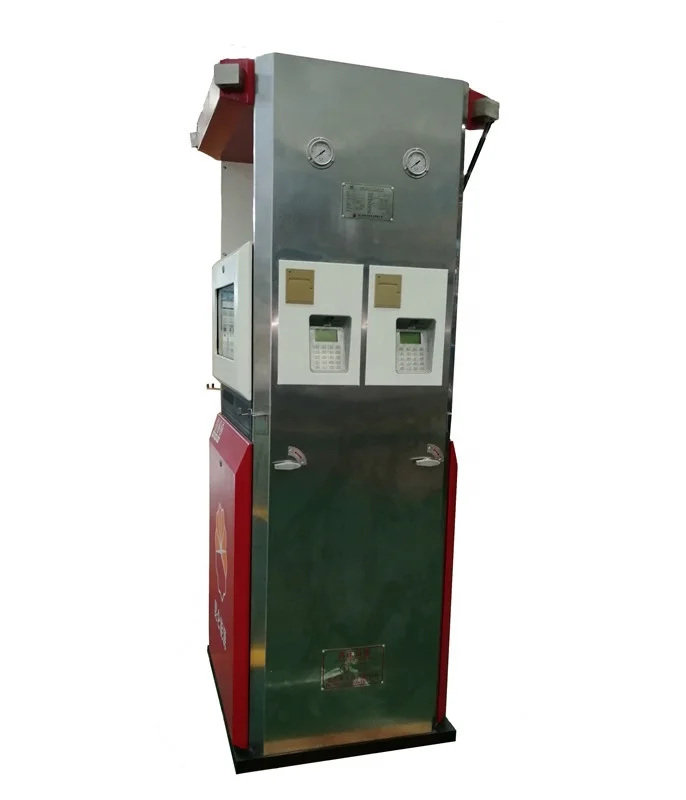

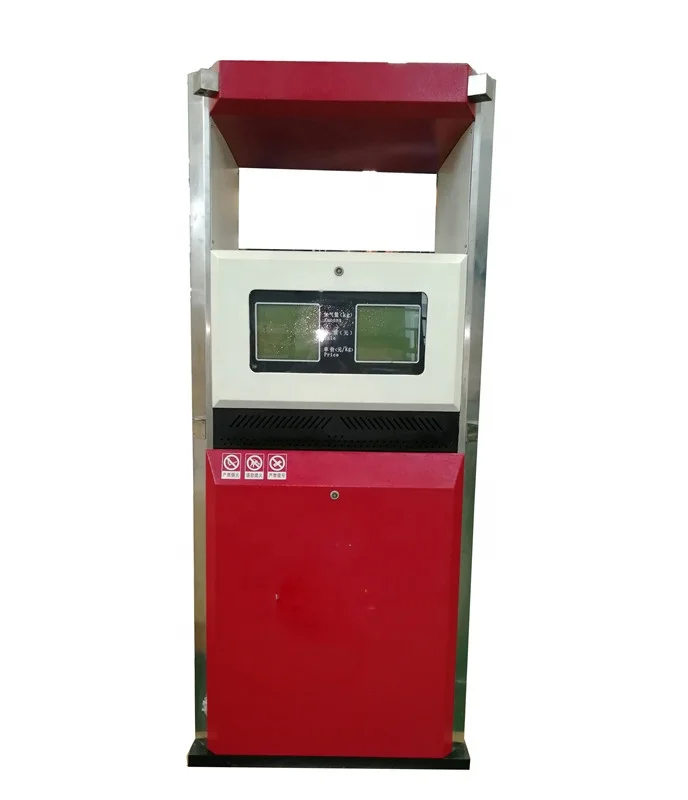

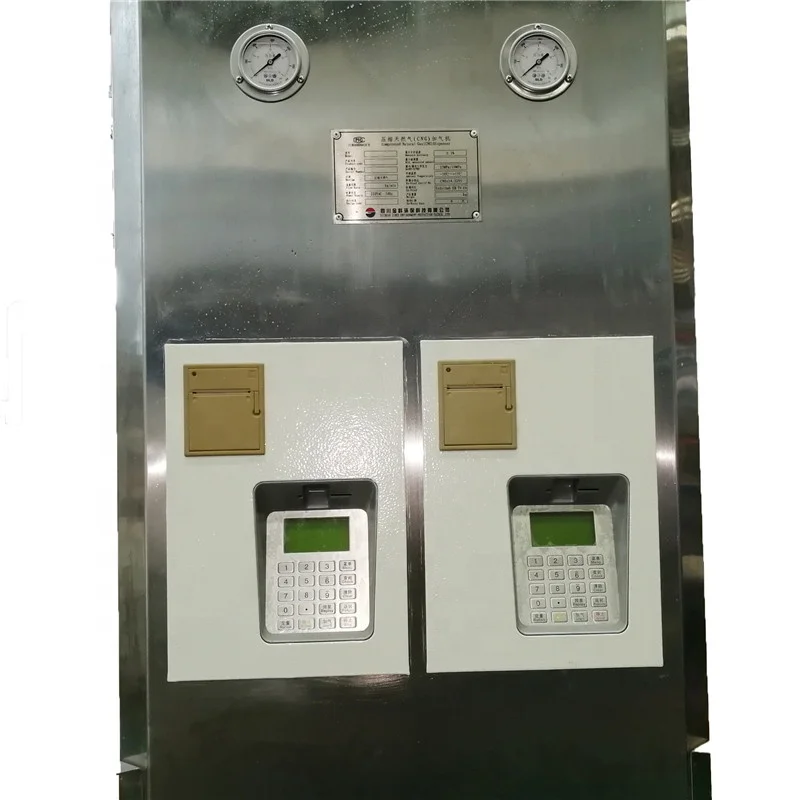

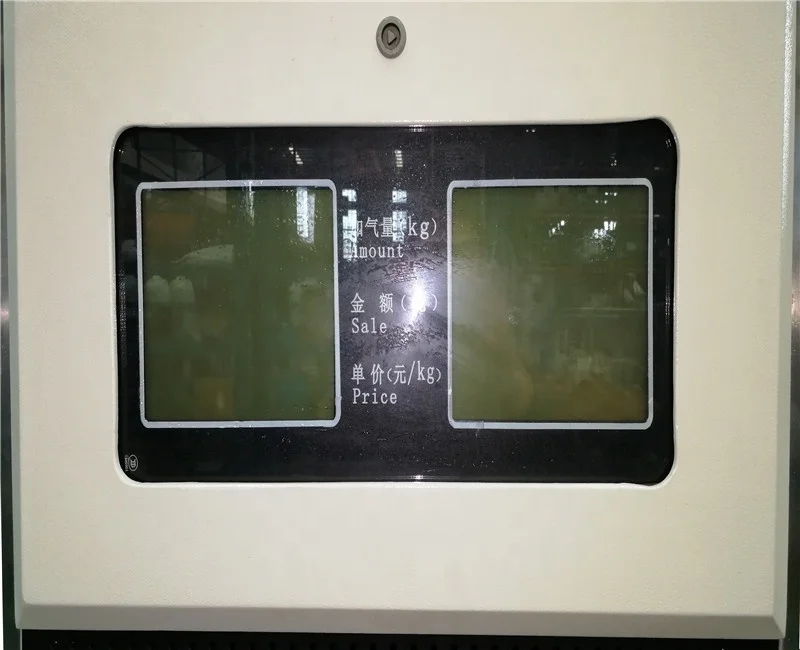

4 nozzles high speed CNG dispenser CNG dispenser machine Dispenser CNG
- Category: >>>
- Supplier: Sichuan Rongteng Automation Equipment Co. Ltd.
Share on (62167068216):
Product Overview
Description
Product features
Advantages:
1. Specialize in CNG and natural gas processing since 1995.
2. Years of experience in CNG compressor, CNG filling station, LNG station, natural gas processing equipment.
3. Our national engineering center provide our special designs with our patents.
4. The experienced staff and stringent quality system make the quality stable.
Description:
The CNG dispenser machine with two dispensrs has 3 lines which control the high, medium and low pressure.
Product features:
1.High-pressure instrumentation of world-renowned brand.
2. Digital signal transmission filling pressure, accuracy and stability.
3. Repeated refilling data to prepare for inspection.
4. Circuit boards, explosion-proof electrical modular design, easy maintenance.
5. All filling machine can be implemented computer management, to prevent filling stations loopholes in management.
6. When the voltage is too high, the electrical part of the over-voltage protection, to effectively prevent damage to electrical appliances caused by external voltage instability.
7. The gas hose equipped with a return to pull off the protective device, to eliminate the dangers caused by misuse in the process of refilling.
8. The world's most advanced CNG dedicated mass flow meter, measurement precision, and with temperature compensation.
9. During inflation display of pressure data can be seen.
10. Automatically shut down when the pipeline pressure loss, overpressure or overflow.
11. Can be matched with any imported compressor (modular access the ESD system of PLC.
Option:
| 1 | Sigle line | 1 hose |
| 2 | Sigle line | 2 hoses |
| 3 | 2 lines | 1 hose |
| 4 | 2 lines | 2 hoses |
| 5 | 2 lines | 4 hoses |
| 6 | 3 lines | 2 hoses |
| 7 | 3 lines | 4 hoeses |
Technical parameters
| 1 | Item no. | JKJQ-20-II, IV |
| 2 | Certificate of explosion proof | CNEx14.3295 |
| 3 | Explosion grade | Ex d e ib mbⅡB T4 Gb |
| 4 | Work medium | CNG |
| 5 | Flow range (CNG dispenser) | (1~20)kg/min |
| 6 | Metering accuracy | grade 1.0 |
| 7 | Max. work pressure | 25Mpa |
| 8 | Rated work pressure | 20Mpa |
| 9 | Input power | AC 187V~242V 50±1Hz, P≤200W |
| 10 | Work environment | -35℃~+55℃ |
| 11 | Ambient temperature | -35 ℃ ~ + 55 ℃ |
| 12 | Ambient humidity | ≤95% |
| 13 | Ambient atmosphere | 86~110kPa |
| 14 | Weight | 220kg |
Company profile
 |  |
Sichuan Rongteng Automation Equipment Co., Ltd. Is the wholly-owned subsidiary of Sichuan Jinxing Clean Energy Equipment Holding Co., Ltd. We have been in natural gas industry since 1995. We specialize in designing and manufacturing the below products and services. Natural gas purification and treatment CNG, LNG, L-CNG filling station equipment CNG, LNG dispenser CNG compressor PLC control cabinet and explosion proof cabinet
view more >> |
R&D
Our R&D center is authorized as “national technology center”.Have acquired more than 100 patents.
The R&D team owns 180 personnel.Can provide solution and design for the natural gas and CNG industry. |  |
Company display
Our projects
Our cerficate
Are you factory or trade company?
- - - Yes, we are factory .
What's your delivery time?
- - - 15 days .
Can you customize the CNG gas station?
- - - Yes, We can. Let us know your requirements, we will present the best solution.
Do your factory have gained ISO9001:2008 certificate?
- - - Yes, we have.
How does your factory do regarding quality control?
- - - Quality is priority. we always attach great importance to quality controlling from the very beginning to the very end.
Do you have spare parts in stock?
- - - Yes , we have
How about your customer service and after-sales service?
- - - 24 hrs on-line service, engineers and oversea agent technical support .
