Custom PC Computer Industrial Rack Mount Server barebone Chassis Case 1U

Product Overview

Description

Product Description

Model	NP-F1650
Form Factor	1U Rackmount Server case
Material	Metal material	SGCC
	Metal thickness	1.2mm
	Panel material	Metal
	Handle material	Metal
M/B support	EEB (12″ x 13″), microATX (9.6″ x 9.6″), CEB (12″ x 10.5″), ATX (12″ x 9.6″), Mini-ITX (6.7″ x 6.7″)
CPU support	DP Xeon(Intel)/DP Opteron(AMD)/Core(Intel)

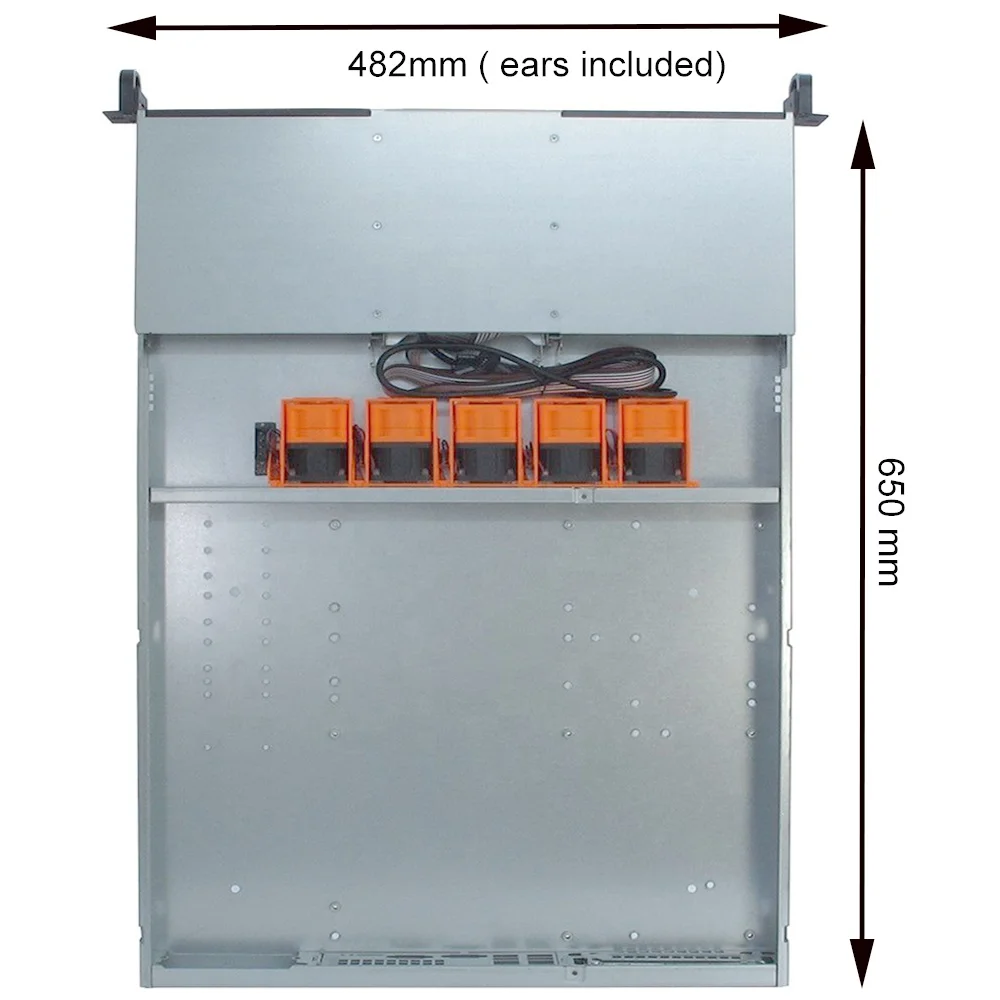

Size	D*W*H(mm)	650 x 482 x 44
	D*W*H(inch)	25.5 x 19 x 1.7
Drive Bay	External 5.25"  bays	2
	Internal 3.5" bays	3
	Internal 2.5" bays	9
Power Supply support	Flex ATX  power supply/ 1U Power supply/ 1U(1+1)  power supply
Front panel	Control button	Power ON/OFF x 1, system reset x 1
	Indicator	Power ON/OFF x 1, HDD x 1, NETWORK x 3, Alarm x 1
	Ports	USB 2.0 x 1 , USB3.0 x 1
Expansion	Riser Slot	1pc (full size)
Hot-swap Backplane	Mini SAS 6.0GB/s	NO
	SATA	NO
System cooling(optional)	Front	NO
	Middel	5 x 40mm ball bearing fans PWM (hot-pluggable)
	Rear	NO
Net weight	9kg
Gross weight	11kg
Packing size	D*W*H(mm)	830*555*115
	D*W*H(inch)	32.6*21.8*4.5
Packing Material	Polyfoam with carton box
Environment Temperature	0/55 °C, 32/131 °F (Operating) -20/60 °C, -4/140 °F (Non-Operating)
Relative Humidity	5% to 95%,non-condensing
Vibration ( 5-500 Hz )	1 Grms (Operating), 2 G (Non-Operating)
Shock	10 G(with 11ms duration, half sine wave) (Operating), 30 G (Non-Operating)



Detailed Images
