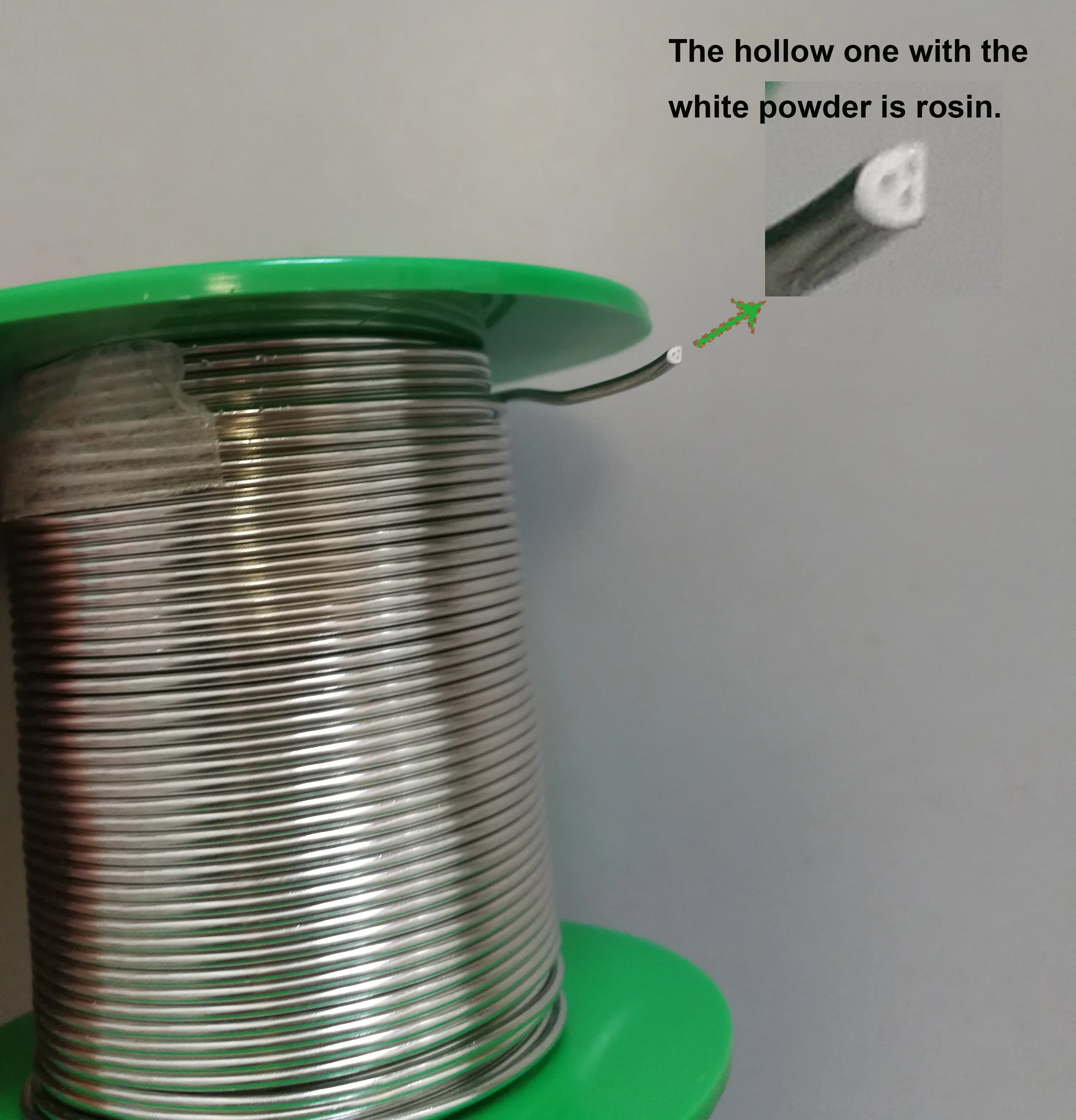

The solder wire is made of imported high pure rosin, after the flux of technology, scientific research in a fully automated solder wire production line, it can produce 0.5 mm to 9.0 mm diameter solid core, single core, three core of active and inactive resin core solder wire, also can produce water to clean, no clean sold-er wire; In order to meet the special requirements of some customers, there are various types and specifica-tions of high temperature welding wire and low temperature soldering wire for your choice.
Product advantages: ★Good wettability and expansion ability, effectively prevent bridge and sharp phenomenon; ★Effective deoxidation film ability; ★Less splash in welding, small smoke, easy smell, light welding spot; ★Less residue, light color and high insulation resistance, good electrical performance, not cleaning.
★Cool and dry place, avoid wet environment.
Available model: Standard alloy product(Sn/Pd): 63/37,60/40,55/45,50/50,45/55,40/60,35/65,30/70,25/75,20/80
Standard specifications(mm): 0.5,0.8,1.0,1.2,1.5,2.0,2.3,2.5,3.0,3.2,6.0-9.0
Product Details
What is the Application? 1. Usage: Operated by soldering irons in manual soldering and automated machine. 2. Sn63 and Sn60 solder wires are general used in Lighting, LED, PCB, Precise instruments, Electronic components, Audio and sound system and so on. 3. Sn55 and Sn50 solder wires are used in Mechanical, Toys, Electrical, Socket and so on. 4. Sn45,Sn40,Sn35,Sn30,Sn25 and Sn20 solder wires are general used in Lampholder, Battery, Fuse, Radiators, Automobile parts and other general soldering.
Features and Specifications 1. Features: a) Smokeless, Little splash, Bright and Stable spot. b) No corrosion, high insulation resistance and no clean. c) Good wettability and excellent antioxidant. d) Quick melting speed and good fluidity.
Alloy composition
Melting rangec℃
Rosin content%
Application
Sn/Pb
Sn%
Pb%
Solidus temp
Liquidus temp
Disposable type
0.8-1.6
Ordinary type
1.6-2.4
63/37
62.0-64.0
36.0-38.0
183
183
It is wid-ely used in welding and other electro-nic products of home appliance, com-munication, computer, instrument and circuit board.
60/40
59.0-61.0
39.0-41.0
183
190
55/45
54.0-56.0
44.0-46.0
183
198
50/50
49.0-51.0
49.0-51.0
183
216
45/55
44.0-46.0
54.0-56.0
183
227
Used for gauges, instruments, autom-obile water tanks, copper and iron ve-ssels, cables and lead pipes.
40/60
39.0-41.0
59.0-61.0
183
234
35/65
34.0-36.0
64.0-66.0
183
240
30/70
29.0-31.0
69.0-71.0
183
255
Used for welding lamp holder, insuran-ce pipe, etc., also can be used for wel-ding of instrument and instrument.
25/75
24.0-26.0
74.0-76.0
183
266
20/80
19.0-21.0
79.0-81.0
183
274
High temperature solder wire
>200℃
Welding of electronic products used in high temperature environment.
Low temperature solder wire
<160℃
Welding heat sensitive elements, non - thermal shock products.
Special solder wire
about 200℃
Welding galvanizing, aluminum alloy, nickel plating, stainless steel, etc.
