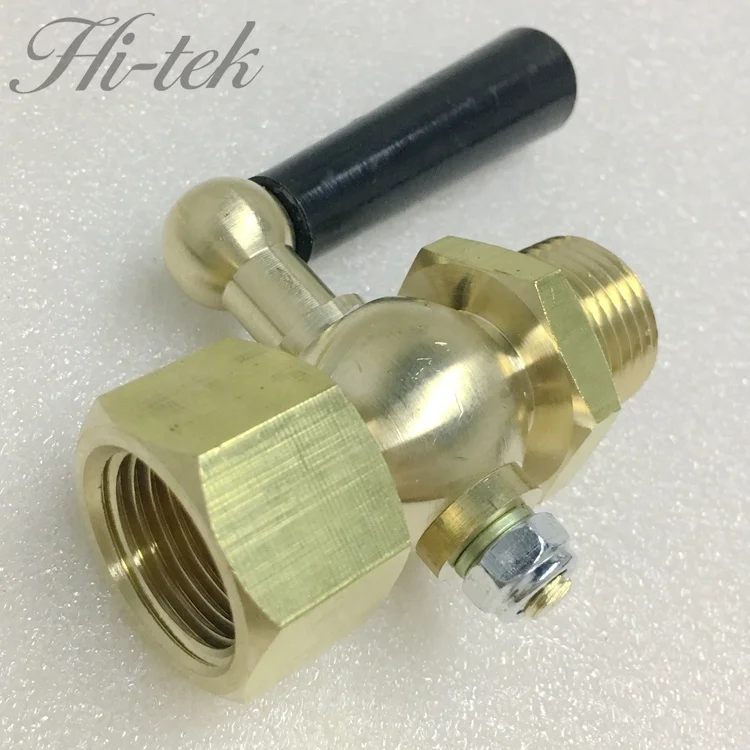

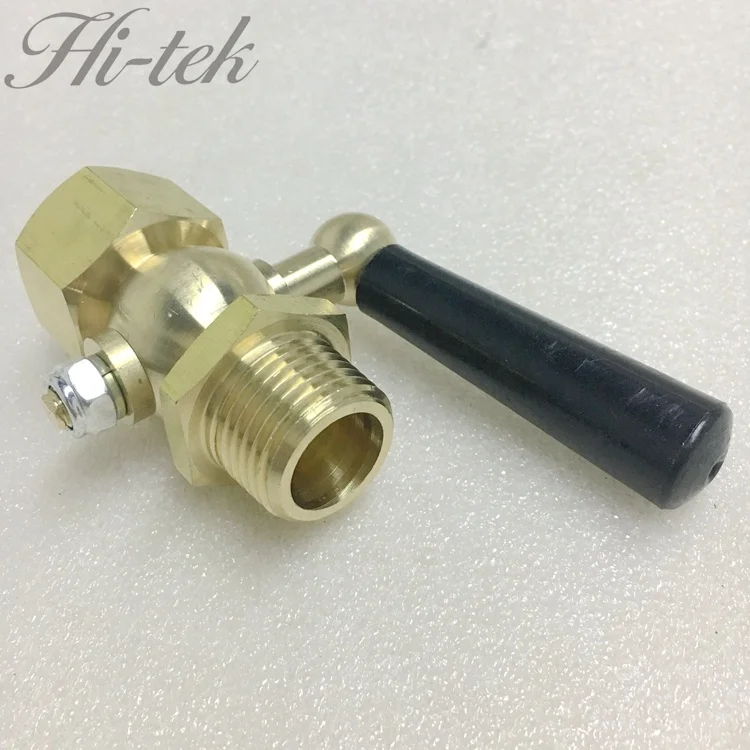

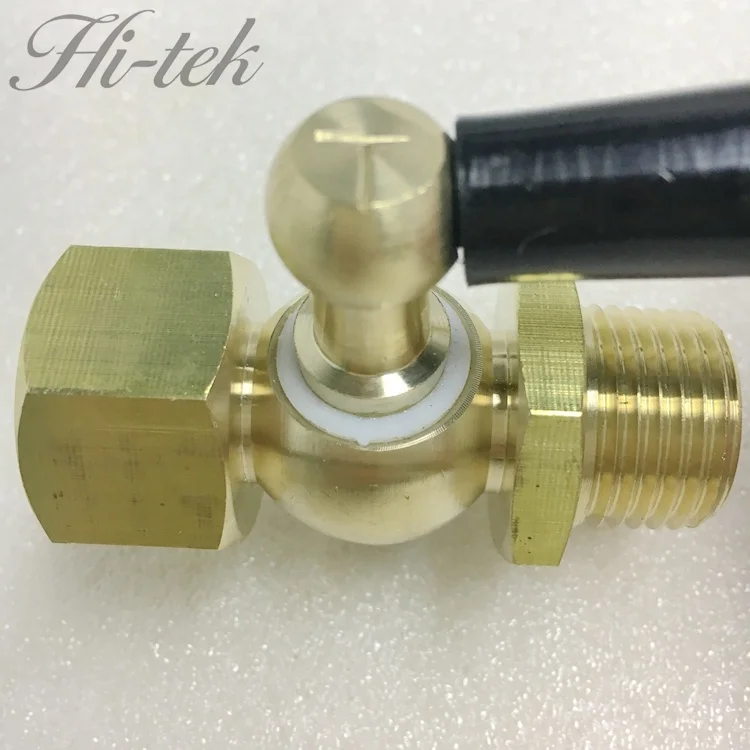

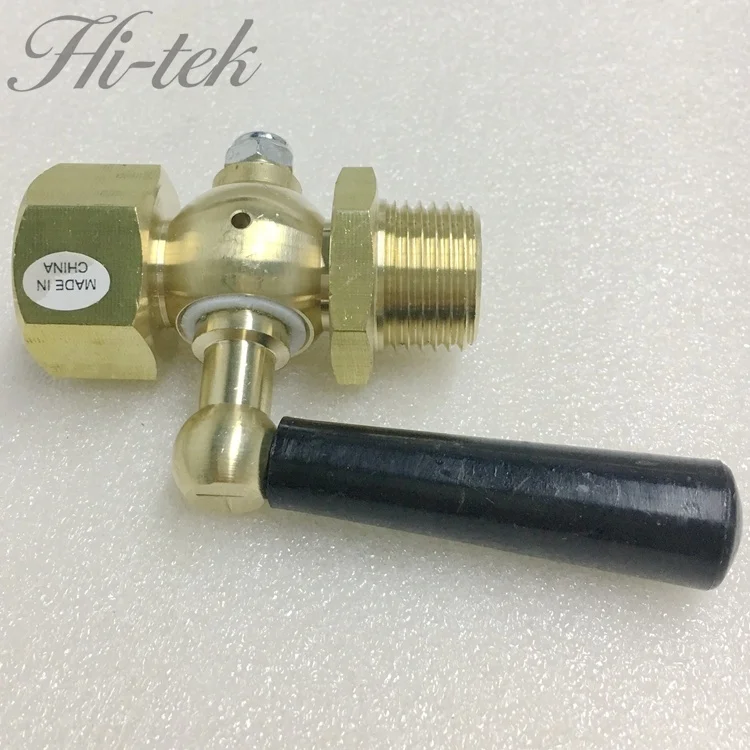

1/4 3/8 1/2 G BSPT NPT Hex Shoulder Brass Pressure Gauge Cock
- Category: >>>
- Supplier: Hubei Hi-Tek Valve And Fitting Co. Ltd.
Share on (62167246228):
Product Overview
Description

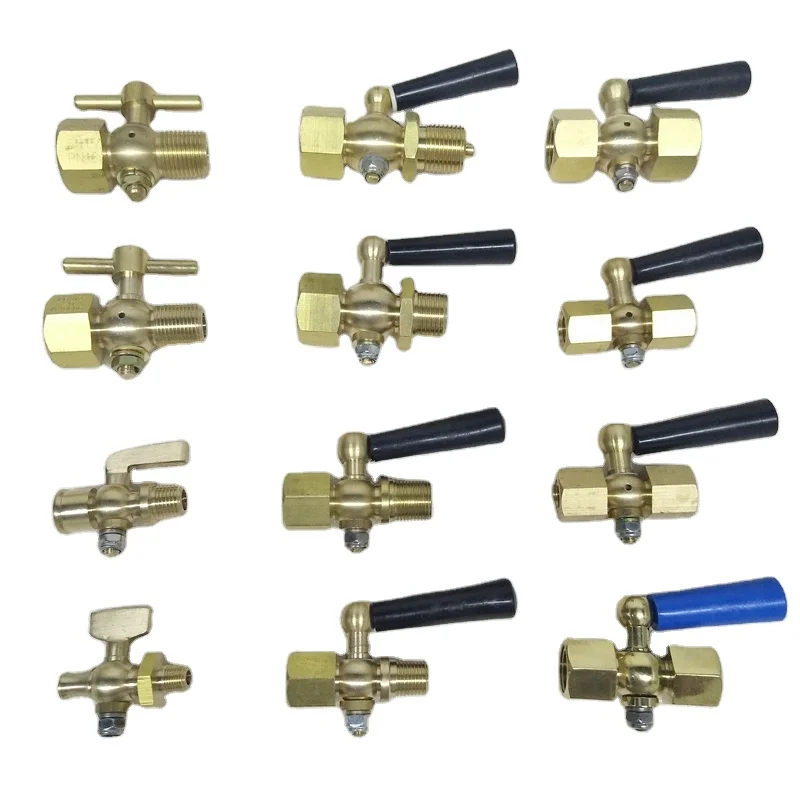

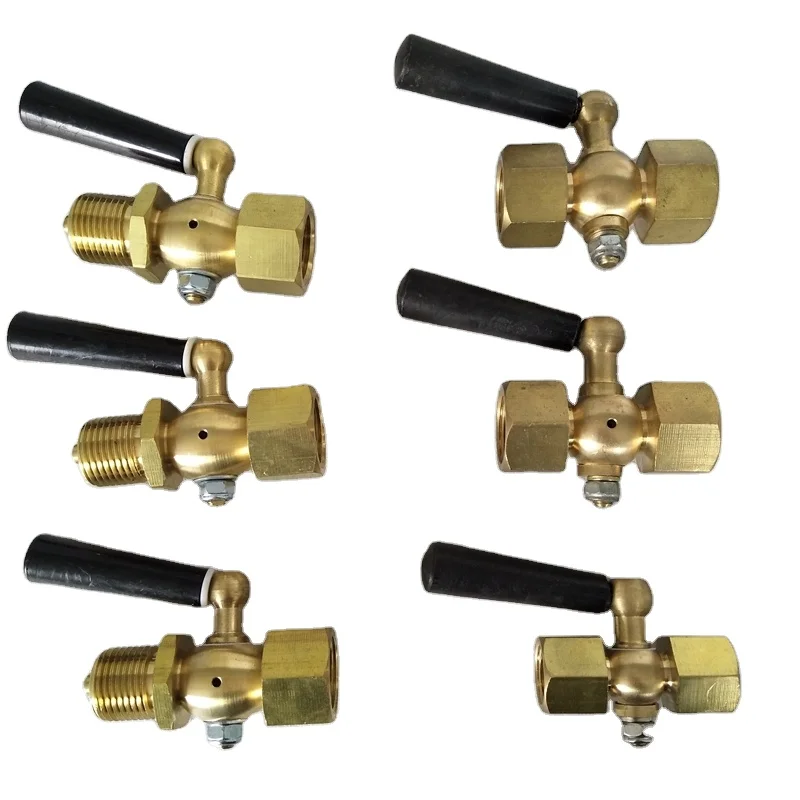

Various Products
Product Description
Item | Brass Pressure Gauge Cock |
Size | from 1/4" to 1/2" |
Connection | F*M |
Valve material | brass |
Sealing material | PTFE |
Pressure | 1/4 3/8-- 16 bar 1/2 -- 25 bar |
Applications | Pressure gauge isolation |
Features:
Brass Gauge Cocks are an ideal cost effective method of isolating pressure gauges to enable them to be removed from the system for inspection or replacement without having to drain down. Gauge cocks feature an internal sealing ball and lever handle operation.Brass Female Male Gauge Cock
Isolates the pressure gauge from the pressure medium
Extends the service life of the pressure gauge where the pressure is continually pulsating
Operation, indicated by symbol on top of handle
HI-TEK GAUGE COKE SPECIFICATION TABLE
Part No. | Size | thread connection | Pressure |
HK-2FF0102 | 1/2" | Female*Female | 25 bar |
HK-2FF0308 | 3/8" | Female*Female | 16 bar |
HK- 2FF0104 | 1/4" | Female*Female | 16 bar |
HK-2FM0102 | 1/2" | Female*male | 25 bar |
HK-2FM0308 | 3/8" | Female*male | 16 bar |
HK-2FM0104 | 1/4" | Female*male | 16 bar |
HK-2FMG2015 | 1/2 X M20*1.5 | Female*male | 25 bar |
HK-2FFG2015 | 1/2 X M20*1.5 | swivel nuts connection | 25 bar |
HK-3FFG2015 | 1/2 X M20*1.5 | nuts connection | 25 bar |
HK-3FMG2015 | 1/2 X M20*1.5 | nuts connection | 25 bar |
Note: Accept customization, BSP BSPT NPT and other threads | ||||||||||
Raw material
Application
Used on water pipes and steam pipes when pressure venting is required to remove the pressure in hydraulic machines, compressors, process plants, clean air & non crystallized liquids.
