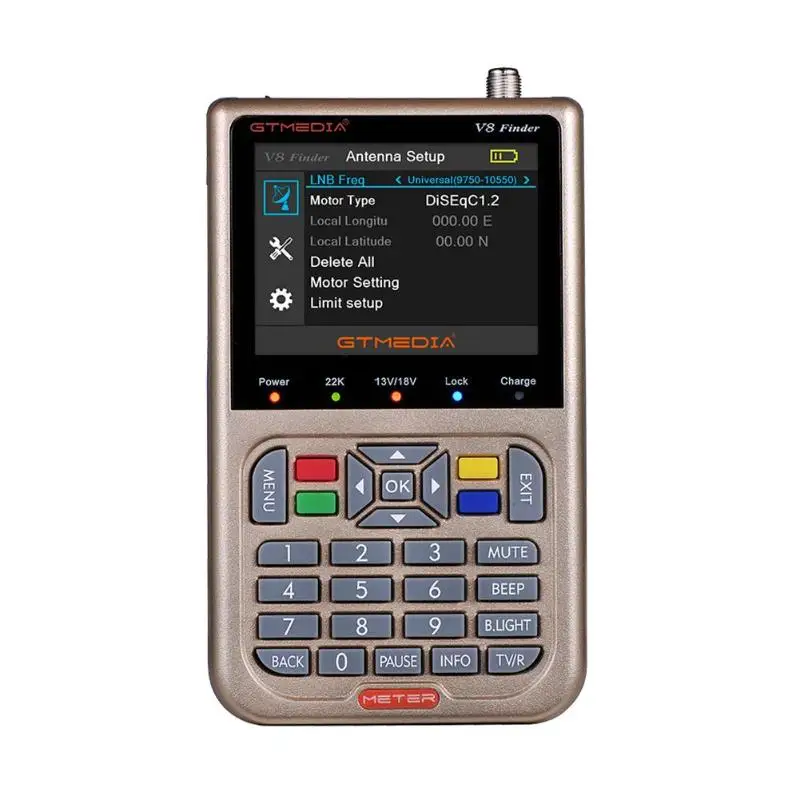

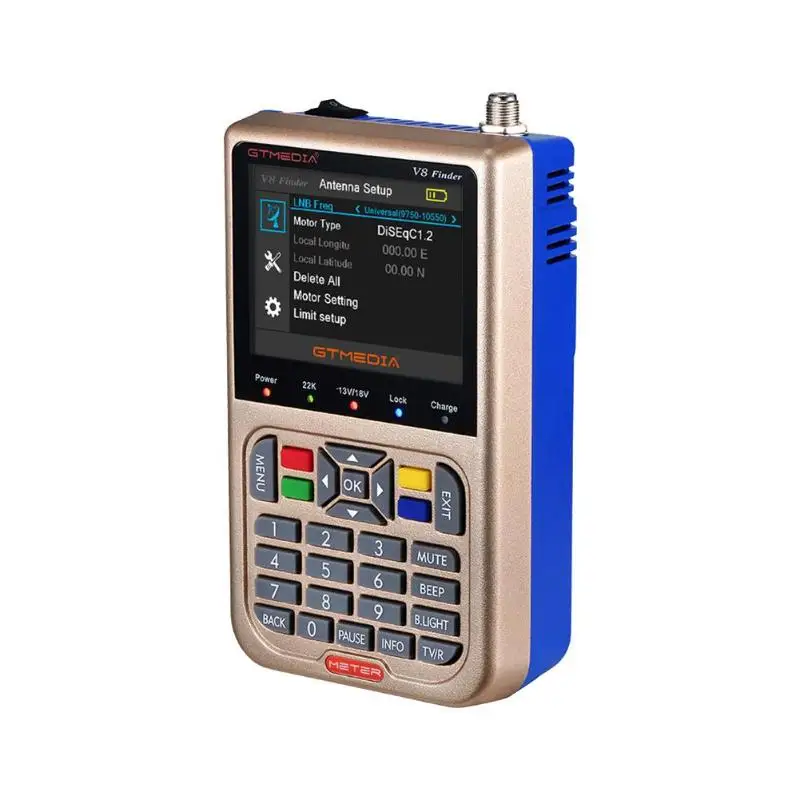

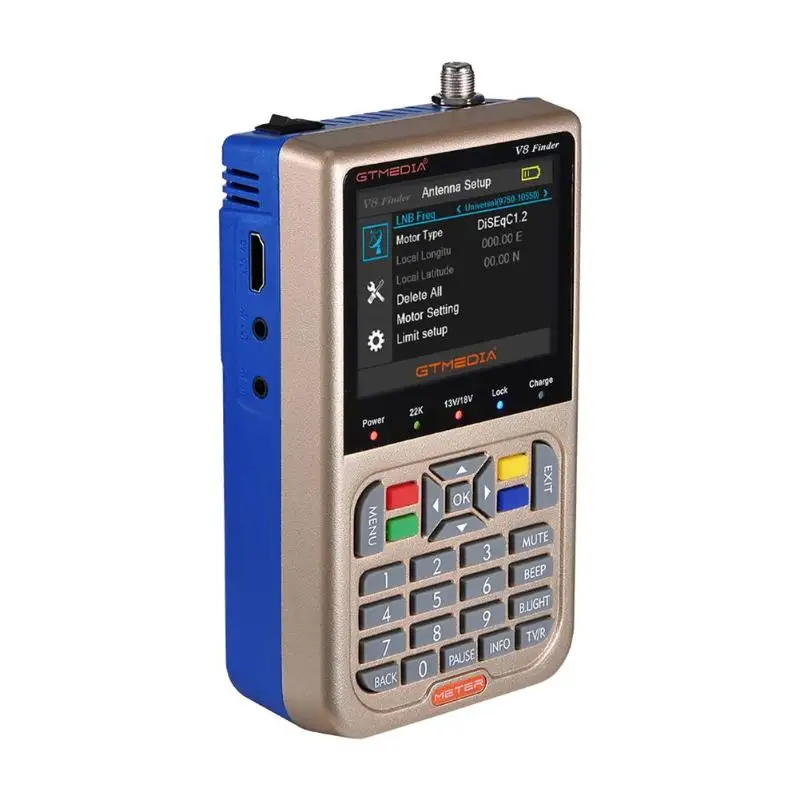

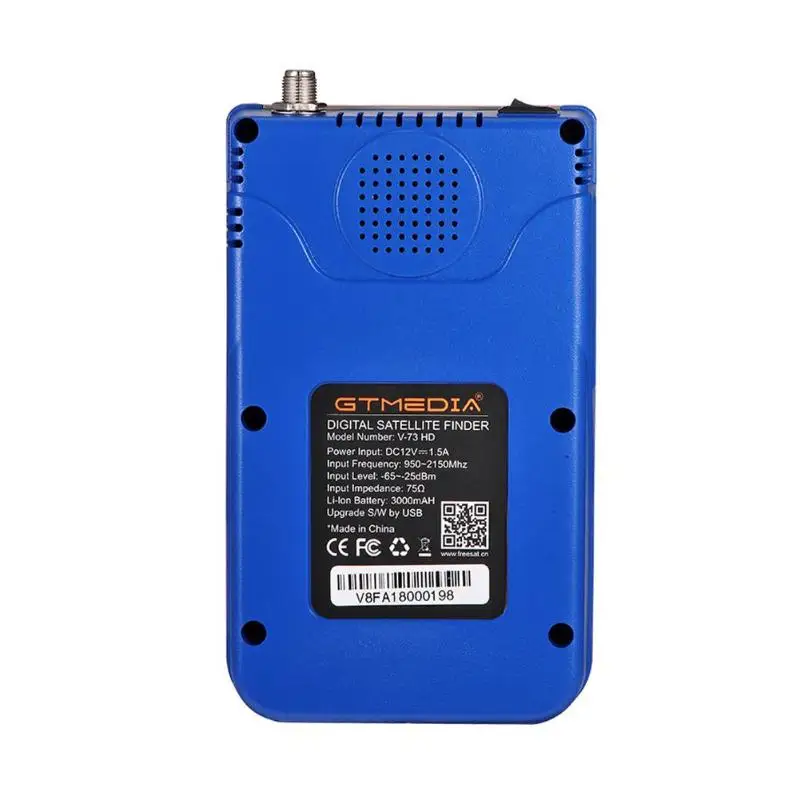

GTMEDIA V8 Fnder Satellite Finder DVB S2/S2X Digital 1080P Satellite Meter
- Category: >>>
- Supplier: Shijiazhuang Qjzl Network Technology Co. Ltd.
Share on (62167263062):
Product Overview
Description

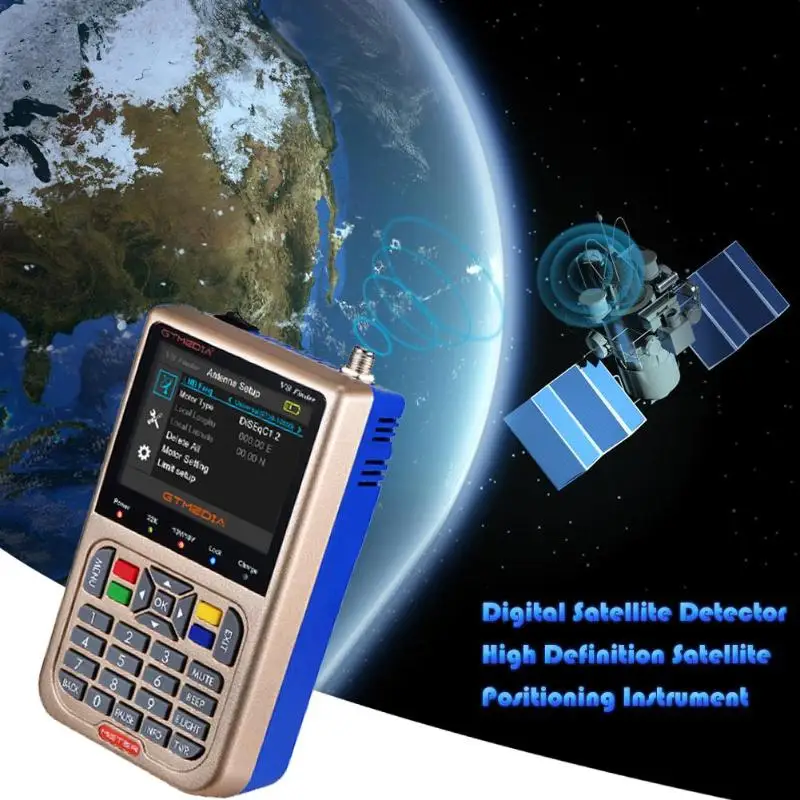

GTMEDIA V8 Finder Satellite Finder DVB-S2/S2X Digital High Definition Sat Finder DVB S2 HD 1080P Satellite Meter Satfinder
Feature:
1. DVB-S/S2/S2X signal measurement, H.265 hardware decoding.
2. Digital satellite detectors, which are used to set up satellite antennas quickly.
3. 3.5 inch HD LCD screen.
4. Lithium-ion batteries (7.4 V/3000 mAh) run for up to 4 hours.
5. Support AV input and AV/HDMI output functions.
6. Direct support for 13V/18V/LOCK status panel LED display.
7. Support DiSEqC1.0/1.1/1.2/USALS and 22 kHz audio.
8. LNB Short Circuit Protection.
9. Supporting battery power display.
10. Technical Support Website: www.freesat.cn
11. Note: We reserve the right to change design and OEM / ODM support.
Specification:
Hardware:
CPU: Ali M3S10 MPEG-4, MPEG-2, H.265
DDR: 1G DDR3
Flash memory: 64M SPI
Demodulation: M1502 + Tuner M3031
Video decoding: MPEG-2 MP HL; MPEG4/H.265, BP MP & HP L4.1; AVS profile L6.1/4.0/2.0 HDMI: 480i/p, 576i/p, 720p, 1080i, 1080P
Audio decoding: first layer of MPEG1, second layer of MPEG1, third layer of MPEG1, MPEG2 AAC, MPEG4 HE-AAC, Dolby
Panel display: 3.5 inch LCD screen
LED Indicator Lamp: LED Display of Status Panel
Button: 28 key operation

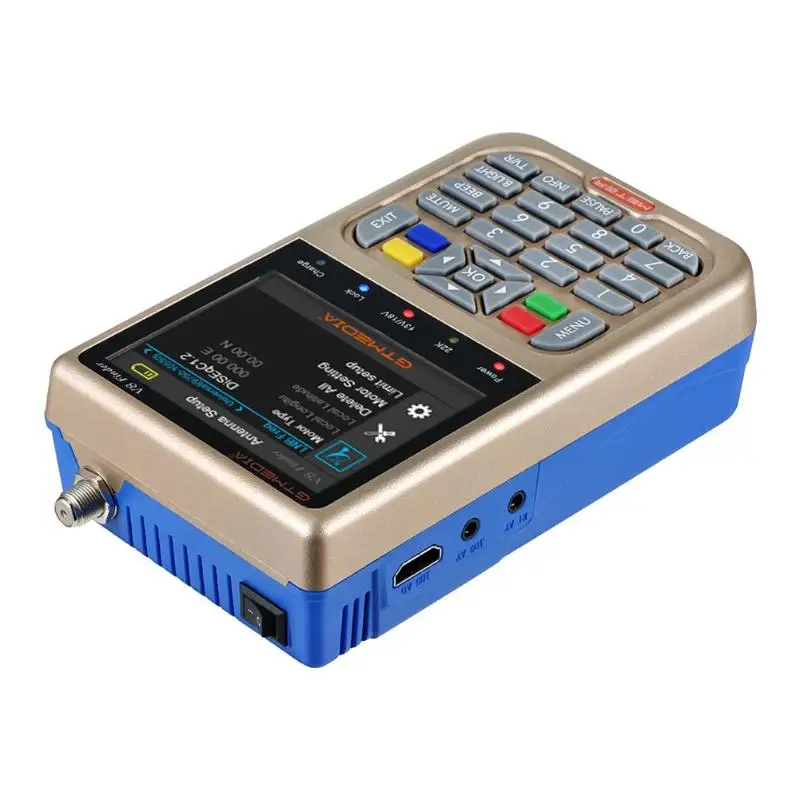

Back panel: LNB IN (frequency range 950MHz to 2150MHz)
HD OUT
AV OUT (4 pins 3.5 mm * 14mm jack)
AV IN (4 pins 3.5 mm * 14mm jack)
1 * USB Port (USB Software Upgrade)
Power supply (input 110V~240V, 50/60Hz DC12V/1.5A)
Standard: System Function: DVB-S/S2/S2X System Standard: ETS 302 307
LNB input:
Connector: F-type, male head
Frequency range: 950MHZ-2150MHZ
Input impedance: 75ohm
Input signal level: - 65dBm ~ - 25dBm (average power)
Active ant power: 13/18V DC 400 mA MAX, overload protection
DiSEqC: DiSEqC1.0/1.1/1.2/USALS motor fully supported
LNB switch control: 22K
Demodulator:
Front end: QPSK, 8PSK
Symbol Rate: 2Mbps~45Mbps
SCPC and MCPC capabilities: Yes
Spectral inversion: automatic conversion
DVB-S spectrum:
Forward error correction rate: 1/4, 1/3, 2/5, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10
Carrier Frequency Acquisition Range: When the symbol rate is higher than 3 Msps, it is ±5 MHz, and the residual symbol rate is ±3 MHz.
Roll-off factors of pulse shaping: 0.2, 0.25 and 0.35
Symbol Rate: 1-55 Msps
Code rate: 1/2, 2/3, 3/4, 5/6, 7/8
Sorting Software:
OSD Language: OSD Multilingual Options (English German French Portuguese Spanish Italian Russian Turkish Polish Arabic Farsi Espanol Deutsch)
Channel Search: Channel Search in Automatic, Manual and Web Search
Simple Menu: Plug and Play Installation, Easy to Use Menu System
PAL/NTSC: Automatic PAL/NTSC Conversion and 4:3 or 16:9 Display Form
SoftUpgrade: Software upgrade through USB

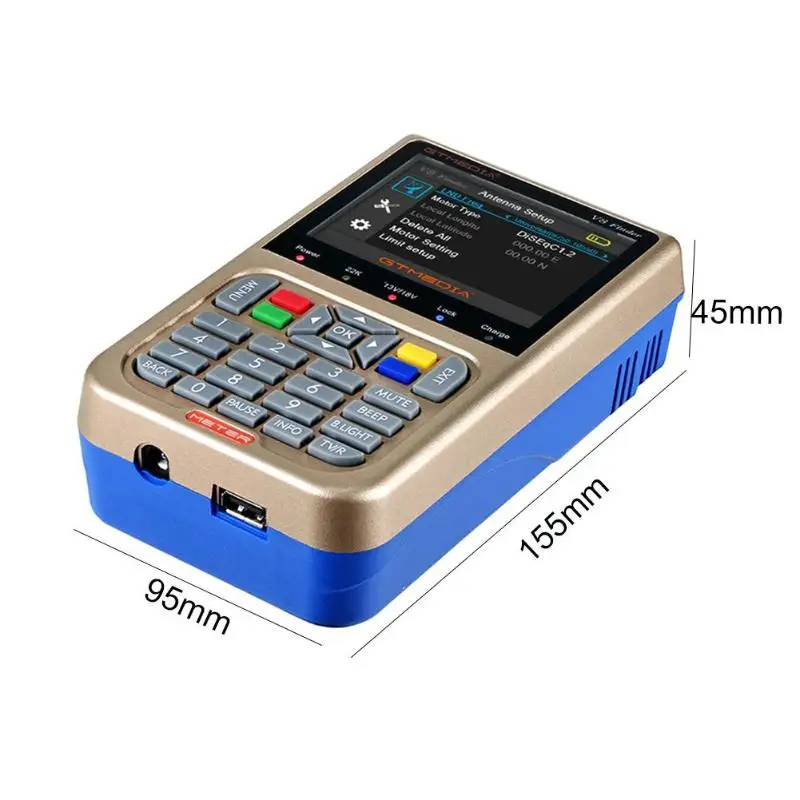

Product size: 95 * 155 * 45mm/3.74*6.1*1.77''
Packaging size: 240 * 180 * 58mm/9.44*7.08*2.28''
Power supply: AC IN110-240V, DC 12V/1500mAh
Lithium battery: 3000mAh/7.4V battery
Temperature: Operating at 0℃~ + 45 ℃; Storage at - 10℃ ~ + 60℃
Humidity: 20-90%, no condensation
Note:
Please allow 1-3mm differs due to manual measurement.
Due to the different display and different light, the picture may not show the actual color of the item. Thanks for your understanding.

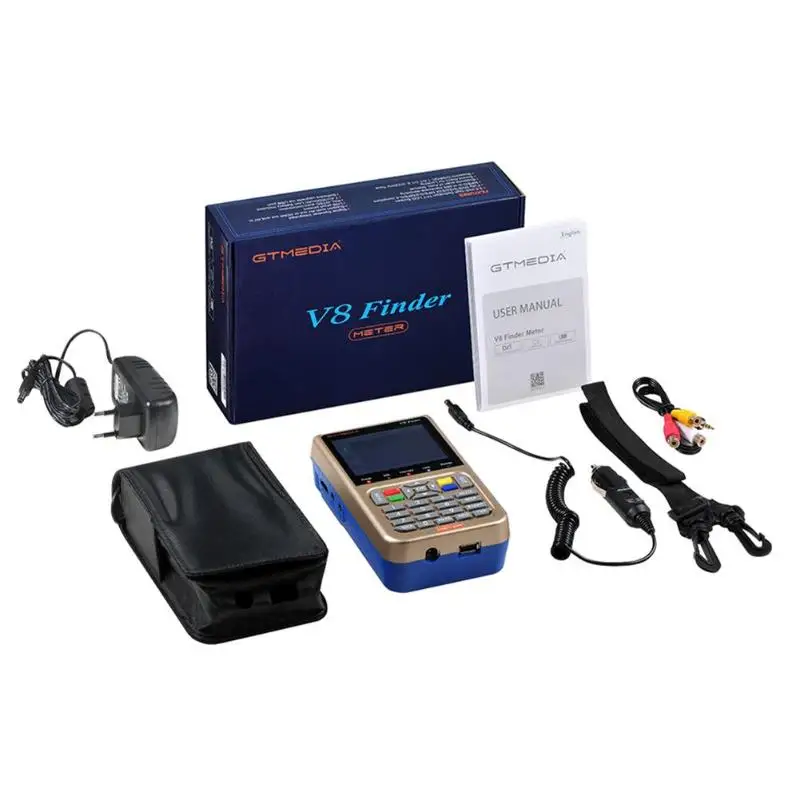

Packages:
1 X Satellite Finder
1 X Power Adapter
1 X AV Cable
1 X Car Charger Cable

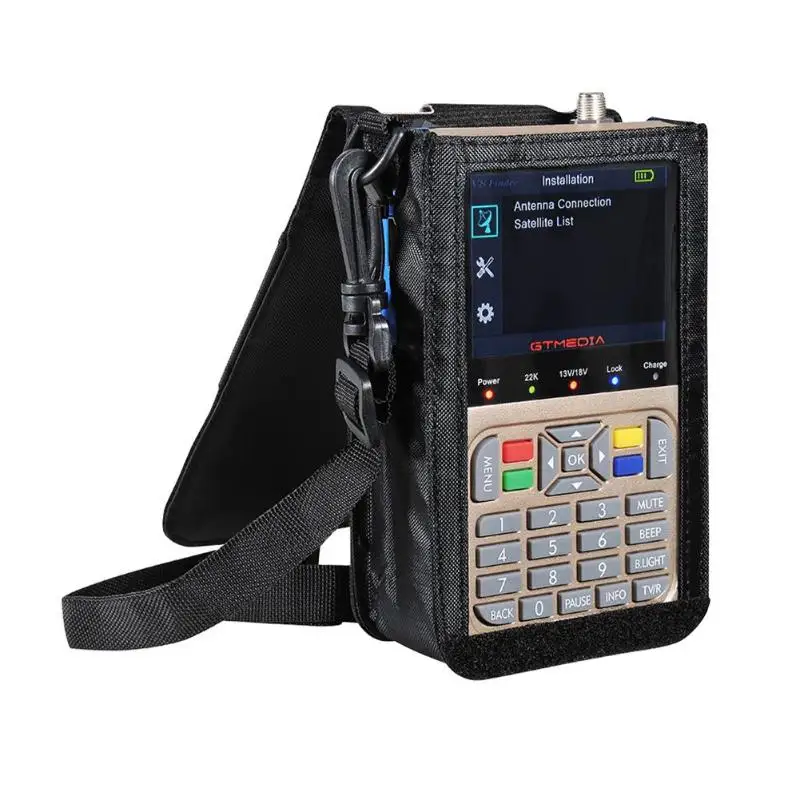

1 X Handbag
1 X User Manual
