Product Overview
Description

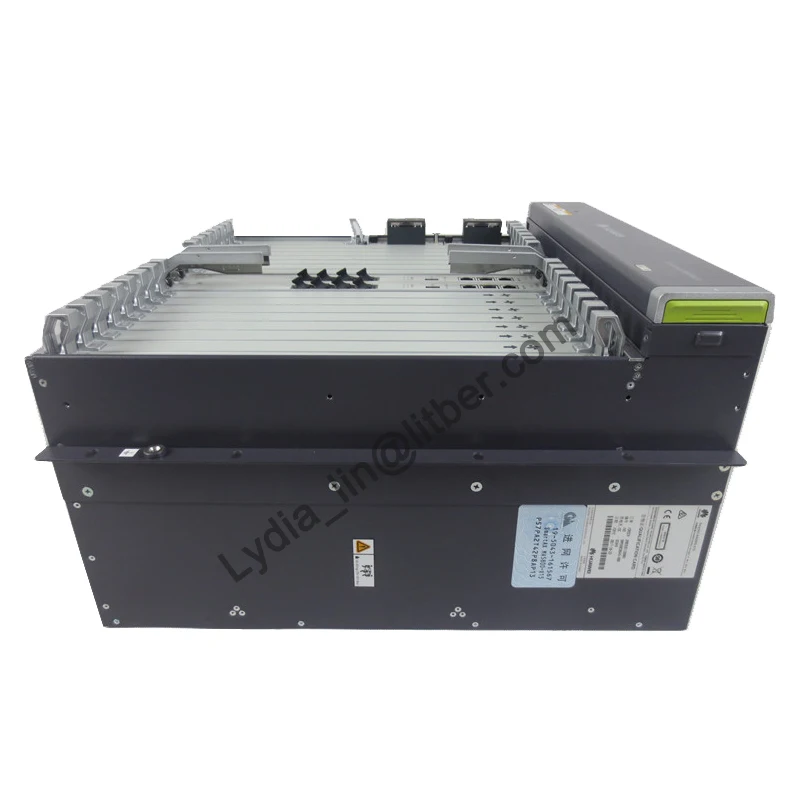

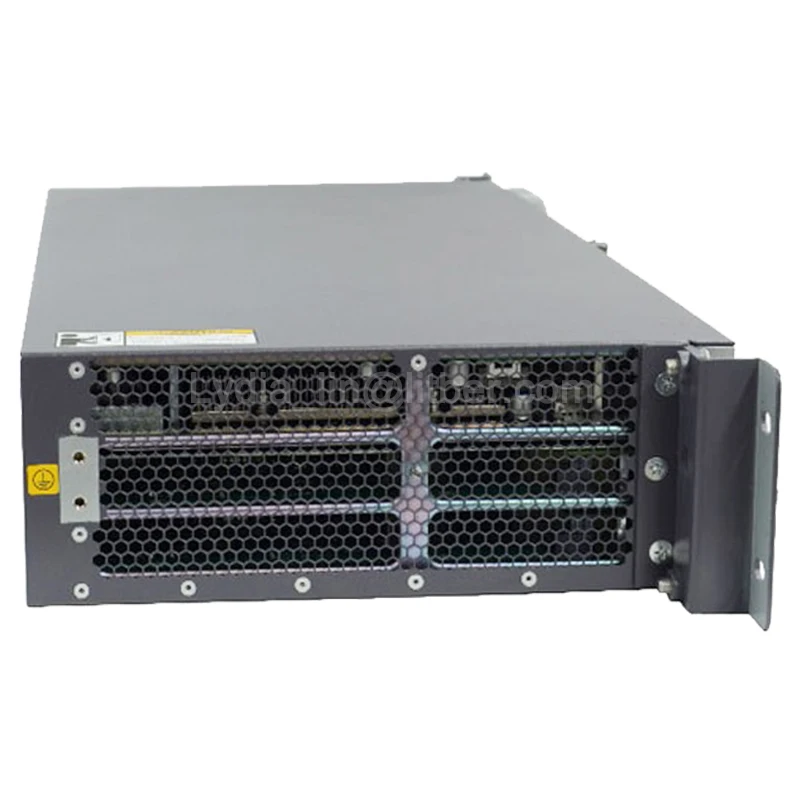

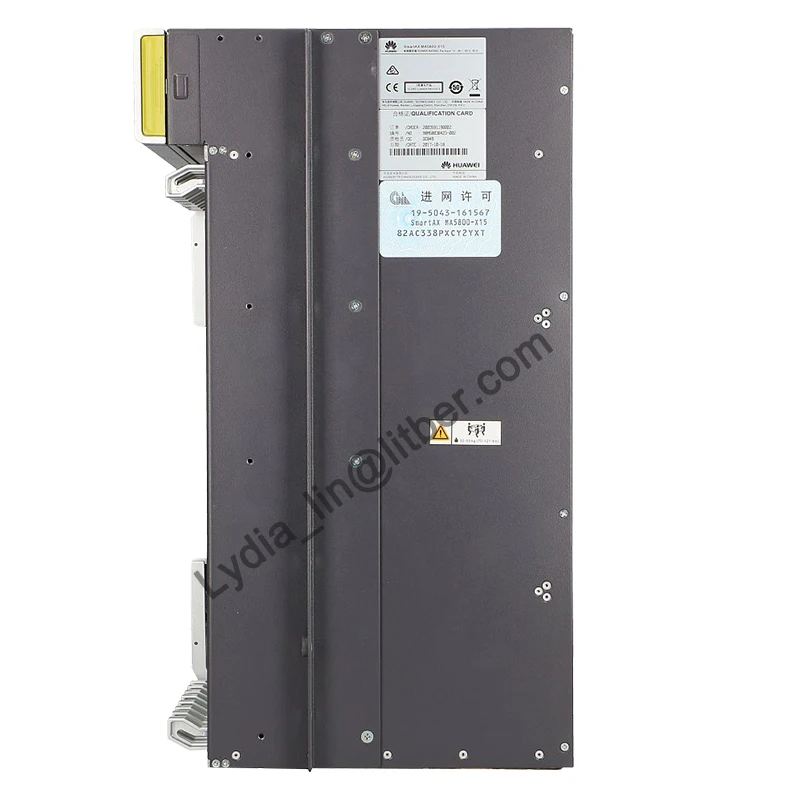

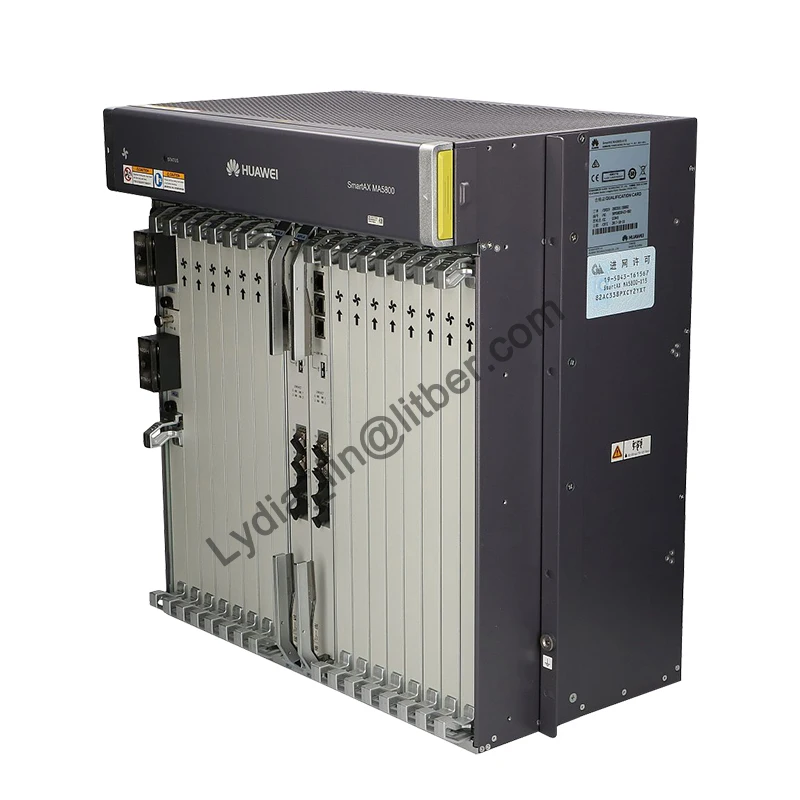

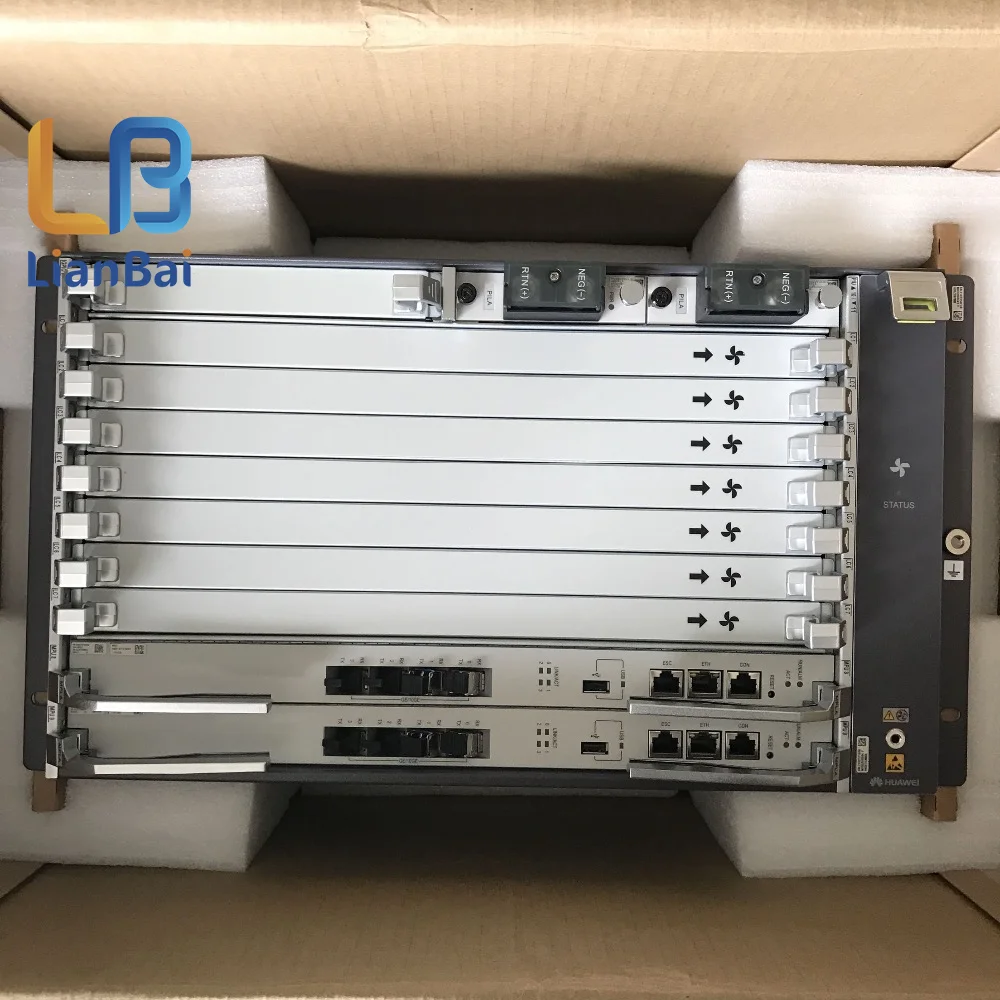

HUAWEI MA5800-X15 MA5800 X15 GPON EPON OLT FTTH With C+ PON SFP MPLA PILA GPHF
Product Description
SmartAX MA5800 Series OLTs
The industry’s first 40 Gbit/s-capacity Next-Generation Optical Line Terminal (NG-OLT). Huawei’s SmartAX MA5800 multiple-service access module employs a distributed architecture to support ultra-broadband, Fixed Mobile Convergence (FMC) services, and smart capabilities, such as SDN-based virtualization.
MA5800’s programmable Network Processor (NP) chip set accelerates the roll-out of new services, catering to the demand for differentiated services, including partitioning of wholesale and retail service providers.
Item | MA5800-X17 | MA5800-X15 | MA5800-X7 | MA5800-X2 | |
Dimensions (W x D x H) | 493 mm x 287 mm x 486 mm | 442 mm x 287 mm x 486 mm | 442 mm x 268.7 mm x 263.9 mm | 442 mm x 268.7 mm x 88.1 mm | |
Maximum Number of Ports in a Subrack | 272 x GPON/EPON 816 x GE/FE 136 x 10G GPON/10G EPON 136 x 10G GE 544 x E1 | 240 x GPON/EPON 720 x GE/FE 120 x 10G GPON/10G EPON 120 x 10G GE 480 x E1 | 112 x GPON/EPON 336 x GE/FE 56 x 10G GPON/10G EPON 56 x 10G GE 224 x E1 | 32 x GPON/EPON 96 x GE/FE 16 x 10G GPON/10G EPON 16 x 10G GE 64 x E1 | |
Switching Capacity of the System | 7 Tbit/s | 480 Gbit/s | |||
Ambient Temperature | -40°C to 65°C* *: The MA5800 can start up at a lowest temperature of -25°C and run at -40°C. The 65°C temperature refers to the highest temperature measured at the air intake vent | ||||
Working Voltage Range | -38.4V DC to -72V DC | DC power supply: -38.4V to -72V AC power supply: 100V to 240V | |||
Layer 2 Features | VLAN + MAC forwarding, SVLAN + CVLAN forwarding, PPPoE+, and DHCP option82 | ||||
Layer 3 Features | Static route, RIP/RIPng, OSPF/OSPFv3, IS-IS, BGP/BGP4+, ARP, DHCP relay, and VRF | ||||
MPLS & PWE3 | MPLS LDP, MPLS RSVP-TE, MPLS OAM, MPLS BGP IP VPN, tunnel protection switching, TDM/ETH PWE3, and PW protection switching | ||||
IPv6 | IPv4/IPv6 dual stack, IPv6 L2 and L3 forwarding, and DHCPv6 relay | ||||
Multicast | IGMP v2/v3, IGMP proxy/snooping, MLD v1/v2, MLD Proxy/Snooping, and VLAN-based IPTV multicast | ||||
QoS | Traffic classification, priority processing, trTCM-based traffic policing, WRED, traffic shaping, HqoS, PQ/WRR/PQ + WRR, and ACL | ||||
System Reliability | GPON type B/type C protection, 10G GPON type B protection, BFD, ERPS (G.8032), MSTP, intra-board and inter-board LAG, In-Service Software Upgrade (ISSU) of the control board, 2 control boards and 2 power boards for redundancy protection, in-service board fault detection and rectification, and service overload control | ||||
