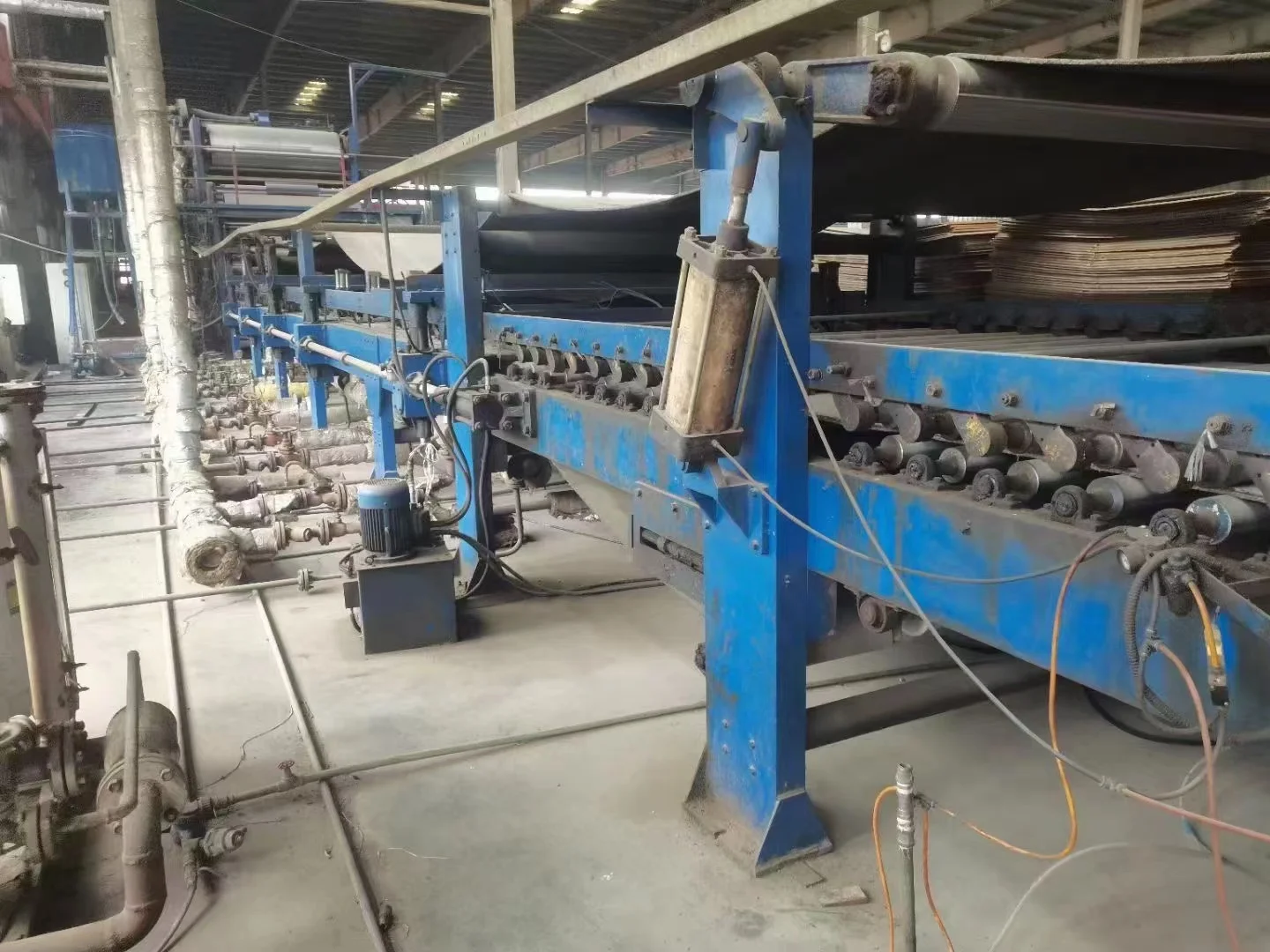

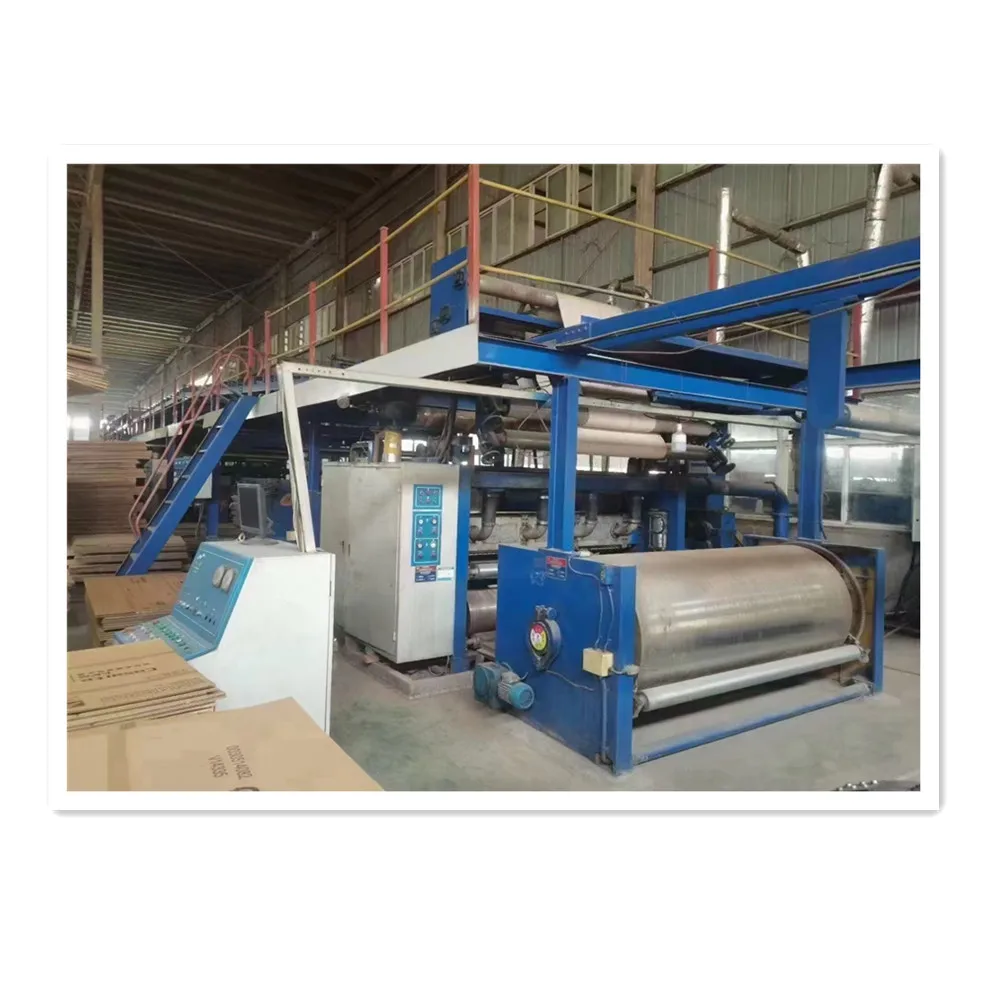

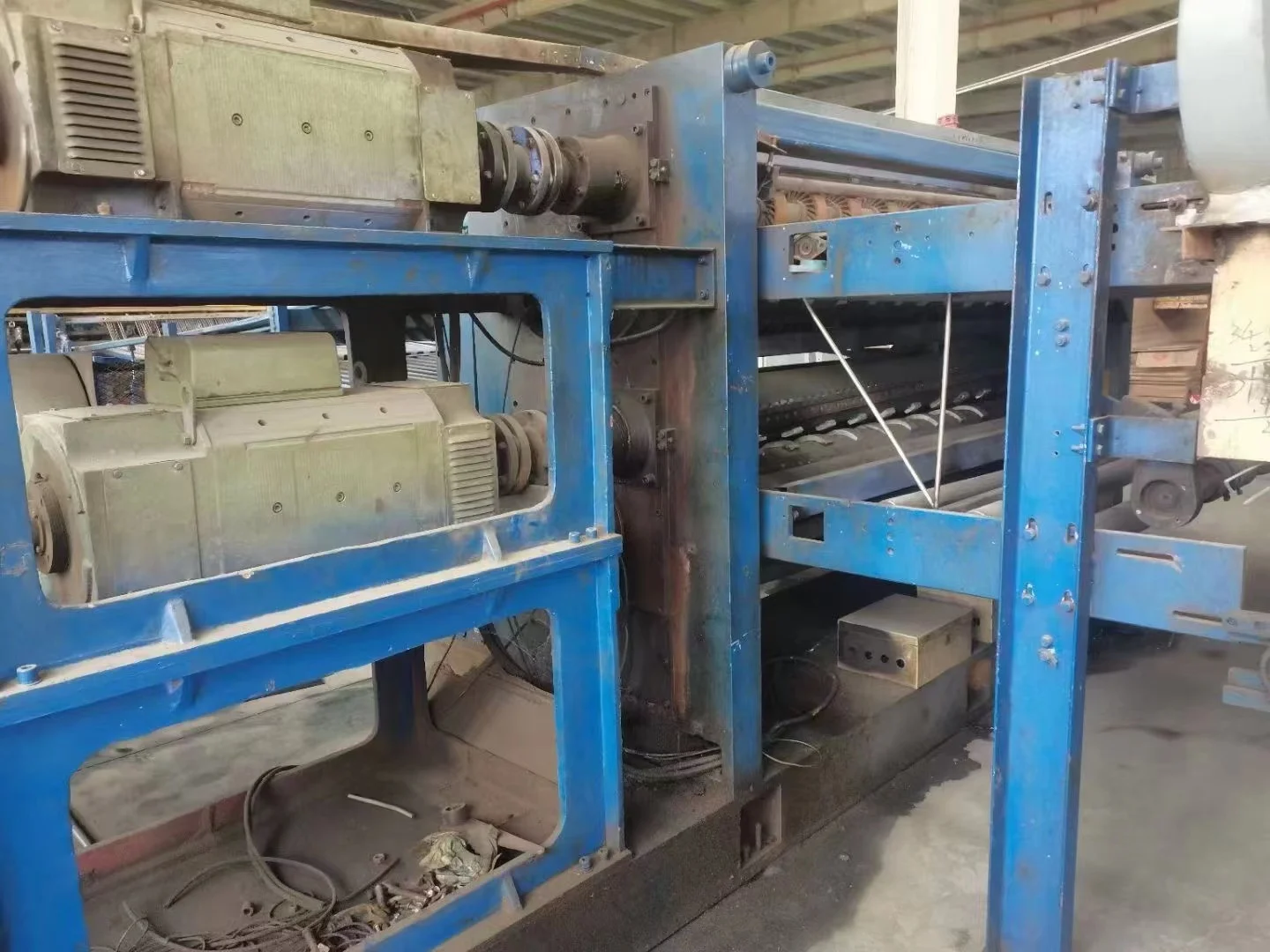

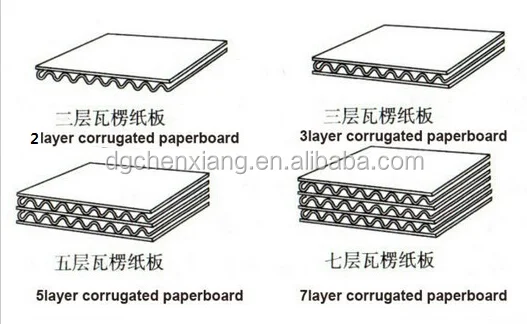

Used JS 5 ply corrugated paperboard production line second hand,single facer

Product Overview

Description



1 adopt hood suction structure,matched high pressure powerful fan. Gas supply and electrical control cabinet to focus on the same operation, the operating side full cover closed.

2 High quality resin sand casting,wall thickness 200mm.Adopt independent gear box, Universal joint transmission structure.

3 install the lifting trolley on the conveyor bridge,Need to use the car will tile roll assembly and pressure roller, such as convenient and quick.

4 Glue roller unit structure with the overall relocation,Maintenance can sway the machine at the overall maintenance,improve the working efficiency.

5 The humidity control apparatus equipped with a spray, so flute type to maintain good stability of deformation, avoid dry.

.

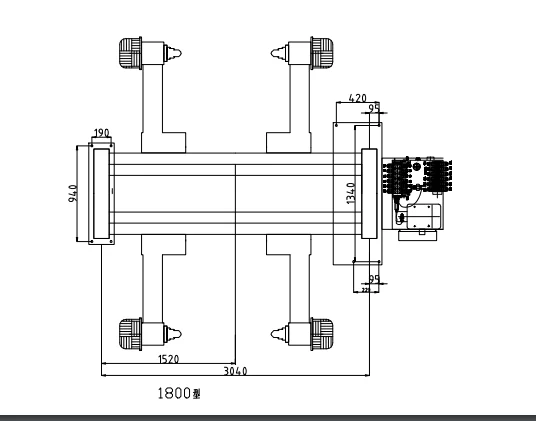

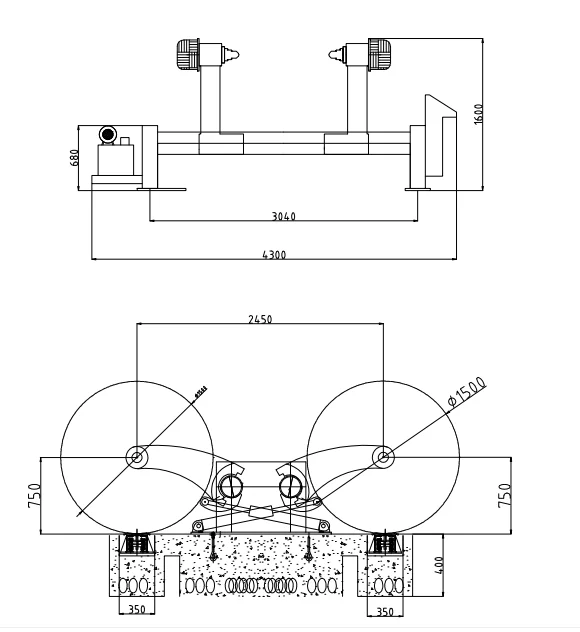

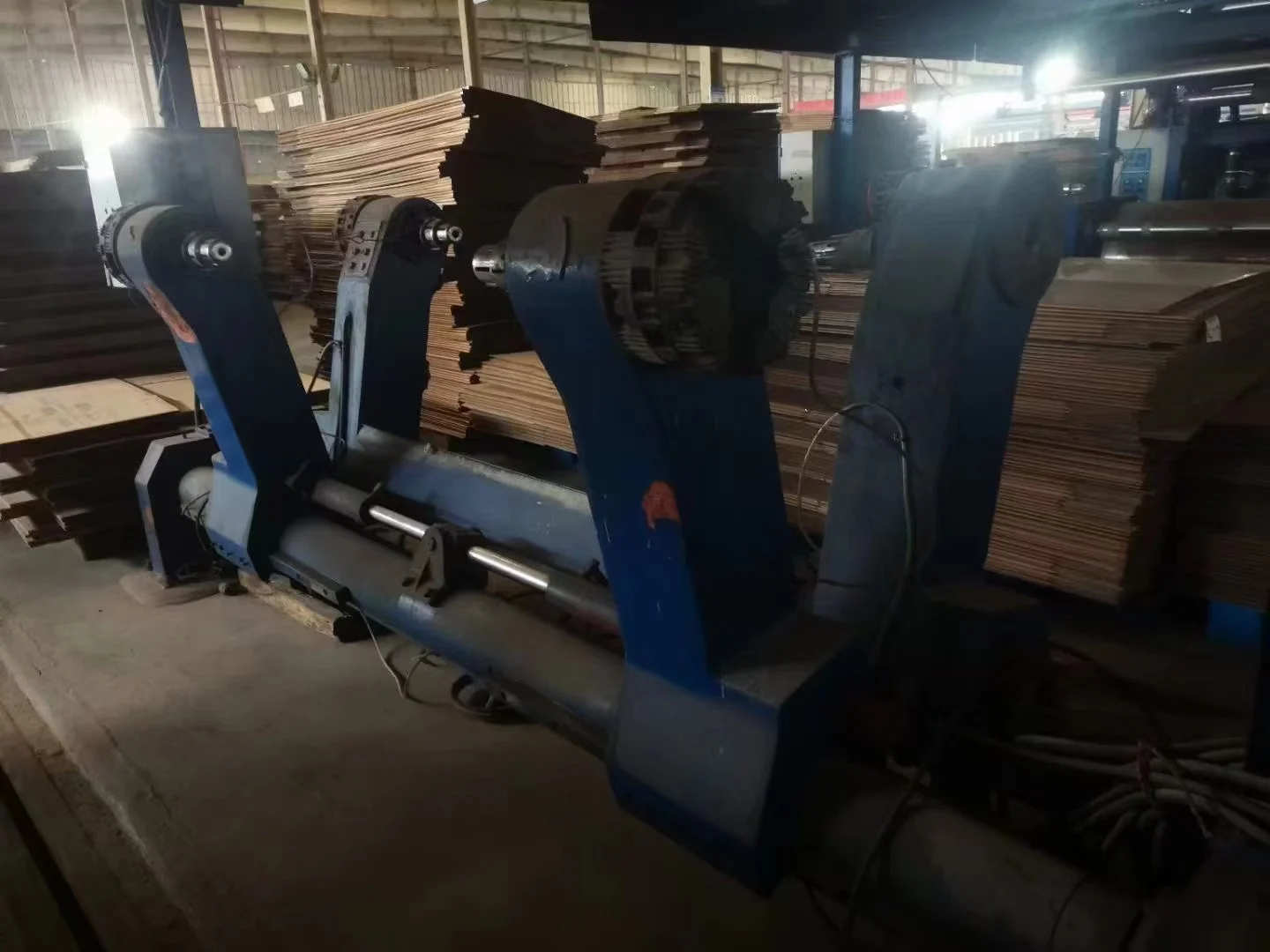

1 adopt hydraulic drive to complete the paper clamping, loosen, remove for the medium, translation left and right and others,the lifting of the paper adopts hydraulic drive.

2 brake adjustable adopts multipoint braking system.

3 every stand matched two sets paper car , and  they can paper on the both sides at the same time.

4  tooth jammed with dual-stage head and jammed the first three \\ four inches dual-stage.





5 corrugated roller, pressure roller adopt airbag control system having high stability, having the barometric pressure control buffering effect at the same time.

6 Glue volume control with electric adjustment,rubber septum electric device,the glue system can operate independently when the motor stops,prevent glue exhausted.

7 the moveable type glue unit is convenient to clean and maintain.

8 easy operation control system, touch screen operation interface,Drawing with color display operating status,

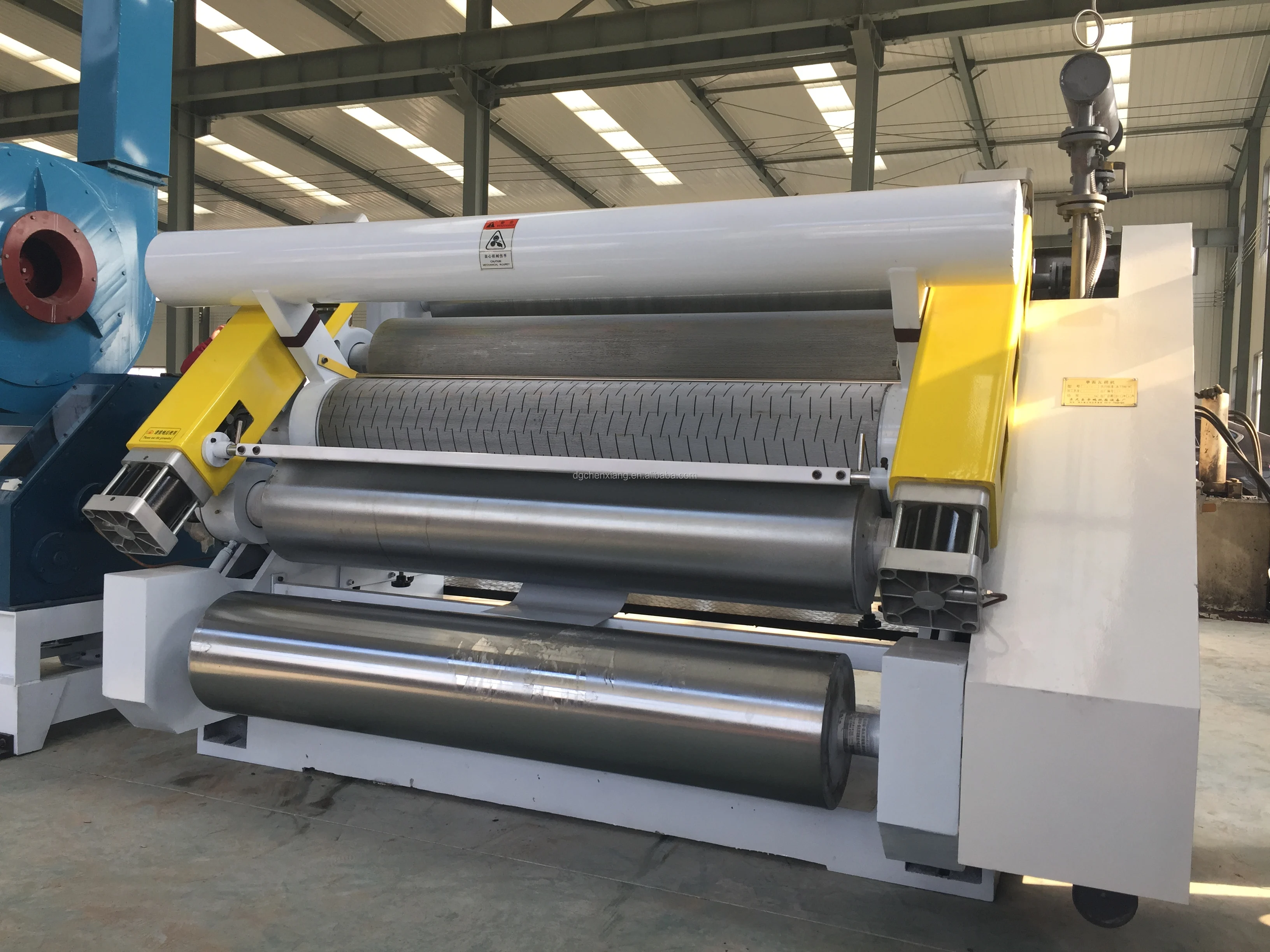

1 The paper guiding adopts wind adsorption, keeping the stability of flutes under the condition of high speed.

2 The corrugated paper is adsorbed to the middle corrugated roller to form a negative pressure zone of 180°and then to finish the rolling of corrugation through the vacuum box by fan

3 The width of suction slot of lower corrugated roller is not more than 2mm, able to reduce the stripe mark on single side corrugated cardboard.

4 The transmission part adopts universal joint transmission and separates the vibration source, which makes the maintainability higher, the transmission more stable and the operation more reliable.

5 The reducer casing adopts oil bath lubrication and closed gear transmission, reducing the vibration of machine.
