pitch 25.4mm roller dia 15.88mm teeth thickness 14.6mm standard S45C/SUS304 stainless Standard 80series sprockets

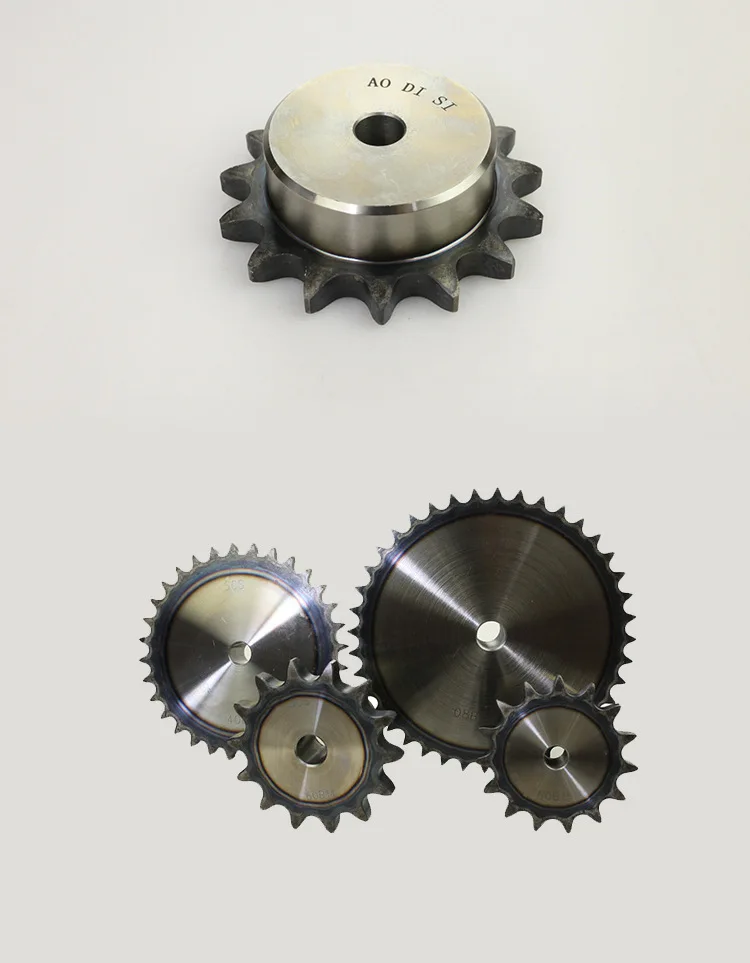

Aodisi S45C/SUS304 Stainless Steel Standard 80 Series Sprockets

Pitch:25.4mm ,Roller dia:15.88mm,Teeth thickness:14.6mm,the sprockets is used with 16A roller chains.

The sprockets is made of S45C or SUS304 stainless steel.

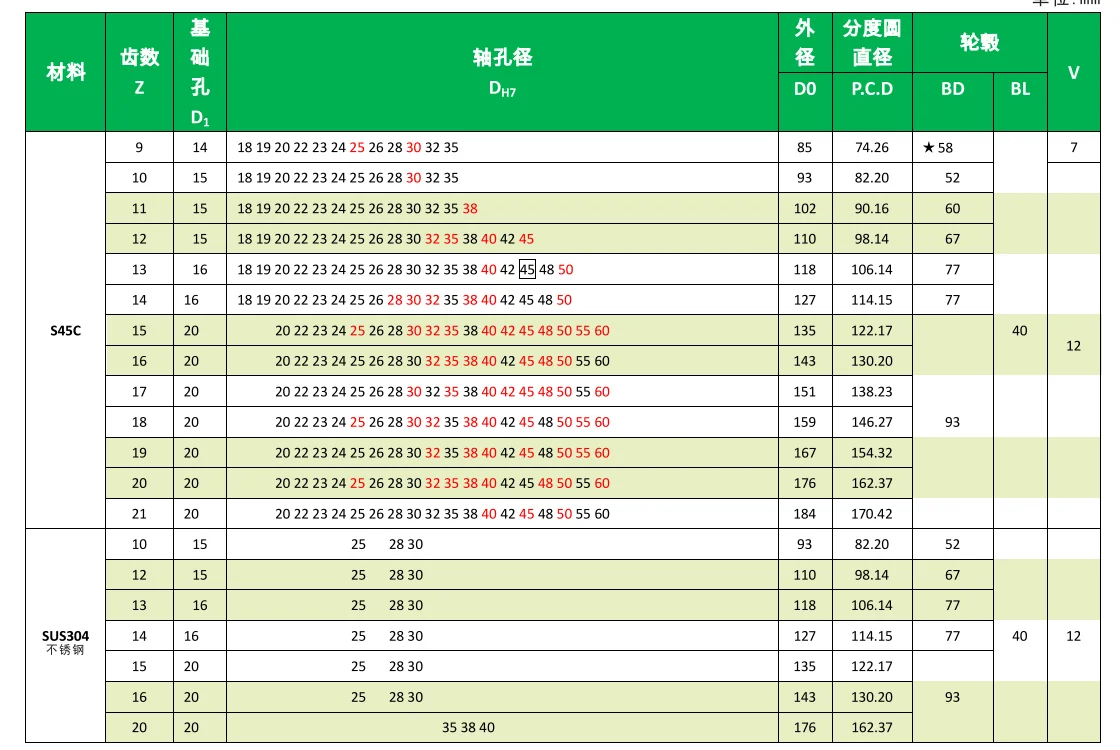

Main dimensions for your kind choice, pls. let us know your requirement freely.

Bore of sprockets remarked in red means there's inventory in stock.

Bore of sprockets remarked in black means thaere's no invenotry,need to be customized with new build.

* means the outer diameter of the hub has a groove.
