High Quality Fixed Install Waterproof P3.3 LED Outdoor Display Module
- Category: >>>
- Supplier: Shenzhen Mp Led Technology Co. Ltd.
Share on (62167939368):
Product Overview
Description
High Quality Fixed Install Waterproof P3.3 LED Outdoor Display Module
Energy saving full color HD P3.3 outdoor advertising billboard LED display screen
Digital LED road signs and information traffic signs hot sell advertising equipment outdoor stadium large TV LED billboard
Front Maintain P3.3 Fixed Installation Full Color Giant Advertising led screen outdoor
Technical specifications for LED display:-
320x160mm P3.3 Outdoor Led Display Module | ||
1 | Module size | 320x160mm |
2 | Pixel point | 96x48 |
3 | Scan mode | 1/12 scan |
4 | Pixel configuration | 1R1G1B |
5 | LED type | SMD1921 |
6 | Cabinet size | 960x960mm |
7 | Cabinet resolution | 288x288 |
8 | Pixel density | 91827dots/sqm |
9 | Brightness | 5000cd/m² |
10 | Max.Power Consumption/cabinet | 160W |
11 | Ave.Power Consumption/cabinet | 50W |
12 | Cabinet weight | 16KG |
13 | Cabinet material | Die casting aluminum |
14 | IP grade | IP65 |
15 | Gray scale | 16Bit |
16 | Refresh frequency | ≥1920Hz |
17 | Frame frequency | 60Hz |
18 | Viewing angel | 140℃/120℃ |
19 | Best viewing distance | ≥3.3m |
20 | Power input voltage | AC220V/110V |
21 | Maximum current | 15A |
22 | Working temperature | -40℃~+60℃ |
23 | Working humidity | 40%RH~60%RH |
24 | MTBF | ≥10,000H |
25 | Driver IC | MBI, ICN |
Click Here>>>>> Contact Us To Get More Information
Product detail

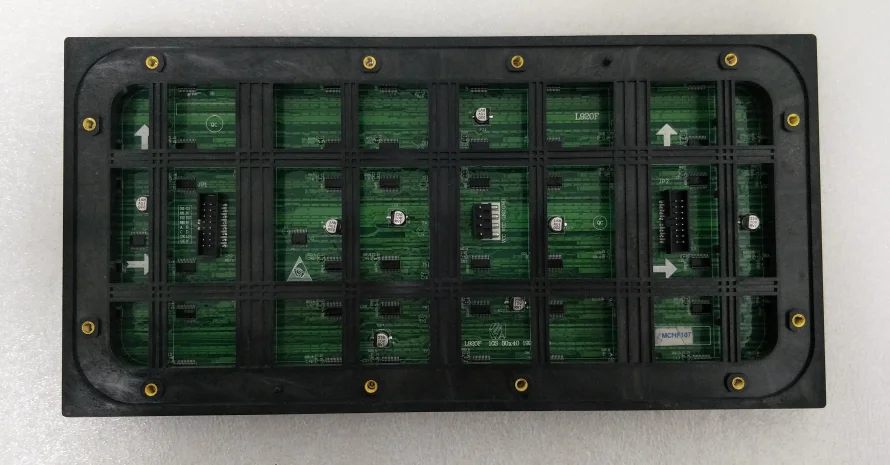

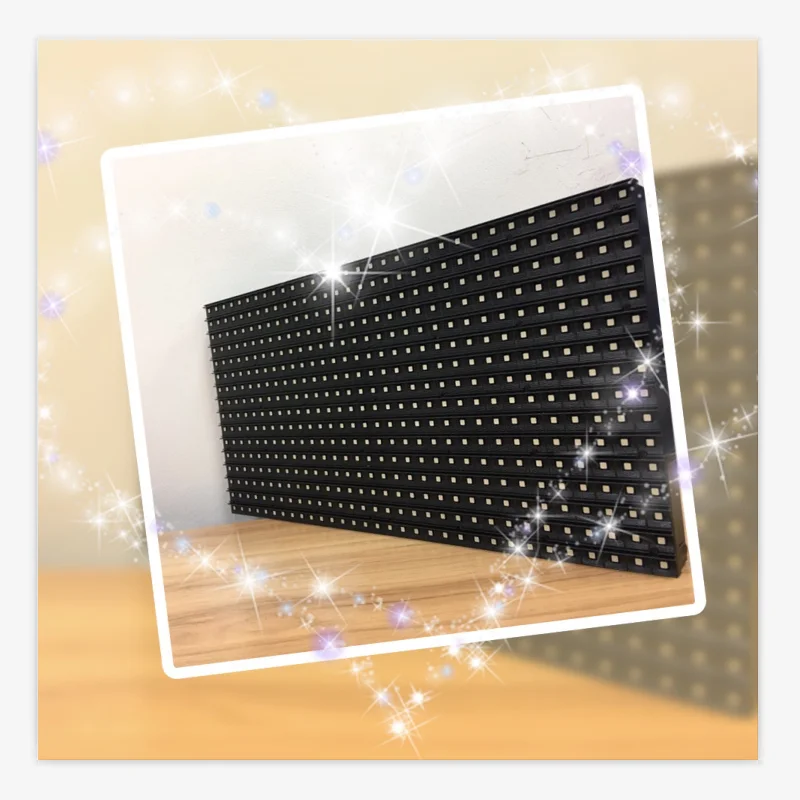

Waterproof LED Module

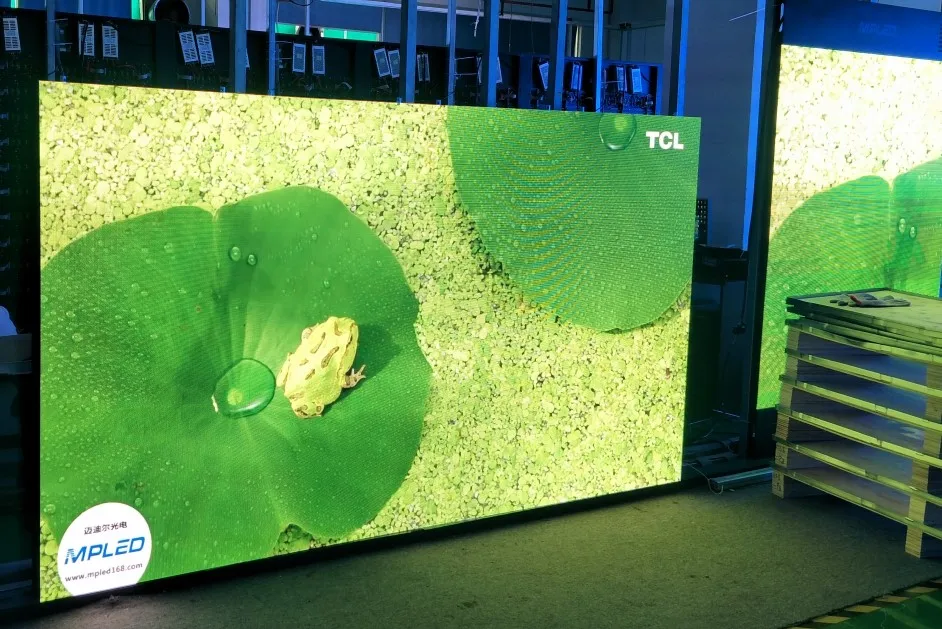

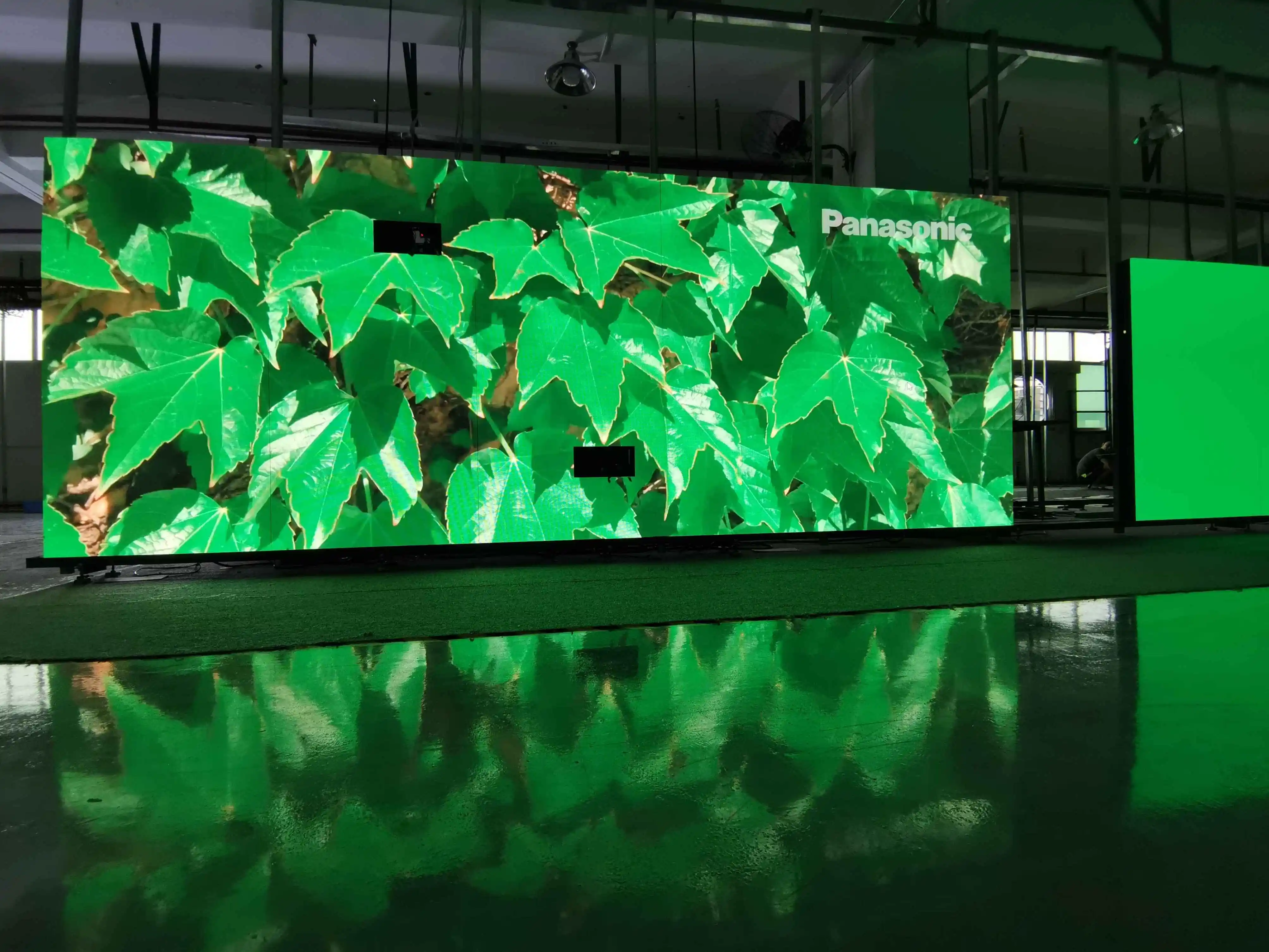

High Brightness ,Outstanding Image Quality ,High contrast
clear textures in shadows, Smooth transition of the gray scale
Screen aging
Click Here>>>>> Contact Us To Get More Information

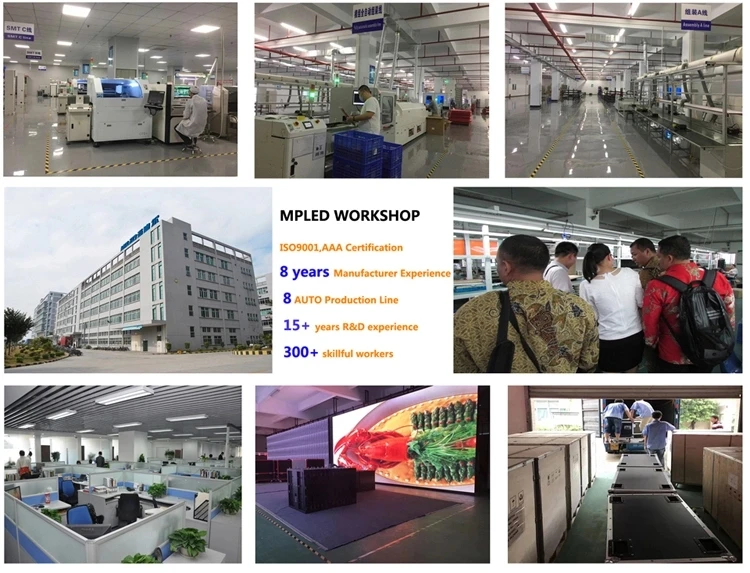

More about us
