Product Name:Flexo CI Press Central Drum Flexographic Printing Machine 4 color 6 color
This central impression (central drum)flexographic printing machine is suitable for printing such packing materials as polyethylene, polyethylene plastic bag glass paper and roll paper etc. And it is a kind of ideal printing equipment for producing paper packing bag for food, supermarket handbag, non-woven bag, vest bag and clothes bag, etc.
Main parameters:
Model | XHCI-A-6-1200mm |
Material width | 1200mm |
Printing width | 1160mm |
Printing length | 320-900mm |
Roller diameter | 600mm |
Paper core diameter | 3",6", |
Machine speed | 50-220m/min |
Printing speed | 50-200m/min (Depend on the materials) |
Register precision | ±0.15mm |

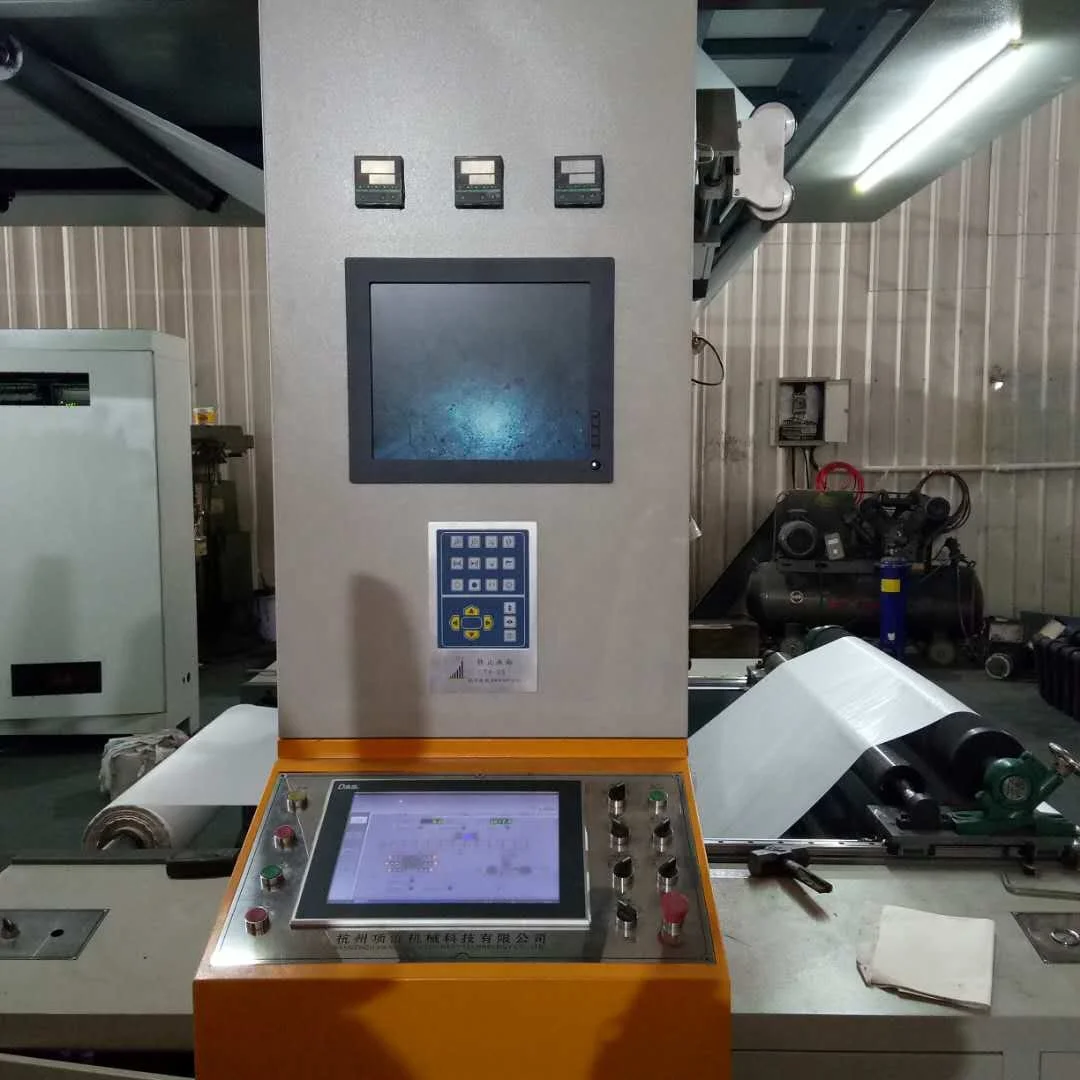

Register type | By computer |
Printing colors | 6colors |
Heating drying system | Electrical heating system (optional steam, hot oil, gas heating) |
Weight | About:13T |
Dimension | 9.2m*3.5m*3.8m(L*W*H) |
Voltage | 3phase 380V 50HZ |
Printing material |
| non-woven fabrics(25~120gsm),roll paper(25~300gsm),plastic film(15-120μm)and so on. |
| Specific details welcome consultation |
Detail Images

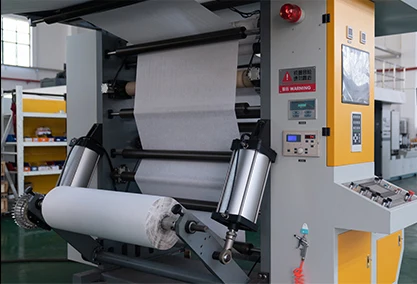

 | Feeding Material Part 1.Automatic stop machine when break the material. When machine stop, keep tension and avoid the material loose or line deflection. 2.Single unwinding system, equipped with air shaft , EPC and automatic tension control system with magnetic brake. 3.Roller core diameter: 76mm 4.Discharge maximum diameter: 1000mm 5.Pneumatic load and unload to transport and loading material. |

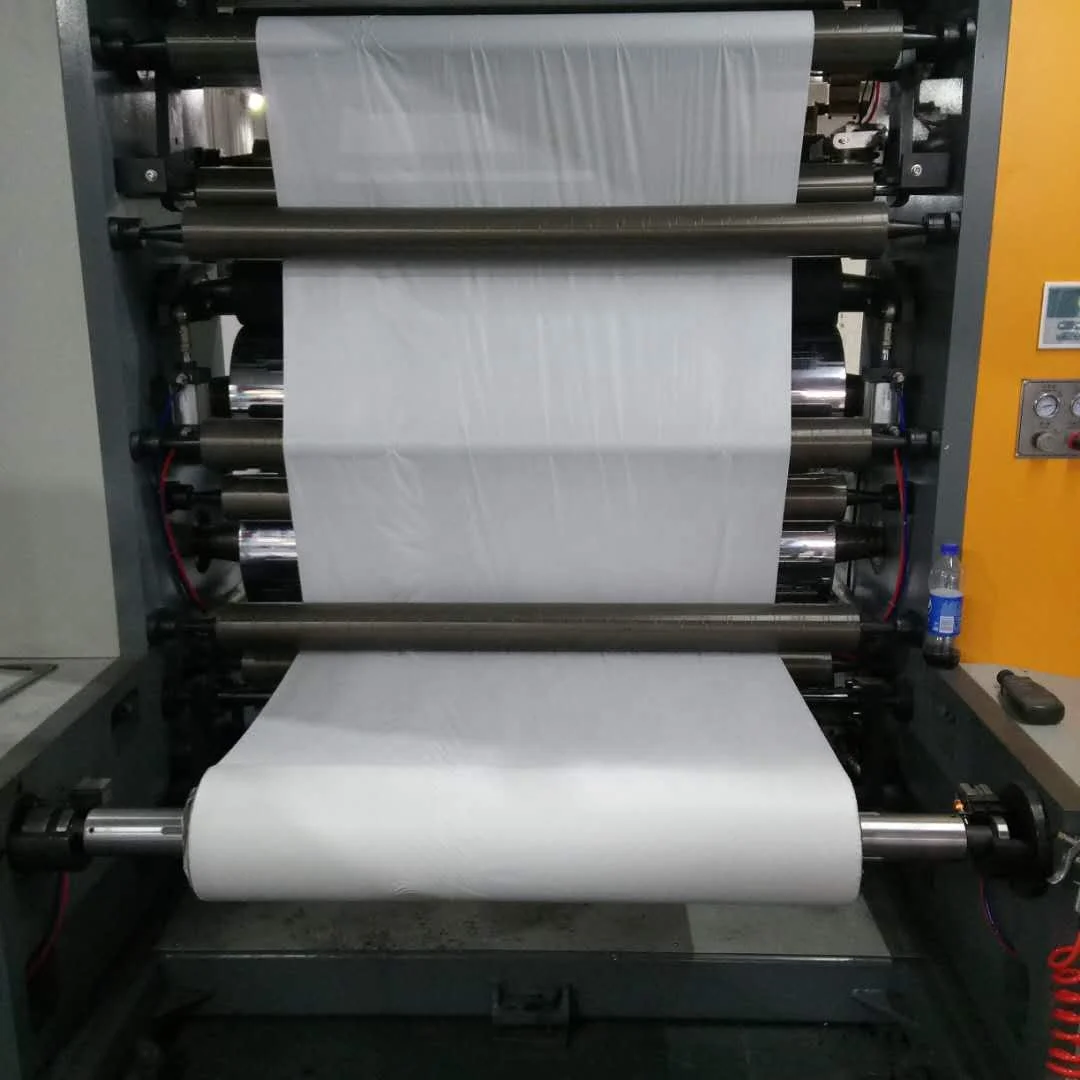

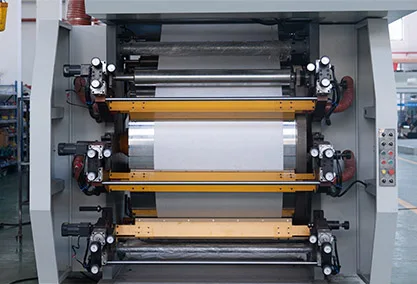

 | Printing Sections 1.Printing consists of: central drum, plate roller, ceramic anilox roller, single doctor blade and chamber doctor blade. 2.Plate roller circumference: 300-800mm. 3.Print material: resin plate or rubber plate. 4.Transmission: central drum with big gear drive the printing station. |

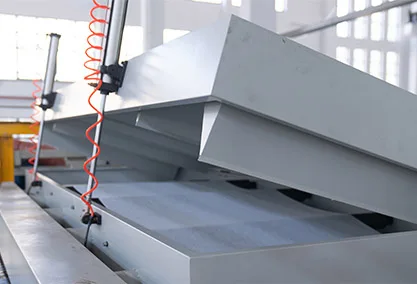

 | Drying System 1.Use hot air drying, intelligent constant temp control. 2.Drying units are installed after the printing units, and air volume can be adjusted by independent damper/panel. 3. The dryting system after the printing it is about 30kw. |
| PS: Above configurations just for your reference. Know more details please connect with us! Thanks and best regards! |
Simple Pictures
Plastic Film Printing Effect
Non Woven Fabric Printing Effect
Paper Printing Effect
Certifications
 |  |
 |  |
Packaging & Shipping
After Sales Service
Company Information
Hangzhou XiangHuai Machinery Technology Co., LTD. was founded in 2008, is a science and technology enterprise specialized in the production of flexible packaging equipment and related equipment, R & D, manufacturing flexographic printing machinery and equipment. Our company’s main products are: roll paper printing machine, four-color printing machine, paper printing machine, woven bag printing machine, printing machine, garment printing machine, heat transfer machine, garment printer, and related equipment etc. At present, our products have been widely used in printing, packaging, pharmaceutical and other related industries, the products are sold throughout the country and exported to the United States, Canada, Russia, Argentina, India, Brazil, Egypt, South Africa, Southeast Asia, dozens of countries and regions.
The company since its inception, and constantly improve the process equipment, technical team has continued to grow, with independent research and development, the printing industry related equipment independent design, manufacturing and installation debugging capabilities, access to the domestic and foreign customers praise. Customer service customer service based on the needs of the company established a perfect customer service platform technology consulting service system, welcome to cooperation with us!
