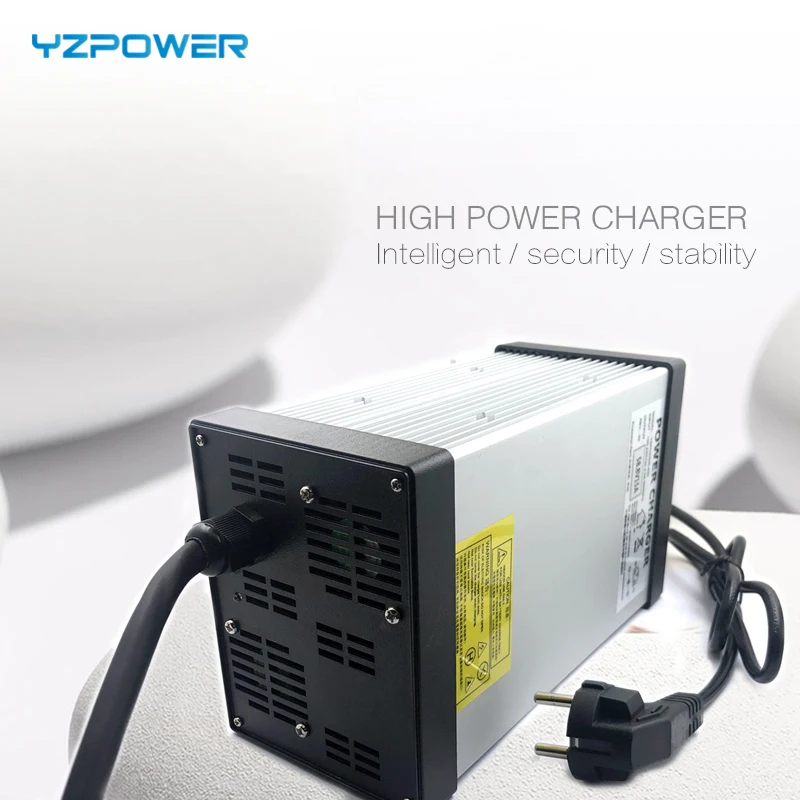

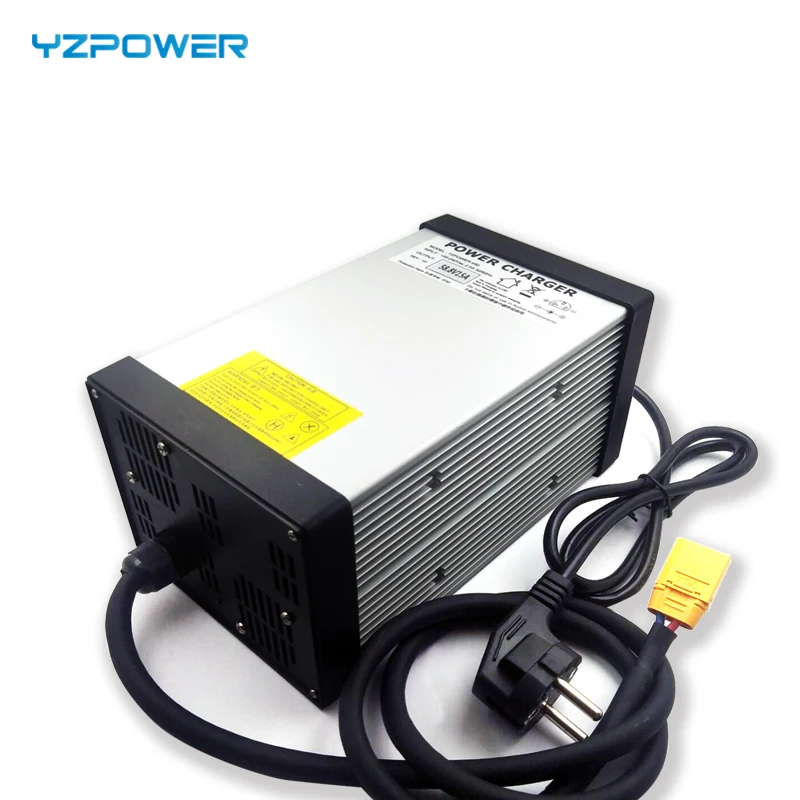

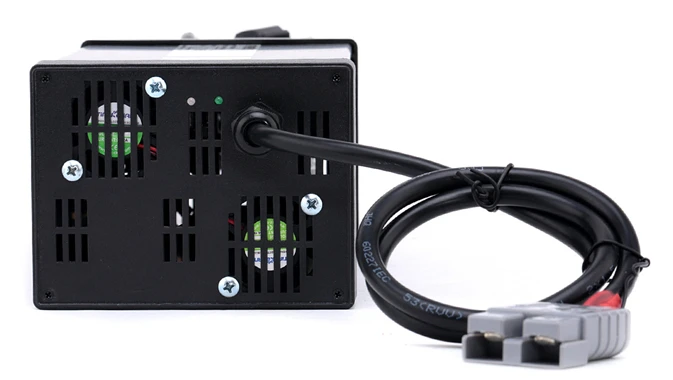

Зарядное устройство Yzpower для литиевых батарей 84 в 10 а используется в электровилочном погрузчике 20 с 72 в, продукция немецкой сертификации TUV
- Category: Accessories & Parts >>>
- Supplier: Shenzhen Yangzi Power Co. Ltd.
Share on (62168314149):
Product Overview
Description
| Input Voltage | 100-240Vac 47-63Hz | Case Material | Aluminum |
| Charge Voltage and Current | 84V 10A | Charge Method | CC/CV |

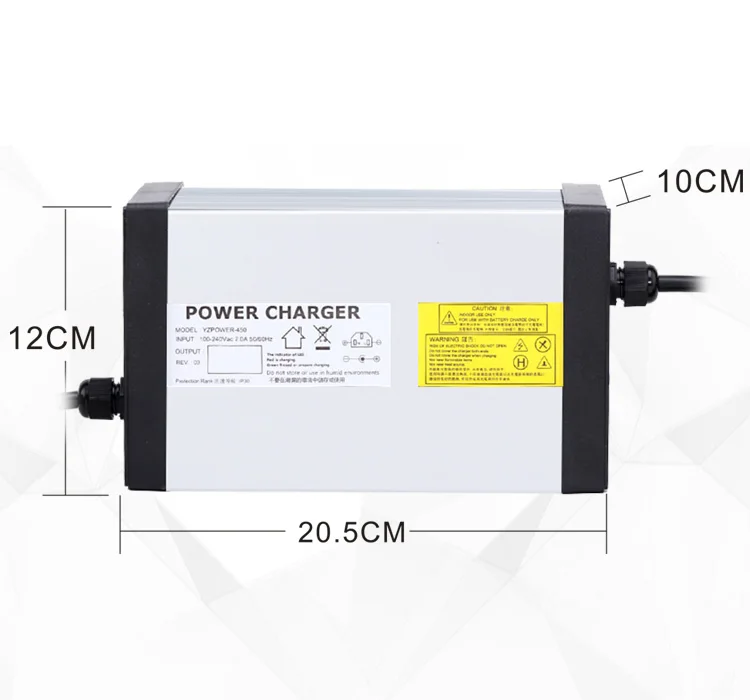

| Size | 205x121x100 mm | Weight | 2 KG |
| Operating Temperature | -20°C ~ +50°C | Storage Temperature | -40°C~ +80°C |
| Warranty | 2 Years | Certificate | CE/ROHS/FCC/SAA |
| The inditorr of LED: "RED" Means Charging "Green" Means Full of Electricity | |||

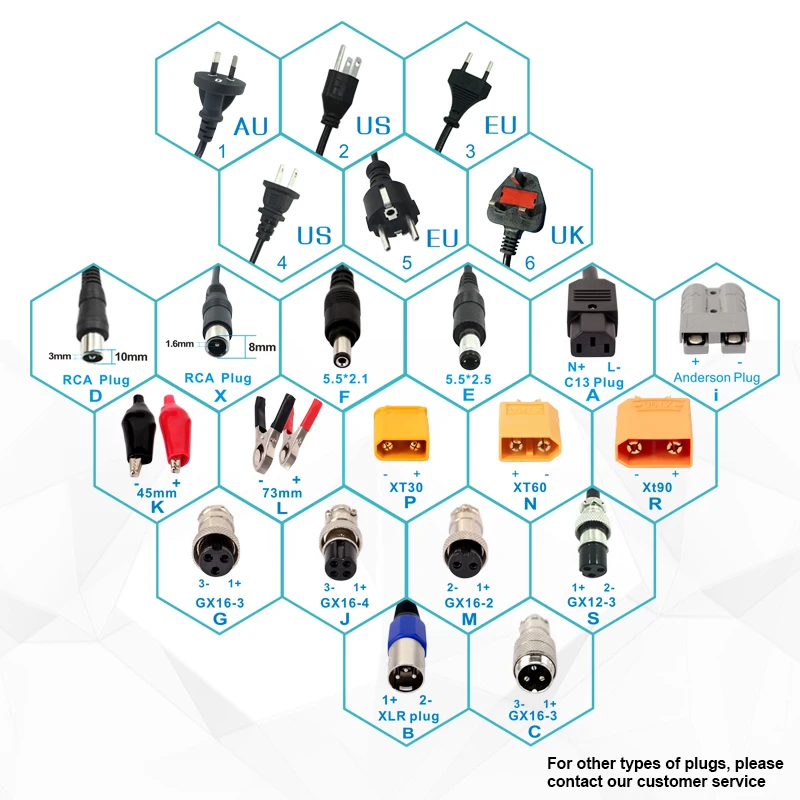

Dear Customer,Please select the Input and Output plug in the following pictures.
Such as Input(AC) plug:NO.5 Output(DC)Plug:NO.M
Protection
Over current protection / Over voltage protection / Short Circuit Protection / Reverse Connection Protection
Product Advantage

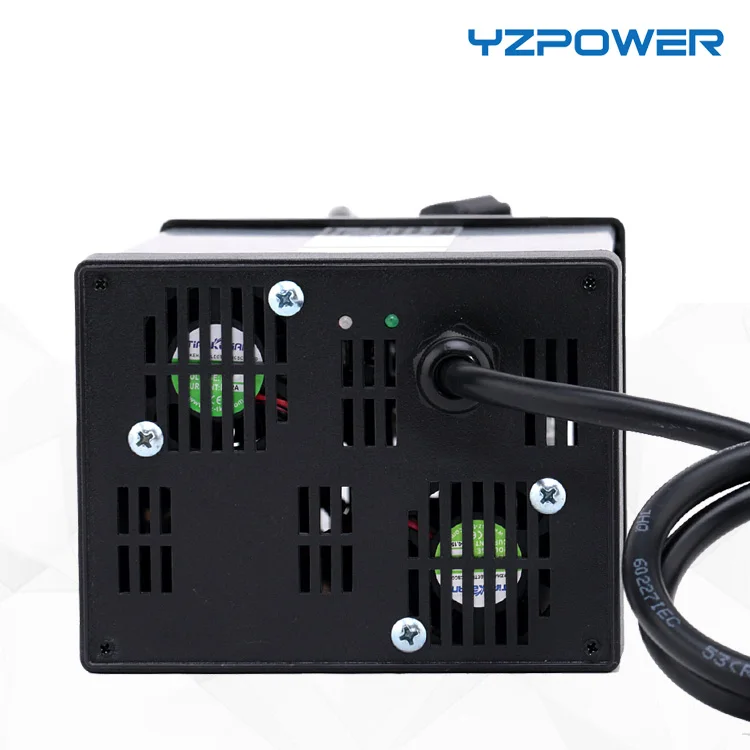

1)Dual color LED indicator:Red means Charing,Green means full charged.With 3 years warranty.
2)Constant current, constant pressure dual scheme design, perfectly conform to the lithium battery charging characteristics.
3)The two way average flow scheme is used, when one of them is damaged, only the charging current is reduced by half, and it can be used.
4)The charging time is adjustable, with LED indication, precision voltage and current detection, effectively preventing overcharge and completely eliminating charge of discontent and so on.
5)The input and output lines use high quality wires, corrosion resistance, and no cracking.
6)The shell is PC industrial raw material, fire retardant and flame retardant, temperature resistance 75 C.
7)With output short circuit protection, even if the output short circuit will not damage the power supply, when the output short circuit release, the power supply is still normal output.
8)It has the function of soft start, can withstand frequent switch start, will not cause damage to the power supply.
9)The enclosure with a fixed installation hole, with a terminal, the input and output connection is extremely simple, no need to use a soldering iron.
10)The DC current is precise IC control, non single triode constant current. Each cycle is monitored and the current limiting circuit is designed to prevent charge current from being too high, protect battery and extend battery life.
11)Built-in EMI filter device, anti lightning, surge voltage design.
12)Capacitance: capacitance is -40 C-105 C and C long life. The main products of international Dachang are ruby, black diamond, TOCON, YALECON and so on.Transistor: mainly used Silan, SILAN, ST, Fairchild.
Accept to adjust the current and voltage according to your needs
FAQ
1. Q:May I take some samples to test before placing the order ?
A:Customers need to pay for the sample and express fees, it will be returned when next order is confirmed.
2. Q:How long can you offer the samples?
A: 1~5 days after the deposit payment is confirmed.
3. Q:What's your payment terms for sample?
A: You can pay via T/T, Paypal, Western Union.
A:Customers need to pay for the sample and express fees, it will be returned when next order is confirmed.
2. Q:How long can you offer the samples?
A: 1~5 days after the deposit payment is confirmed.
3. Q:What's your payment terms for sample?
A: You can pay via T/T, Paypal, Western Union.
4.Q:What about the warranty and certificate?
A:We prodvide 2 years warranty and we have CE,ROHS,FCC,SAA.
5.Q:How many checks are there before shipment?
A:We will have a quality testing including prepare order, production and quality inspection before packing.
6.Q:Will you take photos and send me tracking number before shipment?
A:Sure,Before shipment,We will take pictures according to your request and send you tracking number.
