High Speed Sublimation Printing Paper Printer Digital Fabric Printer Printing Machines Cloth Printer Machine
- Category: >>>
- Supplier: Guangzhou Xin Flying Digital Technology Co. Ltd.
Share on (62168474428):
Product Overview
Description

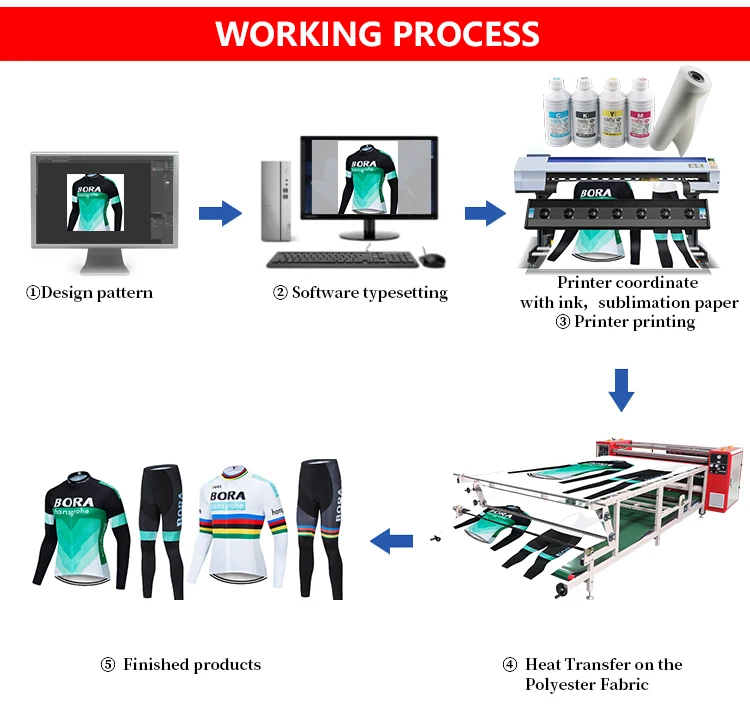

Working Process
Sublimation Printer: Print pattern on Sublimation Paper by Sublimation Ink;
Heat transfer machine/Sublimation Calender:Transfer Pattern on Fabric from Printed Sublimation Paper.
Heat transfer machine/Sublimation Calender:Transfer Pattern on Fabric from Printed Sublimation Paper.
Using a transfer paper printer, you can easily print the patterns required by various customers, and achieve massproduction,pollution-free, simple operation, saving manpower, material and financial resources, which greatly reduces productioncosts.
Details Images

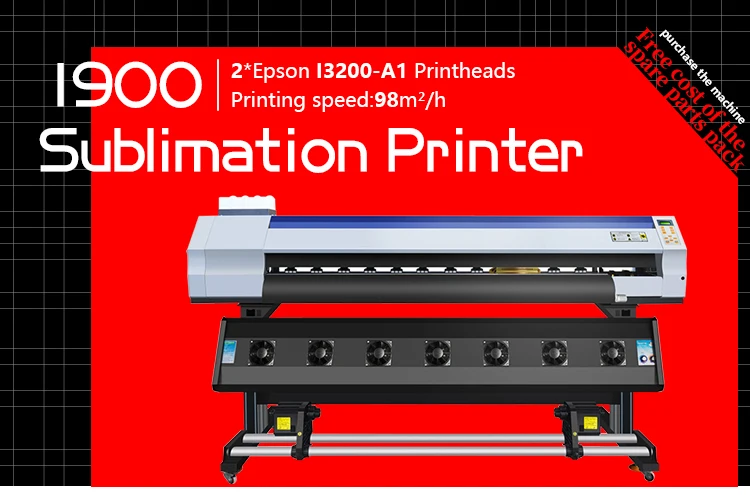

Model | FD1900 Dye Sublimation Printer | ||
Printhead | Type | 2*EPSi3200 ( 2 Epson 4720 ) | |
Printhead | Nozzle Qty | 800*4lines*2pcs printheads | |
Height to Platform | 2-5mm | ||
Resolution | 3200 DPI | ||
Printing Speed | Production Mode | 2pass 98sqm/h | |
Average Mode | 3pass 64sqm/h | ||
High Resolution Mode | 4pass 50sqm/h | ||
Color | C M Y K | ||
Type | Dye Sublimation | ||
Supply Method | Siphoning | ||
Media | Transfer paper (20-100g) | ||
RIP software | Maintop, Photoprint,Onyx,Wasatch and etc | ||
Max Printing Width | 1900mm | ||
Media Transfer Method | Auto air shaft feeding and take-up system | ||
Drying Method | External,Intelligent and air-heat Integrated drying system | ||
Moisture Mode | Fully sealed auto moisturing and cleaning | ||
Image Format | JPG,TIF,PDF,BMP and etc. | ||
System | WIN7 64bit/WIN10 64bit | ||
Hard disk:500G (system disk more than 100G) GPU:ATI Discrete CD-ROM:DVD ROM Memory:4G or more CPU:Intel i5/i7 processor | |||
Transmit Port | Gigabit LAN | ||
Work Environment | Temperature 15-30 centi degree; Humidity 35-65% | ||
Input Voltage | 210-230VAC 50/60HZ 16A | ||
Printing system | 1500W | ||
Drying system | Max power 9000W | ||
Printer Dimension | 2820*840*1310mm | ||
Packing Dimension | 3060*940*970mm | ||
Weight | Net Weight: 280KG Gross Weight:330KG | ||
Our Advantages
Customer Photos
Certifications
Company Profile
1. We provide 1 year warranty and online technical support lifetime
2.Strong sales team,after-sales 24 hours online with English team and professional technical team
3.There are English user manuals and install video to guide you easily install, operate and maintain the printer.
2.Strong sales team,after-sales 24 hours online with English team and professional technical team
3.There are English user manuals and install video to guide you easily install, operate and maintain the printer.
Exhibition
FAQ
1.Q: What’s the machine installation?
A: We provide the machine usage & installation videos and instruction manual, afford the 24 hour online service support for oversea customers. If need, we could provide the on-site installation and training service.
2.Q: How about the machine’s package and transportation ?
A:We will protect the machine with film and bubble film around the machine when it leaves the factory, and fix it on the bottom of the wooden case with iron nails. After the wooden case is packed, we will choose the mode of transportation according to the customer's requirements, and provide export service according to the customer's requirements.
3.How about the machine’s maintenance ?
A:With warranty of whole printer ( not included the printer head) , simultaneously we will provide the lifetime warranty if use together with our ink. Also our after-sales engineers will provide 24 hour online technical consulting service.
A: We provide the machine usage & installation videos and instruction manual, afford the 24 hour online service support for oversea customers. If need, we could provide the on-site installation and training service.
2.Q: How about the machine’s package and transportation ?
A:We will protect the machine with film and bubble film around the machine when it leaves the factory, and fix it on the bottom of the wooden case with iron nails. After the wooden case is packed, we will choose the mode of transportation according to the customer's requirements, and provide export service according to the customer's requirements.
3.How about the machine’s maintenance ?
A:With warranty of whole printer ( not included the printer head) , simultaneously we will provide the lifetime warranty if use together with our ink. Also our after-sales engineers will provide 24 hour online technical consulting service.
