7.0 inch adapter board capacitive touch screen IPS LCD screen with 1200*1920 resolution MIPI interface
- Category: >>>
- Supplier: Shenzhen Amelin Electronic Technology Co. Ltd.
Share on (62168753054):
Product Overview
Description
HDMI to MIPI tft lcd panel driver board for 7 inch 1200*1920 tft lcd display
Product Description

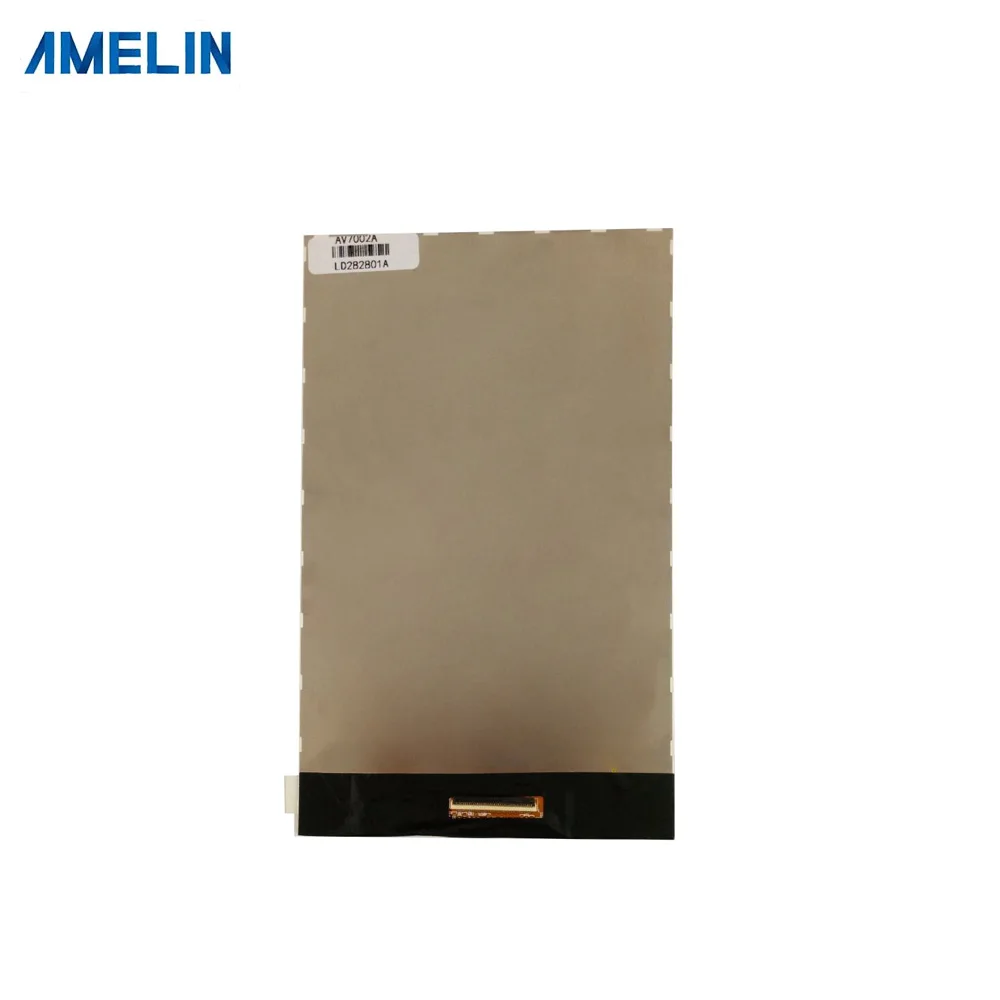

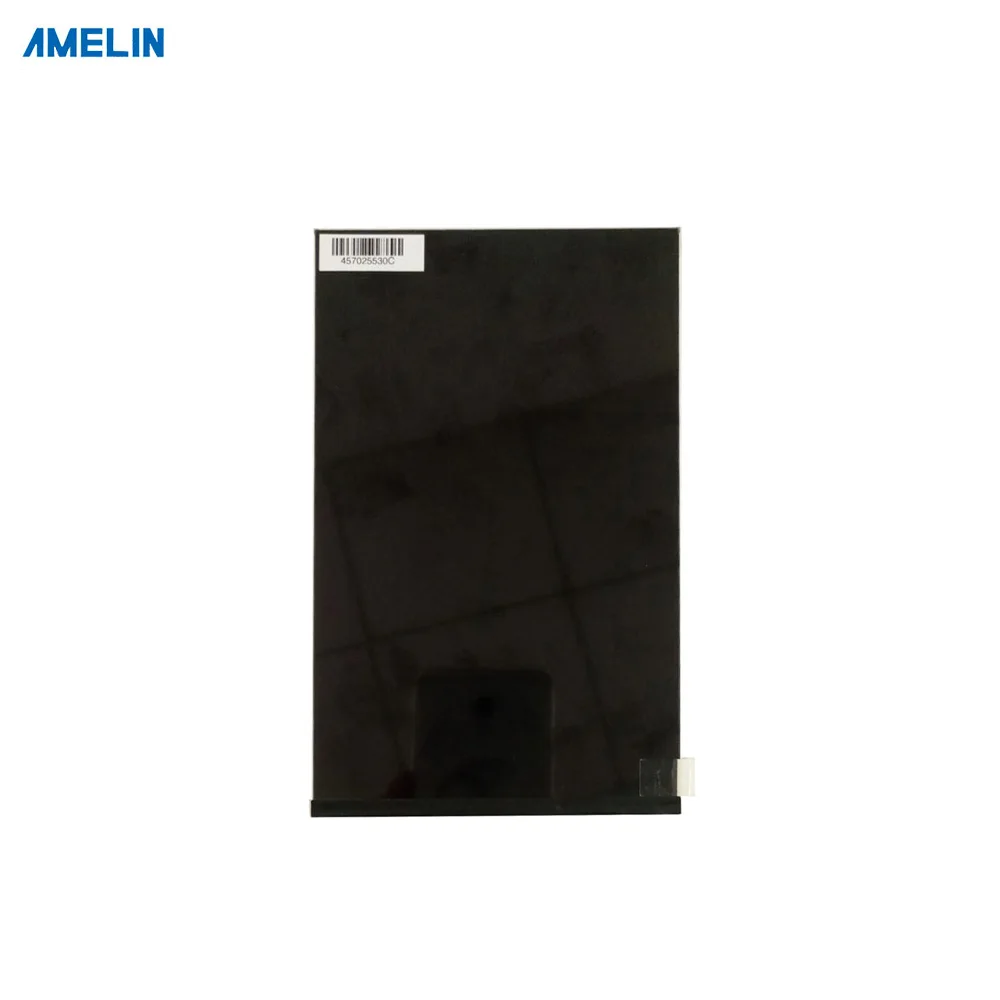

Pictures in kind
General Description
This model is a color active matrix TFT LCD that uses Low-temperature polysilicon TFT as a switching device. It is composed of a TFT LCD cell,
IC and FPC. And it has a 7.02 (10:16) inch diagonally measured active
display area with WUXGA (1200 horizontal by 1920 vertical pixel) resolution.
| No. | Item | Specification | Unit |
| 1 | Size | 7.02 (Diagonal) | inch |
| 2 | Driver element | LTPS TFT active matrix | |
| 3 | Resolution | 1200 × 3(RGB) × 1920 | |
| 4 | Display mode | Normally Black | |
| 5 | View direction(Gray Inversion) | Free | |
| 6 | Pixel pitch | 0.07875(W) × 0.07875(H) | mm |
| 7 | Active area | 94.5(W) × 151.2(H) | mm |
| 8 | Panel size | 97.3 (W) x159.4 (H)x0.767(D) (Typ.) | mm |
| 9 | Surface treatment | Hard coating | |
| 10 | Color arrangement | RGB-stripe | |
| 11 | Interface | MIPI | |
| 12 | Panel power consumption | Typ. 0.14 ( max. 0.17 ) | W |
13 | Weight | 27.17 | g |
Outline Drawing

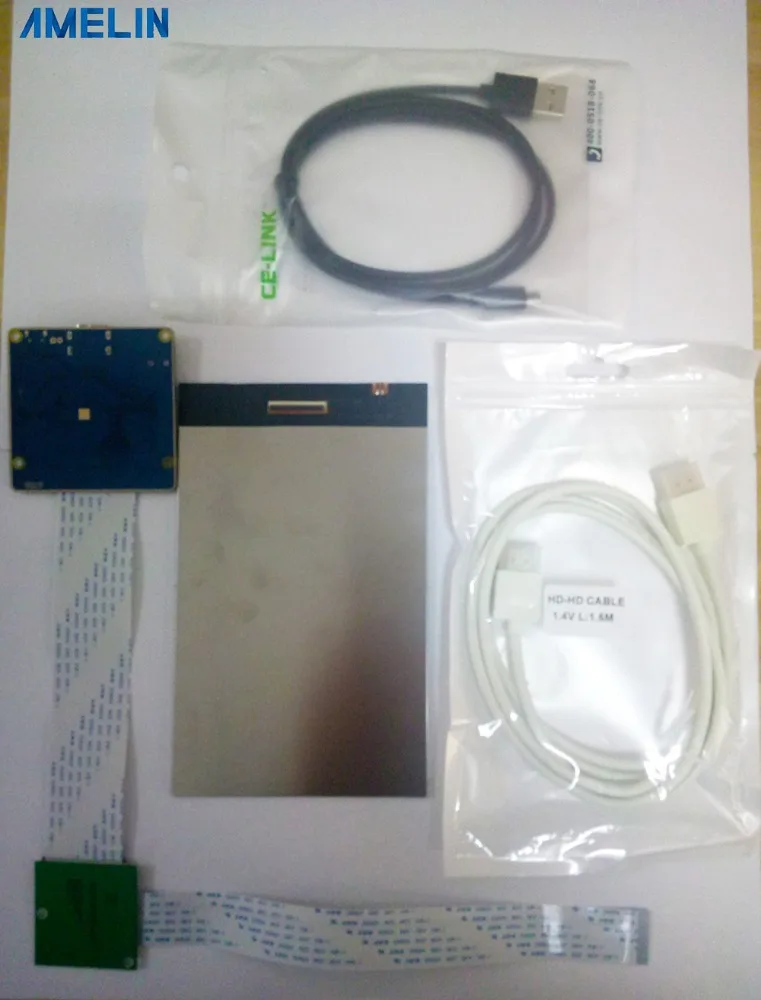

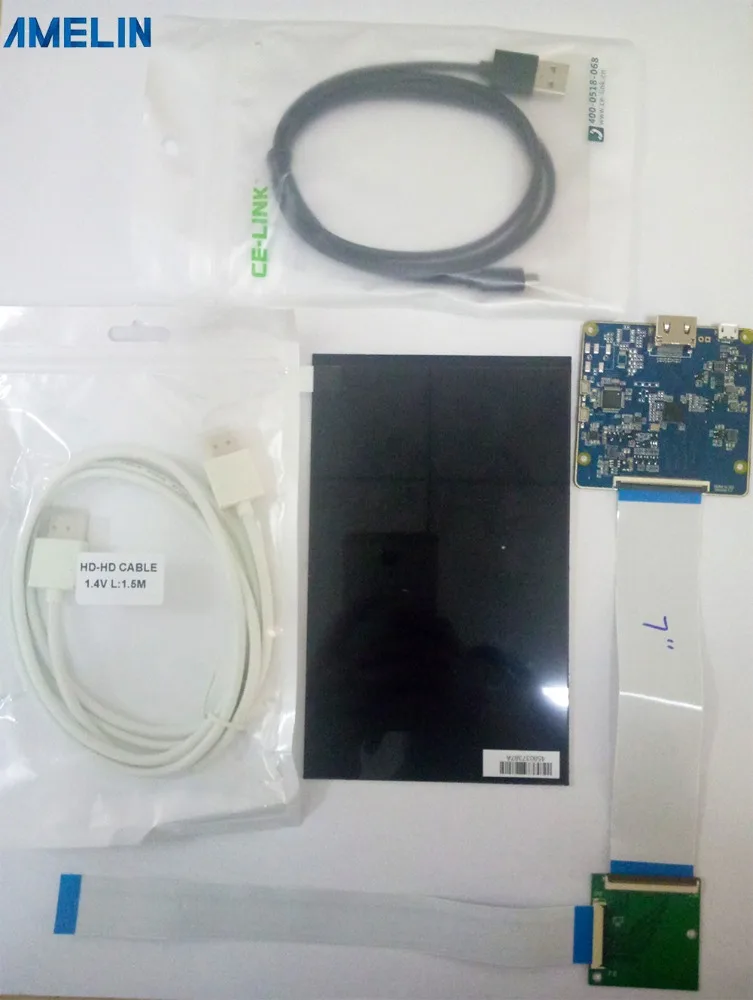

Package contents
| Case | Quantity |
| 7 inch 1200*1920 tft lcd display | 1 |
| HDMI to MIPI board | 1 |
| USB cable | 1 |
| HDMI cable | 1 |
About us
Company profile
| Shenzhen Amelin Electronic Technology Co.,Ltd is located at Guangming New District, Shenzhen. We focus on TFT LCD module production, OLED, VR and R&D. The sizes of TFT LCD modules and OELD we are offering range from 0.66'' to 13.3''. Our products are widely used for banking machines, communication tools, household appliances, automobile instruments, mobile phone, video door phone, E-book, stock mobiles, MP5, tablet PC, GPS navigator and so on. Our products are also exported to Europe and America, Japan and so on. We have become one of the suppliers of many multinational companies. |
Certificate
Production process
Packaging & Shipping
Lead time
Lead time
| quantity | lead time |
| 1-20(pieces) | Within one working day |
| 21-100(pieces) | Within two working days |
| 101-500(pieces) | Within three working days |
| 501-1000(pieces) | Within a week |
| 1000-3000(pieces) | Within two weeks |
| 3000-5000(pieces) | Within three weeks |
| 5000+ | Within four weeks |
FAQ
FAQ
1. Q:Can you provide technical assistance?
A: Yes,We can provide technical support on software and hardware.
2. Q: Does your product have any warranty?
A:Yes, we offer 12 months warranty for our products. Damage due to misuse, ill treatment and unauthorized modifications and repairs are not covered by our warranty.
3. Q: Can we guarantee long-term supply?
A: Yes,Strong factory guarantee long-term supply.
4. Q: Do you offer custom solution?
A: Yes,we can offer custom solution if standard products couldn't meet buyer' requirements.
