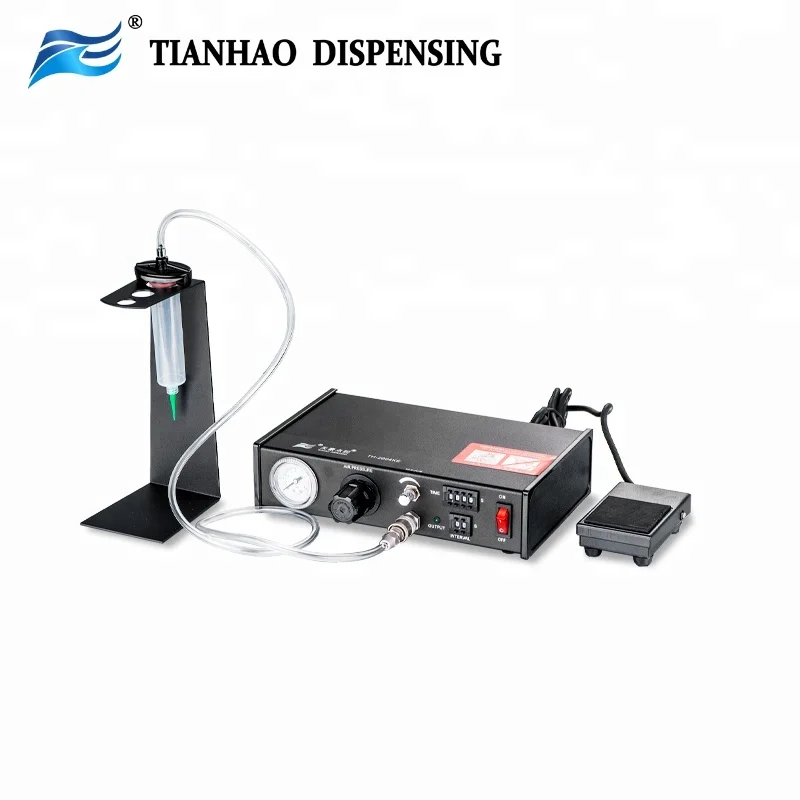

liquid glue dispenser Adhesive Dispenser With Digital Dial Setting And Cycle TH 2004KE

Share on (62168978455):


Price:$600.00 - $850.00

Quantity:


Product Overview

Description


Product Description

liquid glue dispenser Adhesive Dispenser With Digital Dial Setting And Cycle TH-2004KE

Product introduction

Adhesive dispenser providing precise control when applying adhesive, glue, silicone, RTV, cyanoacrylate, grease, anaerobic and UV cure resins.

Function

Liquid dispenser providing precise control when applying adhesive, glue, silicone, RTV, cyanoacrylate, grease, anaerobic and UV cure resins.

Liquid Materials

adhesives, silicone,grease, and lubricants,cyanoacrylates, RTV, silicone, UV glue, anaerobic adhesive

Features


1.Dispenser designed to suit a wide variety of dispensing applications from microdot deposits and lines, to large potting and filling. Integral.

2.Intelligent dispense software allows the user more control over dispensing applications.

3.With 4 digital timer display,can change the dispensing time.has three operating modes (manual/quantitative/cycle).

4.Suck-back ensures no dripping.

5.Foot pedal or ring switch can controlled.

6.Complete with an accessory dispensing kit.

service Free

Help you seek the glue.

Free offer trial video for your sample.

Free training with machine.
Free offer accessories dispensing kit.

Save cost

One machine instead of three or four staff, reduce the

management cost, also can work for 24 hours.

Help your business

You can bring customers to visit your workshop,the equipment to produce customer
satisfaction products,then take good business for you

Specification


\t
ITEM
\t
TH-2004KE
\t
Standard
\t
CE Approved
\t
Control:
\t
E-pneumatic
\t
Operating Model
\t
Manual, Timer, cycles
\t
Time control
\t
high pulse analog circuit
\t
Vacuum function
\t
Leak-proof vacuum adjusting organ
\t
Control way
\t
Foot Pedal, Finger Switch
\t
Dispensing time
\t
0.005S-99.999S /0.1-99.99s
\t
Cycles (interval) time
\t
0.1S-9.9S
\t
Repeatability
\t
+/-0.01%
\t
Frequency
\t
600 times/minute
\t
Input Air pressure
\t
1-7 bar (100 psi) maximum (1bar =1.01972kg/cm² =14.5038psi)
\t
Air output:
\t
0.1bar-0.7bar
\t
Input voltage
\t
110/220VAC
\t
Output voltage
\t
24VDC
\t
Power
\t
15W
\t
Temperature:
\t
5°C to 45°C (41°F-113°F)
\t
Humidity
\t
85% RH at 30°C non-condensing
\t
size
\t
24.10x21.00x7.00cm
\t
Weight
\t
3KG
More Product

Desktop robotic hot glue dispenser dispensing robot

manual dispensing machine for epoxy resin

silicone dispenser dispensing machine system

Robotic Dispensing Machine Glue Dispenser Robot With Vison Systems.

xyz axis dispenser robot for Adhesive,Adhesive Glue,Epoxy Glue For Pcb.

Desktop dispensing robots,glue liquid dispensing machine TH-2004D-300R.

Company Information
\t
Company Name:
\t
\t
ADD:
\t
NO.789 Huchong Road cixi city zhejing china
\t
Factory established time:
\t
Augest.8.2001
\t
Time of exports trades:
\t
Jan.1.2006
\t
Export right:
\t
Have oneself right of import and export offer certificate of origin
Certifications
Exhibition
Packing & Delivery
\t
Packaging
\t
\t
\t
\t
\t
Packaging Details
\t
The normal package is carton(Size: L*W*H). If container is too tigher,we will use pe film for packing or wooden box pack it according to customers special request.
