BAOC 9DT High speed rod breakdown wire drawing machine

Product Overview

Description

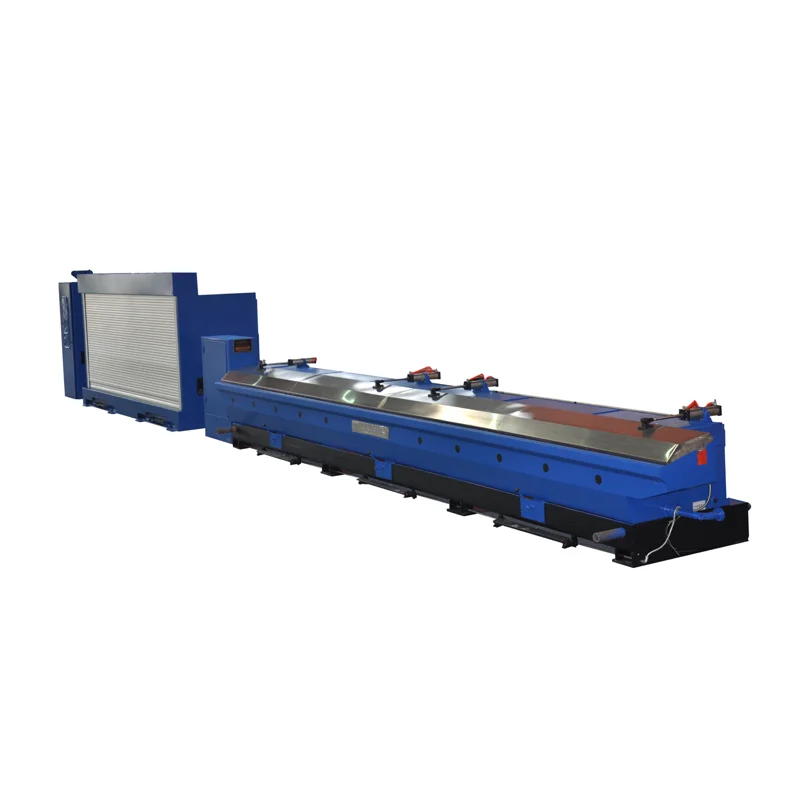

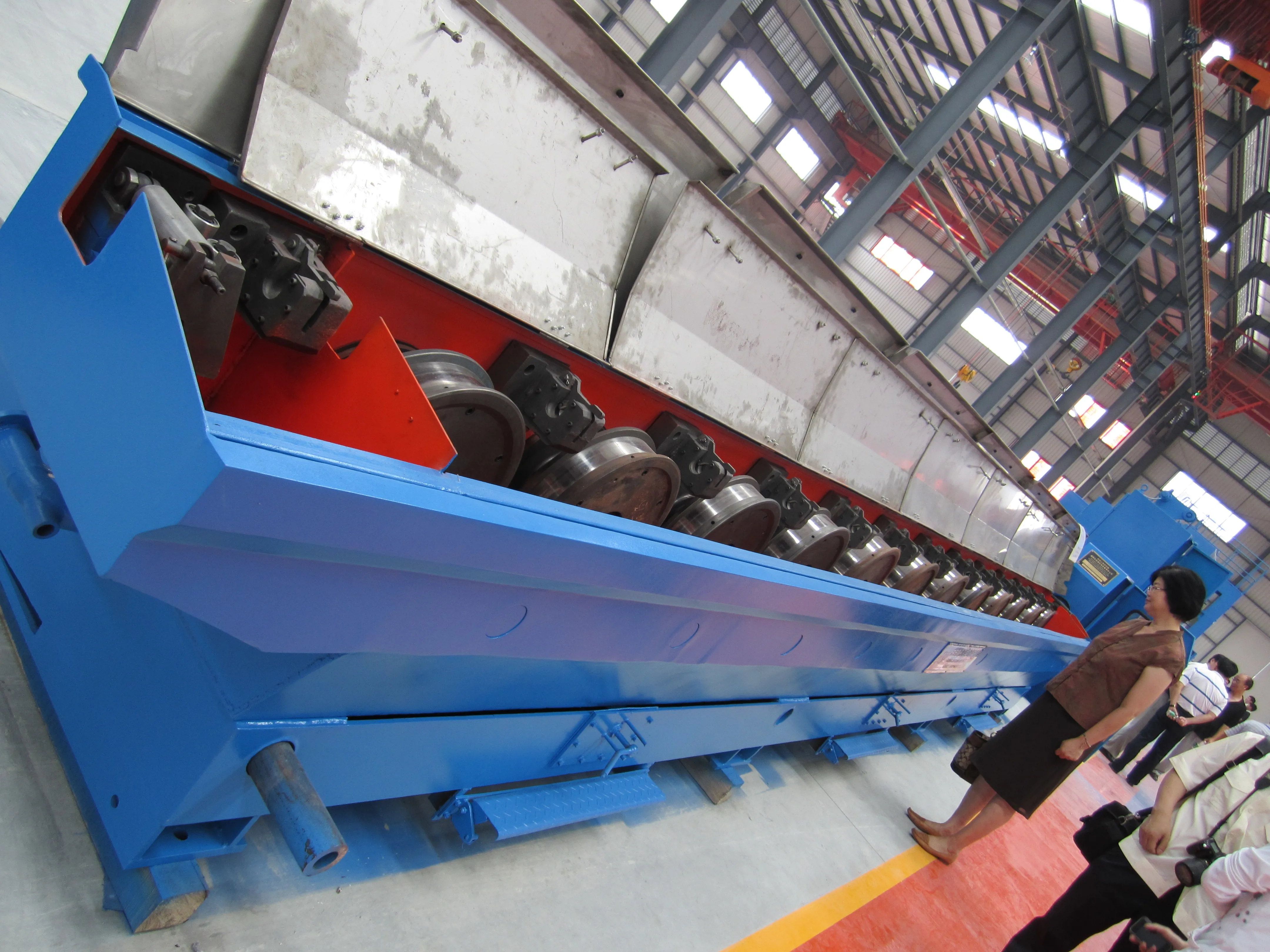

      BAOC-9DT High speed rod breakdown wire drawing machine

          Main technical parameters:



Machine type	BAOC-9DT
Input Diameter	Φ8mm
Output Diameter	Φ2.2-4.2mm
Maximum Drawing Wire Speed	20m/s
Dies Number	9pcs
Main Motor Power	AC/DC 250KW
Drawing Drum Diameter	Φ450mm

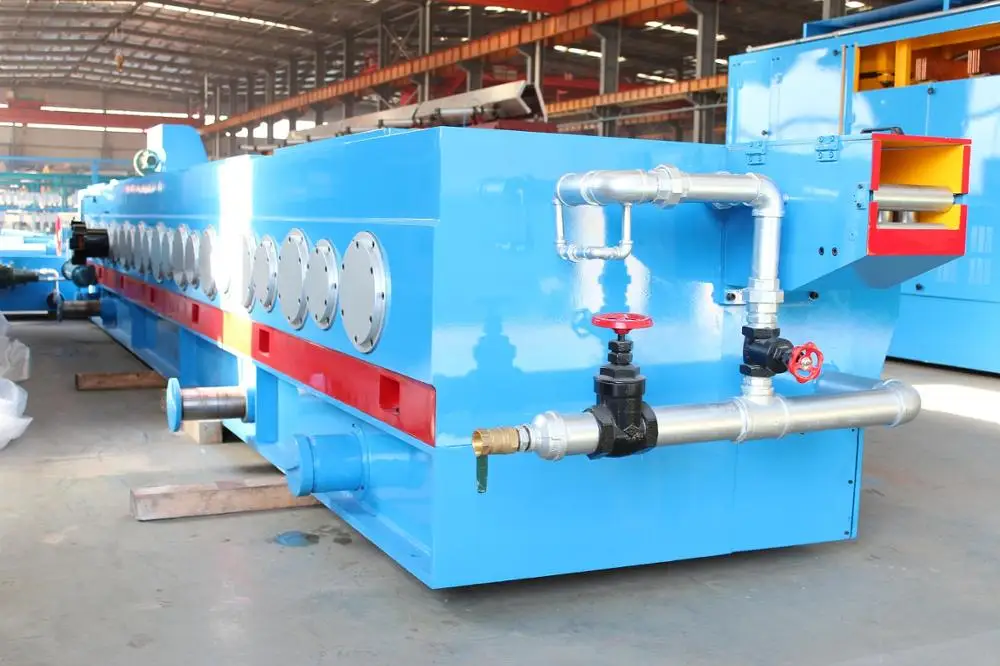

Annealing Machine Type	BAOC-450 Horizontal Type
Take-up Type	Coiler

Wuxi Baochuan Machinery Manufacture Co., Ltd. is an enterprise specialized in the research and development, production and marketing of wire and cables equipment as a whole, located in "China Cables City" - Yixing, Wuxi city. We are all the time making efforts to improve the machinery automatic and developing a series of high efficiency, energy saving and humanized electric machines, by depending on the advantages of Yangtze River Delta's talents, developed economic and location.

Our main products, including: wire drawing machine series: 13 die, 9 die high speed and low speed rod breakdown machine and online annealing(RBD); 17die high speed intermediate drawing machine and online annealing machine(IWD);20 die, 22 die, 24 die high speed fine wire drawing machine(FWD) and online annealing;15 dies, 24 dies super fine wire drawing machine; stainless, tin-coated copper, Nickel-coated, Sliver-coated and so on special material wire drawing machine and online annealing. Take up machine series: coiler machine, dual spools and single spool take up machine. Annealing and tinning machine series: 24 head( 24H),32H,40H conduit annealing and tinning machine; Tinning machine; Electroplating copper clad copper machine, Electrolytic tinning machine, Electroplating nickel machine, Electroplating copper clad copper machine, Electroplating copper clad aluminium machine, Electroplating silver machine.

Bunching machine series: 300mm, 400mm,500mm, 630mm high speed bunching machine, and assistant accessories.

We always abide by the concept of continuous improvements, sincere services and aim high for classical products, customer satisfaction. We will continuous to research, innovate and develop, with rich and professional techniques and management concepts to supply the customers' best price, best service and best quality products.

Warmly welcome all friends to visit and discuss business.
