Нагревательный картридж высокой плотности 220 В 150 Вт

Share on:

Price:4,00 $ - 6,00 $
Price in USD:Details


Product Overview


Product Description

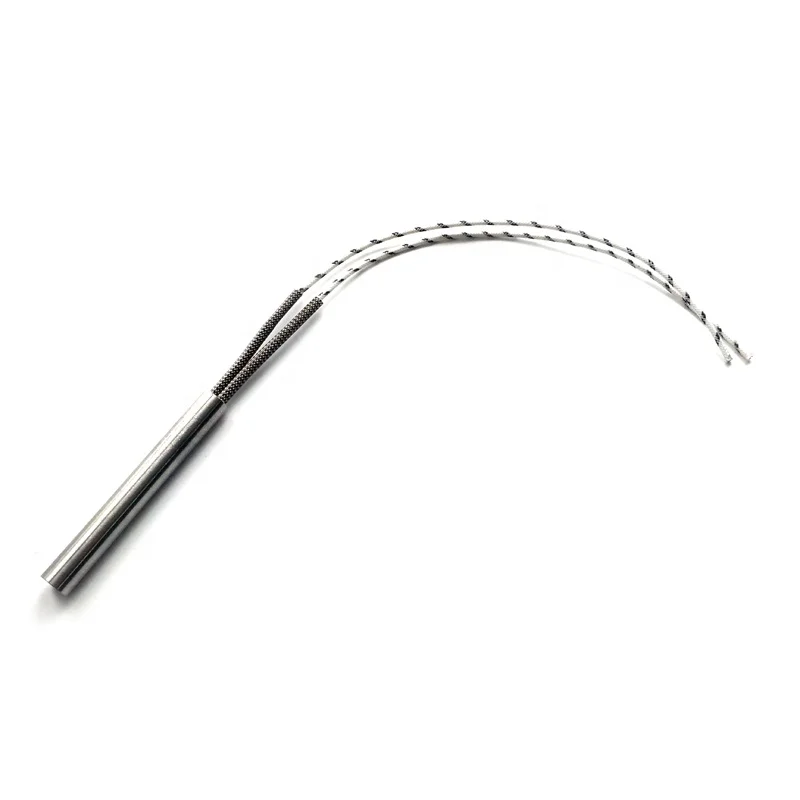

Cartridge Heater
Cartridge heater is a piece of equipment, made of MgO powder or MgO tube, ceramic cap, resistance wire(NiCr2080), high temperature leads and seamless stainless steel sheath(SS304,321,316, Incoloy800,840).

Usually in tube form, it is widely used in heating applications by way of insertion into metal blocks via a series of drilled holes.
This heater is also multi usage for air heating or immersion liquid heating with screws.
1. Tube diameter: Φ3mm-Φ25mm
2. Tube Material: SS304/SS316/SS321/NICOLOY800 etc
3. Insulation Material: High purity MgO Power
4. Resistance Wire element: Ni-Cr or FeCr
5. Lead Wire Connectiom Choice: External or Internal
6. Lead Wire Length: 250mm Fiberglass Standard ( Other Options: PTFE or Silicone)
Catrridge Heater Construction
Product Specification
Outer Sheath Material
Stainless Steel 304, 321, 316; Incoloy 800; Incoloy 840
Resistance Heating Wire
Nichrome 8020 resistance wire
Wattage Tolerance
+5%, -10%
Resistance Tolerance
+10%, -5%
Voltage Available
12 to 600 volts customied
Maxium Heating Temperature
800 Degree Celsius
Length Tolerance
Diameter Tolerance
Standard Cold Size
Insulation Resistance (cold)
≥ 500 MΩ
Maxium Leakage Current (cold)
≤0.5 mA
Lead Orientation
A) Crimped on Leads : PTFE/Fiberglass Flexible lead crimped on solid pin emerging from the Heater.
B) Swaged in Leads : Flexible Fiber Glass or PTFE leads emerging from within the heater
Product Application
* Injection moulding-Internal heating of nozzies
* Hot runner systems-Heating of manifolds
* Packaging industry-Heating of cutting bars
* Packaging industry-Heating of hot stamps
* Laboratories-Heating of analytical equipment
* Medical:Dialysis,sterilization,Blood Analyzer,Nebulizer,Blood/Fluid Warmer,Temperature Therapy
* Telecommunications:Deicing,Enclosure Heater
* Transportation:Oil/Block Heater,Aiecraft Coffee Pot Heaters,
* Food Service:Steamers,Dish Washers,
* Industrial:Packaging Equipment,Hole Punches,Hot Stamp.

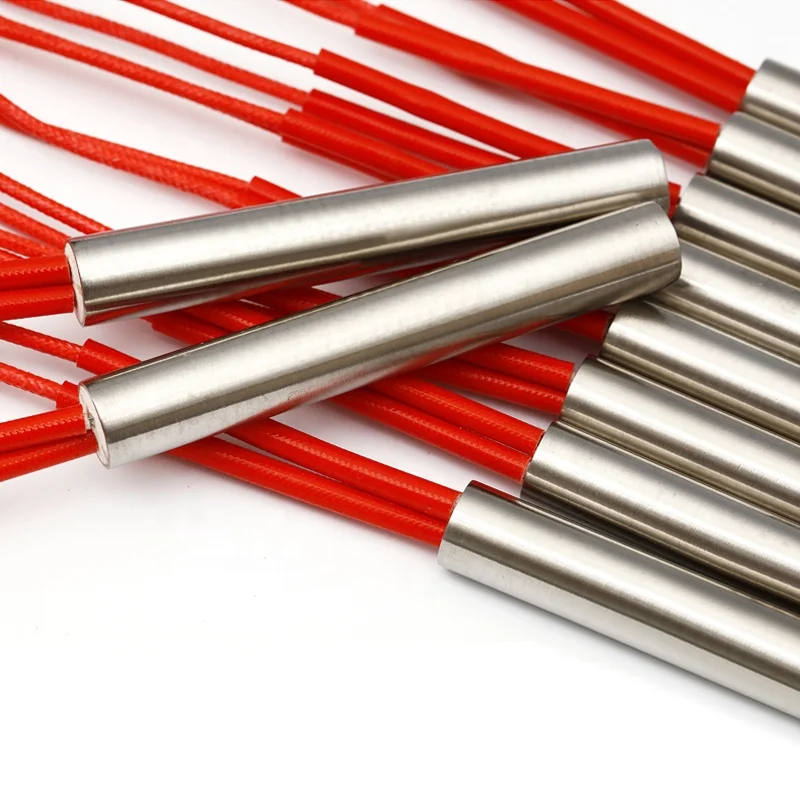

Product Show
