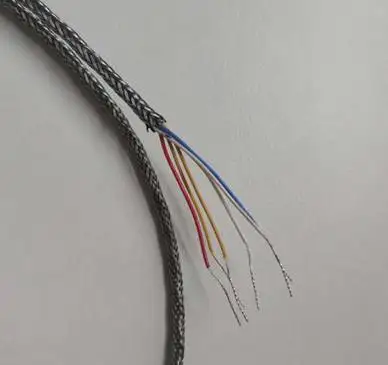

Stainless steel braid cable 7/38awg stranded Silver plated copper conductors extruded FEP insulated

Product Overview

Description

Conductor material: Copper



Material	Chemical composition (%)
	Ni	Fe	Cr	Cu	Mn
copper				100



Heating cable structure

Conductor size	7/0.1mm strand
Insulation layer	FEP
Insulation layer thickness	0.15mm
insulated conductor diameter	0.56-0.66mm*6
Out jacket	Stainless steel braid
OD of cable	2.2mm
insulated conductor color	1 red/2 white/1 blue/2 yellow



Remarks: The size can be changed if special requirement.

The thickness of insulation also can be adjusted by special requirement. We can do insulation thickness 0.2mm to 2.5mm



FEP coating

· The maximum operating temperature is 230 °C.

· Continuous use temperature 200 °C.

· The sintering temperature used for the FEP coating is 360 °C.

·FEP coating is the toughest fluoropolymer, which can form a highly durable coating with excellent chemical resistance and continuous operation at 200 °C.

·FEP spray thickness 50um (liquid), mainly used for anti-adhesion, (normal use below 200 °C) PFA electrostatic powder coating thickness can range from 0.2mm to 1.0mm, generally with primer, can not be used alone, color black green The primer is a liquid, the surface layer is a powder, the liquid is sprayed with an air spray gun, and the powder is an electrostatic powder spray gun.

· Corrosion resistance: FEP is almost free from chemical attack and can protect the product from any kind of chemical corrosion.



Available conductor alloy grade as follows:



NiCr60/15	CuNi44	CuNi23	OCr25Al5	OCr21Al6
Nickel 200	Nickel 201	Nickel 212	Tinned copper wire	CuNi6
CuNi10	NiCr35/20	NiCr AA	Inconel 600	Inconel 625



Available color: Black, white, green, red, yellow, blue





FAQ
1. What's the minimum quantity customer can order?

If we have your size in stock, we can provide any quantity you want.

If we do not have, for spool wire, we can produce 1 spool, about 2-3kg. For coil wire, 25kg.



2. How can you pay for small sample amount?

We have Western union account, wire transfer for sample amount also ok.



3. Customer do not have express account. How will us arrange the delivery for sample order?

Just need to provide your address information, we will check the express cost, you can arrange the express cost together with sample value.



4. What's our payment terms?

We can accept LC T/T payment terms, it also depending on delivery and total amount. Let's talk more in details after getting your detailed requirements.



5. Do you provide free samples?

If you want several meters and we have stock of your size, we can provide, customer need to bear the International express cost.



6. What's our working time?

We will give you reply through email/phone Online contact tool within 24 hours. No matter working day or holidays.
