Technical Parameter:

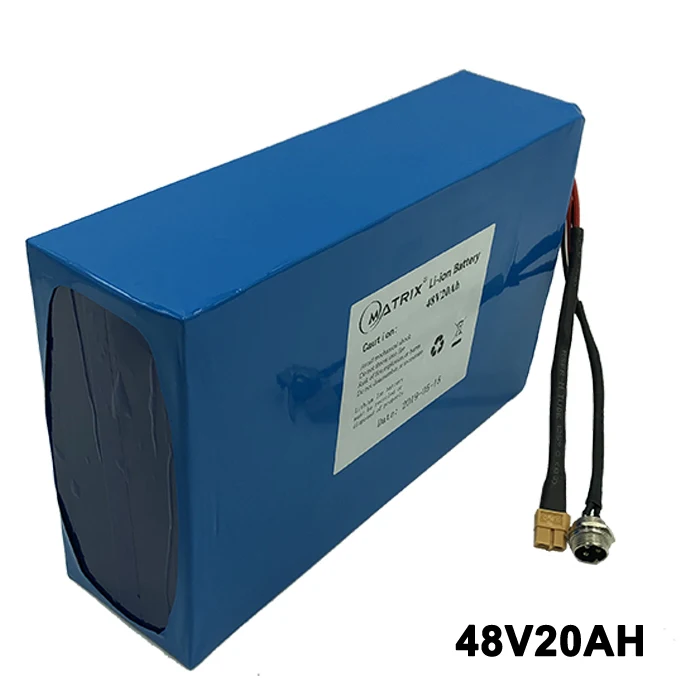

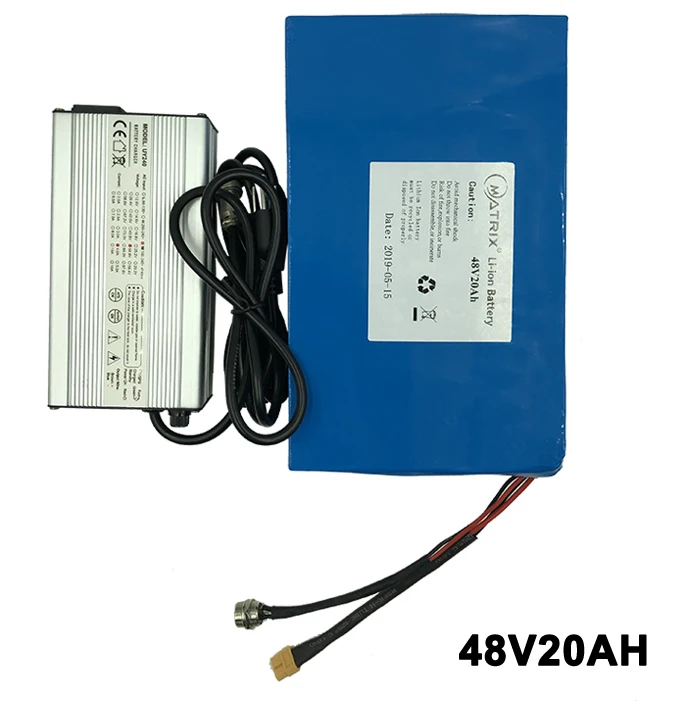

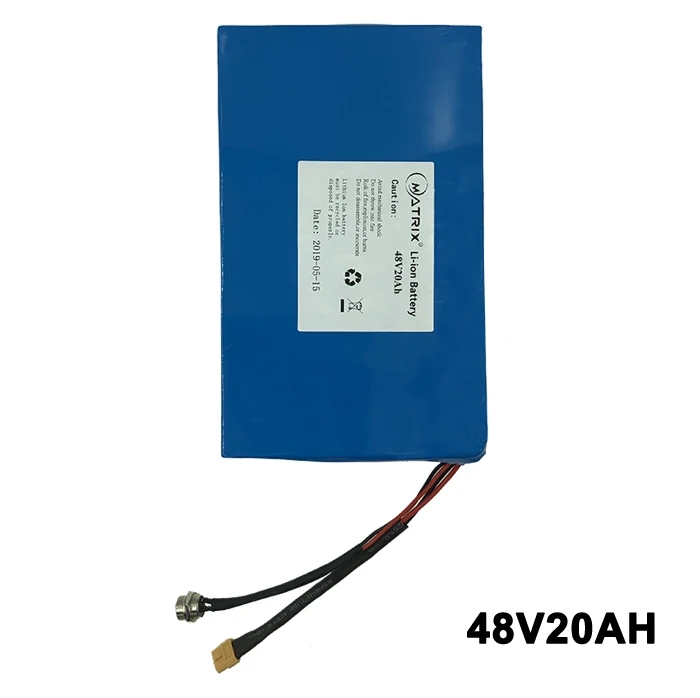

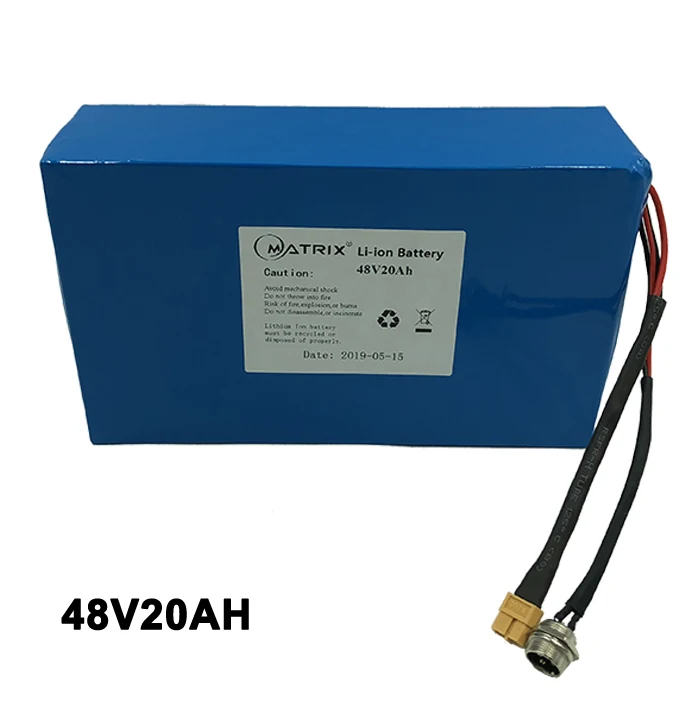

electric scooter battery box
48V 20Ah lithium battery pack for Electric bike
Item. | Matrix 18650-13S8P |
Nominal Capacity | 20Ah |
Nominal Voltage | 48V |
Max Working Current | 30Amp |
Charger | 4Amp Charger |
Battery cell | Domestic A grade cell 18650-2500mah |
Weight (Approx.) | 5.5kg |
Dimensions | 280*160*75/mm |
Plug | US Plug |
Charge Method | CC/CV |
Operating Temperature | 0℃~45℃ (charge) |
-20℃~60℃ (discharge) | |
-20℃~45℃ (storage) | |
Connector & Cable | XT-60 & 3-pin Aviation |
PVC Wrap | Black/Blue/Green |
LED display | NO |
Switch for ON/OFF | No |
Feature:
1. Safety: safest Li-Ion battery, PCB board protect, none fire, none explosive
2. Clean and Green energy, no toxic material contained
3. Long life cycle, > 500 times deep cycle,8 times of lead acid battery
4. No memory effect,highly efficient charge anytime, no reduction of capacity
5. Operation temperature: -20~70°C
6.Small size, light weight: 1/2 size of lead acid battery, 70% size of Ni-MH Ni Cd battery, 1/2 weight of lead acid battery
7. Good performance at high temperature and high temperature resistance
8. Low self-discharge rate: < 3% monthly
