2.6 inch 6.6cm 240xRGBx320 TPO 60H00106 00M 990000004 304000067C LTPS Transmissive cog graphic TFT LCD display screen module
- Category: >>>
- Supplier: Shenzhen Liyuan Huida Technology Co. Ltd.
Share on (62169401438):
Product Overview
Description
Product type
2.6 inch 6.6cm 240xRGBx320 TPO 60H00106-00M 990000004 304000067C LTPS Transmissive cog graphic TFT LCD display screen module
Detailed Images
Product Description
1. FEATURES
The 2.6”(6.6 cm) LCD module is a transmissive active matrix color TFT LCD module. LTPS (Low
Temperature Poly Silicon) TFT technology is used. Vertical and horizontal drivers are built on the
panel.

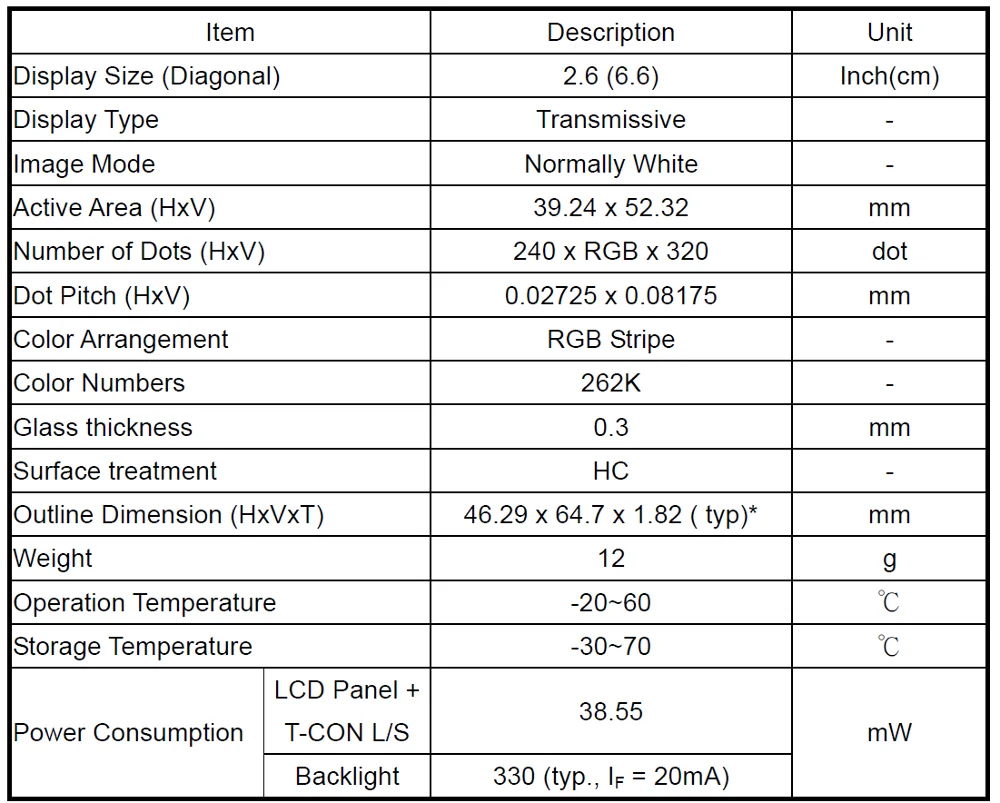

2. GENERAL SPECIFICATIONS
| NO. | Item | Description | Unit |
1 | Display Size | 2.6(6.6) | Inch(cm) |
| 2 | Display Type | Transmissive | - |
| 3 | Image Mode | Normally White | - |
| 4 | Number of Dots | 240xRGBx320 | Pixel |
| 5 | Dot Pitch | 0.02725x0.08175 | mm |
| 6 | Color Arrangement | RGB Stripe | - |
| 7 | Color Numbers | 262K | - |
| 8 | Glass Thickness | 0.3 | mm |
| 9 | Surface Treatment | HC | - |
| 10 | Outline Dimension | 46.29x64.7x1.82(typ.)* | mm |
| 11 | Weight | 12 | g |
| 12 | Operating Temperature | -20~60 | ℃ |
| 13 | Storage Temperature | -30~70 | ℃ |

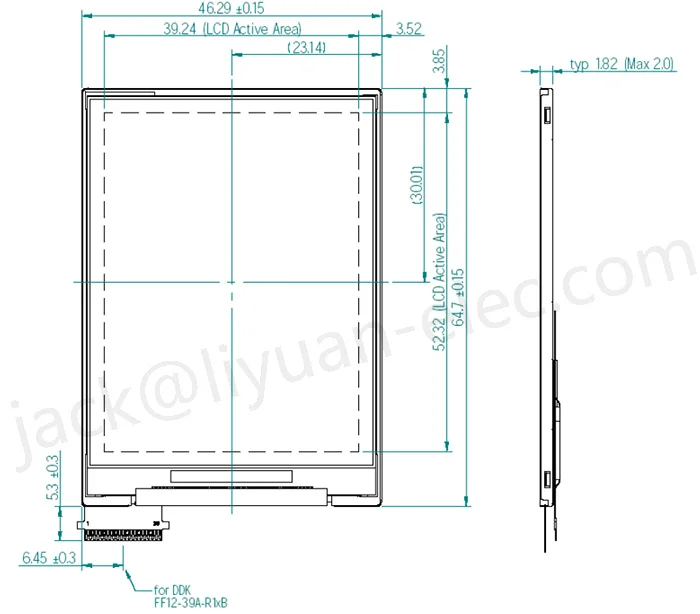

3. Mechnical Drawing
