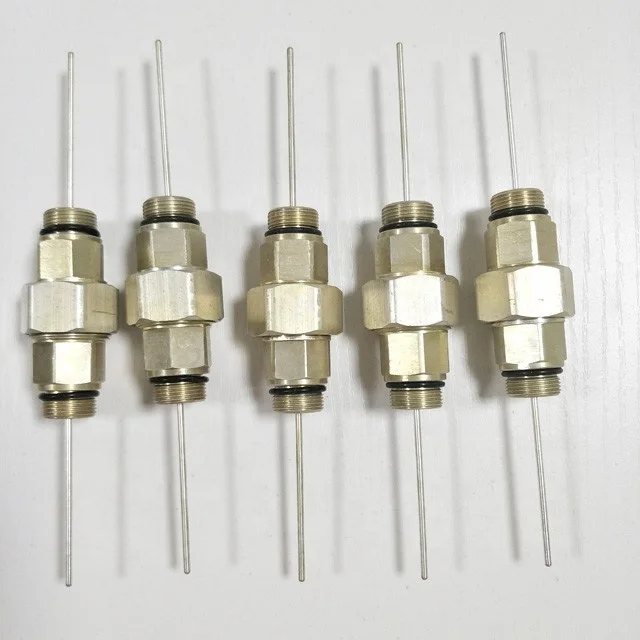

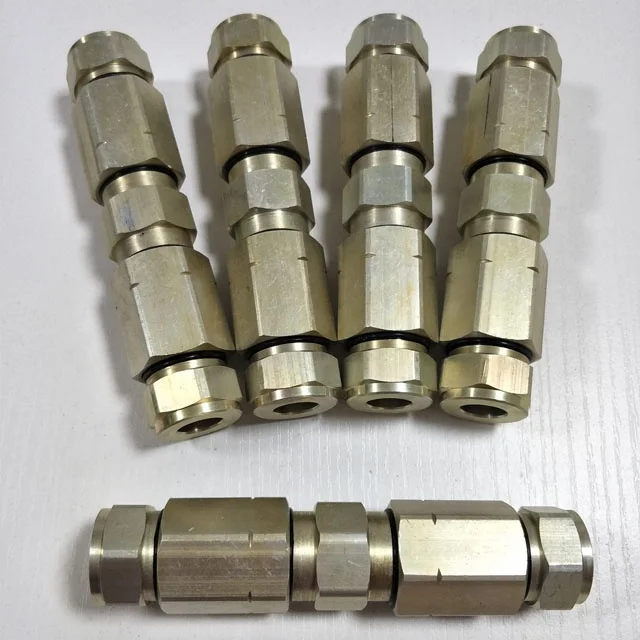

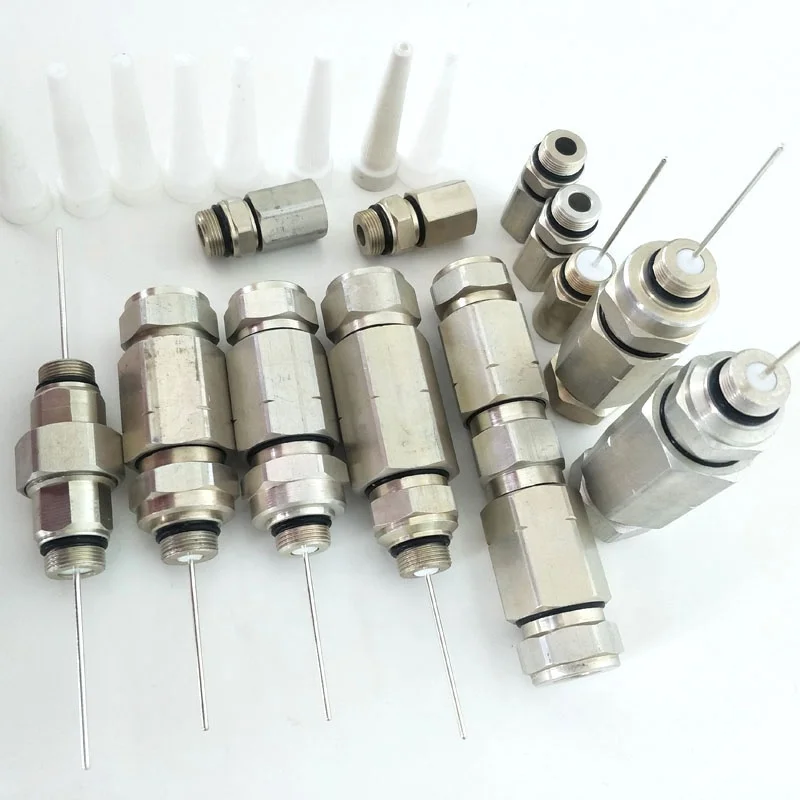

RG500 RG540 Coax Cable 500 Connector
- Category: >>>
- Supplier: Hangzhou Baixin Imp. & Exp. Co. Ltd.
Share on (62169427331):
Product Overview
Description
Product Description
RG500 RG540 Coax Cable 500 Connector
1.Bandwidth:0~1000MHz
2. Type:F
3. Gender:male
4. Impedance:75ohm
5. Material:aluminium
6. Packing:5 pcs into a polybag,250pcs/ctn
7. MOQ:500 pcs
Major technical characteristics:
Temperature Range |
| -40 to +60°c |
Vibration |
| 100m/s2 (10-500Hz). 10g |
Impedance |
| 50Ω,75Ω |
Frequency Range |
| DC to 1GHZ |
Working Voltage |
| 170V r.m.s at sea level |
Withstanding Voltage |
| 500V r.m.s at sea level |
Contact Resistance | Center contact | ≤10m Ω |
| Outer contact | ≤5m Ω |
Insertion Loss |
| ≤0.24dB(6GHz) |
Insulation resistance |
| ≥1000M Ω |
Center Conductor Retention Force |
| ≥0.2N |
Voltage Standing Wave Ratio | Straight | ≤ 1.20/6GHz |
| Right angle | ≤ 1.30/6GHz |
Durability(mating) |
| ≥ 500cycles |
Material and plating:
Body | copper material | Nickel plated |
Pin contact | Annealed copper, Brass with gold, nickel, zinc, silver plated | Gold plated |
Socket contact | Beryllium or tin bronze | Nickel plated |
Resilient Contact | Beryllium-copper | Nickel plated |
Insulator | PTFE, PE, Teflon, POM, PP |
|
Crimp Ferrule | copper material | Nickel or gold plated |

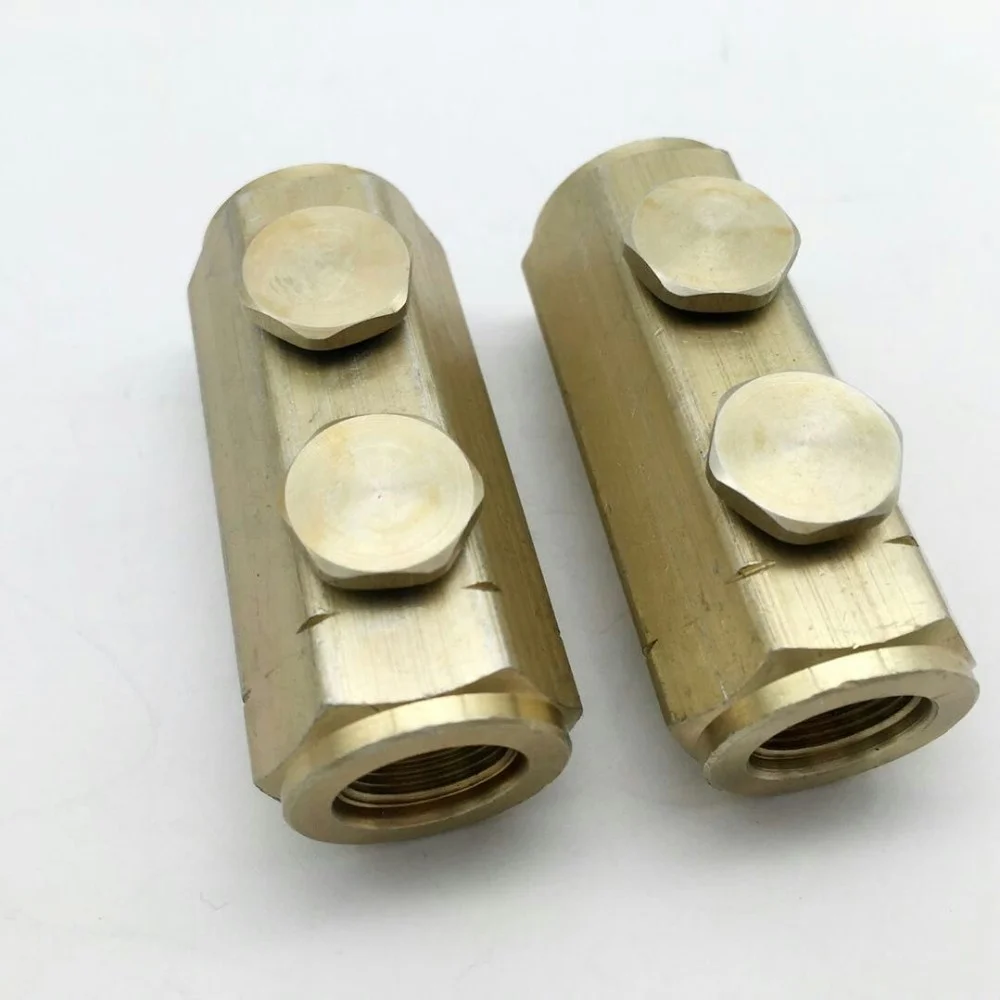

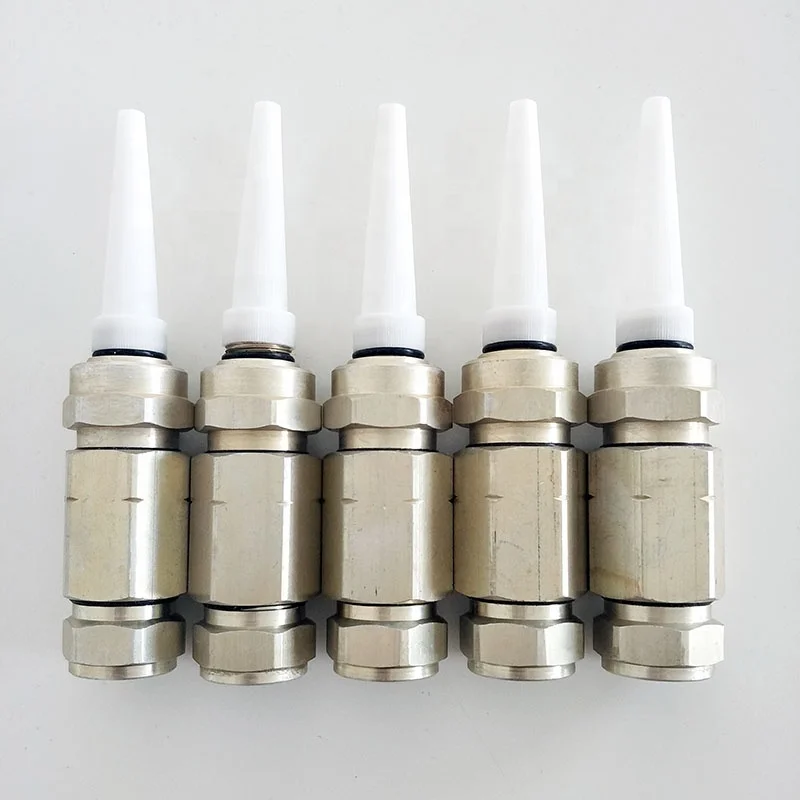

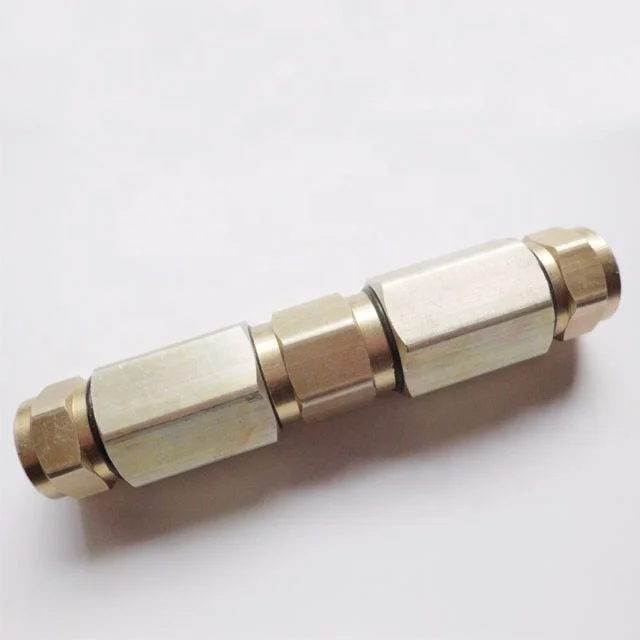

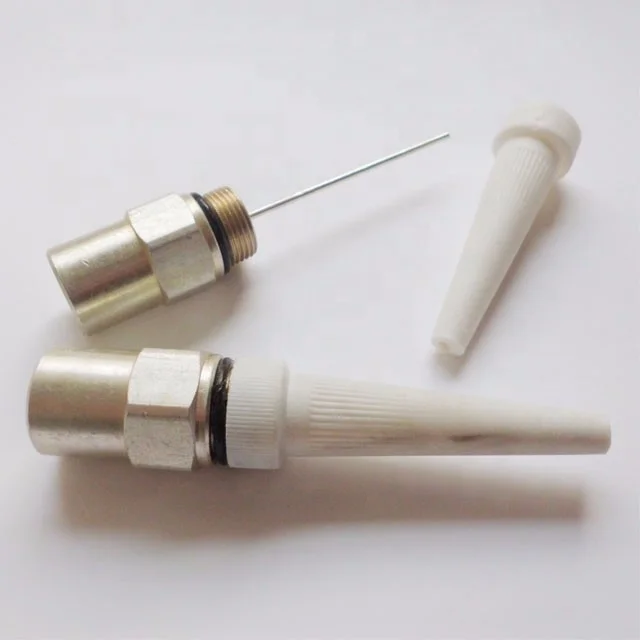

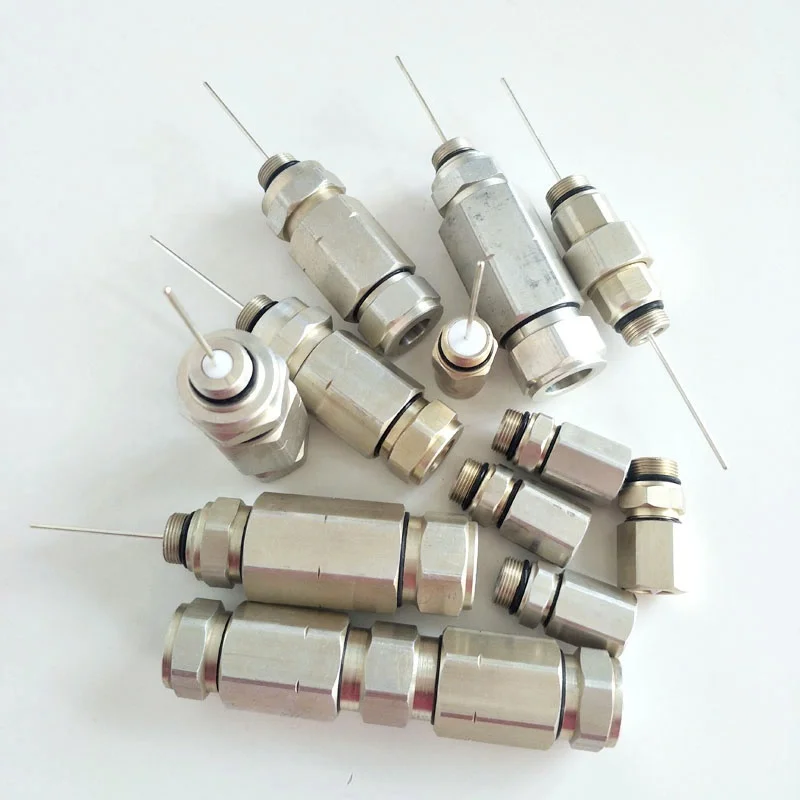

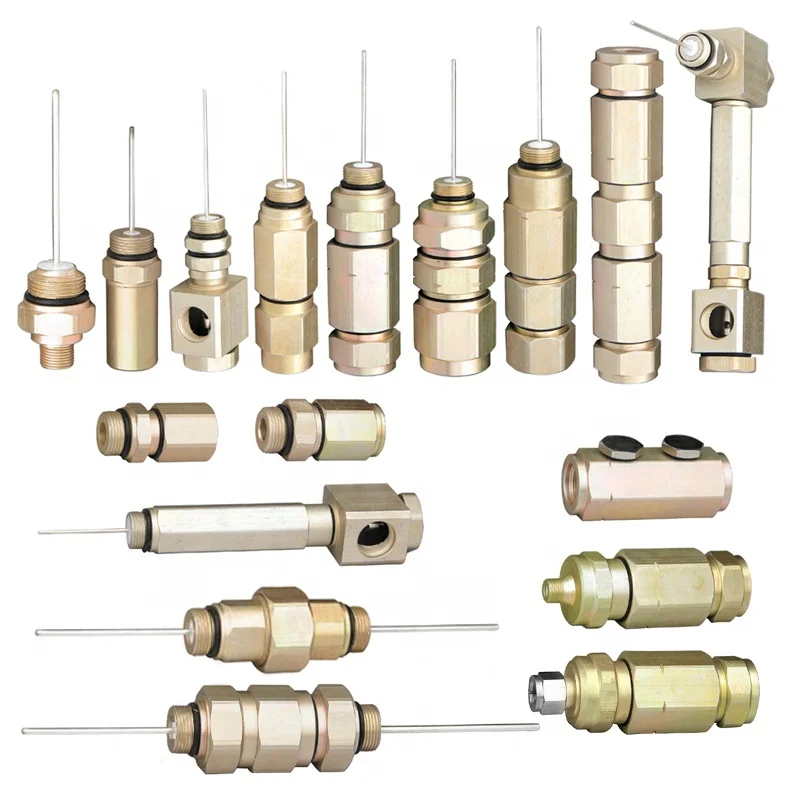

Product show:
Packaging & Shipping

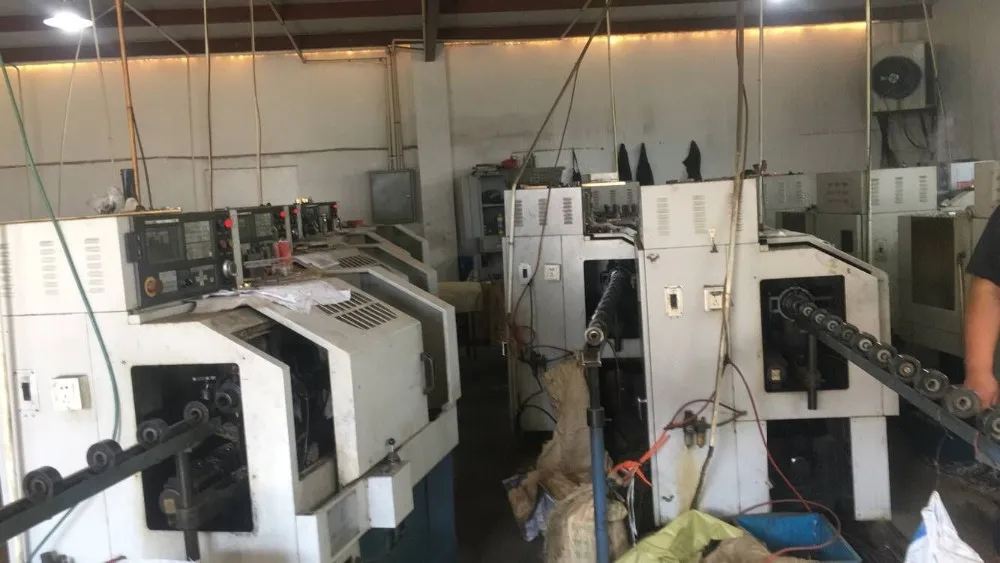

Company Information
Our Services
Delivery time:7~15 days
FOB Port: Ningbo,shanghai
Payment:TT/LC
