Речная Песочная транспортная dewatering вибрируя экран влажной кварцевого песка обезвоживания экран

Describe:

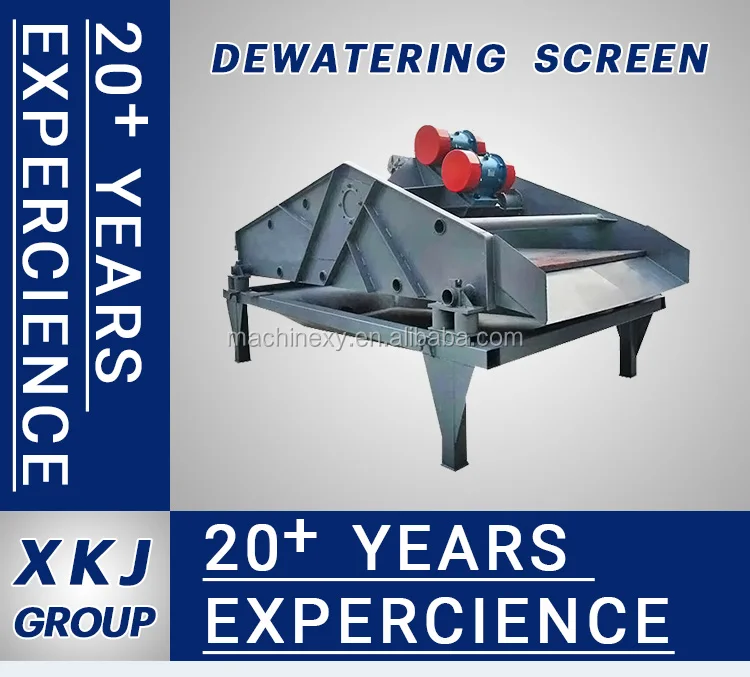

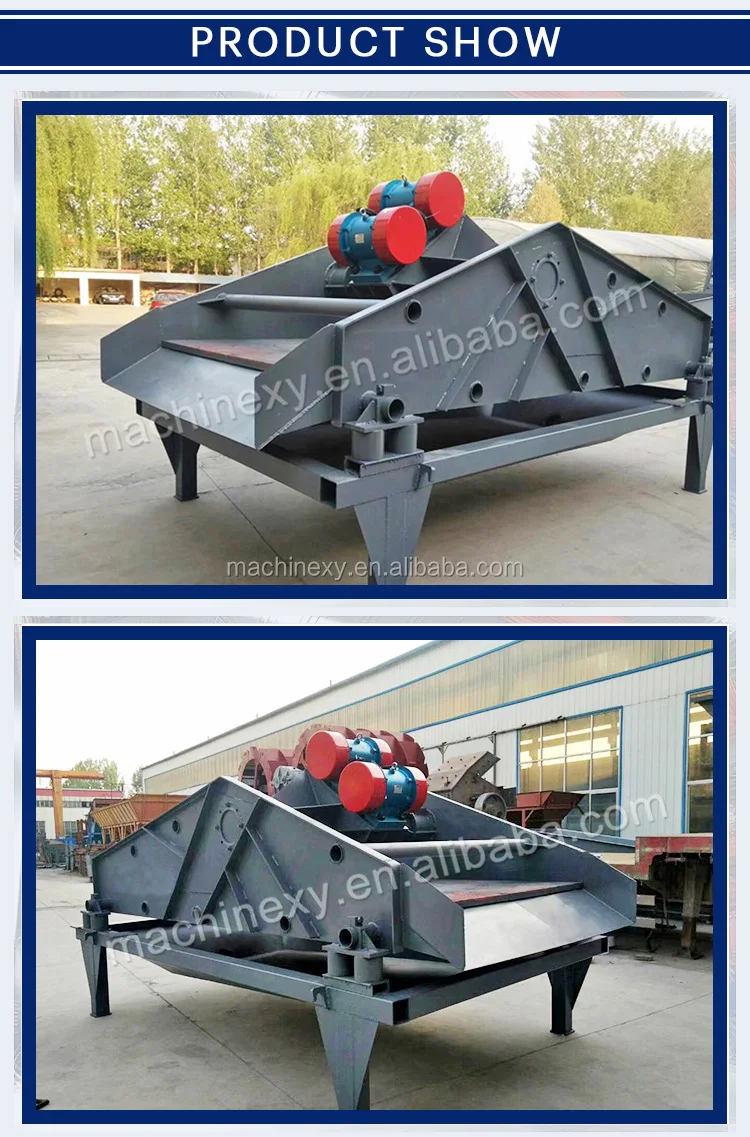

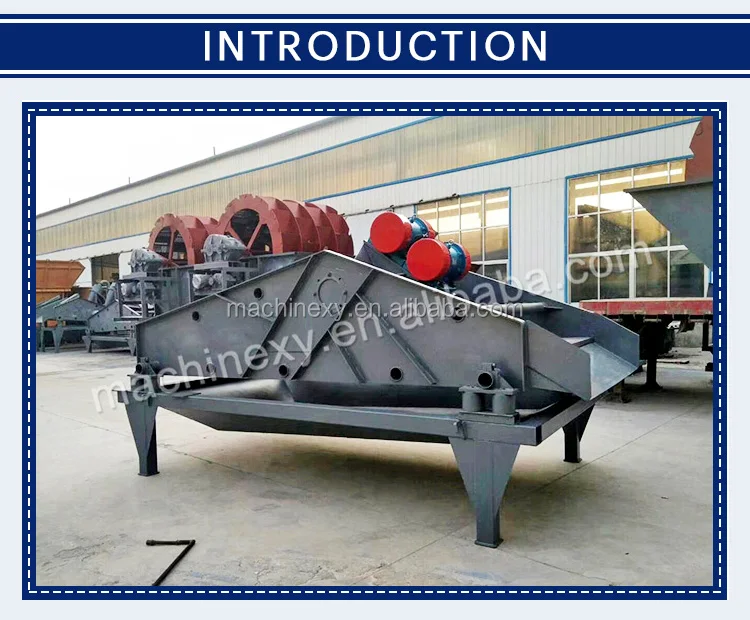

Dewatering screen is manufactured for processing the mine tailing. It is widely used in dehydrating iron ore, copper ore, gold ore, aluminum ore, etc. Simple and compact structure, low invest, high working performance, little noise and easy maintenance make it a hot screen in market.

Advantage:

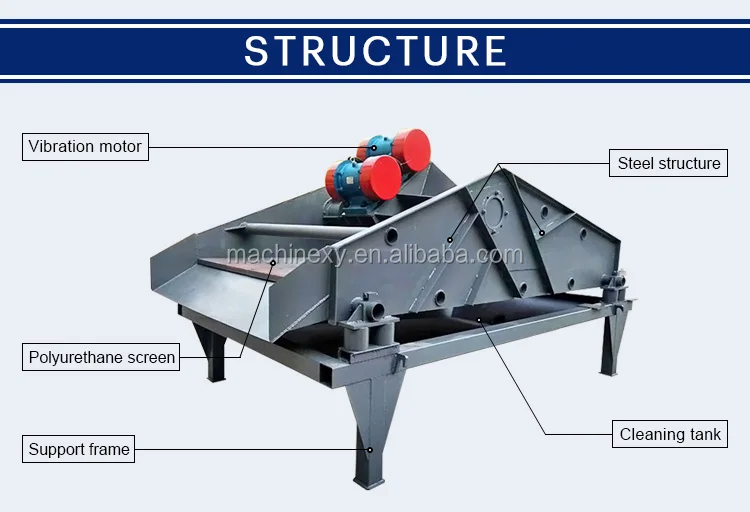

1. Individually replaceable cross member.

2. Runner system for polyurethane modular unit.

3. Flat bar runner system for woven wire decks.

4. Automatic alignment of tensioning bolts for side tensioned woven wire decks.

5. Stress relieving technology in design.

6. Multiple design of screening surface available.

Note:

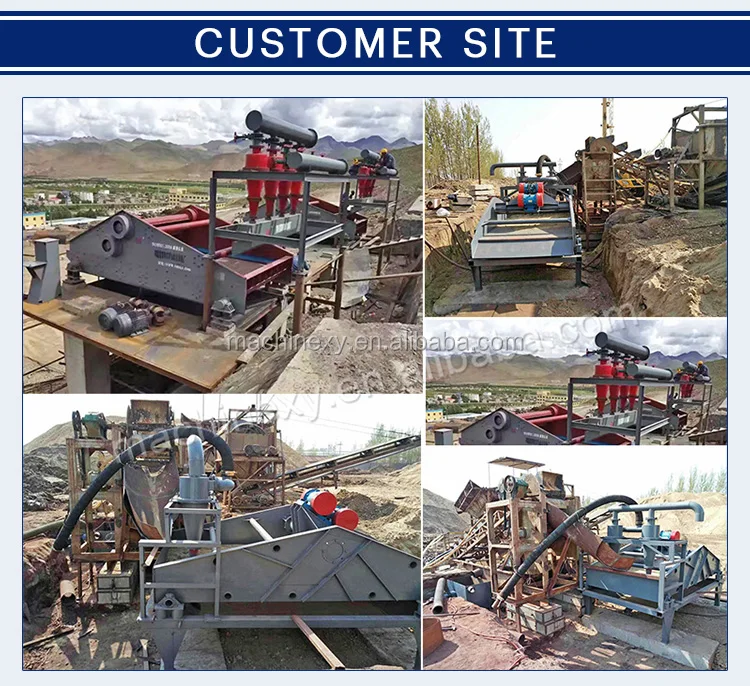

Dewatering Vibrating Screen, the main role is dehydration, desilting, disintermediation, can be used for sand and stone plant washing sand, coal preparation plant slurry recovery, tailings dry discharge, so also called sand and stone dehydration screen, mine dehydration screen, coal slurry dehydration screen, tailings dehydration screen.

Model

Sieve area

(m²)

Power

(kW)

Capacity

(t/h)

Input size

(mm)

Weight

(t)

Overall dimension

(mm)

1885*1290*1024

2485*1590*1324

3.6

3085*1590*1424

Working principle:

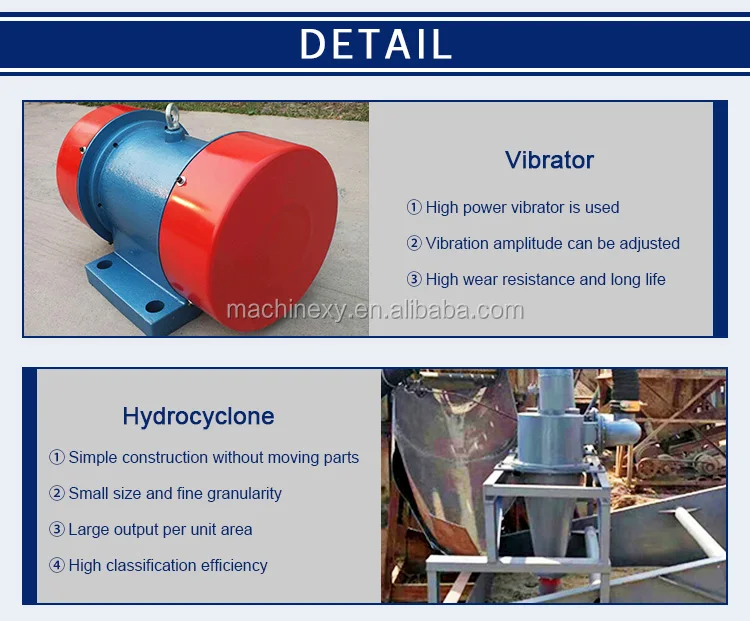

Dewatering screen is driven to rotate synchronously in different directions by two vibrating motors, which makes the screen sieve move on periodical and to-and-fro linear trajectory to achieve screen classification purpose. When feeding the mine tailing to its sieve, driven by vibration motors, water is dehydrated and the smaller size mine is separated from mine tailing.

Packaging detail:

Standard containers, bare main machine, motors and small parts are packed in wooden cases.

Delivery port:

Within 45 days Qingdao,Shanghai,Tianjin and other ports.
