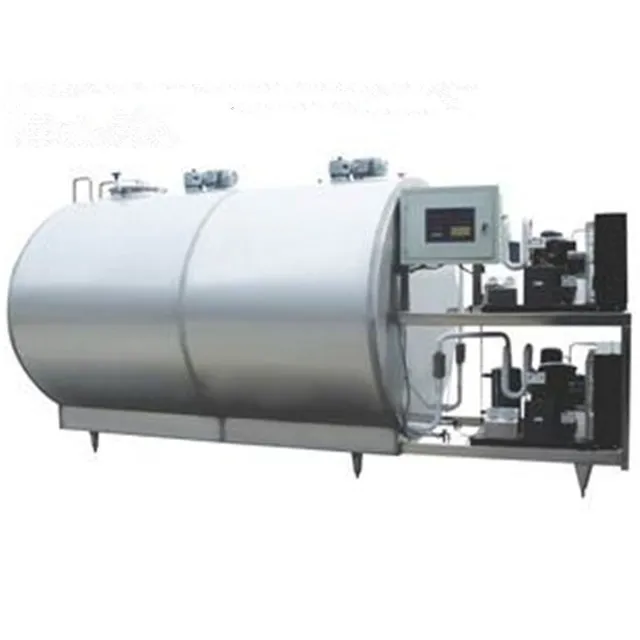

dairy milk cold storage tank

Product Overview

Description

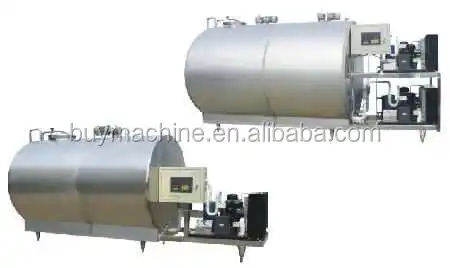

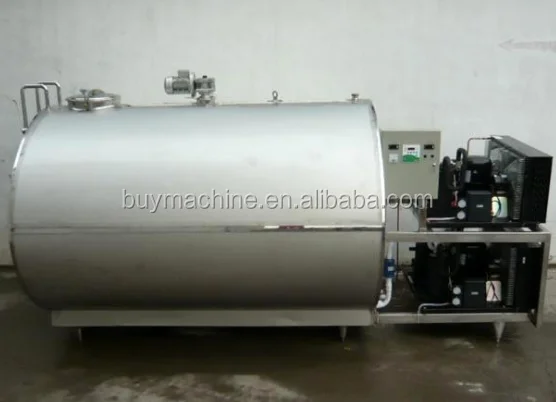

Milk direct cooling tank

Milk cooling storage tank

Milk cooling tank



Description:

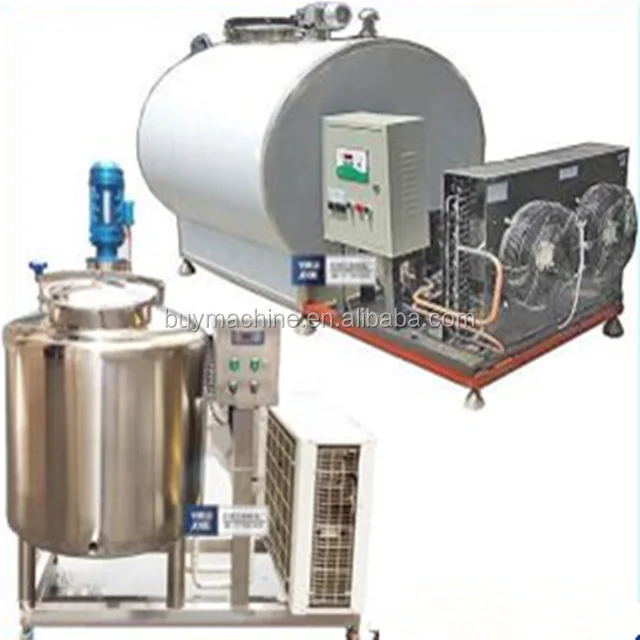

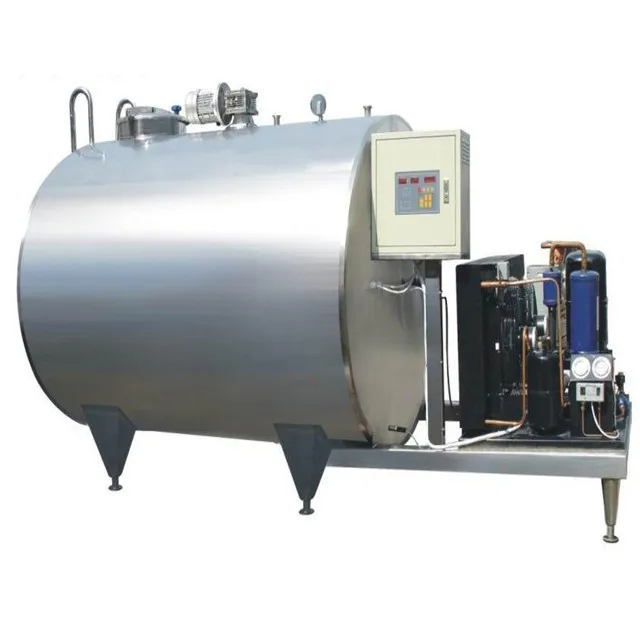

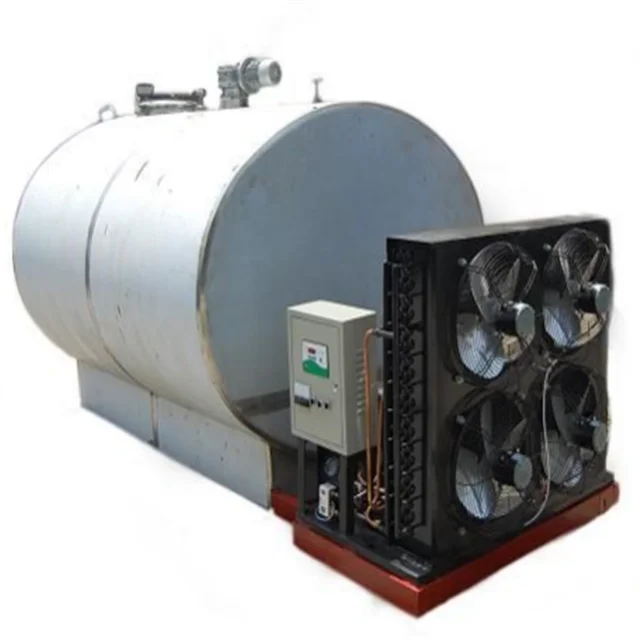

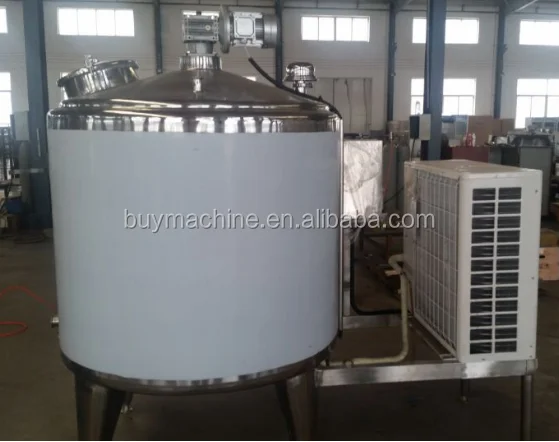

The Sanitary grade Stainless steel 304 milk cooling tankis mainly used in cooling to storage milk or other liquid. It absorbs international advanced technology, adopts importing compress machine, safety and protection system, micro computer monitor, advanced technique and equipment such as polyurethane bubbling, honeycomb board evaporator. So it is the ideal cooling and storage equipment for pasture, milk station, milk factory, food factory, and beverage factory and pharmacy industry for keeping the milk raw milk in its best situation and prevents the bacteria.



This system can cooling large area of the inside pot surface, utilizing the automatic computer control system to observe and operate, which can quickly lower the temperature to 4and keep to this constant temperature, that prevent from the growth of the bacteria.



The refrigeration compressor unit are choose the excellent performance and energy-saving European Maneuropcompressor, equipped with the creditable midpoint protector that will prevent the equipment from burning out caused by over loading or system fault. The heat preservation layer utilized the new technique of the anti-aging polyurethane blister; it owns the brilliant characteristics of heat in solutions. The body of the Pot(vessel) make by the high quality stainless steel material 304 (OCr18Ni9), equipped with automatic cleaning ball and mixing system.



Type	KQ-1T horizontal type	KQ-2T horizontal type	KQ-3T horizontal type	KQ-4T horizontal type	KQ-5T horizontal type
Capacity(L)	1000	2000	3000	4000	5000
Refrigerating  Fluid(R)	R22	R22	R22	R22	R22
Insulating Property	≤1℃/4h	≤1℃/4h	≤1℃/5h	≤1℃/5h	≤1℃/5h
Agitator Speed	36r/min	36r/min	36r/min	36r/min	36r/min
Power (Kw)	3.8	5.9	7.5	10	12
Voltage	380V/50Hz	380V/50Hz	380V/50Hz	380V/50Hz	380V/50Hz
Dimension(mm)	1800*1200*1500	3400*1550*1750	3600*1700*1900	4000*2000*2100	4200*2050*2200
